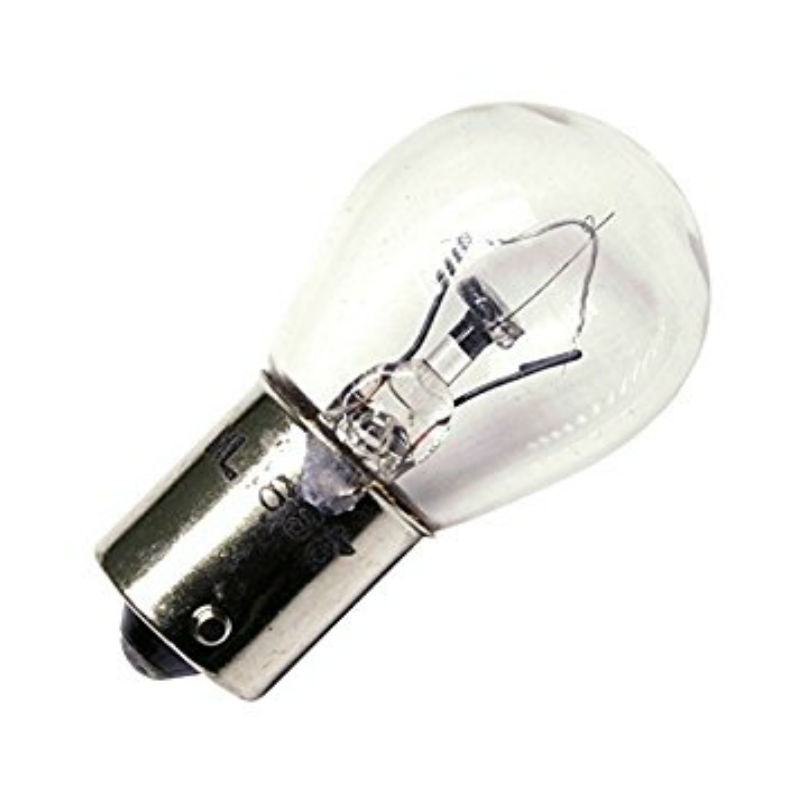

GE Incandescent Lamp: 22w,28v - 10pk | 1665 | 27532
GENERAL CHARACTERISTICS
Lamp type Miniature - S Shape
Bulb S8
Base Single Contact Bayonet (BA15s)
Primary Application Aircraft; Low Voltage
Filament C-2V
Rated Life (MIN) 22 hrs
Rated Life (Vert) 1000 hrs
Rated Life 1000 hrs
Rated Life (Hor) 22 hrs
Atmosphere Gas-filled
PHOTOMETRIC CHARACTERISTICS
Initial Lumens (Vert) 264
Initial Lumens 264
Initial Lumens (Hor) 12
Nominal Initial Lumens per Watt 12
Center Beam Candlepower (CBCP) 264
Mean Spherical Candlepower (MSCP) 21
ELECTRICAL CHARACTERISTICS
Wattage 22
Voltage (MIN) 1000.0
Voltage 28
DIMENSIONS
Maximum Overall Length (MOL) 2.0000 in (50.8 mm)
Bulb Diameter (DIA) 1.0000 in (25.4 mm)
Light Center Length (LCL) 1.1200 in (28.4 mm)
PRODUCT INFORMATION
Product Code 27532
Description 1665
ANSI Code 1665
Standard Package Case
Standard Package GTIN 20043168275327
Standard Package Quantity 50
Sales Unit Unit
No Of Items Per Sales Unit 1
No Of Items Per Standard Package 50
UPC 043168275323
