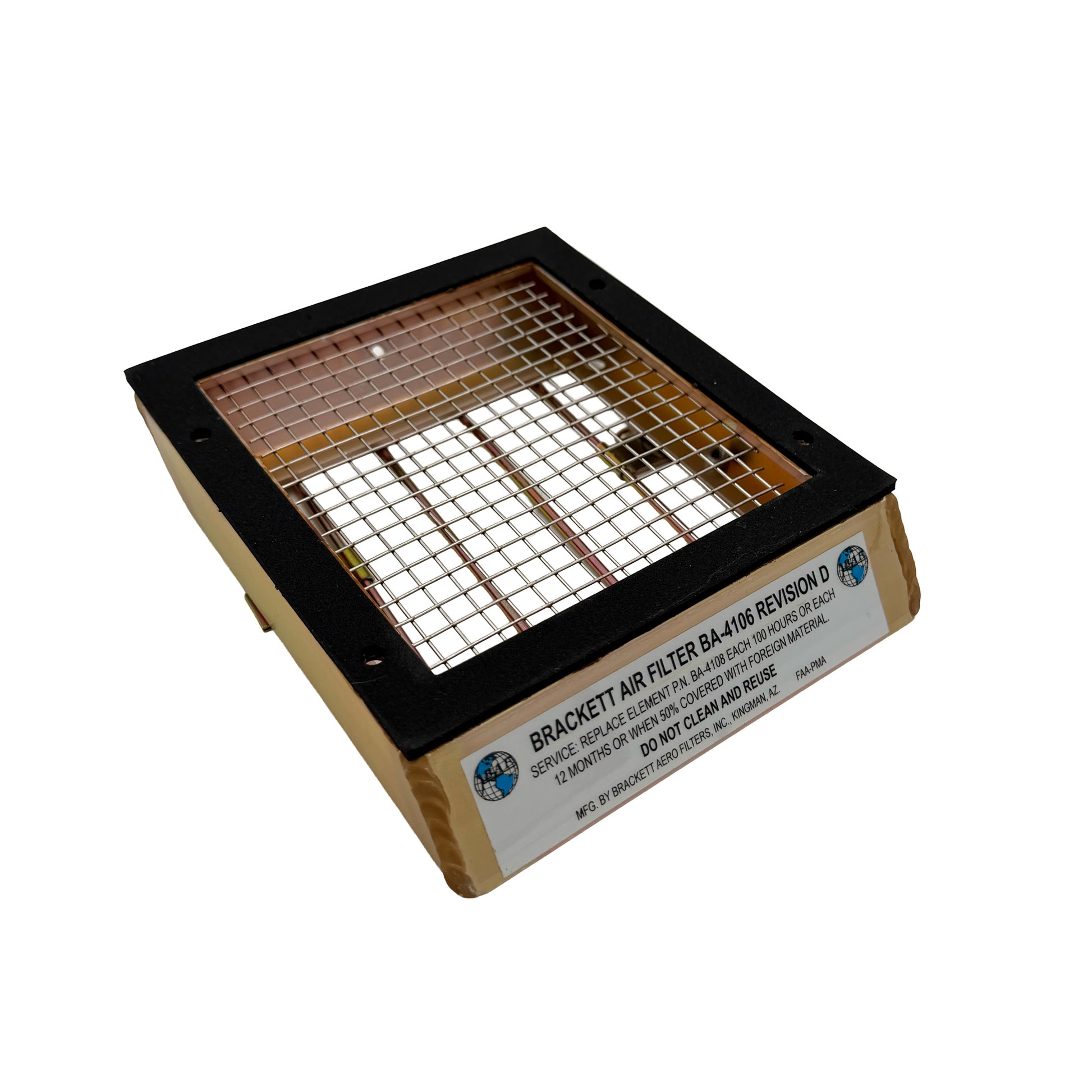

• Brackett BA-4106 aircraft air filter assembly

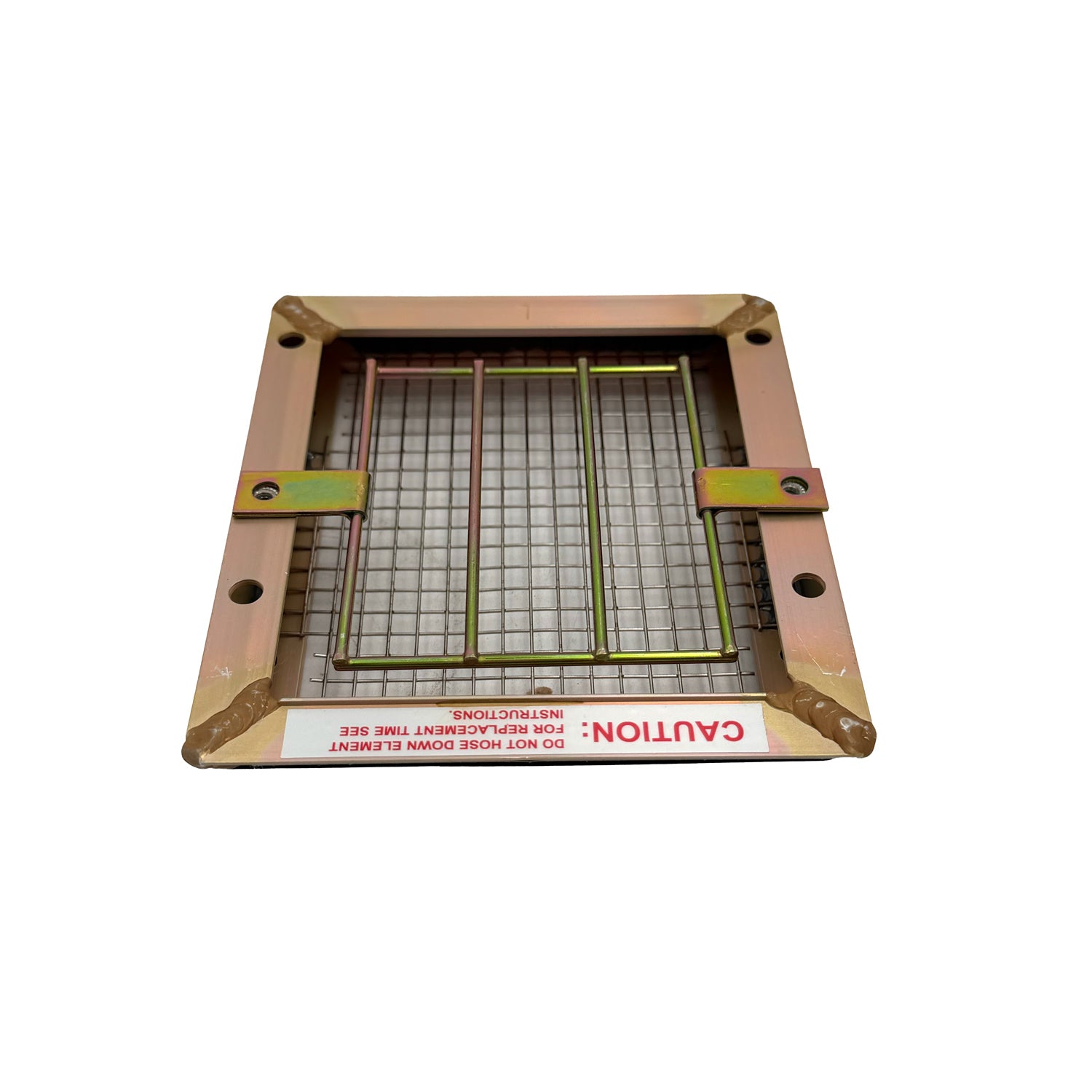

  • Brackett BA-4106 aircraft air filter assembly bottom view

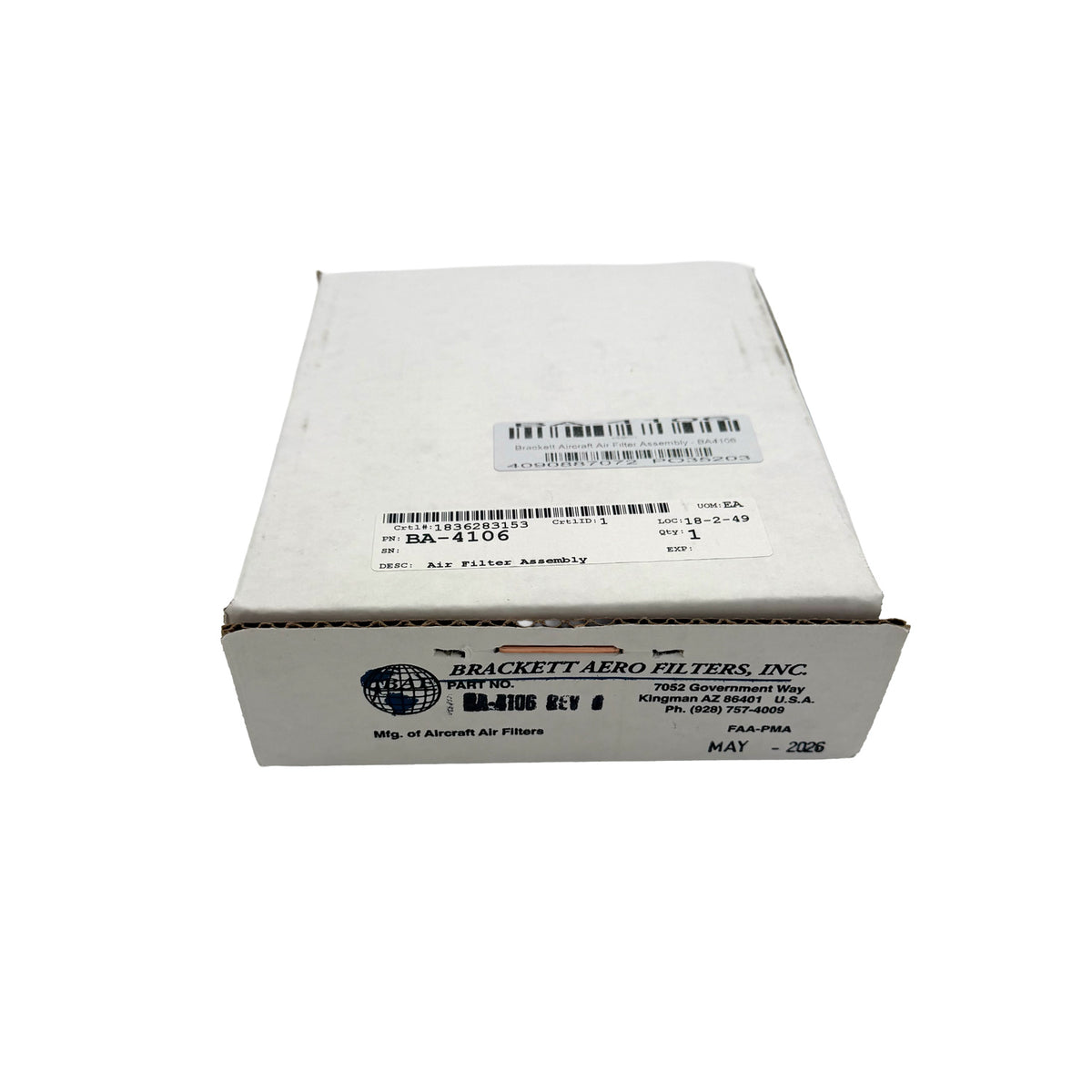

  • Brackett BA-4106 aircraft air filter assembly packaging
  • Brackett BA-4106 aircraft air filter assembly diagram
1 4

Brackett BA-4106 Aircraft Air Filter Assembly for Cessna & Piper

Brackett BA-4106 Aircraft Air Filter Assembly for Cessna & Piper

Brackett Aero Filters

Low stock: 1 left

BA-4106

$75.88 USD
$97.70 USD $75.88 USD
Sale
Shipping calculated at checkout.

Brackett BA-4106 Aircraft Air Filter Assembly

The Brackett BA-4106 Aircraft Air Filter Assembly is designed for a wide range of general aviation aircraft, including select Cessna, Piper, Champion, Luscombe, Taylorcraft, Reims and other models. The BA-4106 uses the replaceable Brackett BA-4108 air filter element and is approved under STC SA71GL for eligible aircraft installations.

Features & Benefits

  • Complete aircraft air filter assembly for approved BA-4106 applications
  • Uses the replaceable Brackett BA-4108 filter element
  • Approved under STC SA71GL for eligible aircraft installations
  • Applications include select Cessna 120, 140, 150 and 152 aircraft and numerous Piper, Champion, Luscombe and Taylorcraft models
  • Compact 5" x 5-1/2" x 1" filter assembly
  • Cross-references several AC, Air Maze, Cessna, CMC, Donaldson and Piper filter part numbers

Brackett BA-4106 Specifications

Part Number BA-4106
Length 5"
Width 5-1/2"
Height 1"
Approximate Weight 0.44 lb
STC SA71GL

Assembly Part Numbers

Replacement Element BA-4108
Gasket BA-4101
Front Grill BA-4102
STC / Installation Sheet BA-4105

Filter Cross Reference

Filter Manufacturer Part Number
AC AAF-117
Air Maze AM 13203
Cessna (IPC) C294510-0201
CMC 40599
Donaldson P12-0494, P10-7150
Piper (IPC) 560-722, 460-638

Eligible Aircraft Models

The Brackett BA-4106 air filter assembly is approved for the aircraft applications listed below. Because eligibility can depend on the exact aircraft model, configuration and serial number, verify applicability for your aircraft before installation.

Manufacturer / Airplane Eligible Model(s)
Aeronica 65CA
Alarus CH-2000
Cessna 120, 140, 140A, 150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150K, 150L, 150M, A150M, 152, A152
Champion 7ECA w/ Continental O-200-A, 7ACA, 7ECA, 7FC
Legend Cub PA-11 Style Closed Cowl
Luscombe 8, 8A, 8B, 8C, 8D, 8E, 8F, T-8F
Mooney M10
Morrisey 2150A
Piper J-3, J-3C-65, J-3-65s, J-4A, J-4A-S, J-5,
PA-11, PA-11-11S, PA-12, PA-12-12S, PA-16, PA-17,
PA-18, PA-18A, PA-18A (Restricted), PA-18S,
PA-18 "125" (Army L-21A), PA-18s "125", PA-18AS "125",
PA-18 "135" (Army L-21B), PA-18A "135", PA-18A "135" (Restricted), PA-18AS "135",
PA-18 "150", PA-18A "150" (SN 18-1 thru 18-6963),
PA-18A "150" (Restricted) (SN 18-1 thru 18-6963), PA-18S "150",
PA-19 (Army L-18C), PA-20 "115", PA-20 "135",
PA-22, PA-22-108, PA-22-135, PA-22-150, PA-22-160, PA-38
PZL / Cadmus Koliber 150A
Reims (Cessna) F150G, F150H, F150J, F150K, F150L, F150M, FA150K, FA150L, F152, FA152
Shinn 2150A
Taylorcraft BC65, BCS-65, BC12-65, BCS12-D1, BCS12-65, BC12-D, BC12D85, BCS12D-85, BC12D-4-85, BCS12D-4-85, 19, F19, F21, DC-65
Univar "Ercoupe" (Alon) A-2, A-2A (FORNEY), F-1, F-1A
Universal "Swift" GC-1A, GC-1B
Varga "Kachina" 2150A
Zenair ZODIAC CH 650

Note: Always confirm the aircraft model, configuration, serial-number requirements and applicable approval documentation before ordering or installing the Brackett BA-4106.
