Rebling 7017-1 Quick Disconnect Plug – 750A “T” Handle

Rebling 7017-1 Quick Disconnect Plug with "T" Handle – 750A, 750V Rated

Reliable high-power connection with compact "T" handle design. Rated for 750A and 750V, ideal for military and aviation power applications.

Key Features and Benefits

• High Power Capacity: Rated for 750 amps and 750 volts, suitable for demanding aircraft and ground support systems.

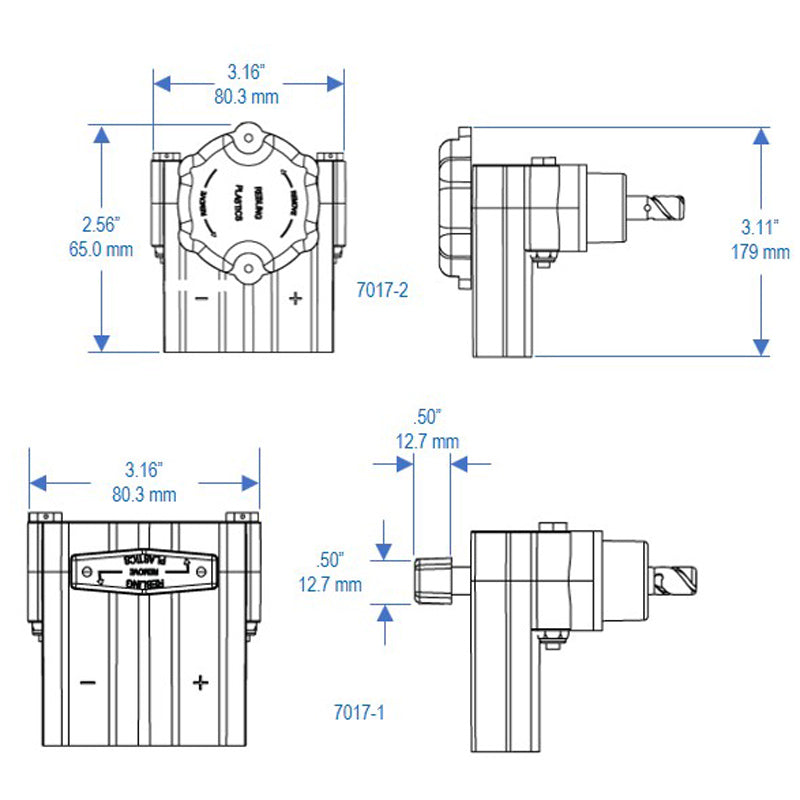

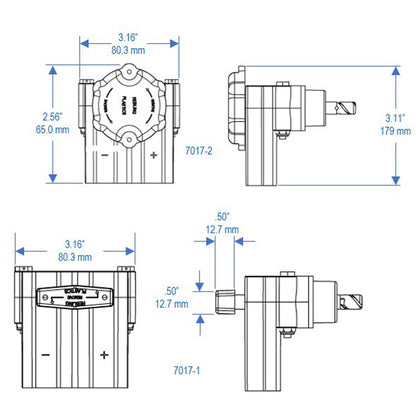

• Compact "T" Handle Design: Shorter cover length than the 7016 model for improved clearance in tight spaces.
• Robust Construction: Withstands 20 G mechanical shock and 10 G vibration along all axes.
• Environmental Protection: IP13 rated with UL94V-0 flammability rating for added durability and safety.
• Military Spec Compatibility: Interchangeable with MIL-P-18148 and MS3349-2; mates with Rebling 7002 and MS3509 receptacles.
• Wide Operating Range: Performs in extreme temperatures from -85℃ to +71℃.

Detailed Product Description

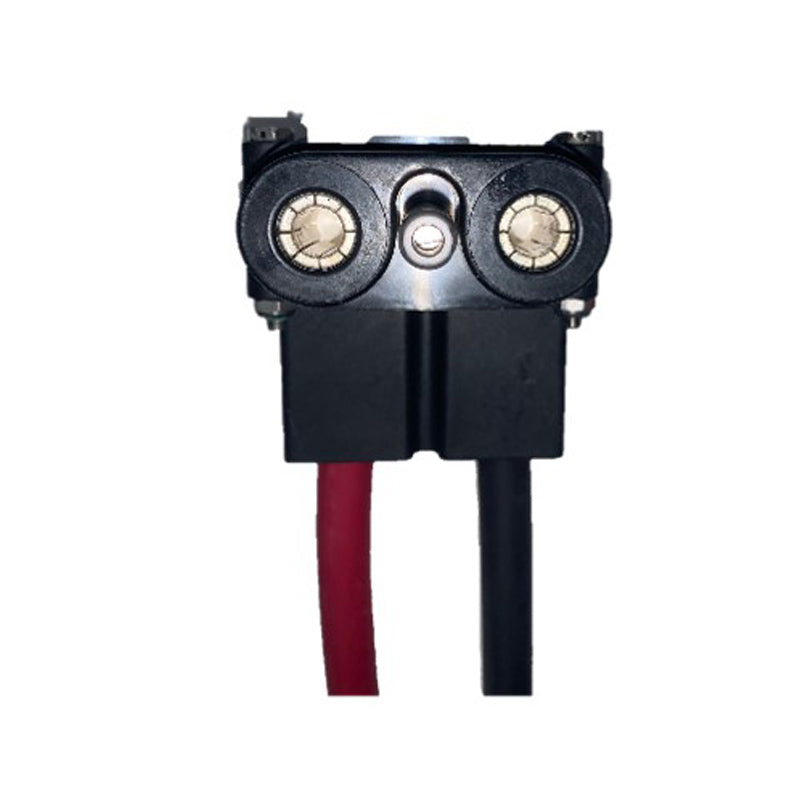

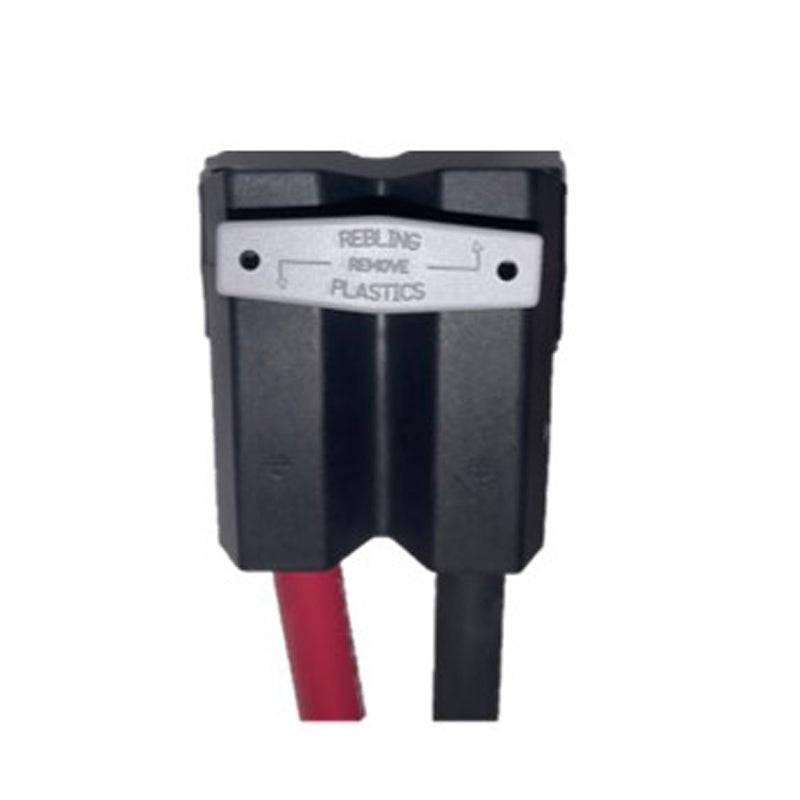

The Rebling 7017-1 Quick Disconnect Plug is a high-performance, cable-mounted avionics connector designed for critical aerospace and military applications. Engineered to handle up to 750 amps and 750 volts, the 7017-1 ensures secure power delivery under extreme conditions. Its "T" shaped handle and shorter cover distinguish it from the 7016 model, offering better clearance without compromising strength.

Built to military specifications (MIL-P-18148, MS3349-2), the 7017-1 is tested to endure mechanical shocks up to 20 G and vibrations of 10 G on all three axes. The plug accepts cable sizes up to 4/0 (110 mm²) and maintains a contact resistance below 60 micro-ohms for consistent conductivity. Environmentally resilient, it's IP13 sealed and UL94V-0 flame-rated, operating reliably from -85°C to +71°C. It is fully compatible with Rebling’s 7002 and MS3509 receptacle series.

Technical Specifications

• Rated Current: 750 amps
• Rated Voltage: 750 volts
• Withstand Voltage: 2,500 volts
• Max Contact Resistance: 60 μΩ
• Max Cable Size: 4/0 (110 mm²)
• Mechanical Shock: 20 G (3 axes)
• Vibration: 10 G (3 axes)
• Flammability Rating: UL94V-0
• Sealing: IP13
• Operating Temperature: -85℃ to +71℃
• Replaces/Equivalent to: MS3349-2, MIL-P-18148
• Mates With: Rebling 7002 and MS3509 receptacles
