Mili Std - Steel Pin, Cotter | MS24665-428

Mili Std - Steel Pin, Cotter | MS24665-428

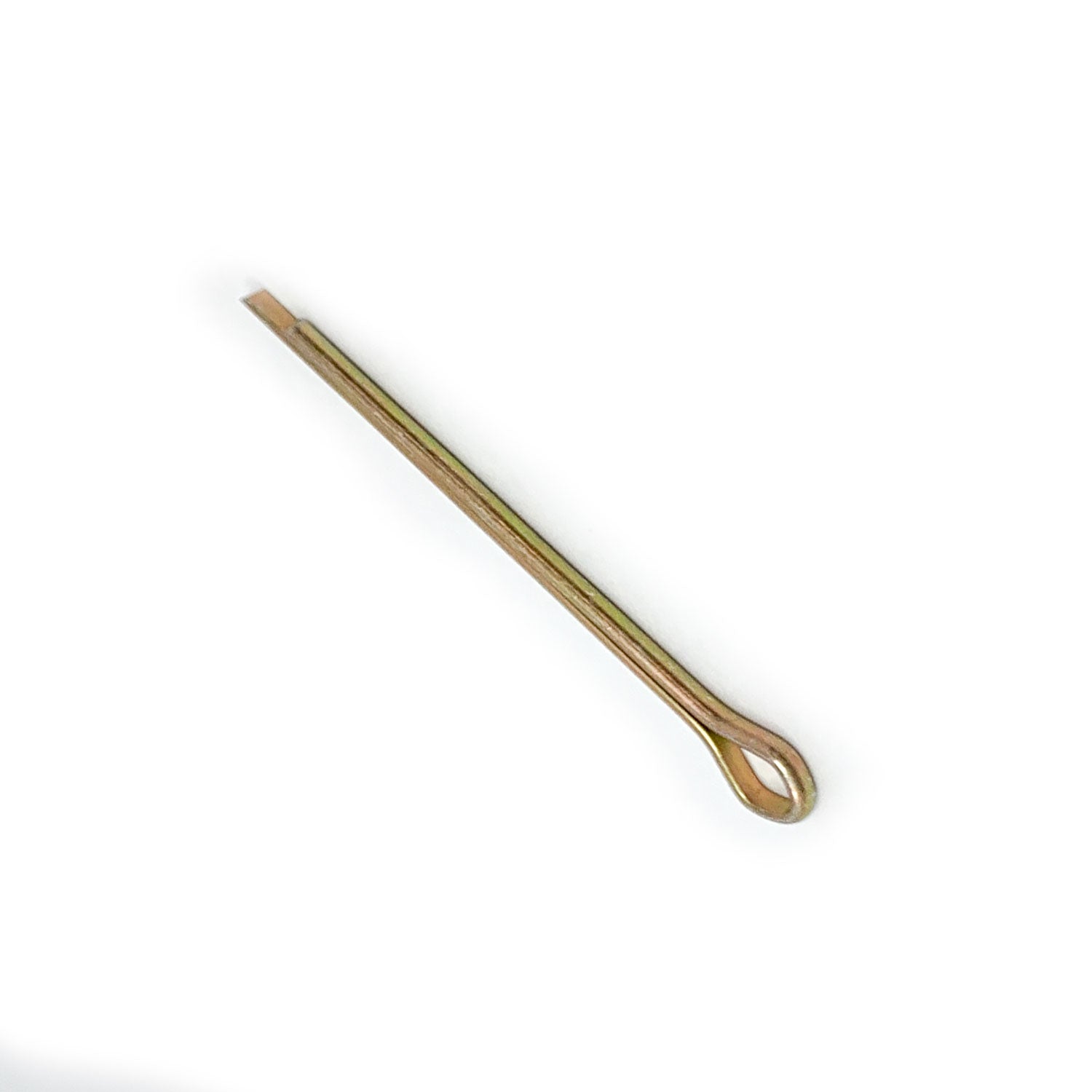

The MS24665-428 is a corrosion resistant steel (CRES) split cotter pin. Specifications and other details can be found below.

• Diameter: 0.146 Inches Minimum And 0.150 Inches Maximum
• Underloop Length: 2.375 Inches Minimum And 2.625 Inches Maximum
• End Item Identification: W/S:Trailer, Semi (M747)(Het); Truck, Dump, 5-Ton, 6X6 (M929, M930); Engine,Aircraft Tf33-Pw-102 (C-135E, Ec-135H/K/P); Truck, Tractor, 5-Ton (M818, M931); Truck, Wrecker, 5-Ton (M936); Truck, Cargo, Dropside, Xlwb, 5-Ton, 6X6 (M814, M927, M928); Engine,Aircraft Tf-34; Truck, Cargo, Dropside, 5-Ton, 6X6 (M1831A1, M-923, M-925); Engine, Aircraft Tf33-P-3/5/9 (C/Ec-135, B-52H); Engine, Aircraft, Tf-33-P-7 )C-141A/B)
• Point Type: Extended Prong Square Cut
• Material: Steel Overall
• Material Document And Classification: Astm E30 Assn Std Single Material Response Overall
• Surface Treatment: Cadmium Overall And Chromate Overall
• Surface Treatment Document And Classification: QQ-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
• Style Designator: Standard
