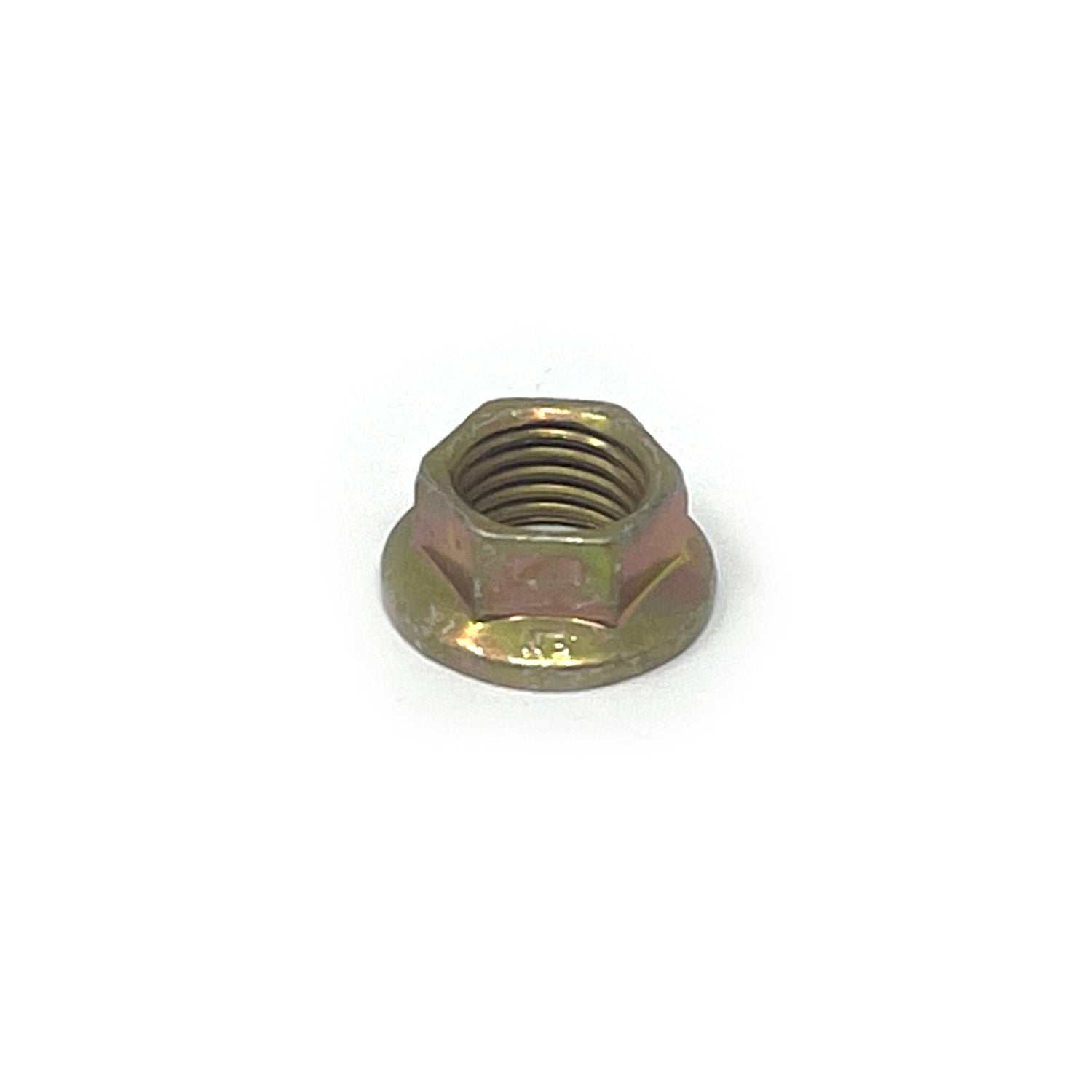

Mili Std - Steel Nut, Self-Locking, Extended Washer, Hexagon | MS21042-6

  •  Thread Class:  3B
  •  Thread Direction:  Right-Hand
  •  Locking Feature:  Prevailing Torque All Metal Design
  •  Washer Outside Diameter:  0.620 Inches Maximum
  •  Lubrication:  Soluble Lubricant
  •  Overall Height:  0.267 Inches Minimum And 0.282 Inches Maximum
  •  Nut Style:  Hexagon
  •  Washer Thickness:  0.030 Inches Minimum
  •  Width Across Flats:  0.430 Inches Minimum And 0.440 Inches Maximum
  •  Temp Rating:  450.0 Deg Fahrenheit Nominal
  •  Thread Series:  Unjf
  •  Thread Quantity Per Inch:  24
  •  Nominal Thread Size:  0.375 Inches
  •  Material:  Steel Overall
  •  Surface Treatment:  Cadmium Overall And Chromate Overall
  •  Surface Treatment Document And Classification:  Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
