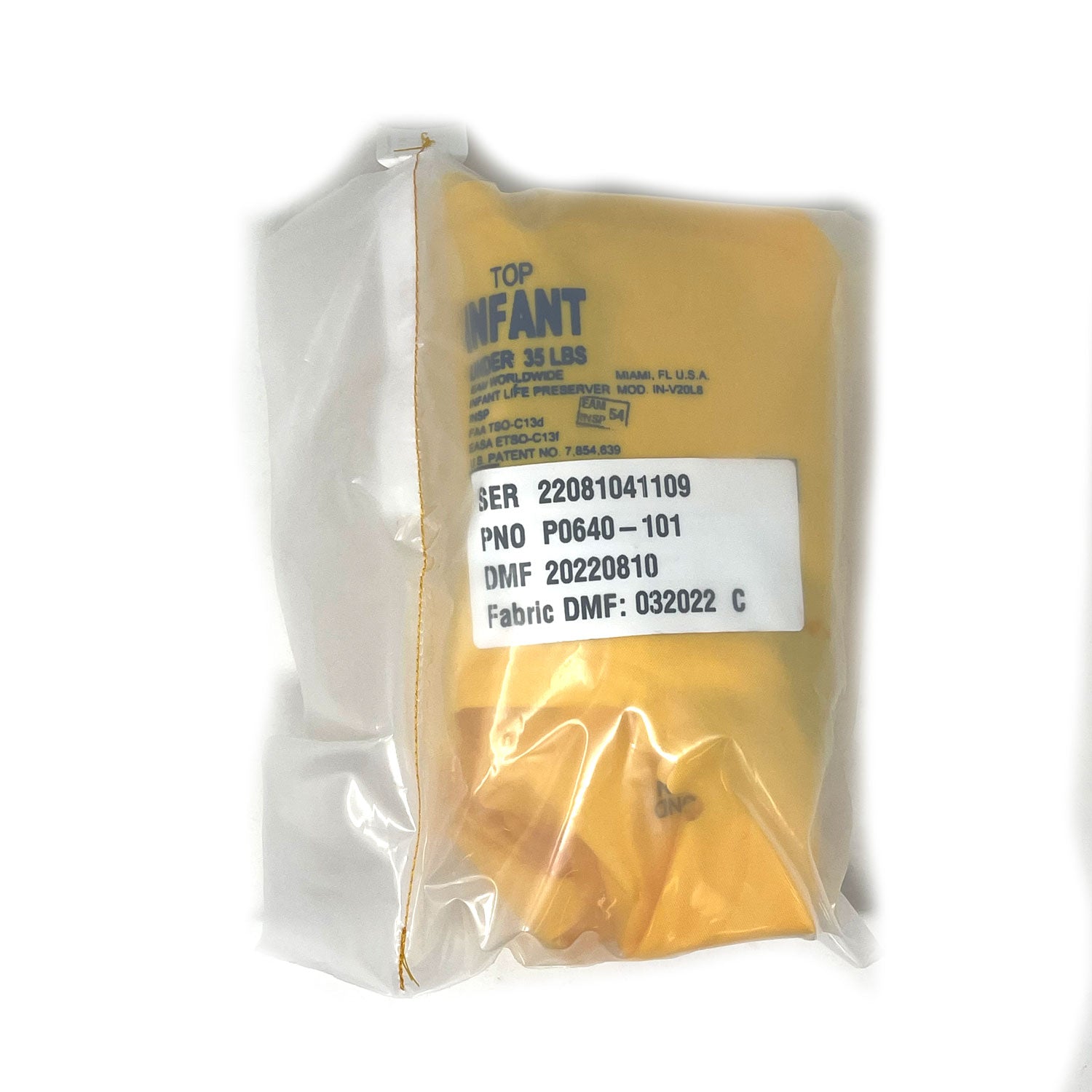

This specially designed and affordable life vest is made exclusively for children less than 35 lbs. (16 kg). EAM infant vests come in USA and European versions, for the constantly changing safety markets of commercial carriers.
MODEL IN-V20L8 SPECIFICATIONS
Inflated Buoyancy
20 lbs. (89 Newtons) minimum
Inflated Volume
554 cu. in. (9 liters) minimum
Approvals
U.S.FAA TSO-C13d approved.
German LBA Approval 40.321/27
Italian ENAC approval.
Japanese JCAB Approval No. 558
Category of Preserver
Infant
Weight of wearer
Under 35 lbs. (15.9 kg).
Inflatable Buoyancy Cells
Material
Construction
Inflation System
2 Independent Cells
Urethane Coated Nylon, Flame Retardant
RF Heat Sealed Seams
Manual CO2 Inflator and an Oral Inflation Tube in each Buoyancy Cell.
Color
Passenger Yellow
Environmental
Temperature
Functional Range: -40 to 140 oF (-40 to 60 oC)
Storage Range: 0 to 120 oF (-17.8 to 48.9 oC)
Humidity
Functional Range: Up to 95% Relative Humidity
Storage Range: Up to 70% Relative Humidity
Altitude
-2000 to 45,000 feet above sea level
CO2 Gas Charge
For P0640 -101, -109, -111,117: 2 x 0.020 lbs. (2 x 9 grams)
For P0640 -103, -105, -107,-113, -115: 2x0.017lbs.(2 x 8 grams)
Survivor Locator Light
Water-activated. TSO-C85 Approved.
Packaging Options
Flame Retardant 4 mil Polybag with Tear Open Strip.
Customized Airline Packaging.
Other Options
Whistle
Retroreflective Tape
Service Life
Indefinite if unit continues to pass periodic maintenance inspection.
