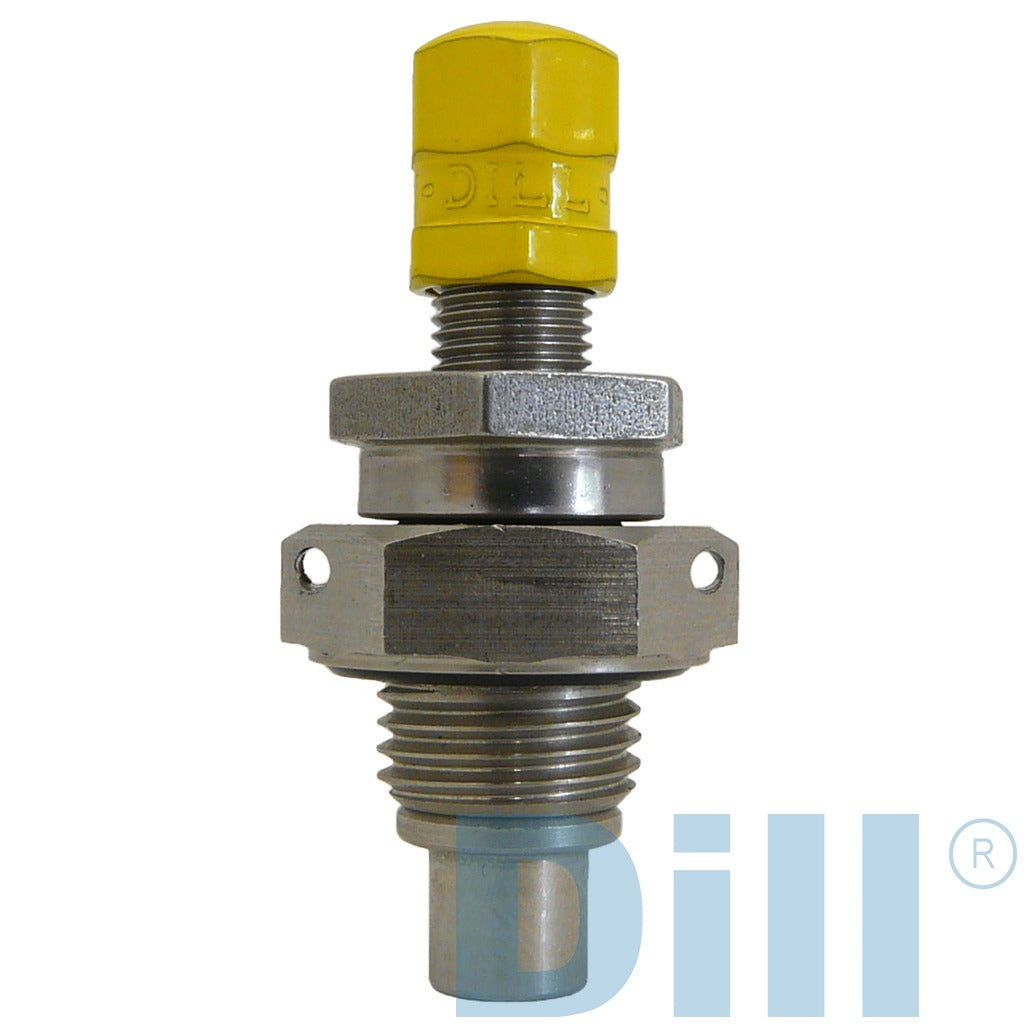

Dill Air Controls - Aircraft High Pressure Strut Valve, 3,000 PSI | 8990C
The Dill Controls 8990C strut valve controls strut inflation and deflation. This product withstands operating pressures up to 3,000 PSIG to enhance your landing gear. The 8990C valve for sale is equipped with a 302DN core and 637 cap. This stainless steel product is durable and designed for heavy-duty use. The installation thread is ½-20.
Approvals/References/Specs
Joint Army-Navy Specification: 6287-1
Joint Army-Navy Specification: 6287PC6287-1
Aeronautical Standard: AN6287-1
US Military: MIL-V-6164
Specifications
Body Material: Steel, Corrosion Resisting
Body Style: Straight Thru
Furnished Items: Cap
Media For Which Designed: Air
First End Connection Type: Threaded External Pipe
First End Style Designator: Plain
First End Thread Direction: Right-Hand
Second End Relationship With First End: Not Identical
Second End Connection Type: Threaded External Boss
Second End Style Designator: External Seat For Gasket Seal
Second End Thread Class: 3A
Second End Thread Direction: Right-Hand
Seat Material: Steel, Corrosion Resisting
Flow Control Device: Poppet
Flow Control Device Material: Any Acceptable
End Connection Quantity: 2
Core Environmental Protection: Corrosion And Heat, Dry
