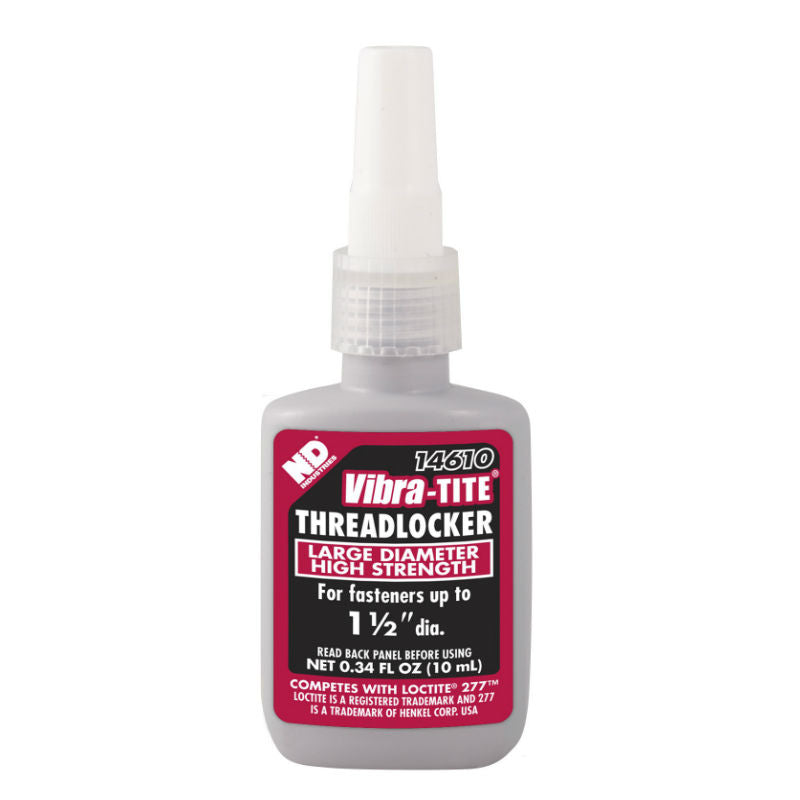

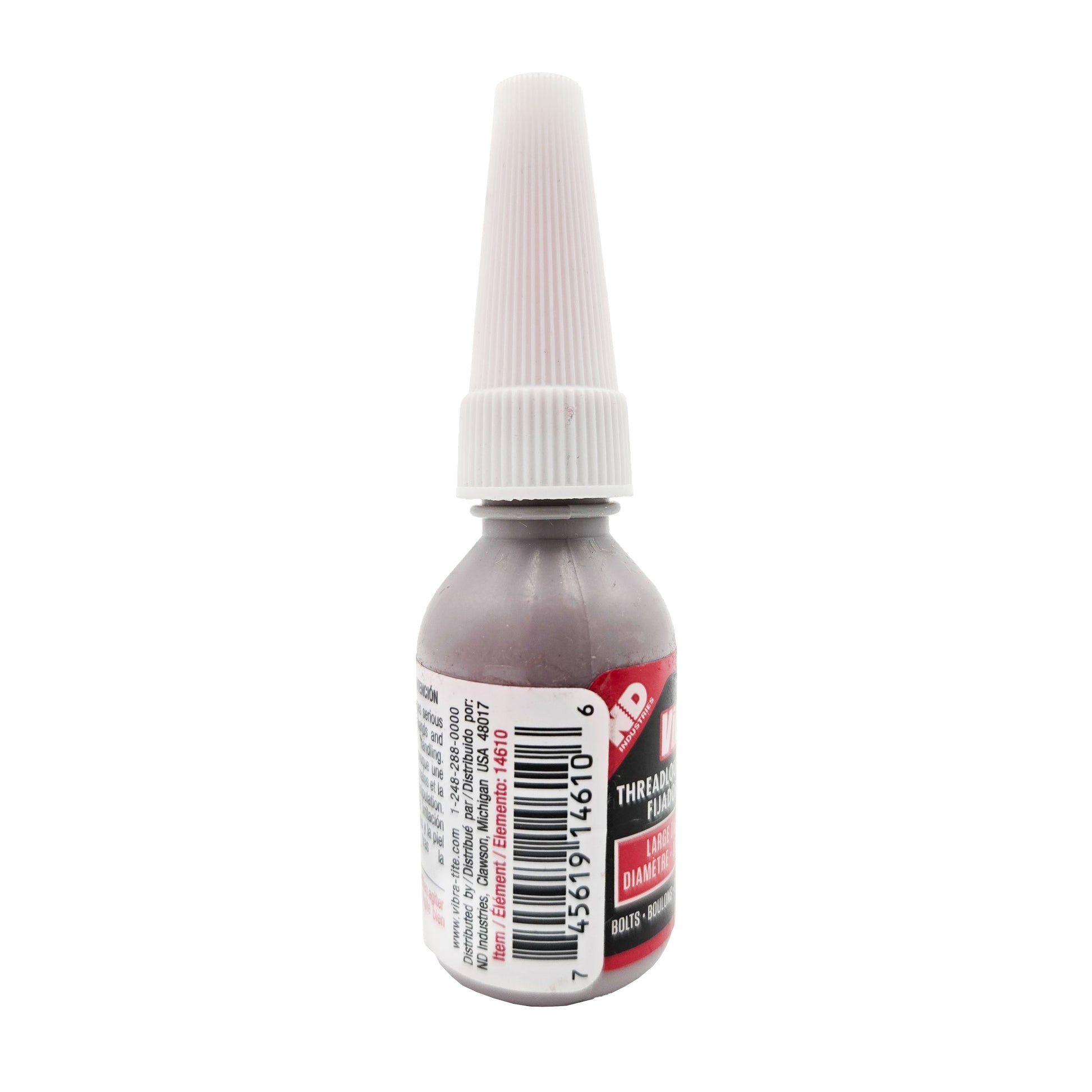

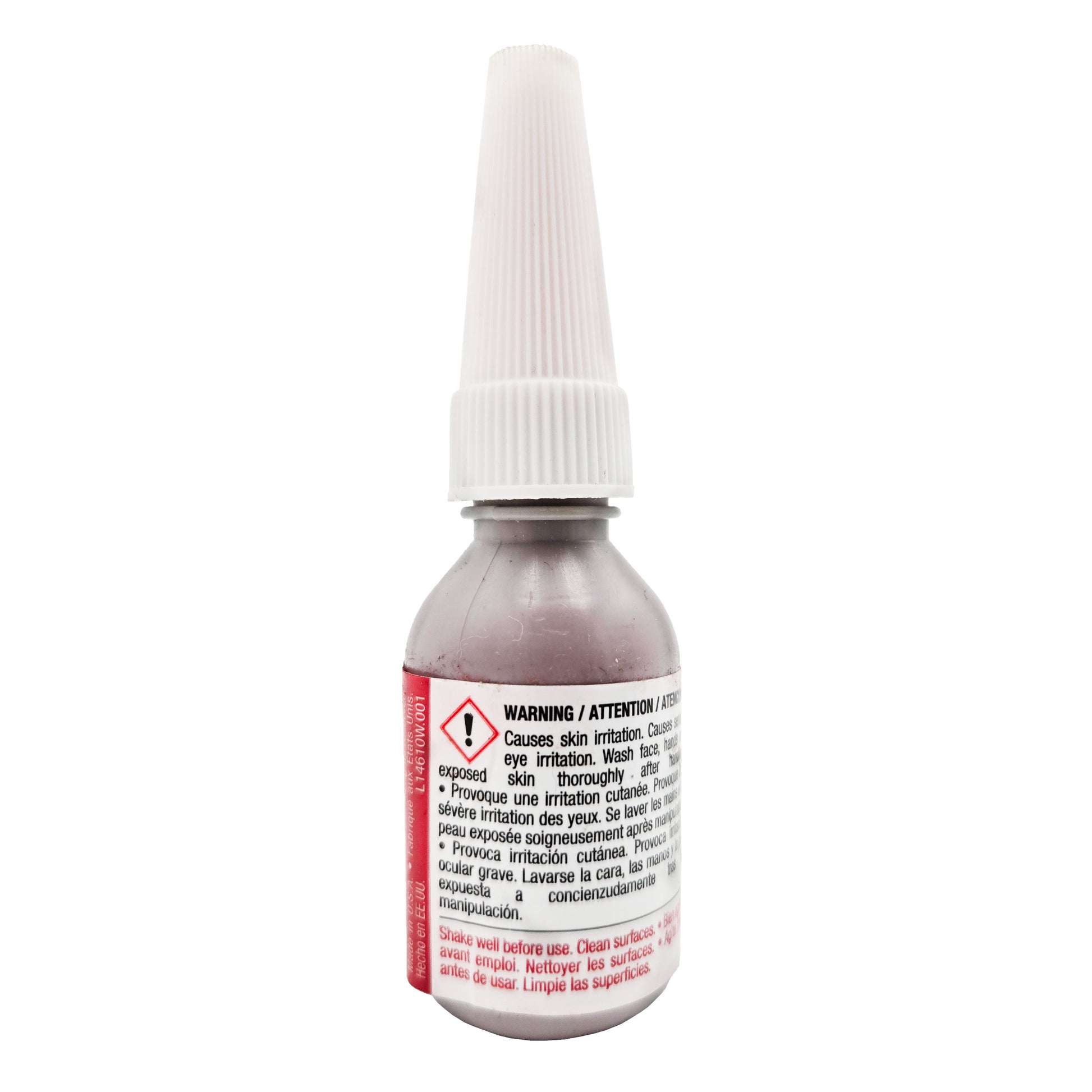

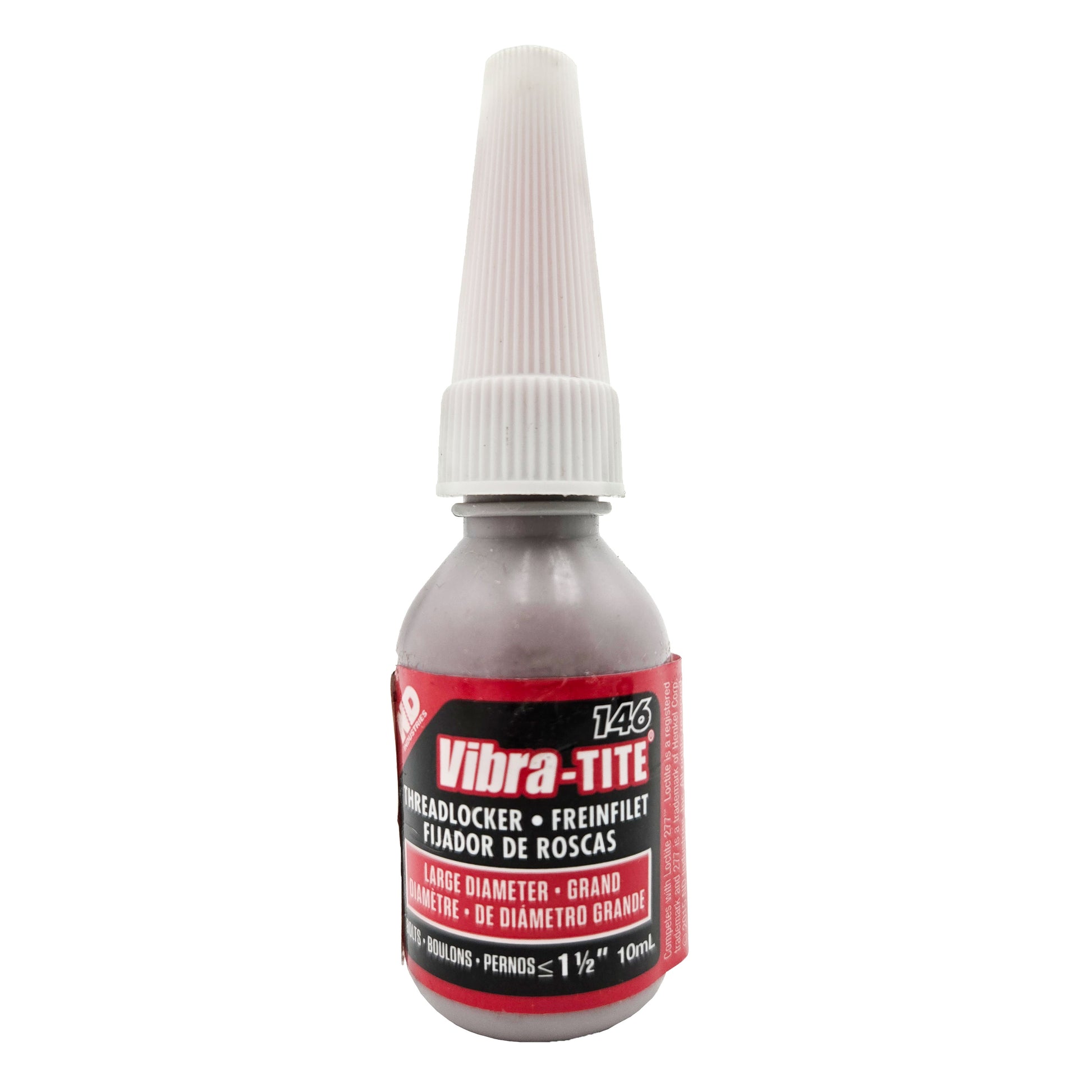

Vibra-Tite 146 Large Diameter/High Strength Red Threadlocker (10 mL)
Vibra-Tite 146 Large Diameter/High Strength Threadlocker
A high strength, large diameter anaerobic threadlocker designed to permanently lock fasteners. It ensures the assembly resists loosening from shock and vibration while sealing against leaks and protecting against rust and corrosion. Resists attack from lubricants and most industrial liquids and gases.
Technical Specifications and Attributes
Size
1 L, 1.8 mL, 10 mL, 250 mL, 50 mL
Color
Red
Viscosity Range (cP)
6000, 8000
Temp Range Low (°F)
-65
Temp Range High (°F)
300
Specifications Met
MIL-S-46163A
Specific Gravity
1.10
Break Away Torque (in lbs)
250
Prevailing Off Torque (in lbs)
250
Plastic Compatibility
Not compatible with plastics
Open Time
B
Key Substrates
Metal
Gap Fill (in)
0.01
Function
Locking
Full Cure Time (hours)
24 hrs
Fixture Time (mins)
40
Cure Type
Anaerobic
Competes with Loctite®
Competes with Loctite® 277™ (277 is a trademark and Loctite is a registered trademark of Henkel IP & Holding GMBH LLC, Germany)
Compatible Primers
611, 612
Product Warnings
Not recommended for oxygen rich environments, Not recommended for use with plastics
Shelf Life (months)
24
Country of Origin
USA
Certification Indicator
D
Origin Criterion
B
Qualification Method
TS
HTS Code
3506.99.0000
UNSPSC
31201634
Application and Usage
Permanent Locking: Recommended for applications where permanent locking is required and future disassembly is unlikely or can be performed with specialized heating equipment.
Cure Acceleration: Compatible primers (Vibra-Tite 611 or 612) are available to accelerate the cure time, especially on passive metals or in cold conditions.
*For detailed safety and application instructions, consult the official Technical Data Sheet (TDS) and Safety Data Sheet (SDS) on the manufacturer's website.
