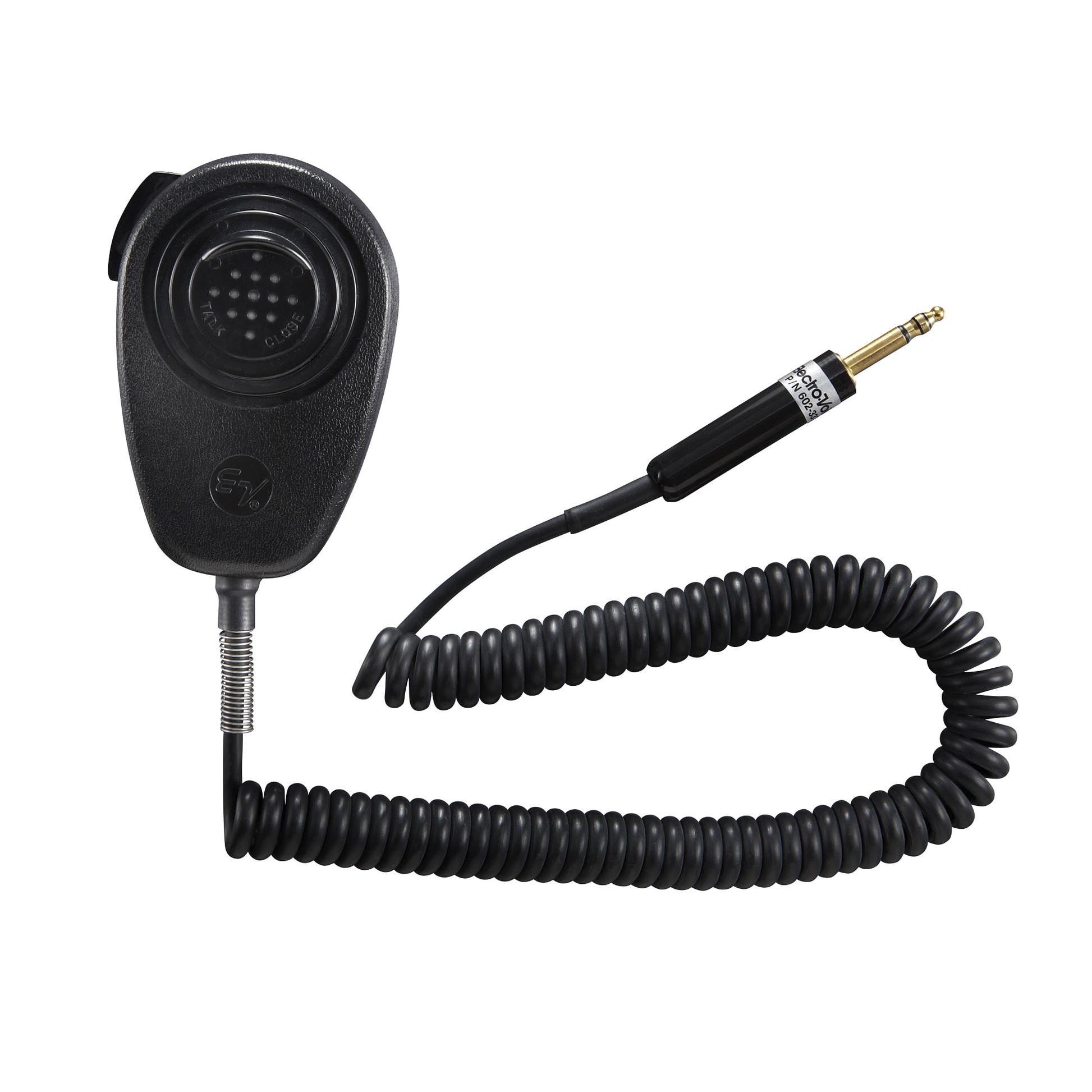

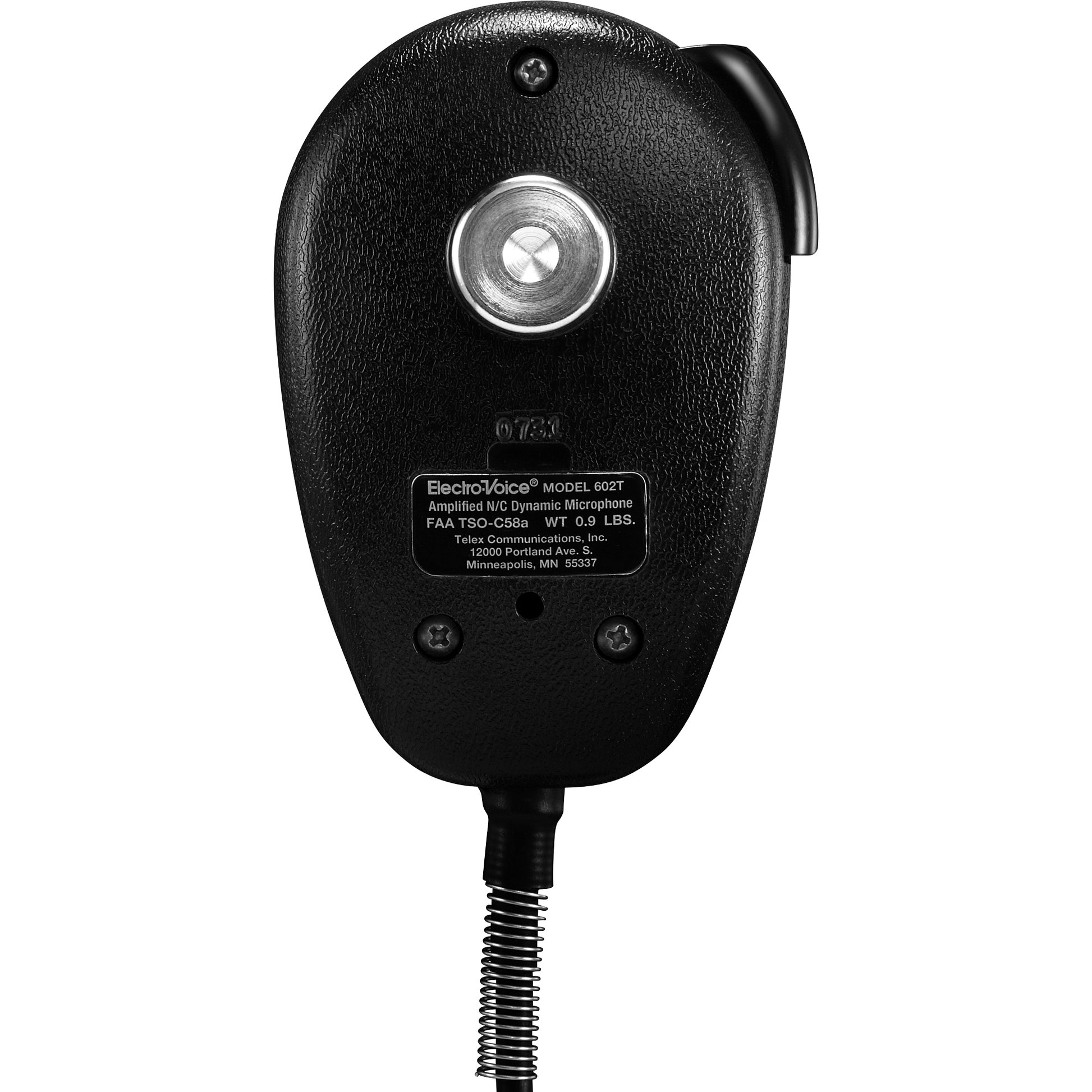

Telex - Dynamic Microphone 602T | 602-3375

Telex 602T Dynamic Microphone – PN 602-3375, FAA TSO Approved

Ensure crystal-clear cockpit communication with the Telex 602T Dynamic Handheld Microphone. FAA TSO certified and built for aviation, it’s ideal for noisy flight environments.

Key Features and Benefits:

• Noise-Canceling Technology: Pressure-gradient design with three sound ports for exceptional background noise rejection.
• Amplified Performance: Integrated transistor amplifier delivers strong, consistent audio output in all climates.
• Rugged and Reliable: Made from high-impact ABS plastic for dependable use in demanding aviation settings.
• FAA TSO Certified: Meets FAA TSO C58a standards for professional aviation-grade performance.
• Complete Installation Kit: Includes PJ-068 plug and button hanger bracket for straightforward cockpit mounting.

Detailed Product Description:

The Telex 602T Dynamic Microphone (PN 602-3375) is designed for professional-grade aviation communication. Its noise-canceling design uses a transistorized pressure-gradient mechanism with three acoustic entrances to ensure clear voice transmission, even in high-noise cockpits. The built-in amplifier maintains uniform output across temperatures from -20°C to +55°C, delivering reliable communication performance under all flight conditions.

Constructed from high-impact ABS plastic, the 602T is both rugged and lightweight. It includes a PJ-068 plug and a convenient button hanger bracket, making it quick to install in most general aviation aircraft. With FAA TSO C58a certification, the Telex 602T is a trusted choice for pilots who need reliable, clear communication.

Technical Specifications:

• Type: Amplified Dynamic
• Frequency Response: 300 to 5,000 Hz
• Impedance: Matches standard aircraft carbon circuitry
• Sensitivity: 400 mV ±3 dB @ 114 dB re 20 µPa
• Current Drain: 12.3 mA @ 8 Vdc; 25.0 mA @ 16 Vdc
• Material: High-impact black ABS plastic
• Dimensions: 4.0 in (L) x 2.84 in (W) x 2.34 in (D)
• Weight: 14.57 oz (413 g)
• Certifications: FAA TSO C58a
• Included: PJ-068 plug and button hanger bracket
