TBS Source X – X-Class FPV Racing Drone Frame for Large Quadcopters

TBS Source X – X-Class FPV Racing Drone Frame for Large Quadcopters

Team Blacksheep

Low stock: 1 left

SKU:741587430292

Regular price $143.50 USD
Regular price $175.00 USD Sale price $143.50 USD
Clearance
Shipping calculated at checkout.
Quantity

TBS Source X – X-Class FPV Racing Drone Frame for Large Quadcopters

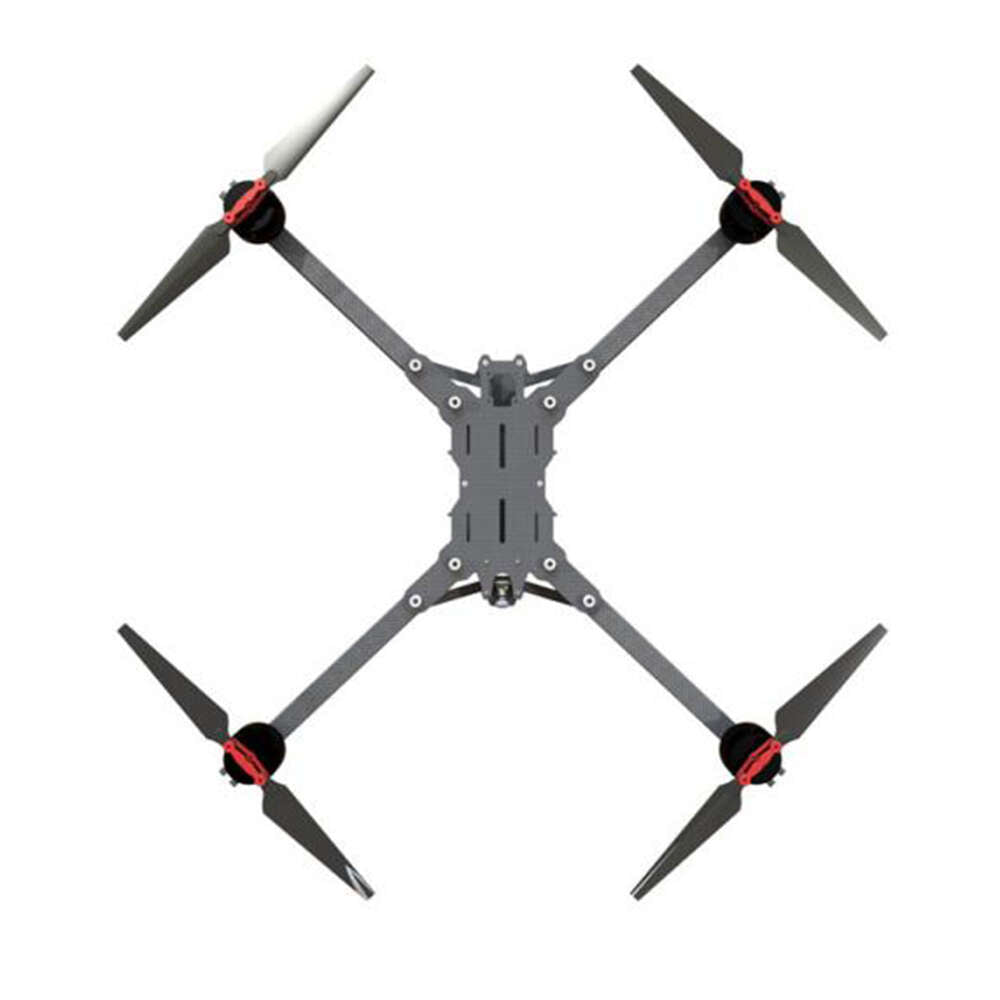

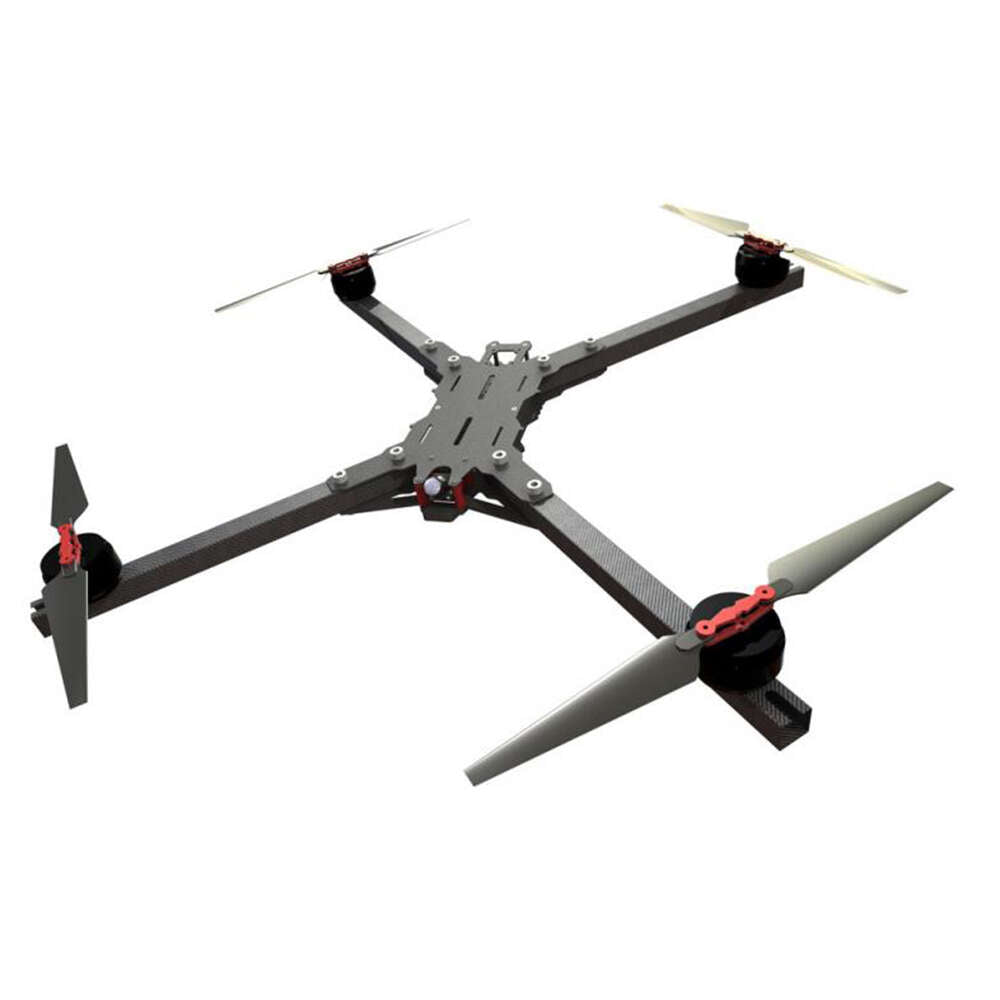

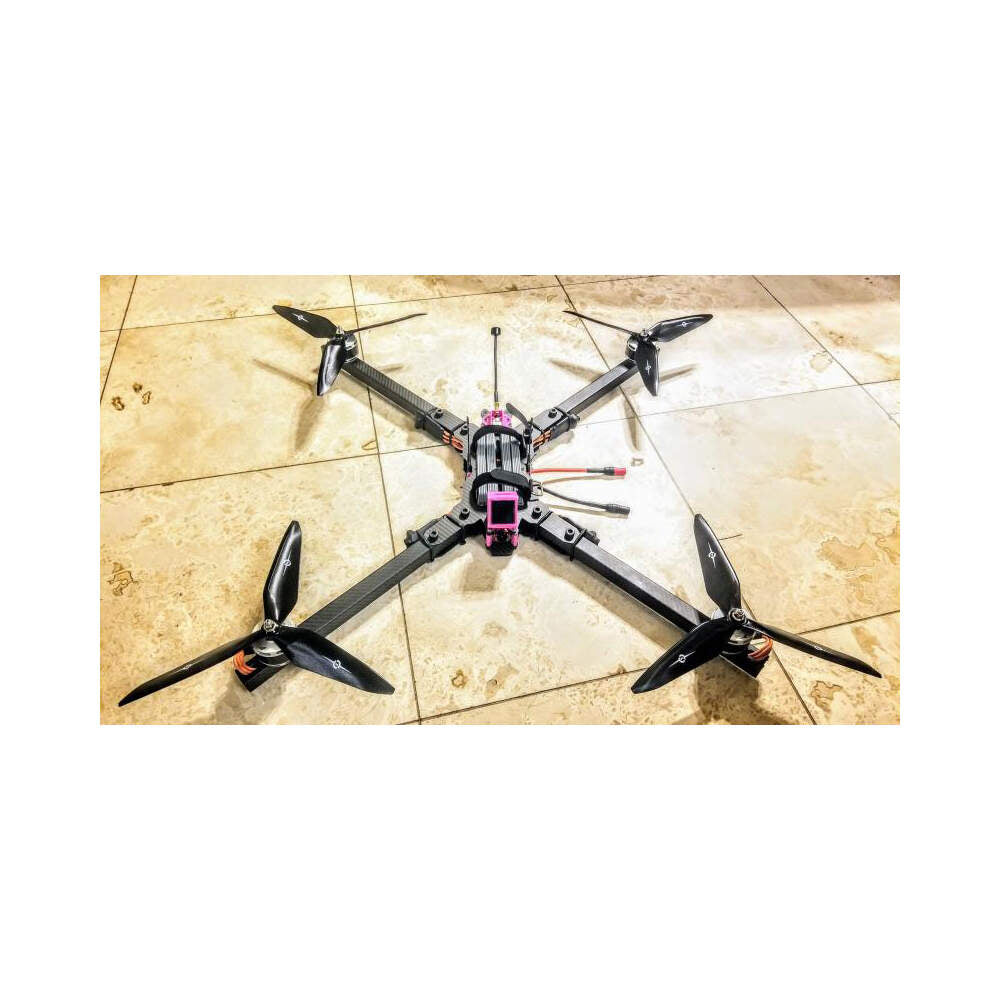

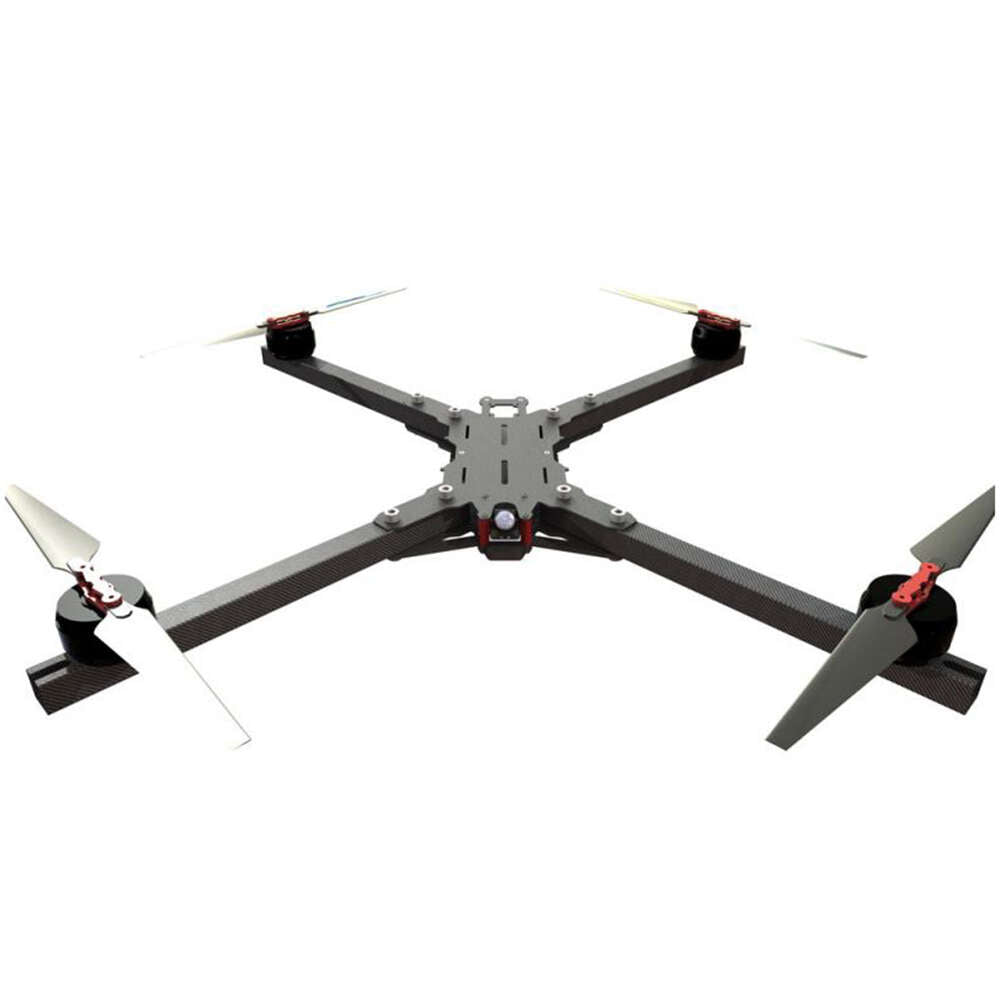

The TBS Source X is a high-performance X-Class FPV frame built for large quadcopters and extreme racing. Its open-source design, durable construction, and 800mm-class size make it ideal for high-speed, high-thrust builds.

  • Designed for X-Class FPV racing and freestyle builds
  • Supports ~800mm motor-to-motor distance
  • Reinforced square-tube arms for strength and rigidity
  • Modular, open-source layout for customization and upgrades
  • Stackable flat plate design with multiple mounting points
  • Compatible with large motors, ESCs, and 30.5mm flight controllers

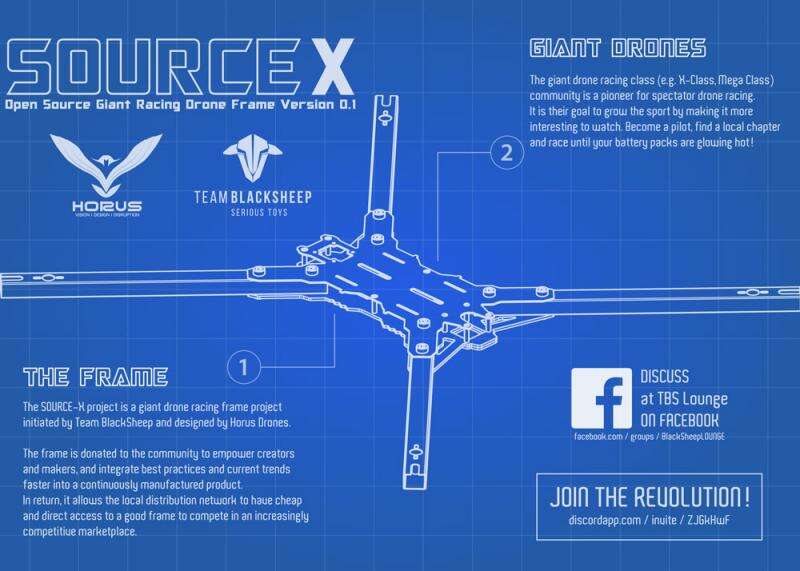

The TBS Source X is part of Team BlackSheep’s open hardware initiative, offering an affordable, modifiable platform for X-Class drone racing. The frame features square carbon fiber arms for maximum rigidity, multiple plate mounting options, and enough clearance for high-voltage power systems. Whether you're building a high-speed race machine or an experimental large quad, the Source X delivers reliability, adaptability, and performance at scale.

Technical Specifications

  • Frame Type: X-Class FPV quadcopter
  • Motor-to-Motor Size: ~800mm
  • Arm Material: Carbon fiber square tubes
  • Mounting Pattern: 30.5mm for flight controllers
  • Weight: Approx. 700g (frame only)
  • Construction: Flat plate modular layout
  • Design: Open-source (CAD files available)
