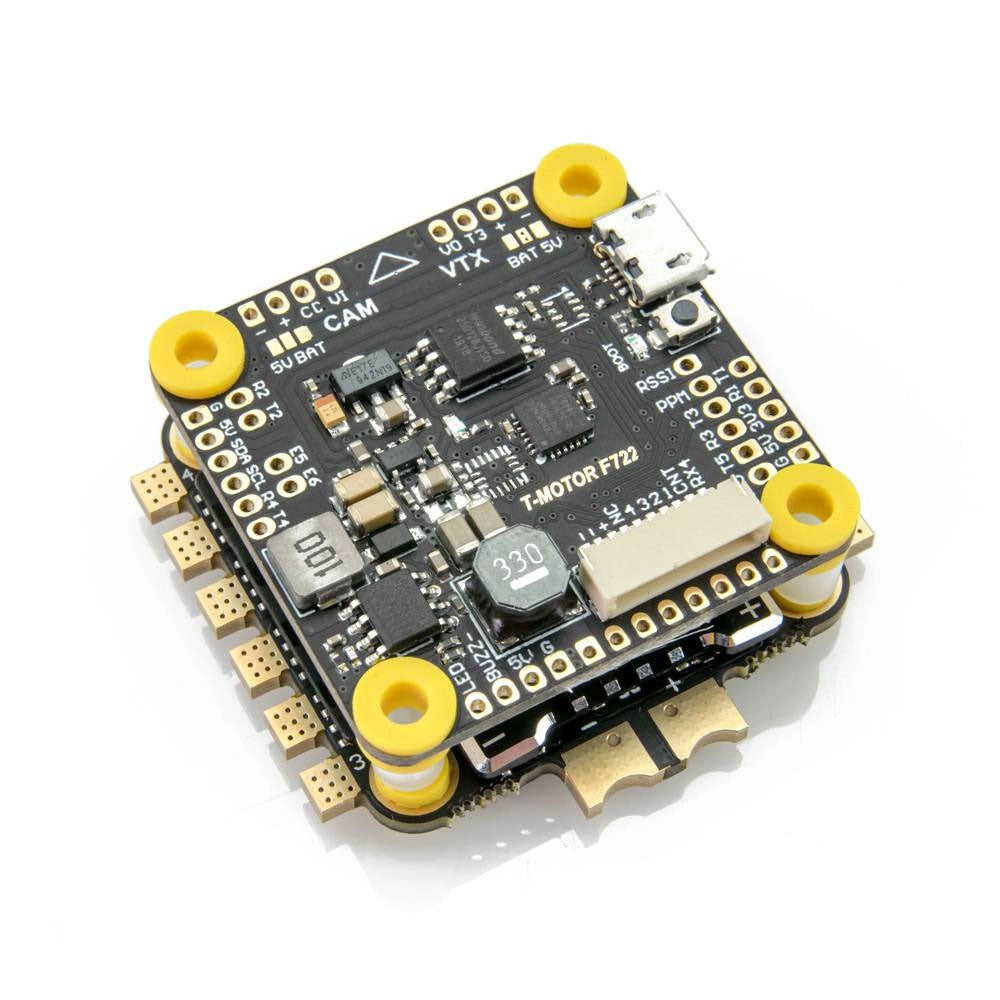

• T-Motor F7 Flight Controller and F55A Pro II ESC Combo – angled top view
  • T-Motor F7 Stack retail packaging box

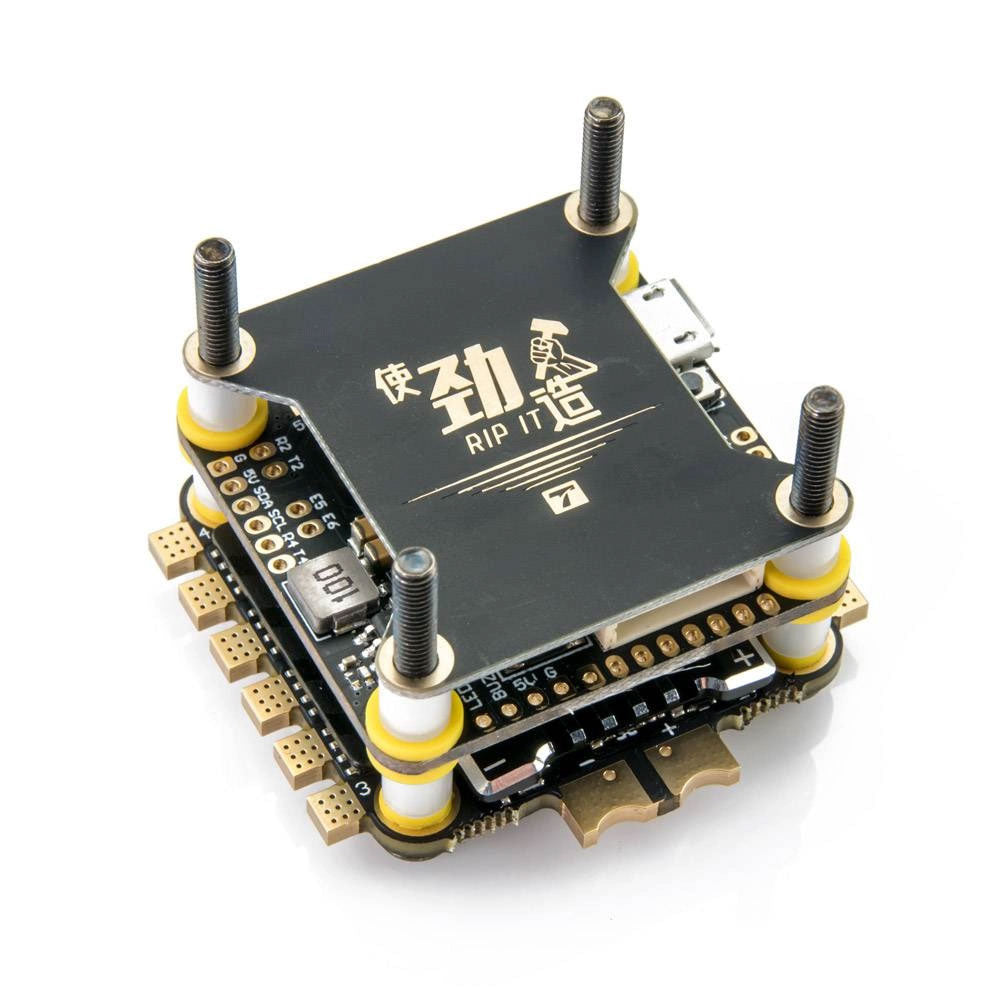

  • T-Motor F7 Stack assembled – side view showing stacked configuration

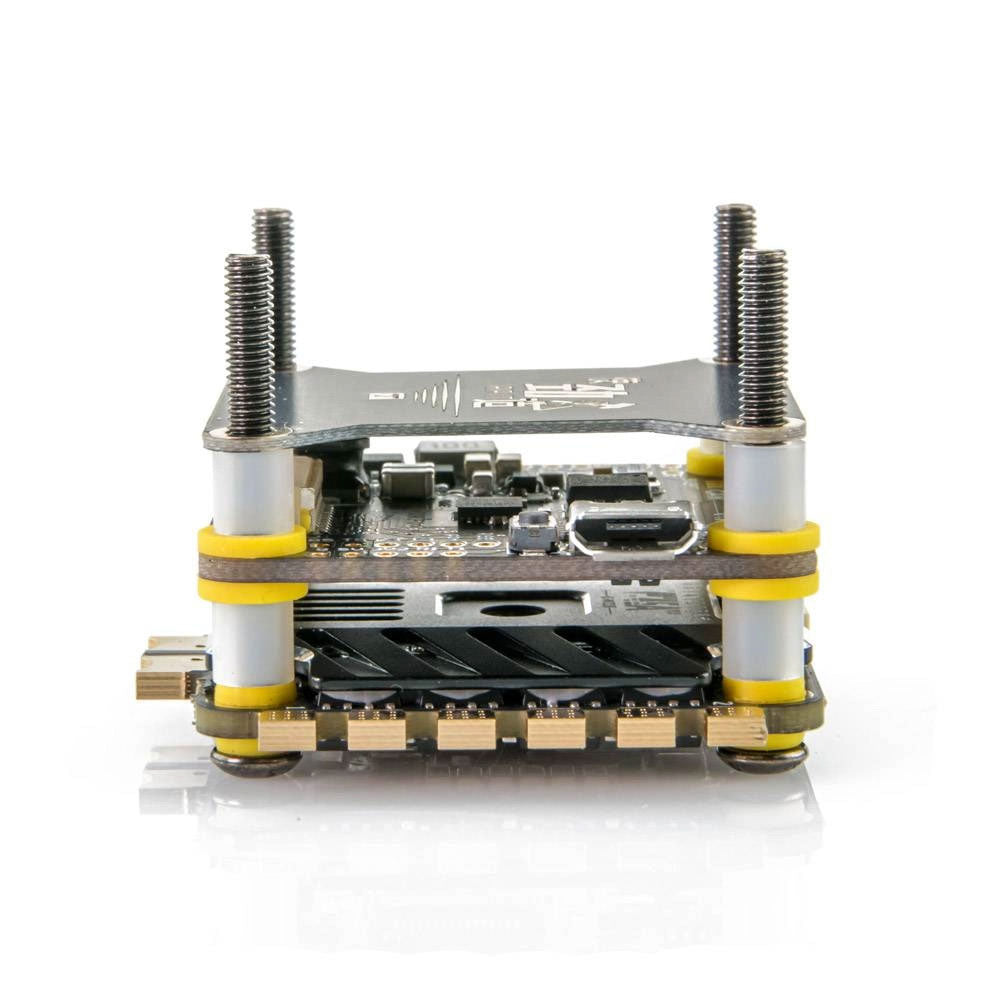

  • T-Motor F7 Stack – exploded side view showing flight controller and ESC separation

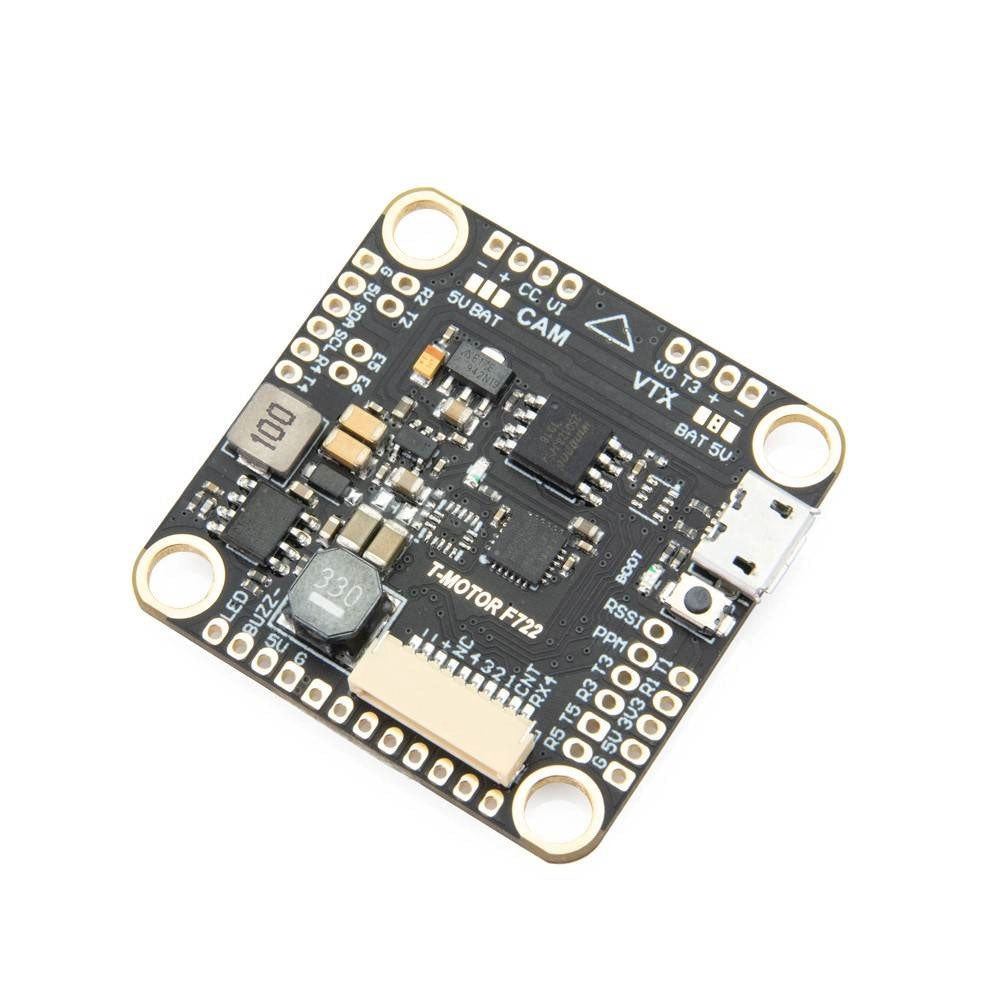

  • T-Motor F7 Flight Controller – top view

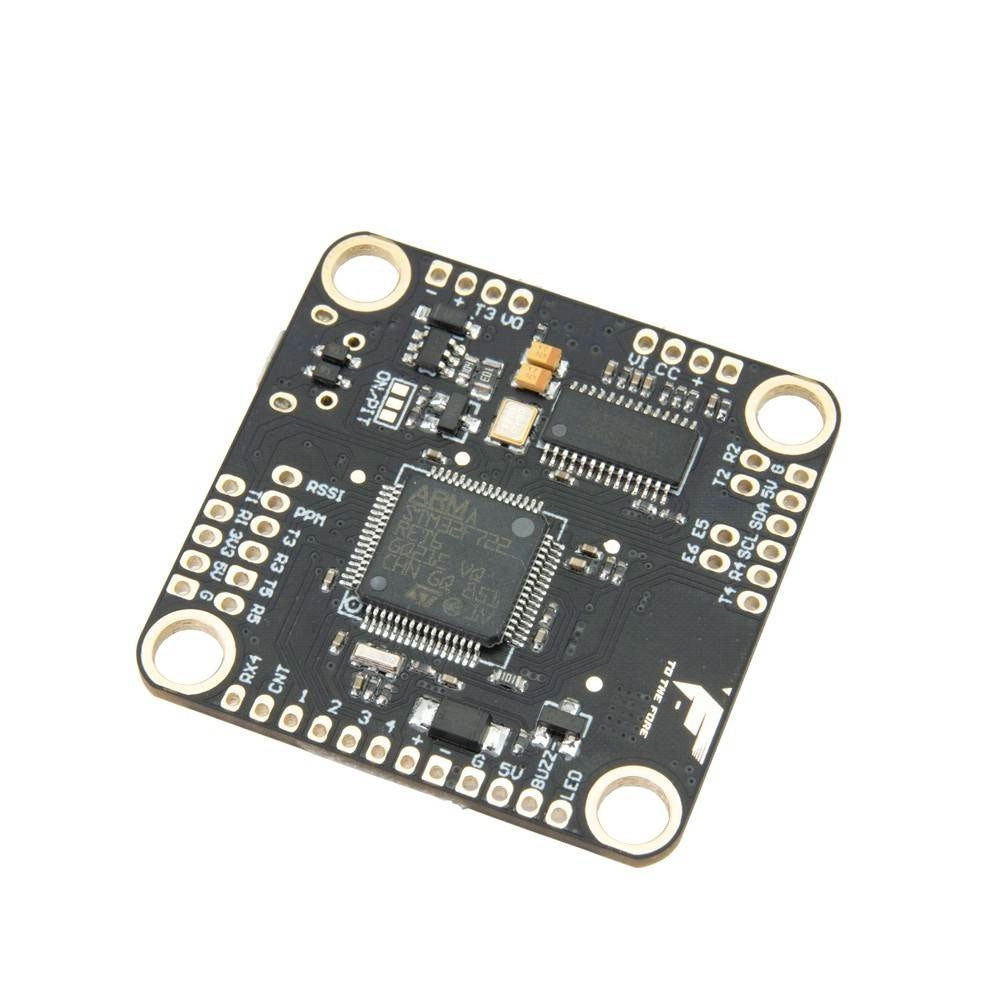

  • T-Motor F7 Flight Controller – underside view

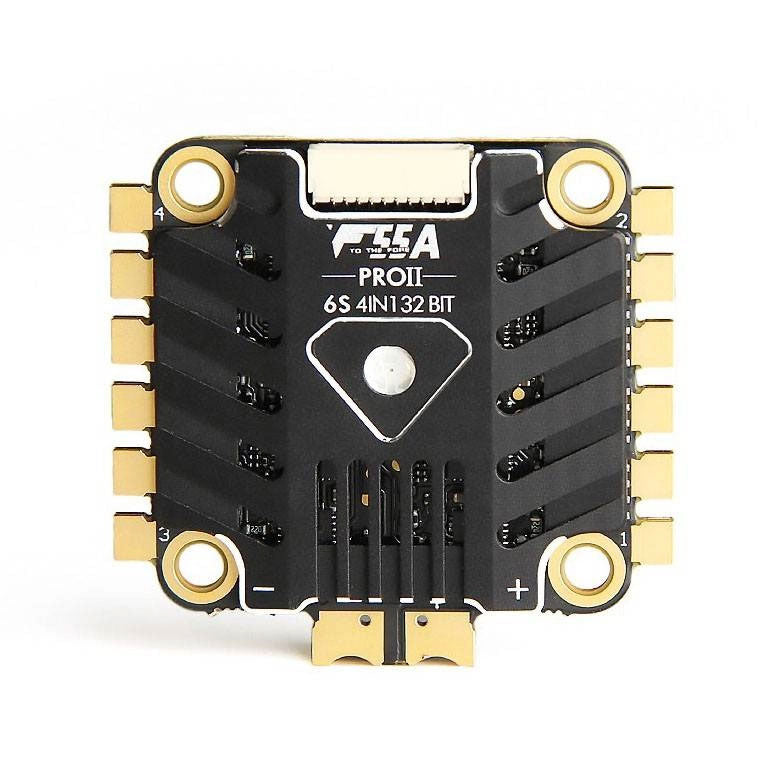

  • T-Motor F55A Pro II 4-in-1 ESC – top view

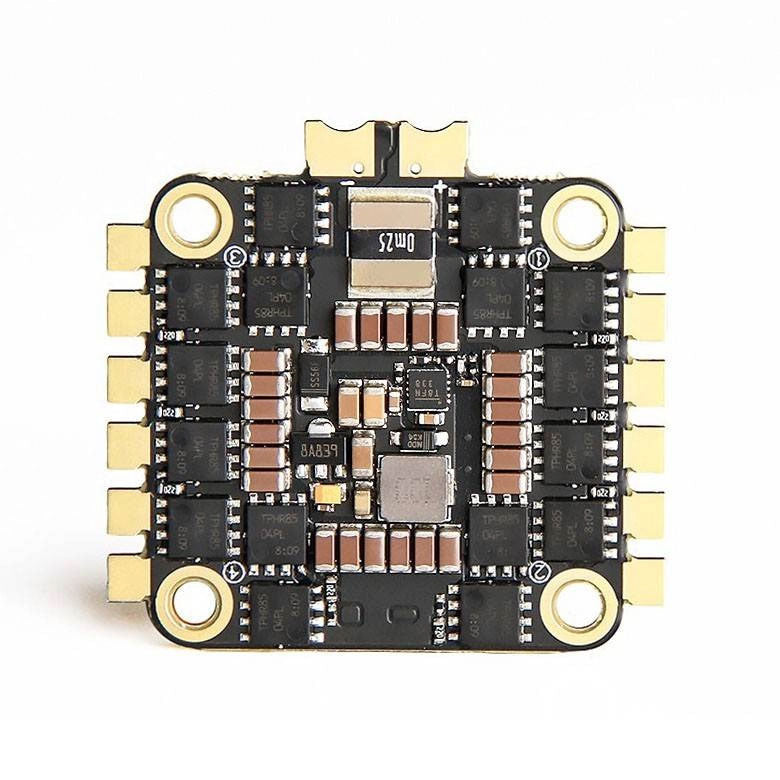

  • T-Motor F55A Pro II 4-in-1 ESC – bottom view

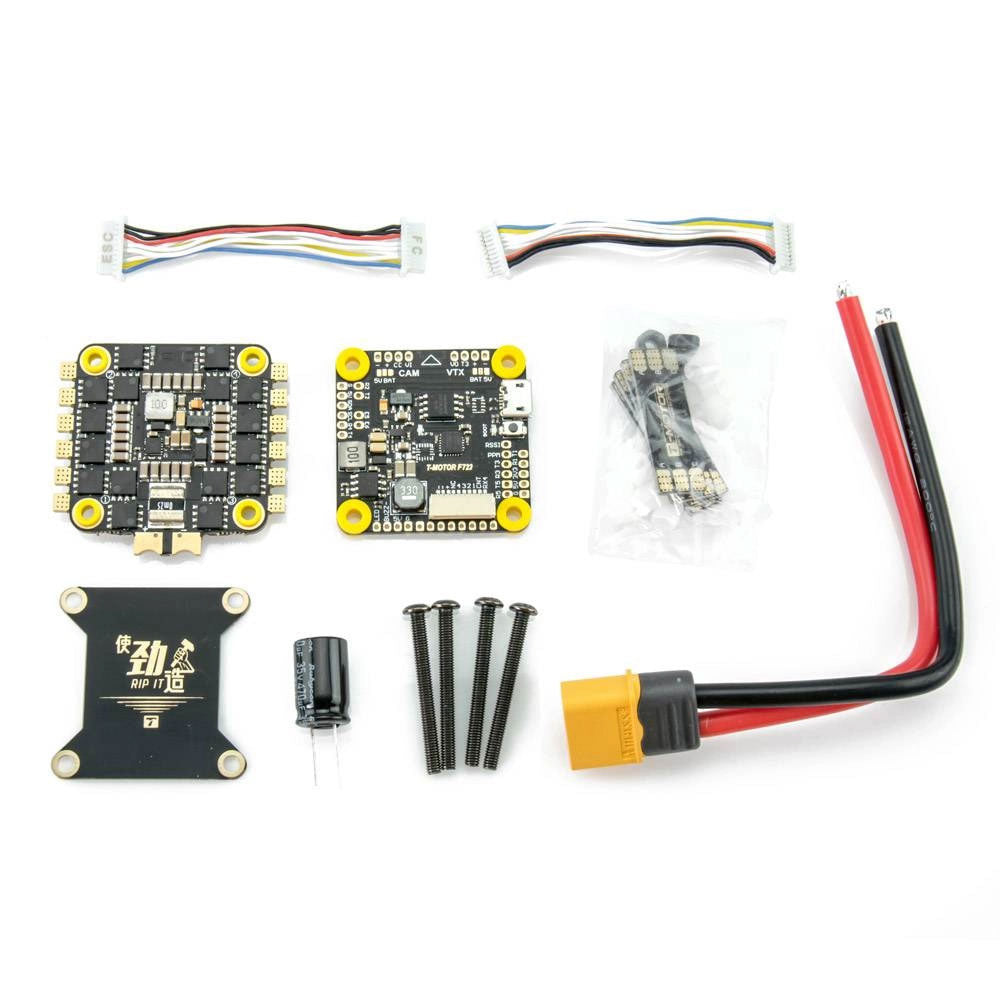

  • T-Motor F7 Stack full kit contents including wiring, connectors, and hardware

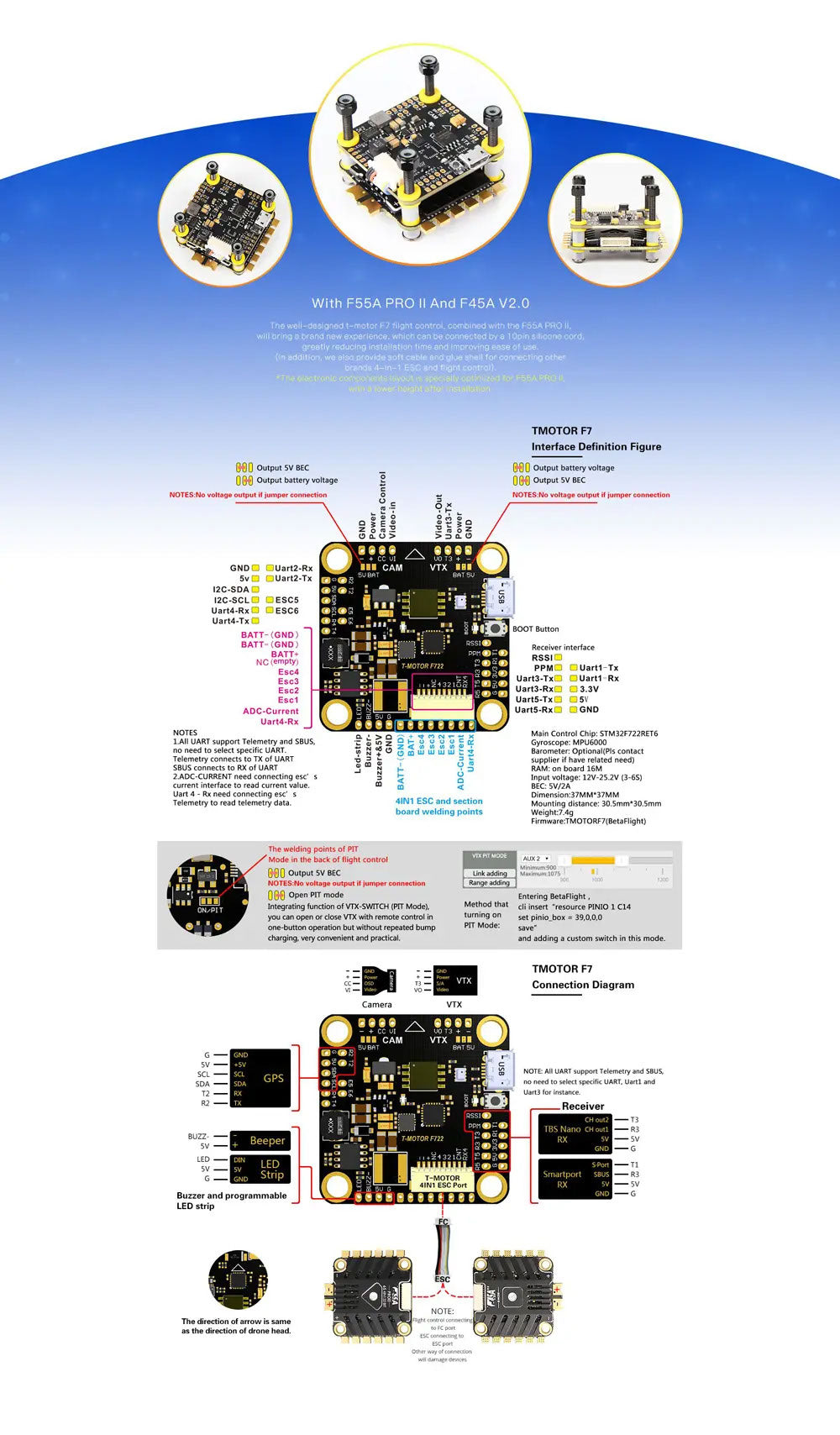

  • T-Motor F7 Flight Controller and F55A Pro II Stack wiring diagram and specifications overview
1 10

T‑Motor F7 Stack – F7 Flight Controller & F55A Pro II 4‑in‑1 ESC Combo

T‑Motor F7 Stack – F7 Flight Controller & F55A Pro II 4‑in‑1 ESC Combo

T-Motor

AFV01000030

$131.01 USD
$185.00 USD $131.01 USD
Sold out
Shipping calculated at checkout.

T‑Motor F7 Stack – F7 Flight Controller & F55A Pro II 4‑in‑1 ESC Combo

Premium integrated stack for high‑performance FPV drone builds.

The T‑Motor F7 Stack combines an advanced F7 flight controller with a powerful F55A Pro II 3–6S 4‑in‑1 ESC in one streamlined stack solution. Designed for 30.5 × 30.5 mm frame mounting, this combo delivers reliable control, efficient power distribution, and smooth responsiveness — ideal for freestyle, racing, and cinematic FPV quadcopters.

Key Features:

  • Integrated Stack Design: Flight controller and ESC combined into one compact stack for simplified installation and clean wiring.
  • F7 Flight Controller: Fast STM32F722 processor with BMI270 gyro delivers smooth flight control and advanced filtering options.
  • F55A Pro II 4‑in‑1 ESC: Supports 3–6S LiPo with up to 55 A continuous and 75 A burst current per motor.
  • BLHeli_32 Firmware: Proven ESC firmware offering smooth throttle response and configurable motor protocols (DSHOT150/300/600/1200).
  • 30.5 × 30.5 mm Mounting: Standard mounting pattern keeps this stack compatible with a wide range of FPV frames.
  • Compact & Lightweight: Ideal for maintaining balance and agility on high‑speed drones.

Performance & Use:

Whether you’re equipping a freestyle quad, racing machine, or HD cinewhoop, the T‑Motor F7 Stack offers the performance and reliability pilots expect from premium FPV electronics. With integrated ESC and flight controller compatibility, you’ll enjoy cleaner builds, reduced wiring complexity, and dependable power delivery for demanding flight conditions.

Technical Specifications:

  • Flight Controller MCU: STM32F722RET6
  • Gyro Sensor: BMI270
  • ESC Firmware: BLHeli_32
  • ESC Current Rating: 55 A continuous / 75 A burst (per motor)
  • Voltage Range: 3–6S LiPo
  • Mounting Pattern: 30.5 × 30.5 mm
  • BEC Output: 10 V / 2 A

Who It’s For:

Great for FPV builders and pilots seeking a professional‑grade stack with integrated power and control electronics. Whether you’re racing, cruising, or filming, this stack offers a balance of performance, flexibility, and durability.

Upgrade your FPV build with the T‑Motor F7 Stack — powerful, efficient, and ready for advanced flying.
