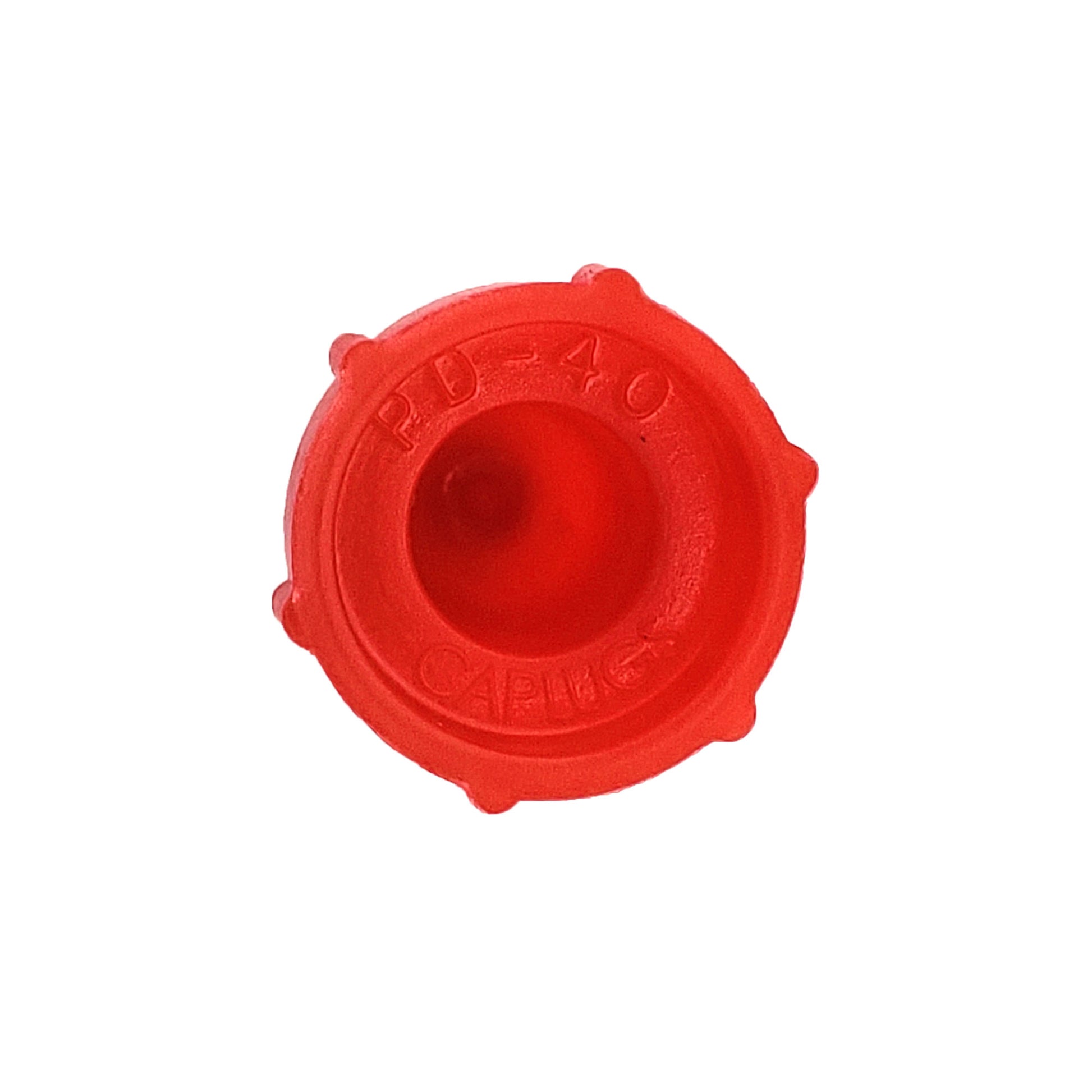

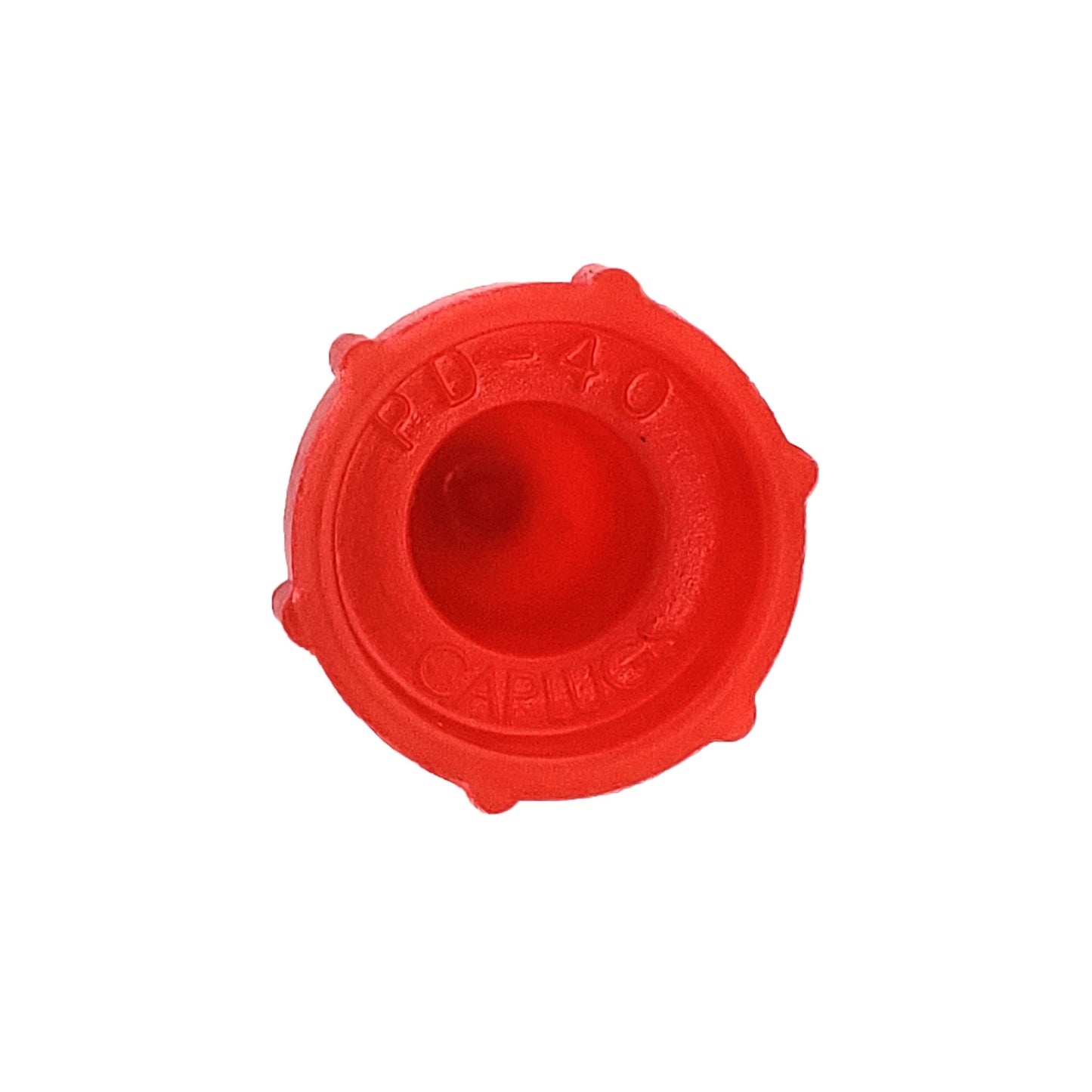

  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD 40, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD 50, bottom of cap, inscription shown inside cap

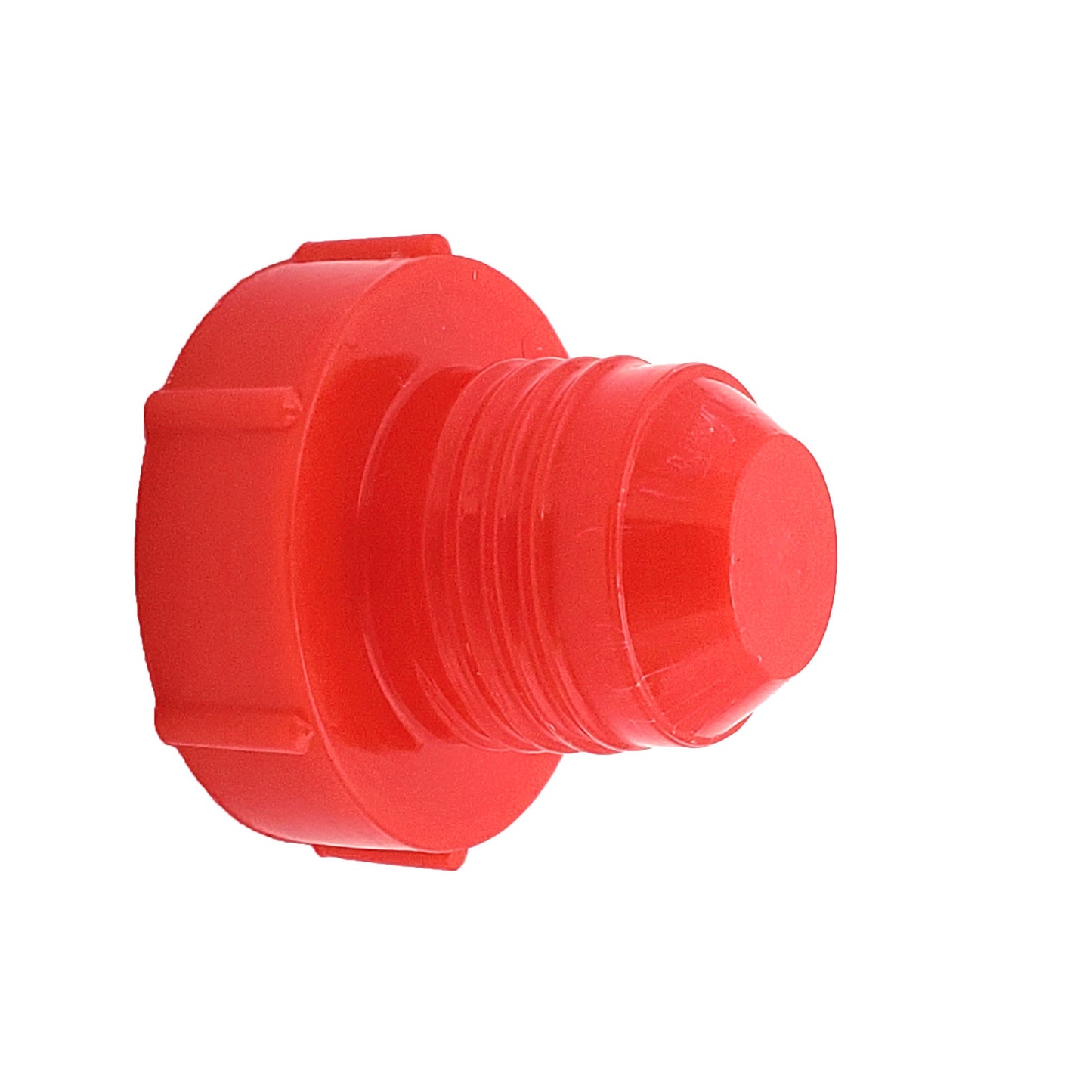

  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-60, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD 65, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD 80, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-HF 16 LDPE, standing

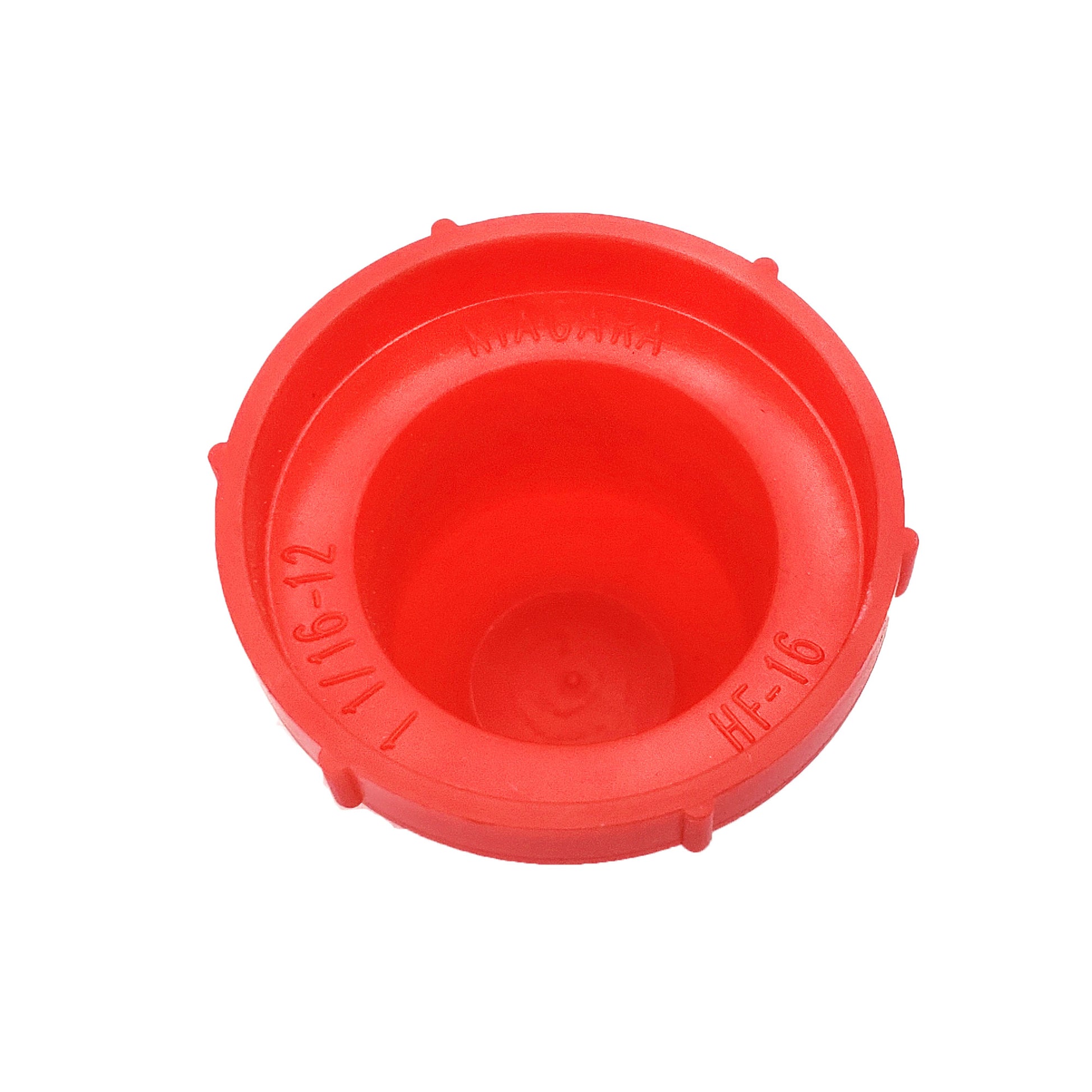

  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-HF 16 LDPE, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-HF 16 HDPE, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD 120 LDPE, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD 121 LDPE, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD 121 LDPE, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-HF 17, bottom of cap, inscription shown inside cap

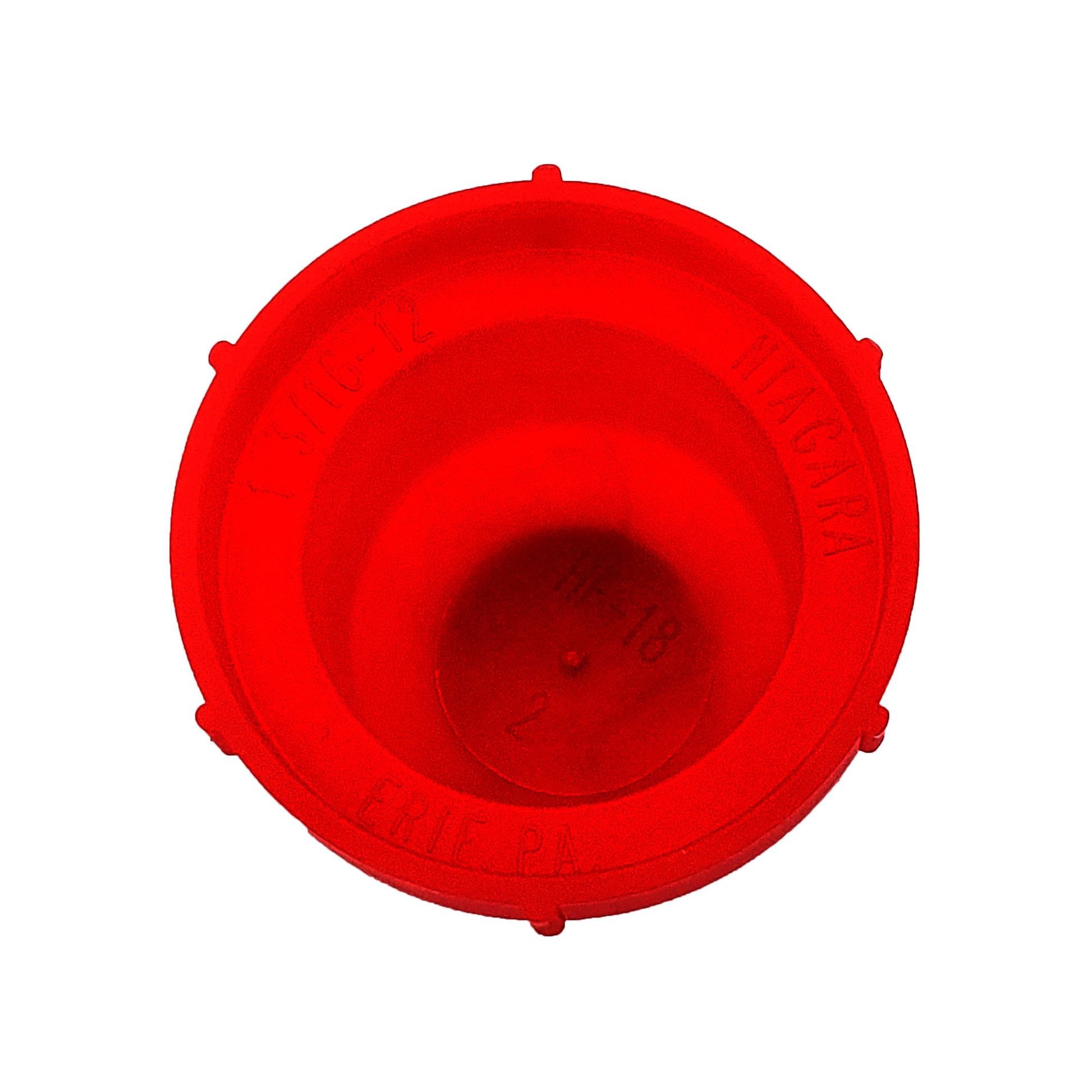

  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-HF 18 LDPE, bottom of cap, inscription shown inside cap

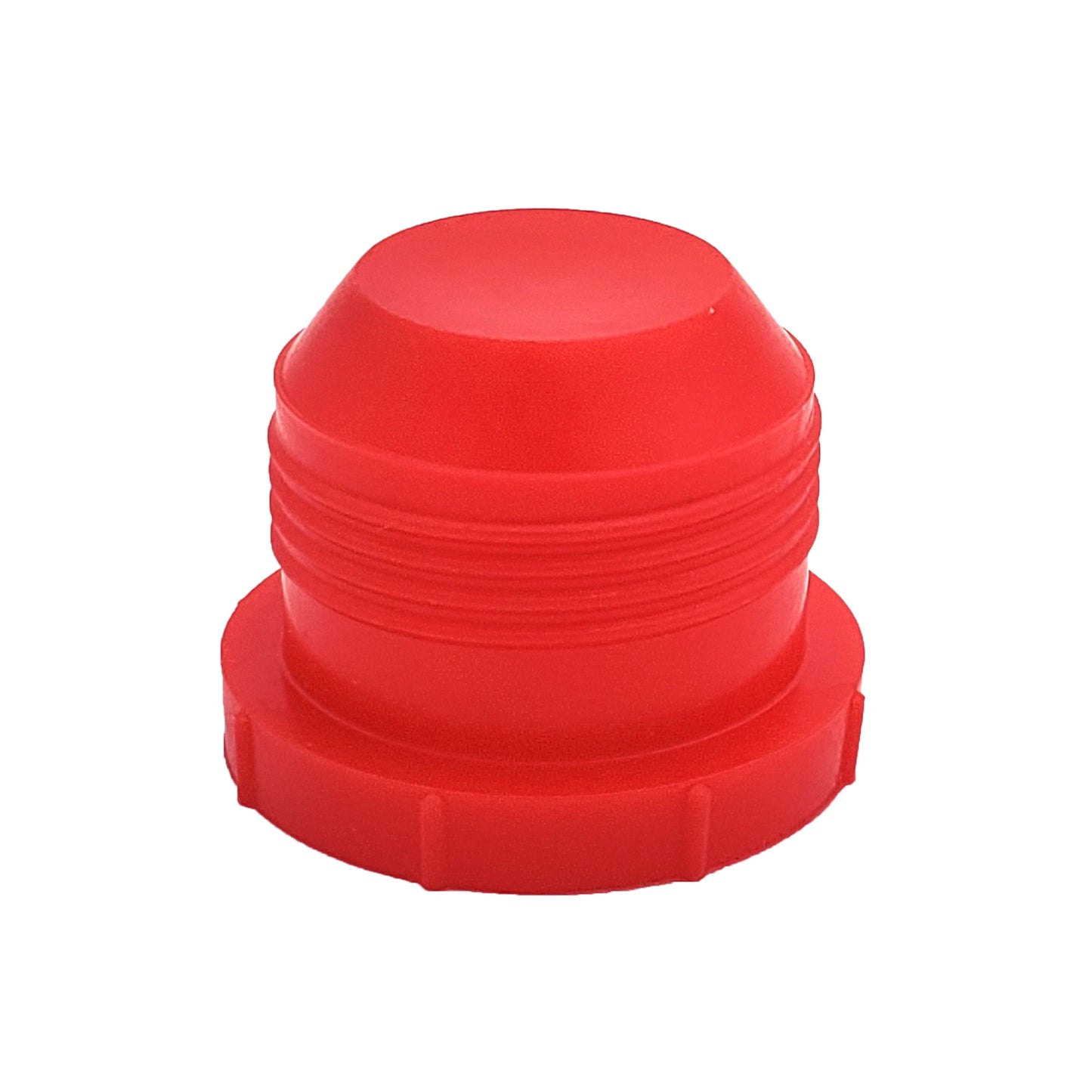

  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD 160 LDPE, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD 160 HDPE, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-180 LDPE, bottom of cap, inscription shown inside cap

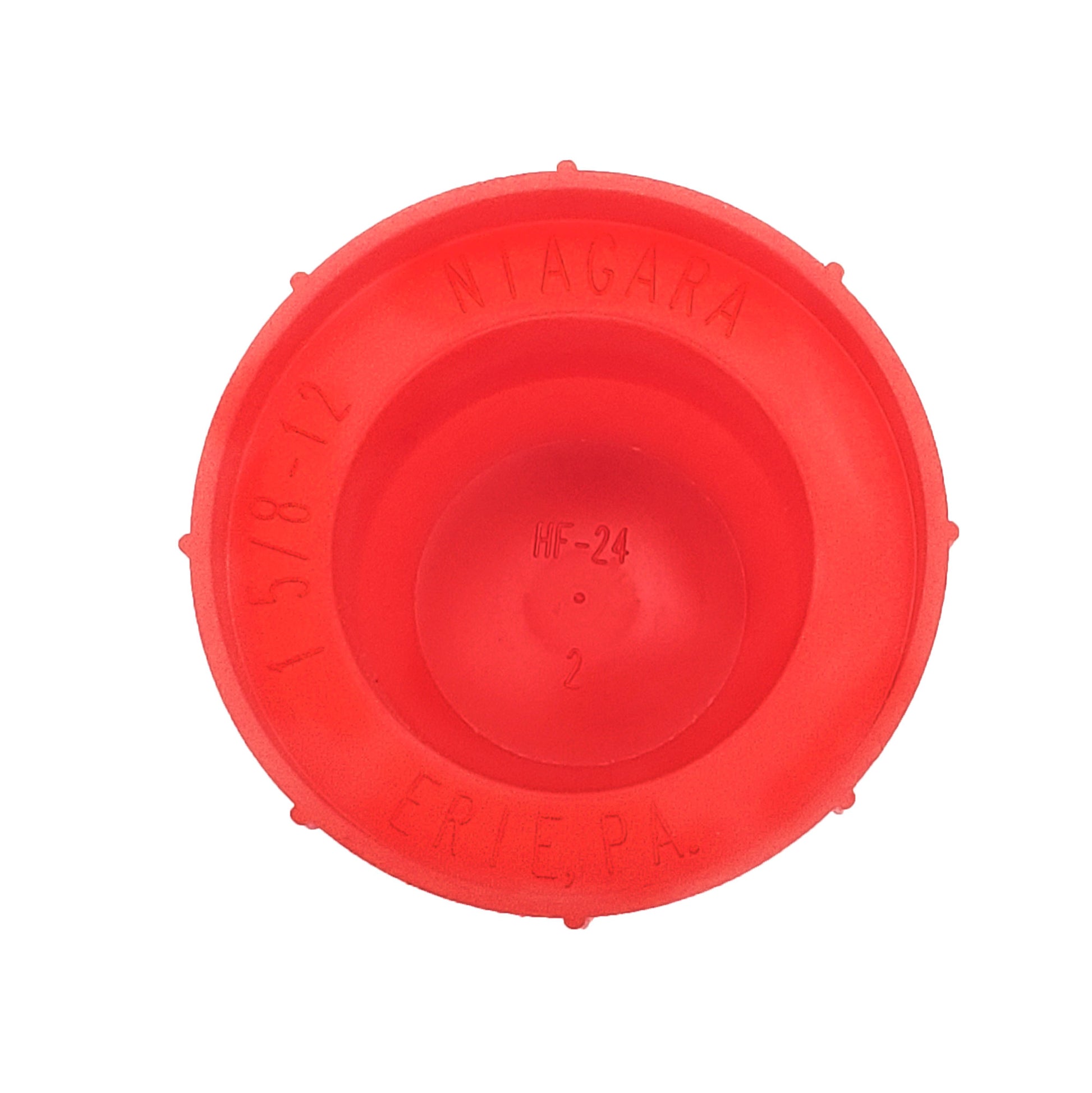

  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-HF 24 LDPE, bottom of cap, inscription shown inside cap

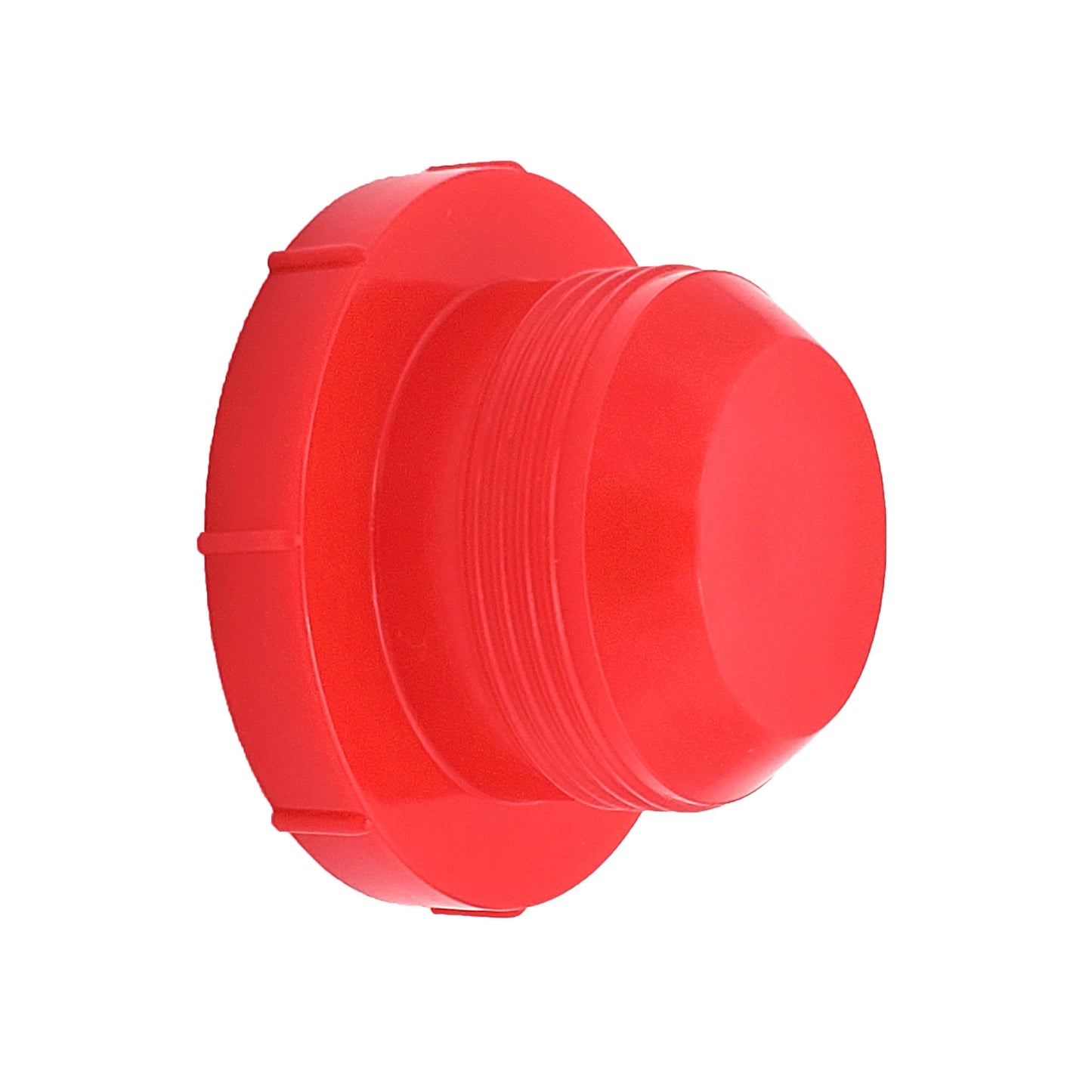

  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-HF 24 HDPE, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-HF 26 LDPE, bottom of cap, inscription shown inside cap
  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD 240 LDPE, bottom of cap, inscription shown inside cap

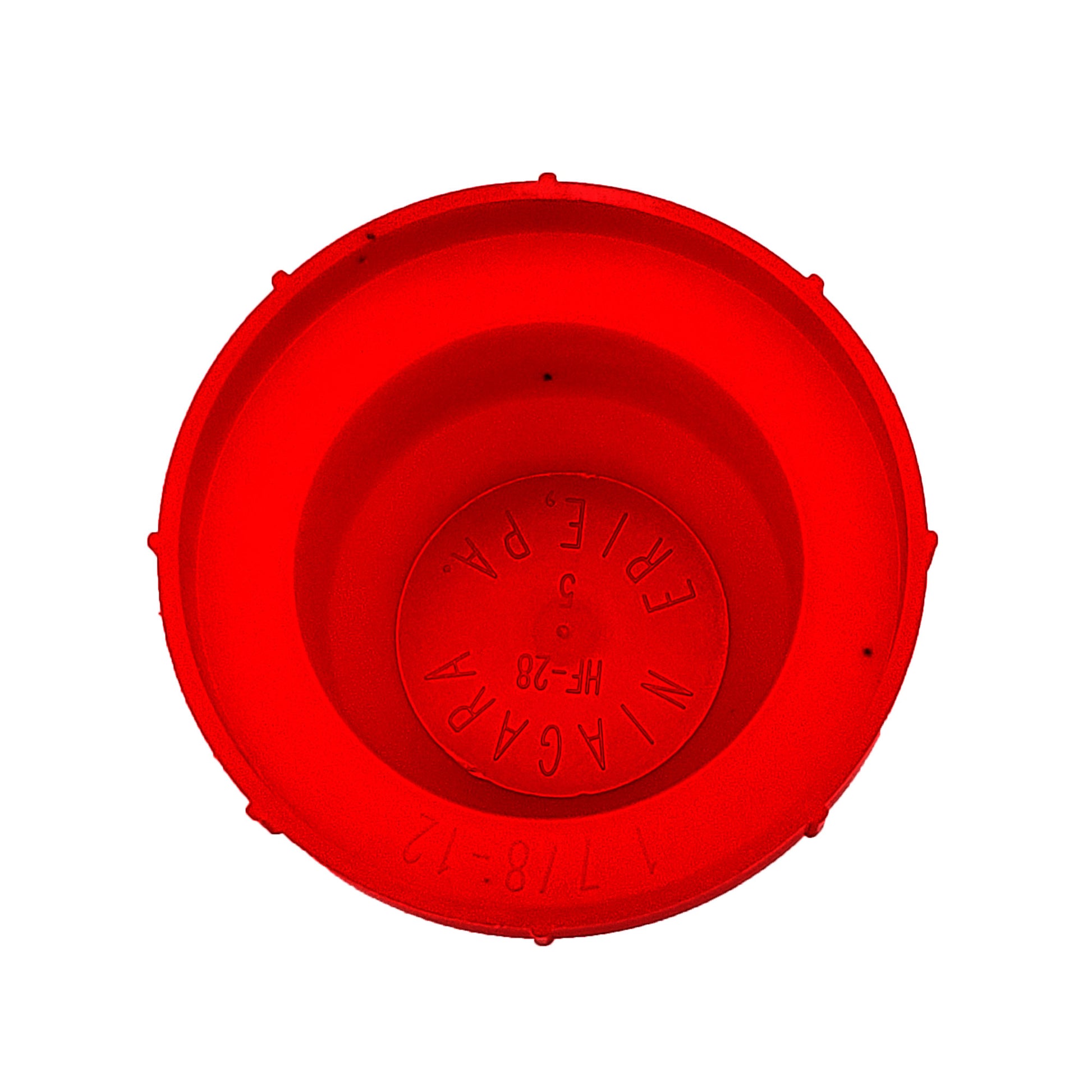

  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-HF 28 LDPE, bottom of cap, inscription shown inside cap

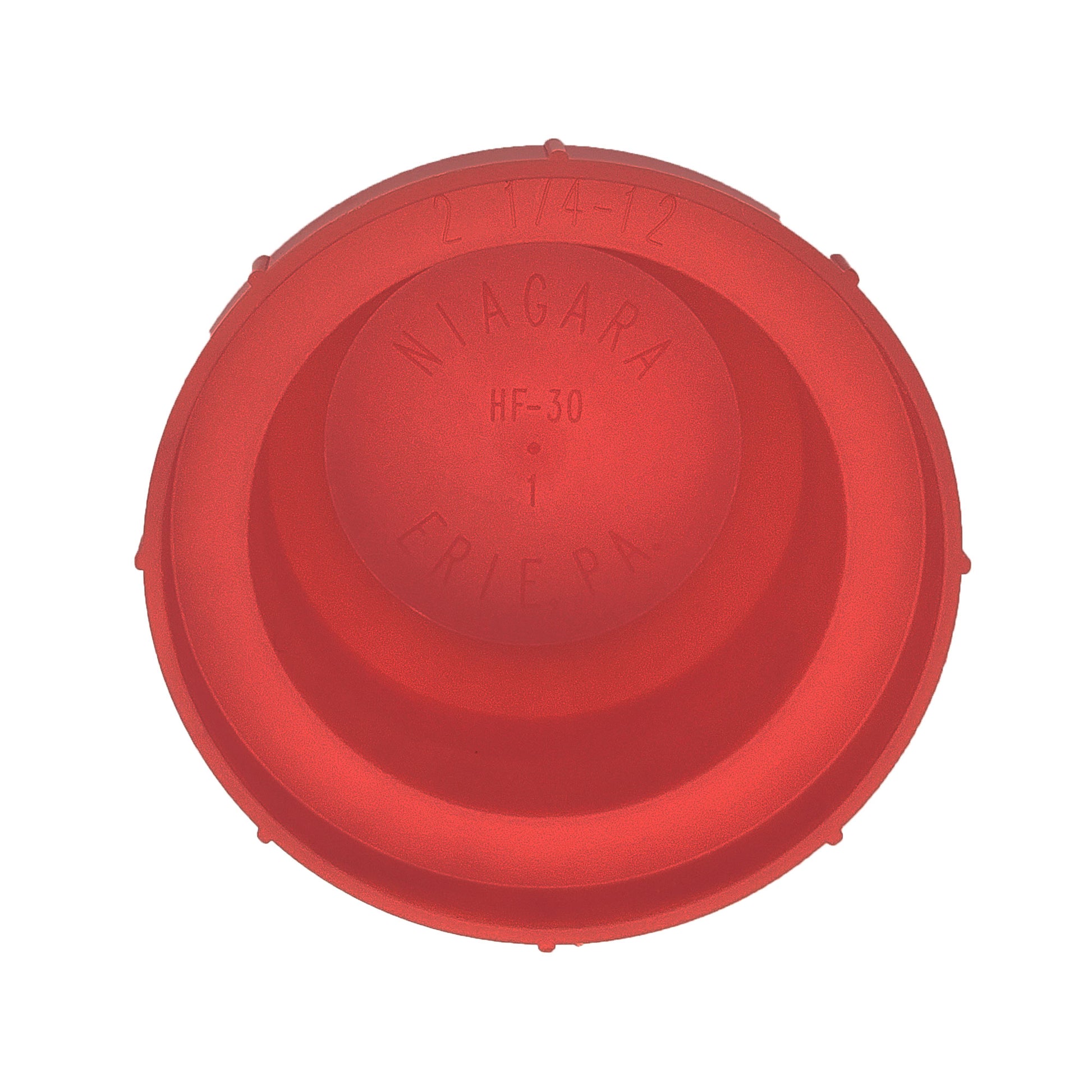

  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-HF 30 LDPE, bottom of cap, inscription shown inside cap

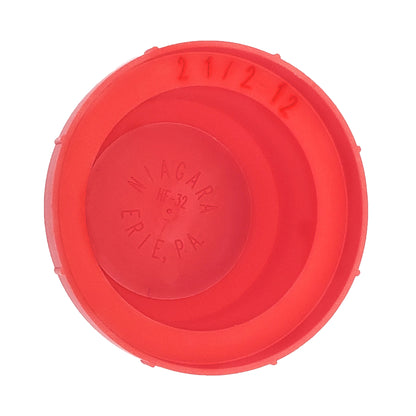

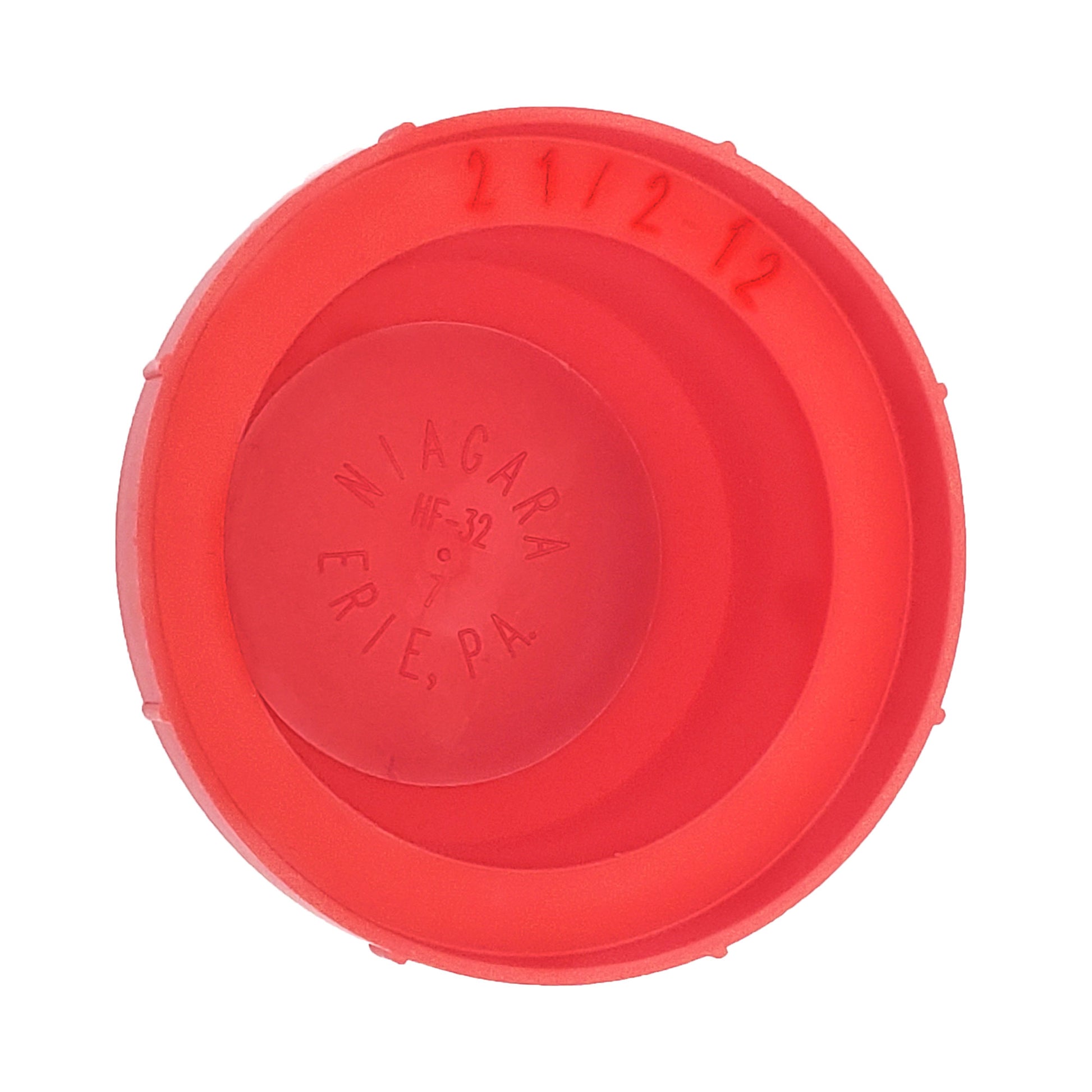

  • PD Series - Threaded Plastic Plugs For Flared JIC Fittings | PD-HF 32 LDPE, bottom of cap, inscription shown inside cap
1 27

PD Series - Threaded Plastic Plugs For Flared JIC Fittings

PD Series - Threaded Plastic Plugs For Flared JIC Fittings

Caplugs

1634 in stock

PD-20(LDPE)

$0.11 USD
$0.31 USD $0.11 USD
Sale Sold out
Shipping calculated at checkout.

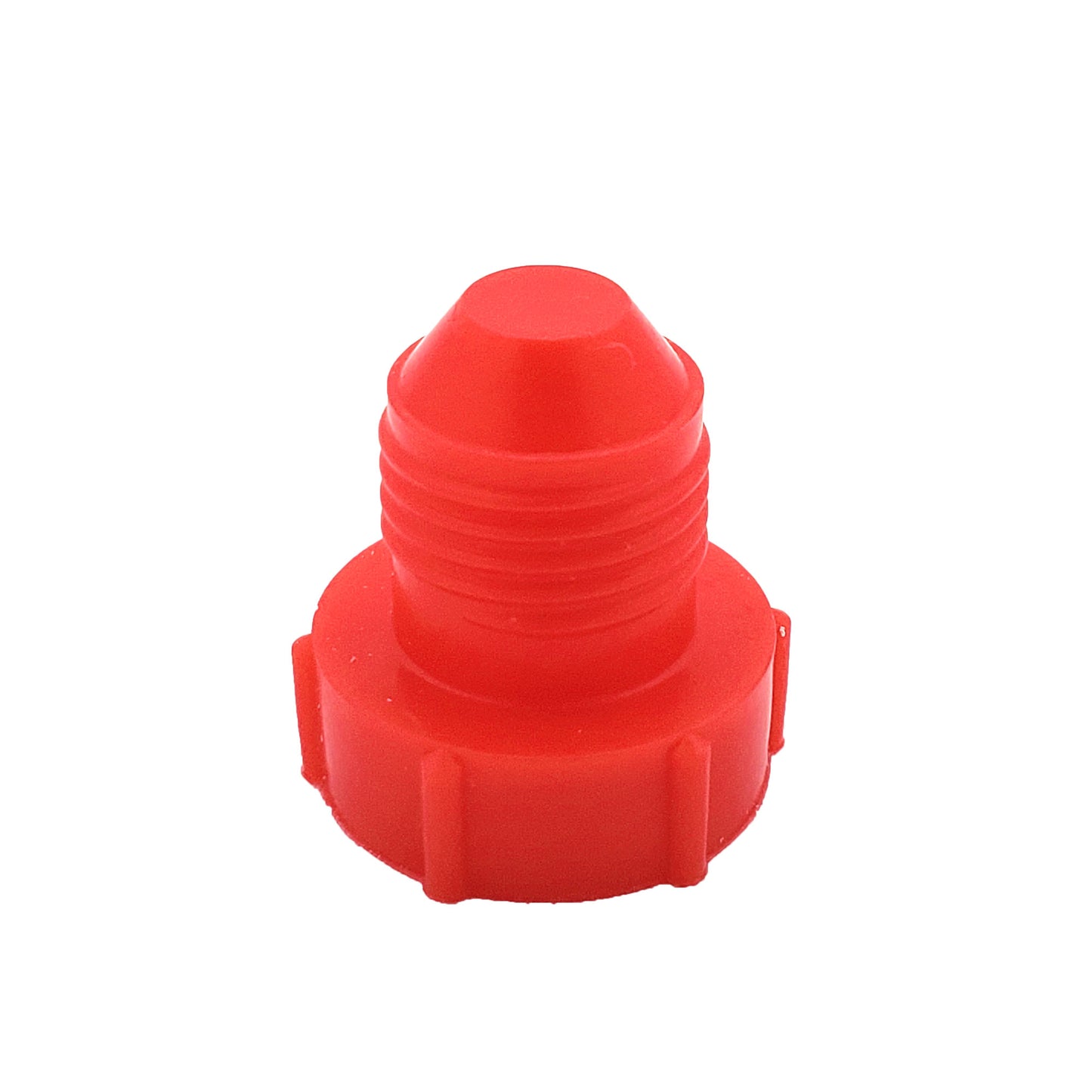

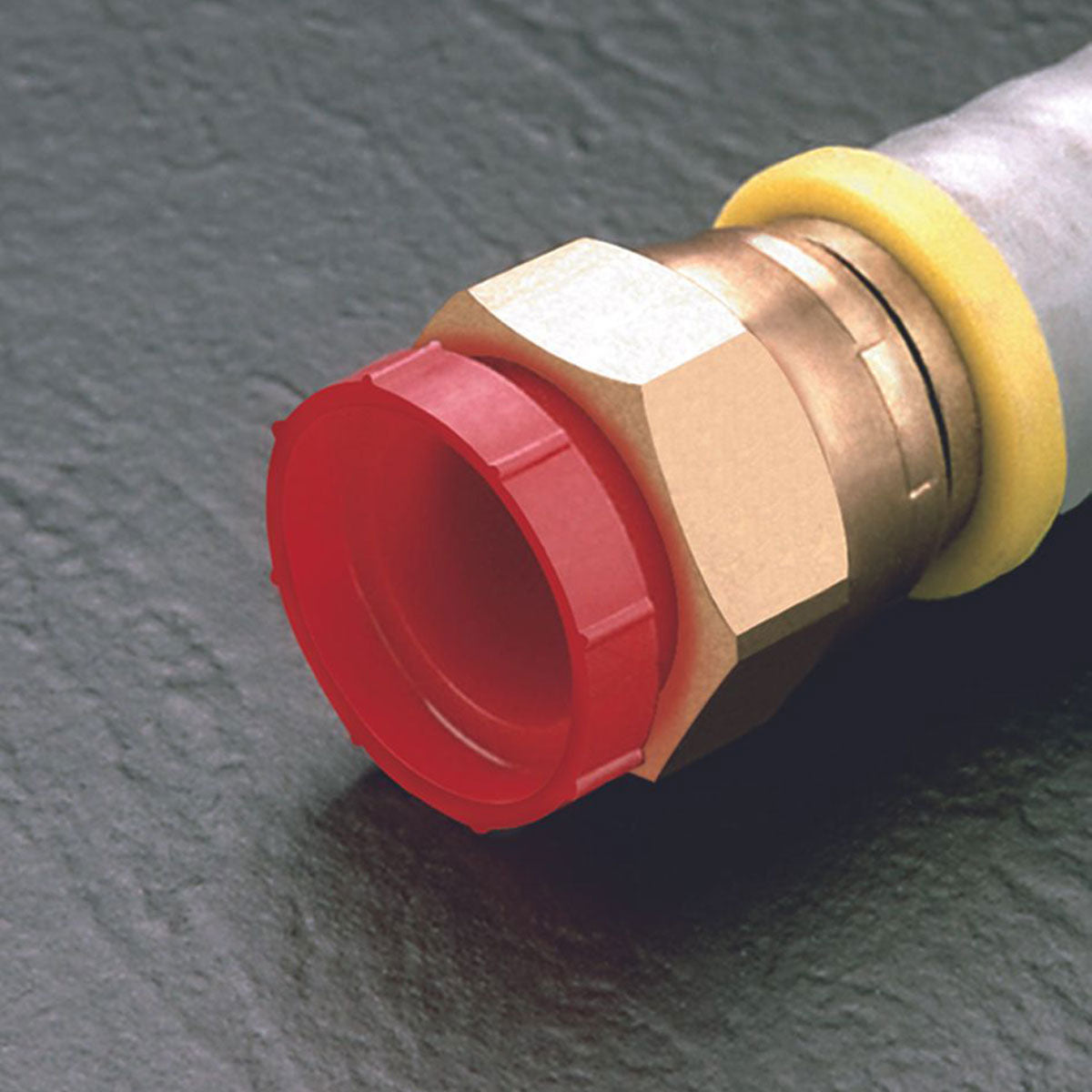

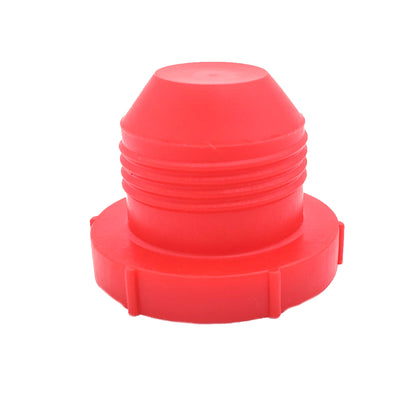

These PD Series plugs are designed for use on flared JIC fittings and will seal low-pressure requirements with light finger tightening. They can be used on 37° flare fittings without gaskets.

  • Flared fitting
  • Knurled for easy installation and removal
  • Material: High-Density Polyethylene and Low-Density Polyethylene
  • Service Temperature: LDPE: -94 - 175° F (-70 - 79° C) | HDPE: 0 - 215° F (-18 - 102° C)
  • Standard Color: Red

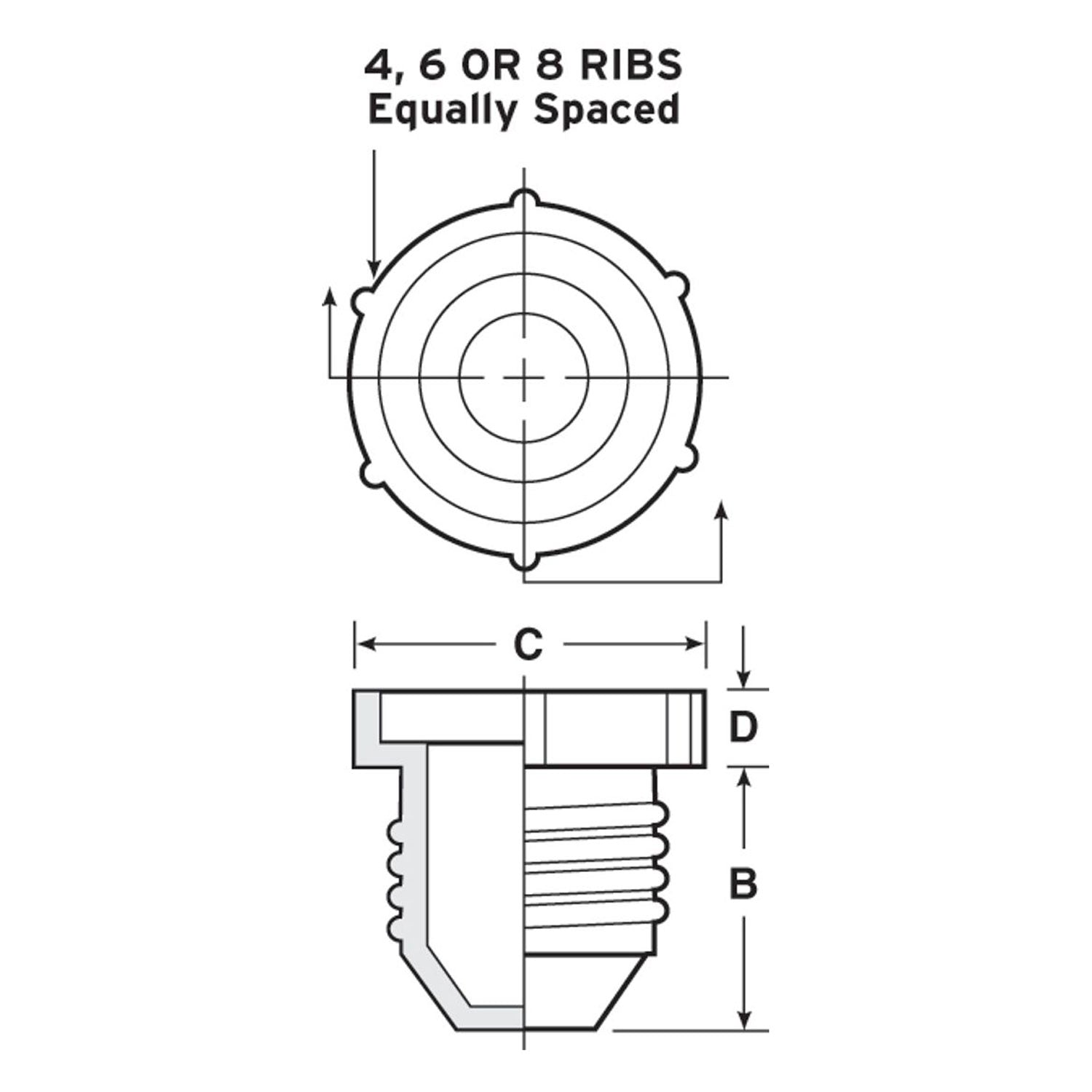

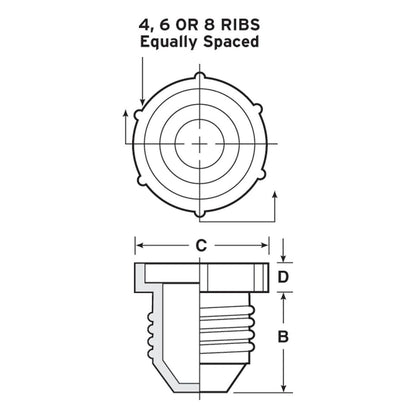

Item # To Plug Nominal Tubing Size (In) To Fit Thread Size (In) JIC Fitting Dash Size Dim B (In) Dim C (In) Dim D (In)

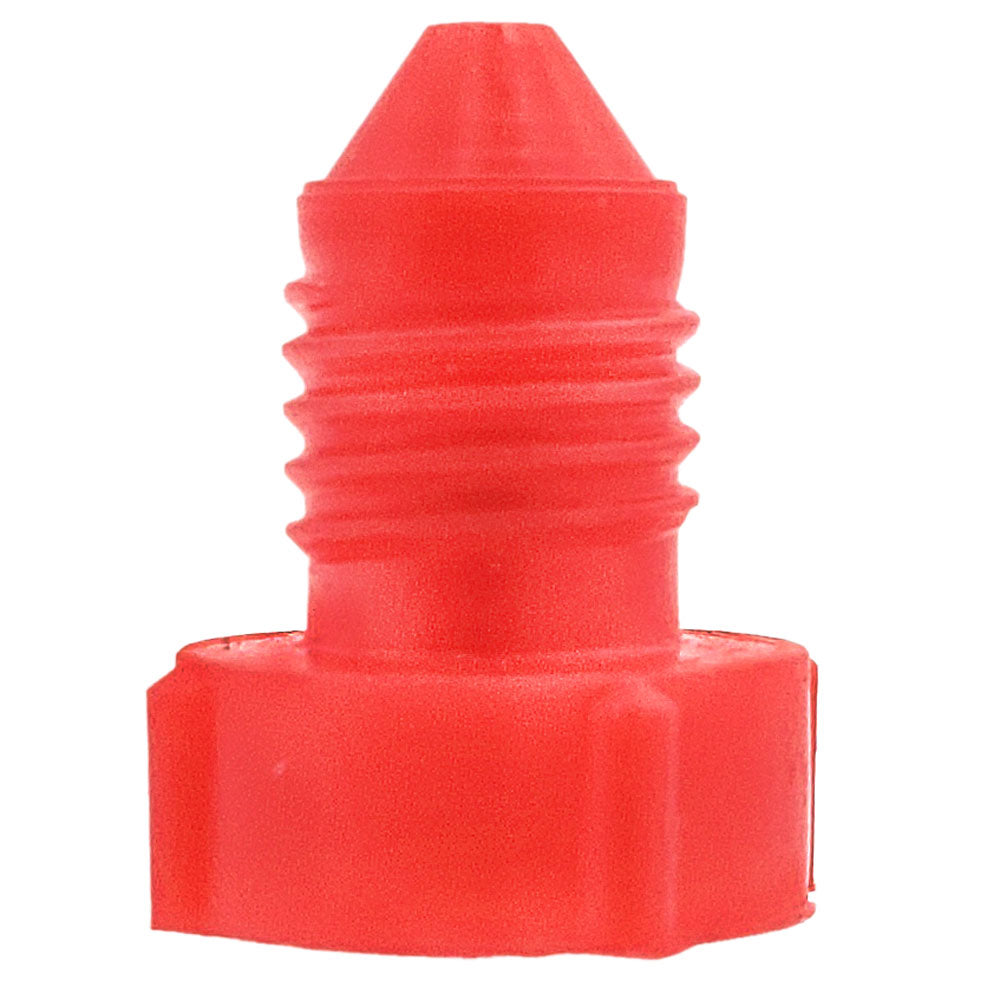

PD-20 (LDPE) 1/8 5/16 – 24 - 0.44 0.44 0.18

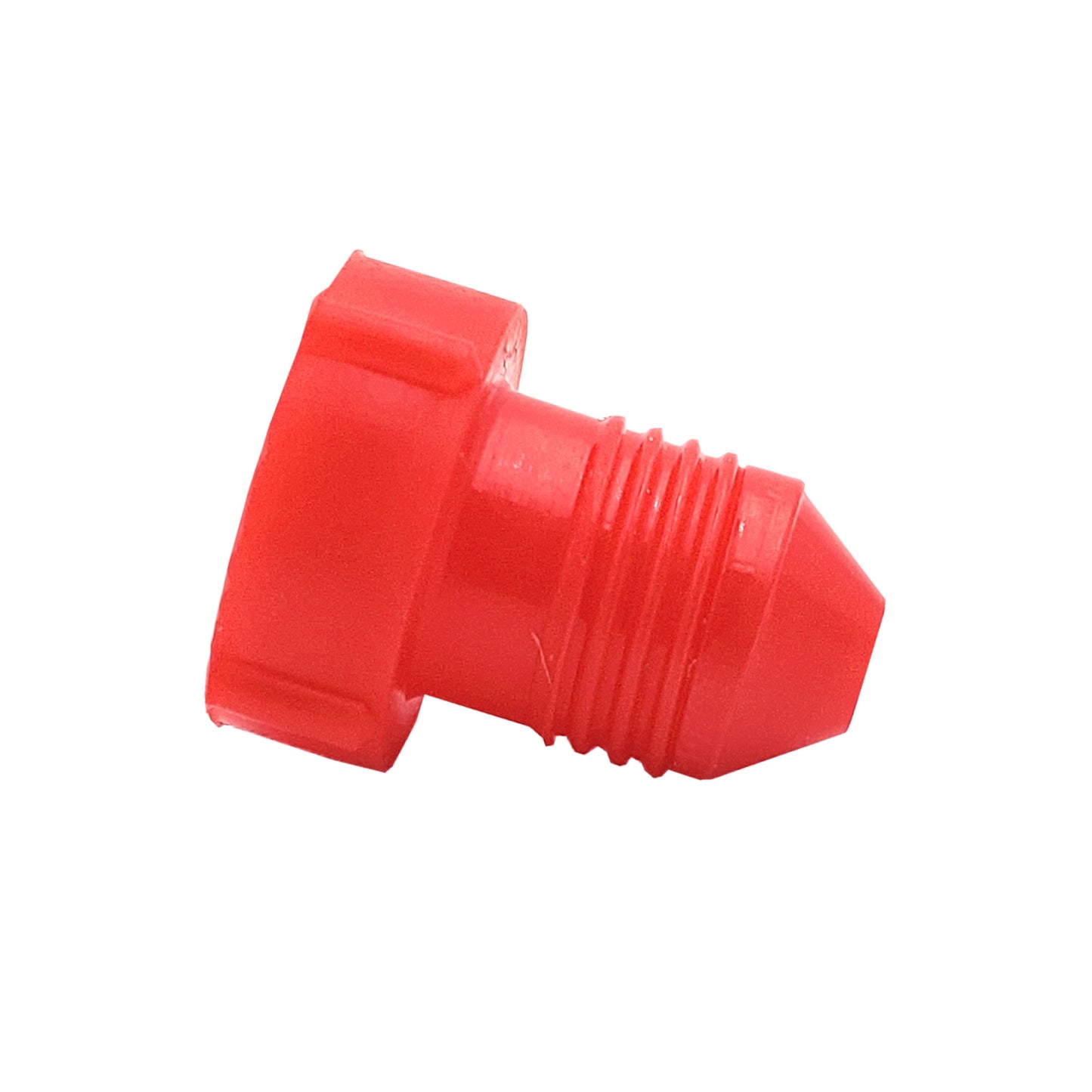

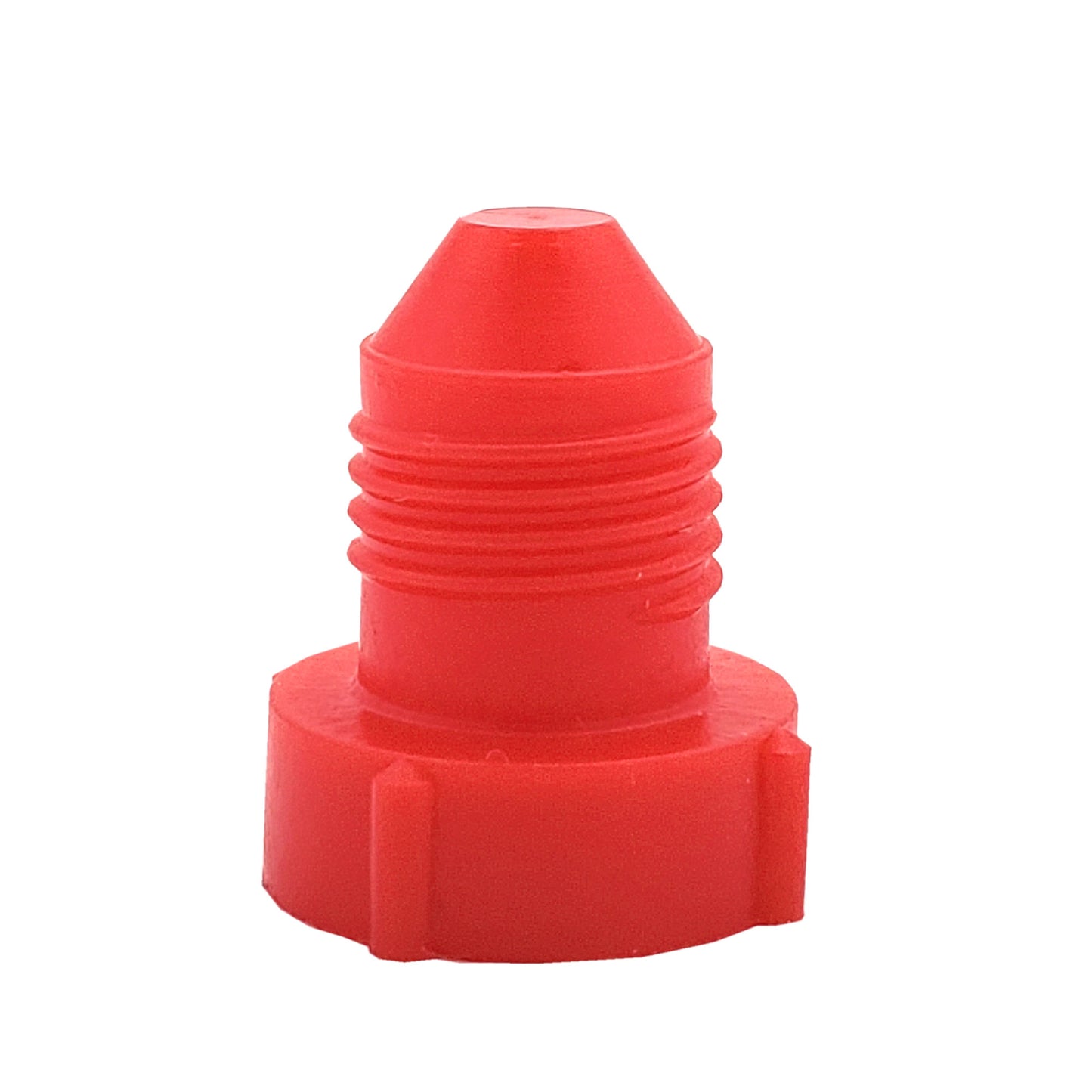

PD-30 (LDPE) 3/16 3/8 – 24 - 0.46 0.50 0.18
PD-30 (HDPE) 3/16 3/8 – 24 - 0.46 0.50 0.18

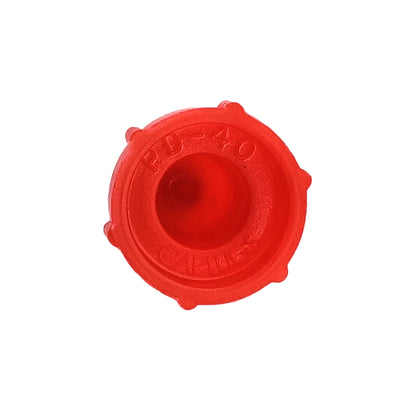

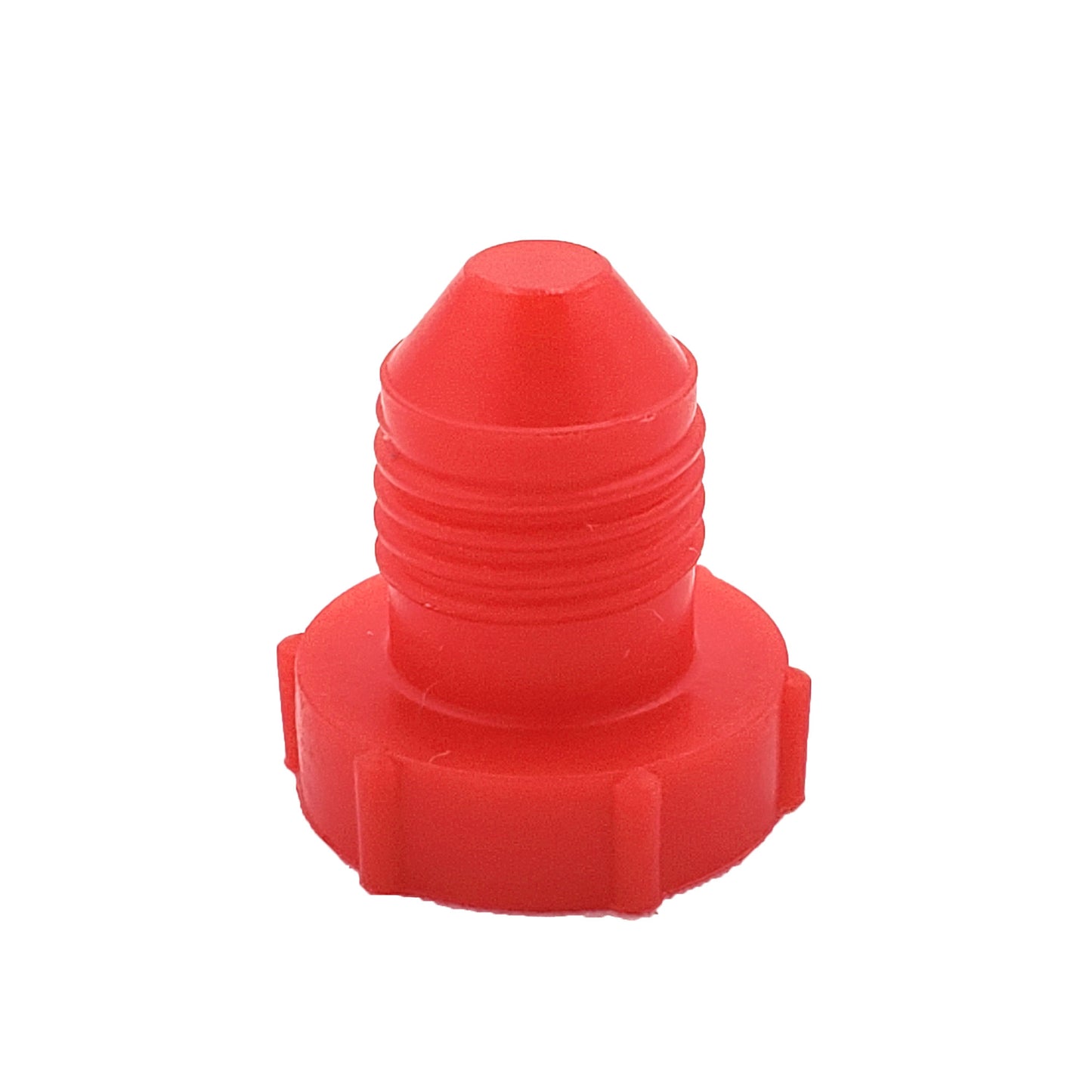

PD-40 (LDPE) 1/4 7/16 – 20 -4 0.53 0.62 0.19

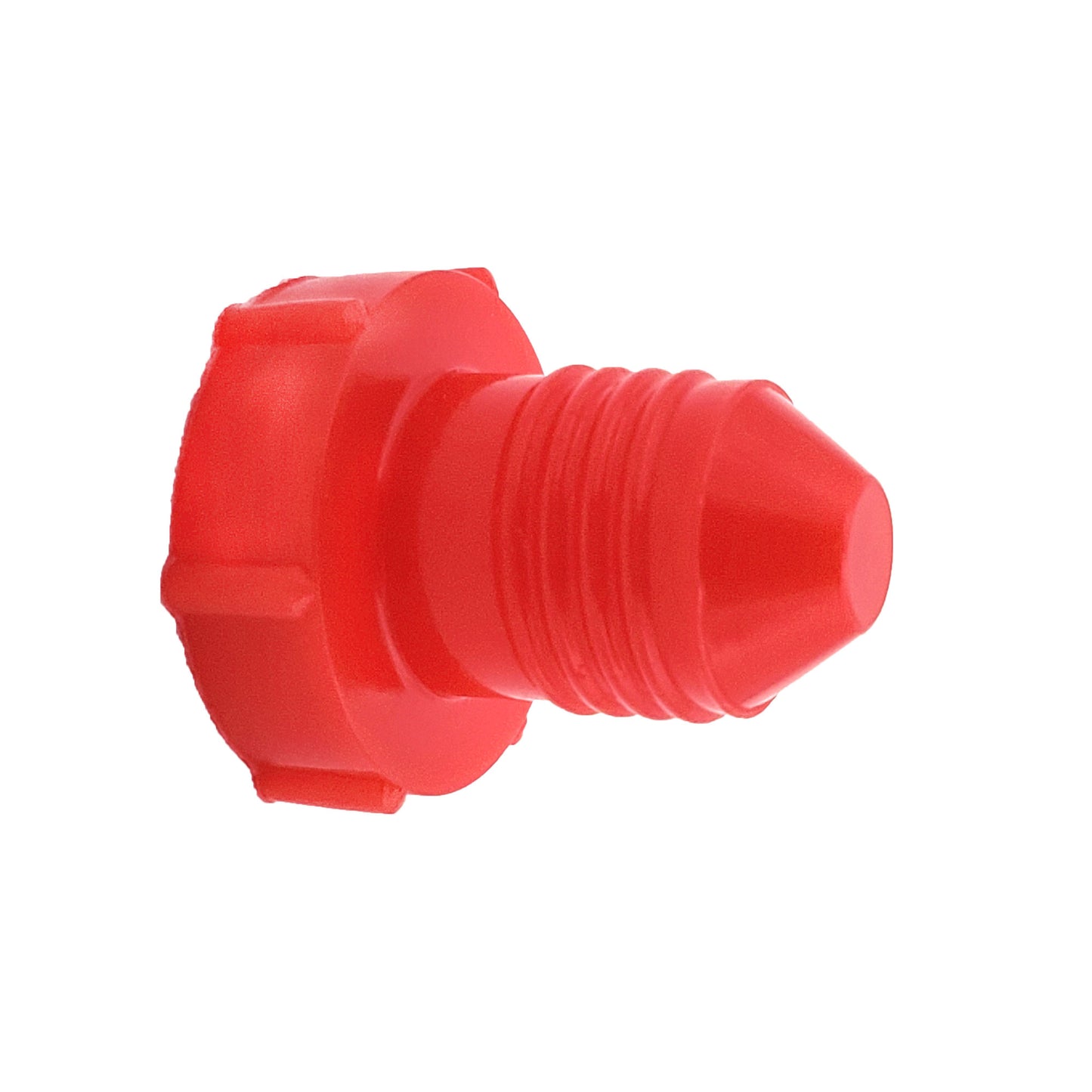

PD-40 (HDPE) 1/4 7/16 – 20 -4 0.53 0.62 0.19

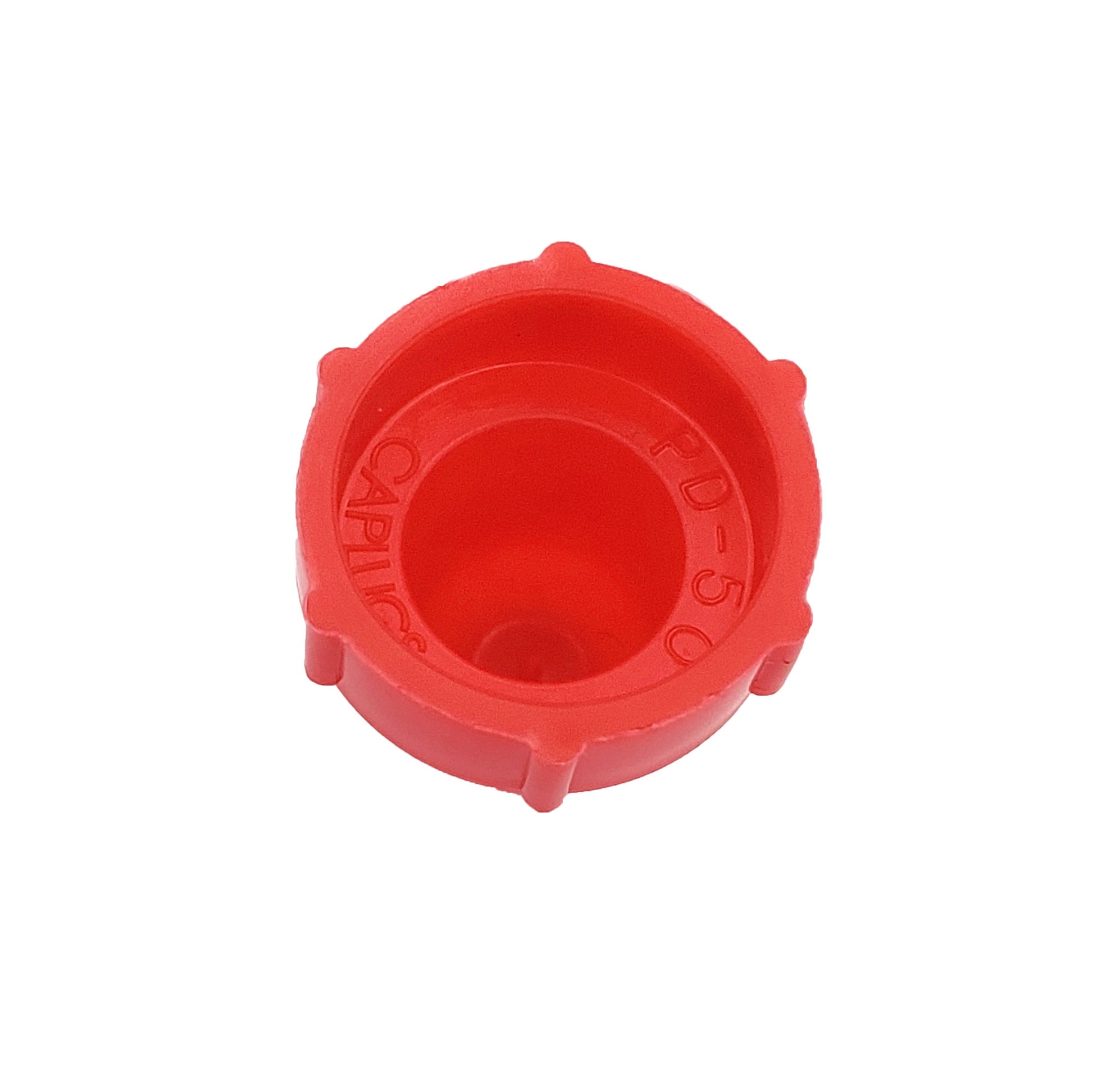

PD-50 (LDPE) 5/16 1/2 – 20 -5 0.53 0.68 0.25
PD-50 (HDPE) 5/16 1/2 – 20 -5 0.53 0.68 0.25

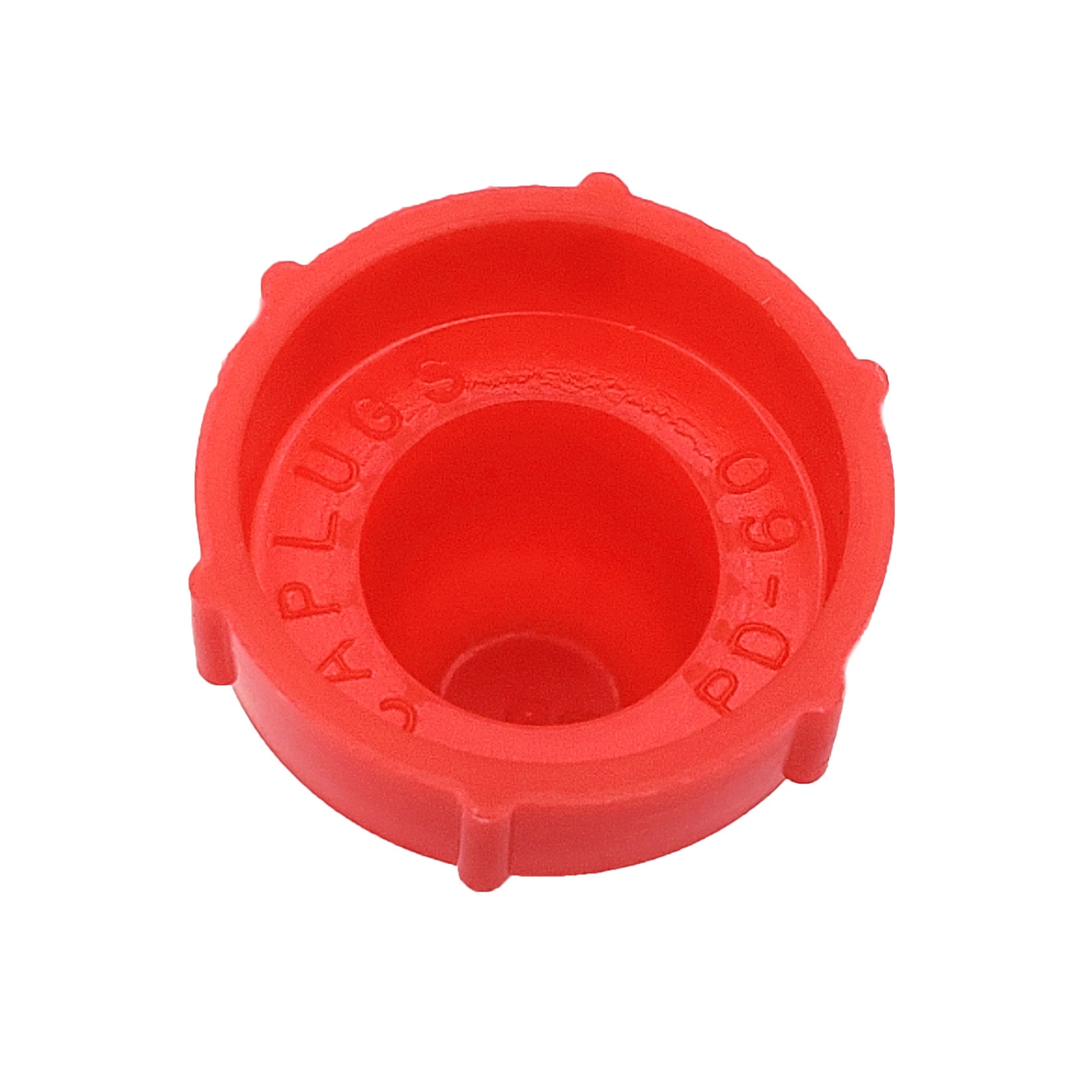

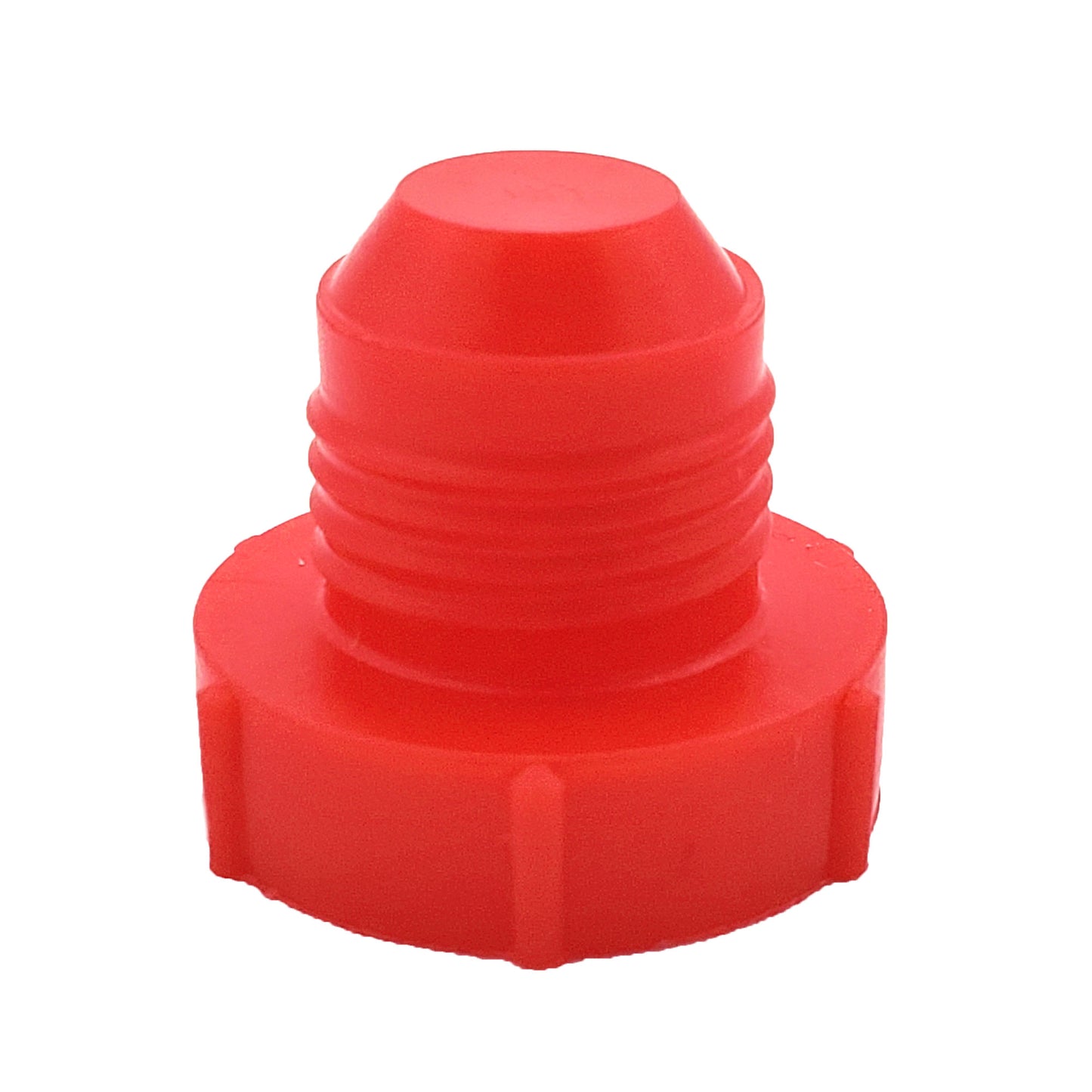

PD-60 (LDPE) 3/8 9/16 – 18 -6 0.50 0.81 0.25
PD-60 (HDPE) 3/8 9/16 – 18 -6 0.50 0.81 0.25

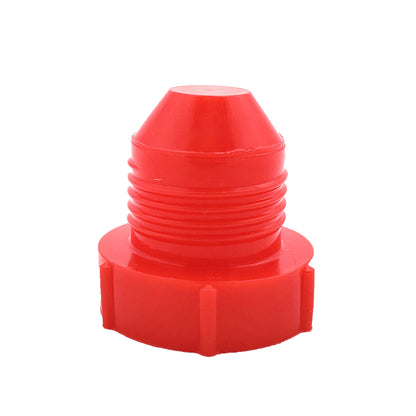

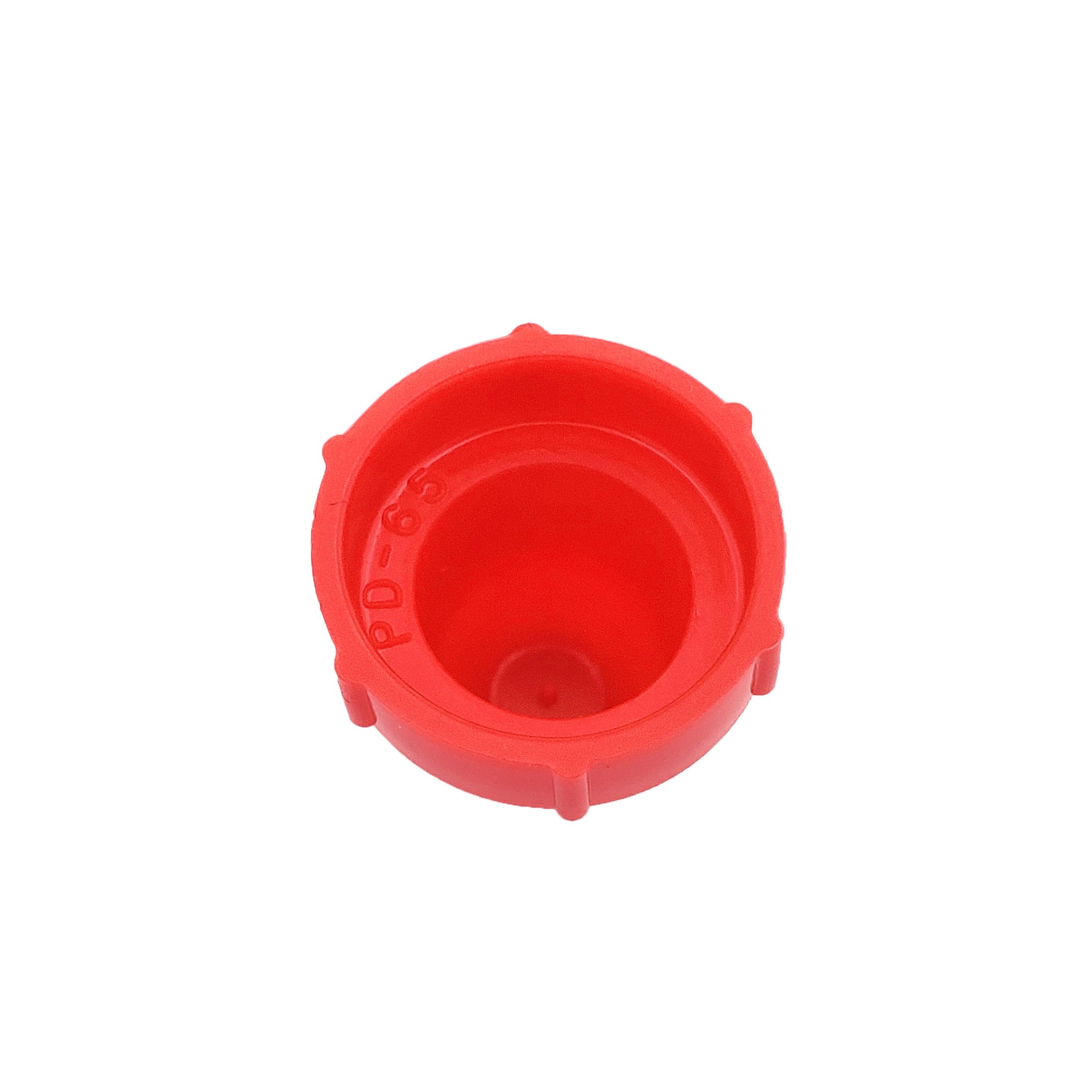

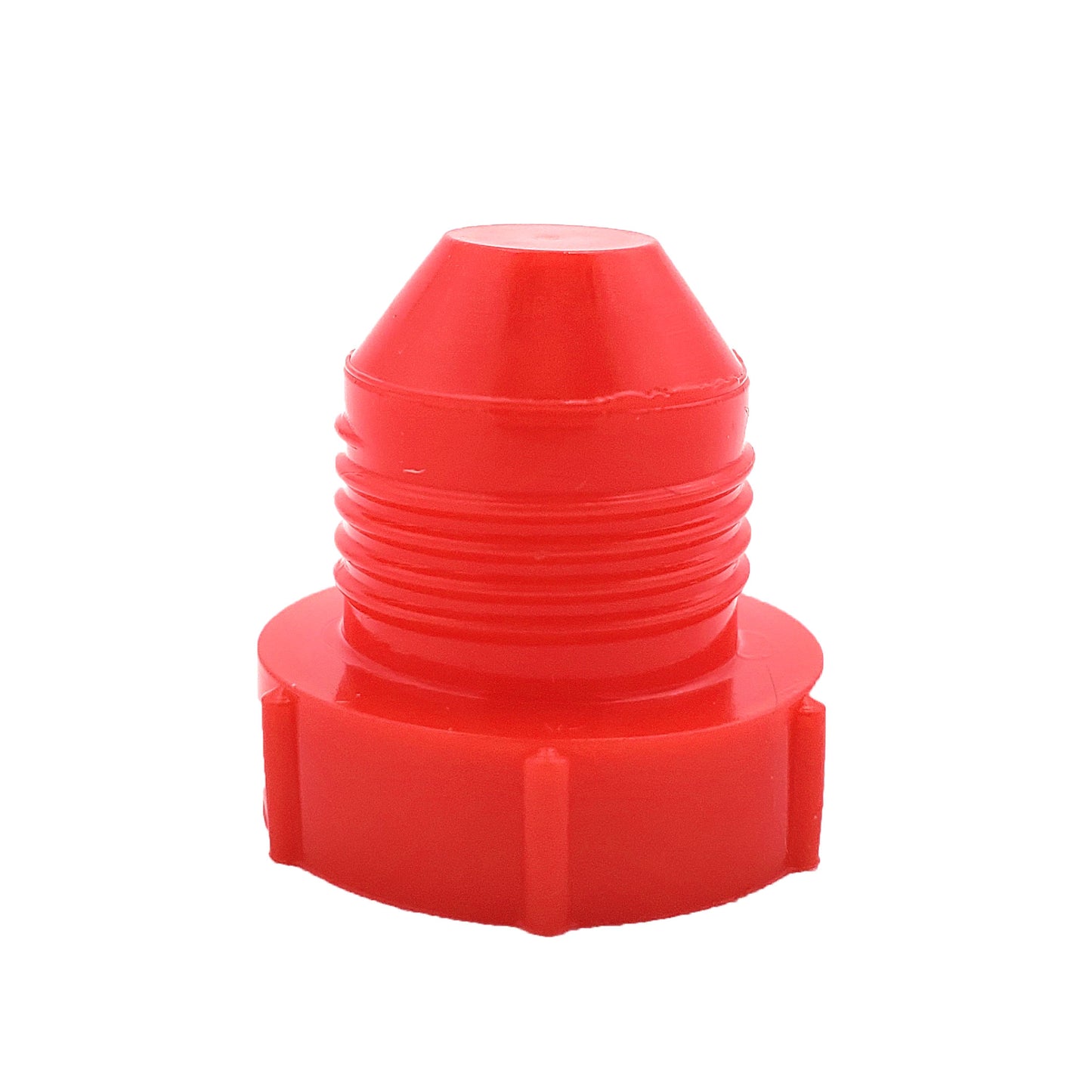

PD-65 (LDPE) 3/8 5/8 – 18 - 0.59 0.81 0.25

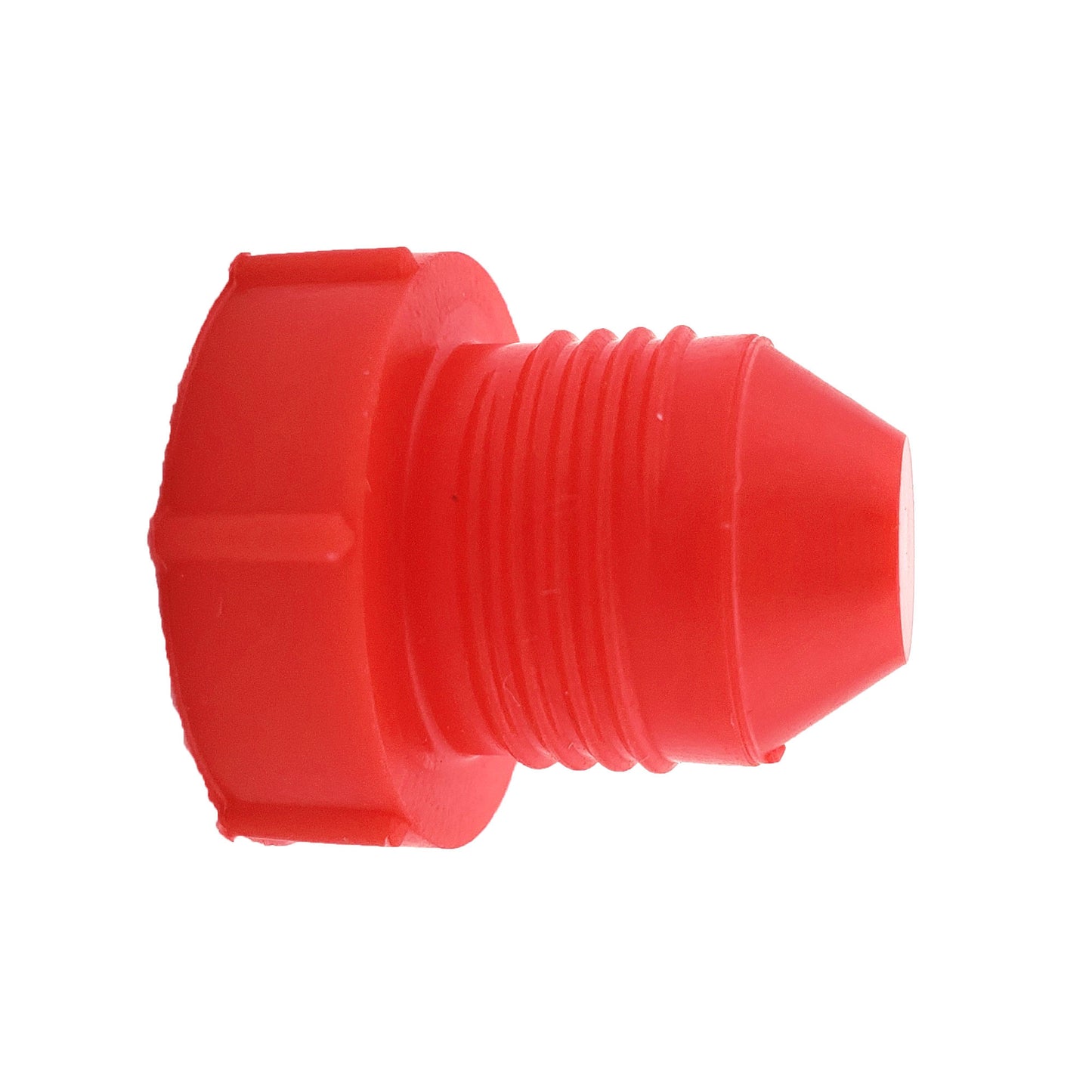

PD-65 (HDPE) 3/8 5/8 – 18 - 0.59 0.81 0.25

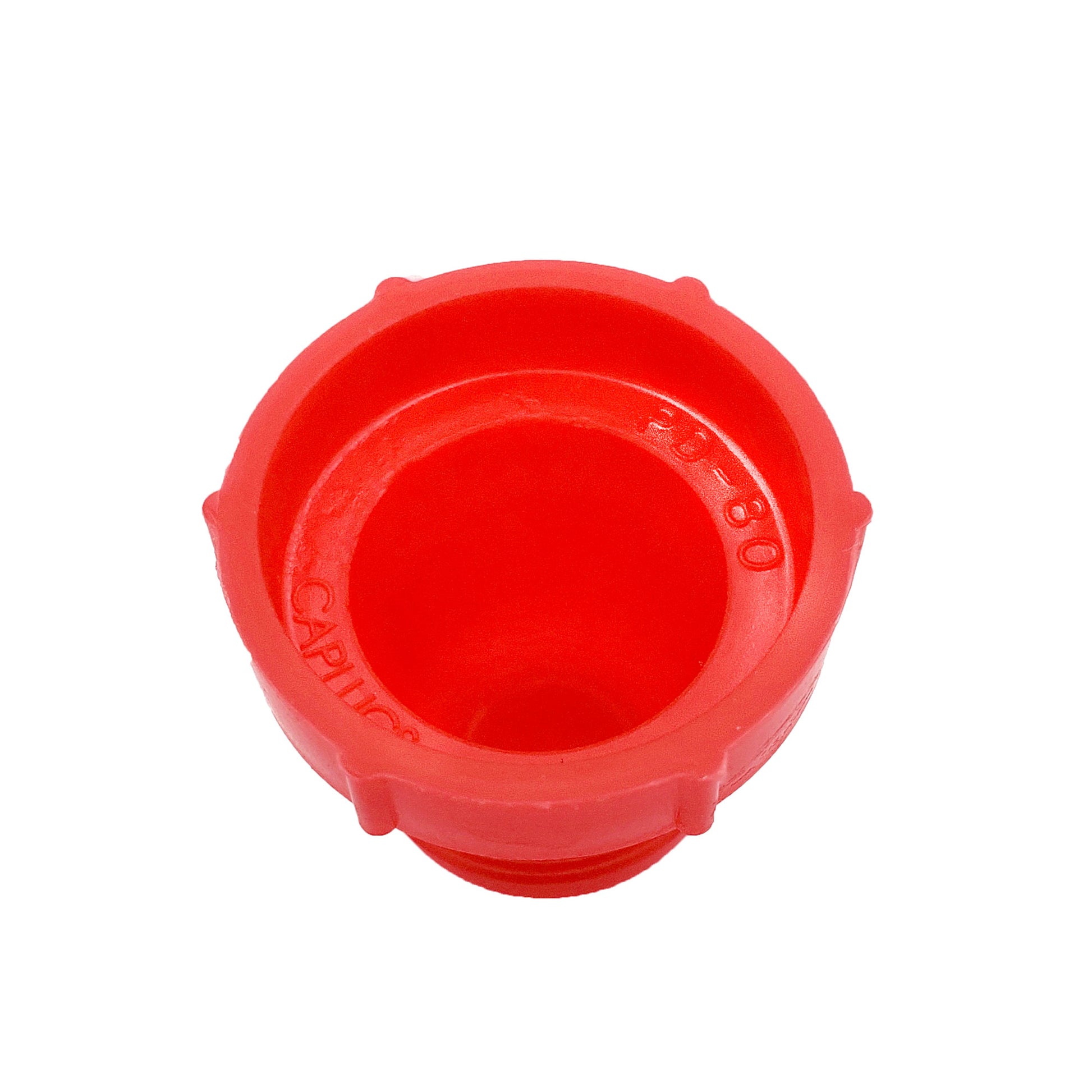

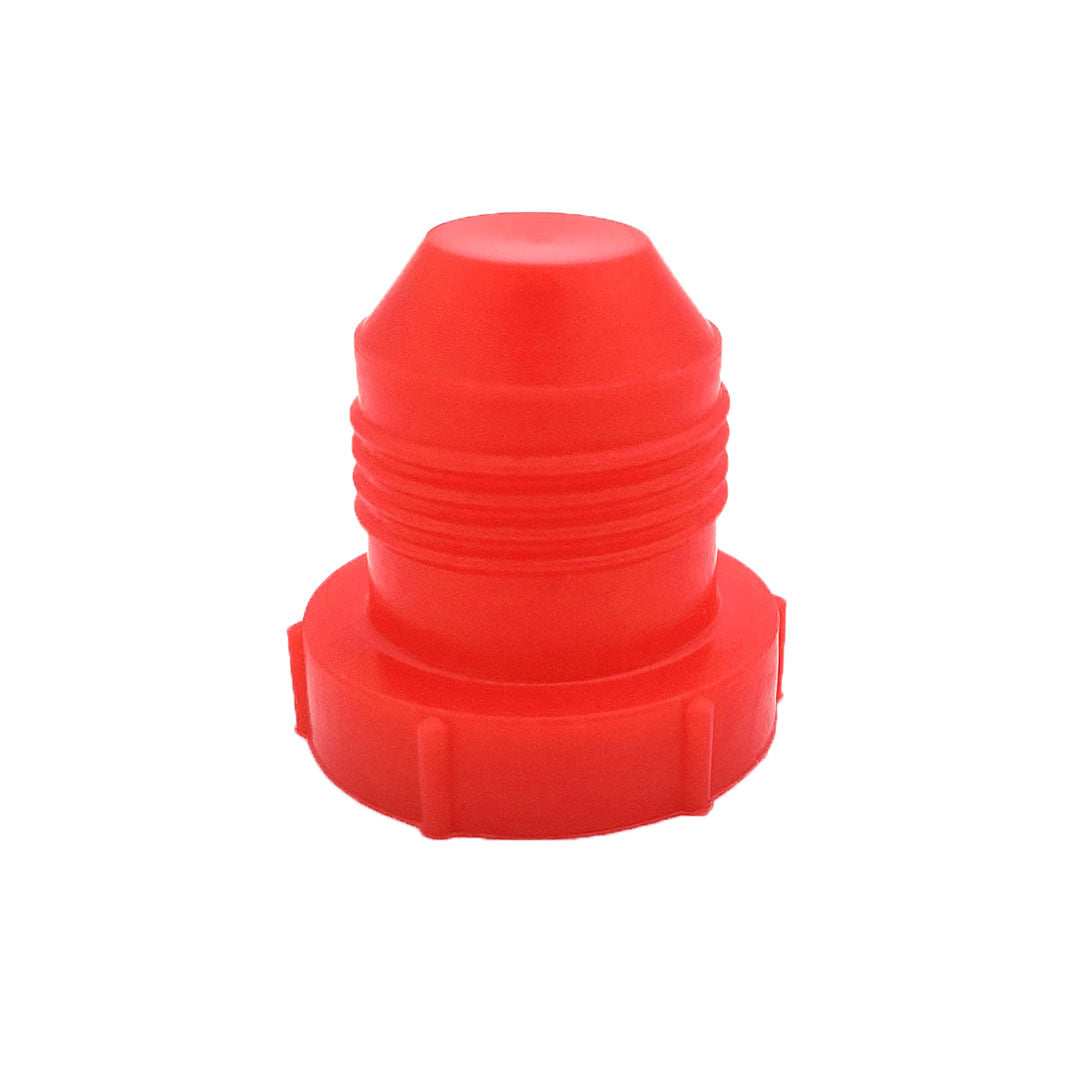

PD-80 (LDPE) 1/2 3/4 – 16 -8 0.75 0.94 0.25

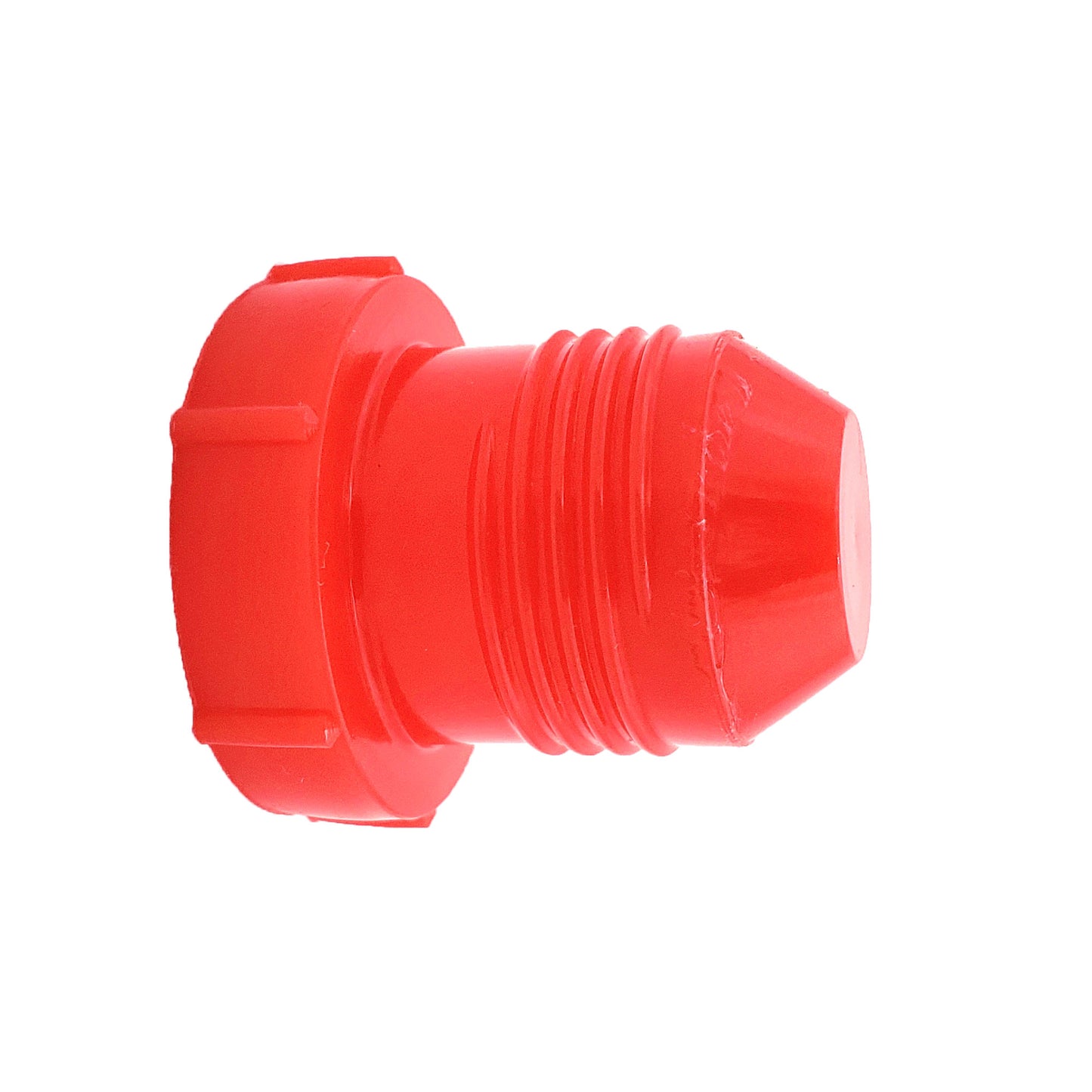

PD-80 (HDPE) 1/2 3/4 – 16 -8 0.75 0.94 0.25

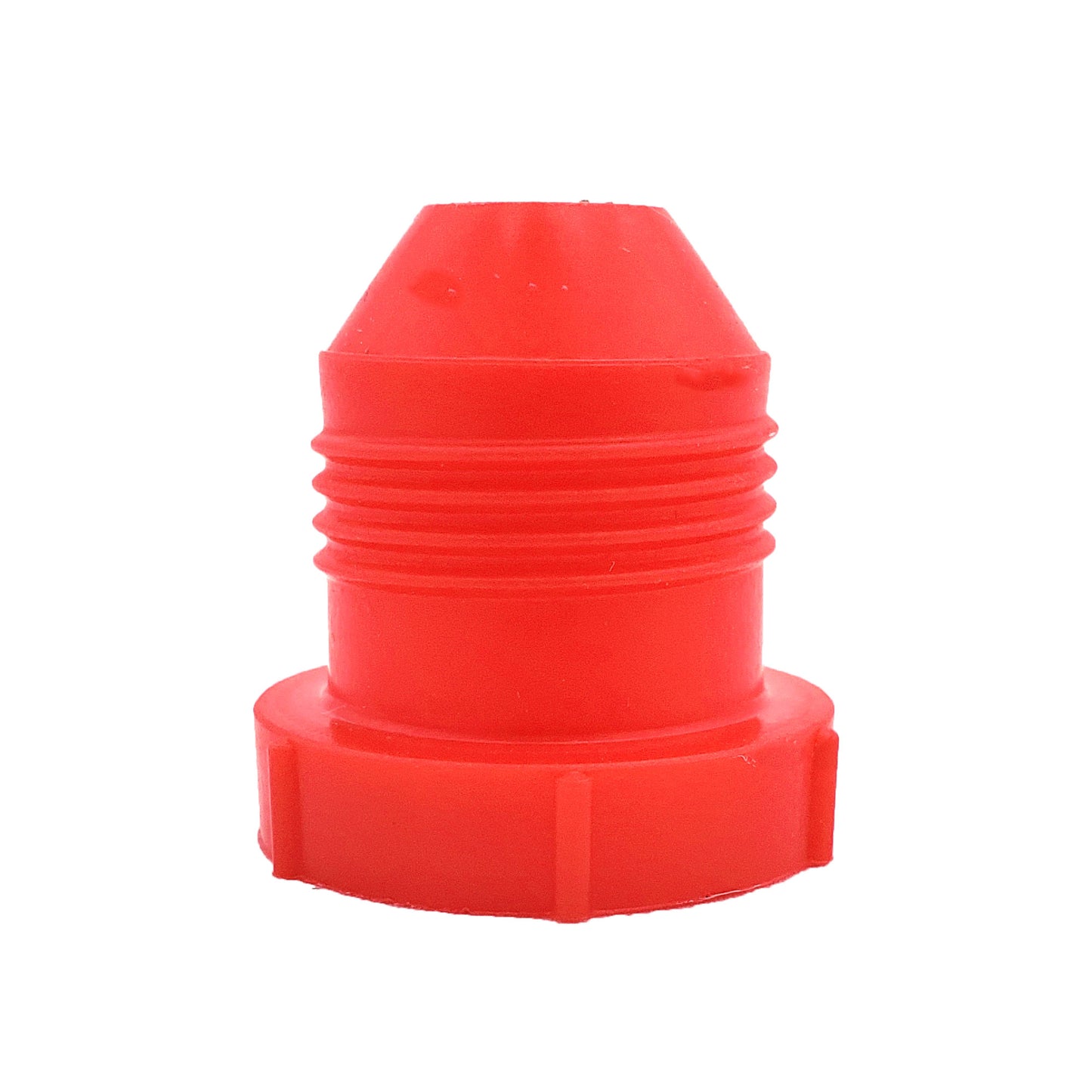

PD-100 (LDPE) 5/8 7/8 – 14 -10 0.87 1.06 0.25

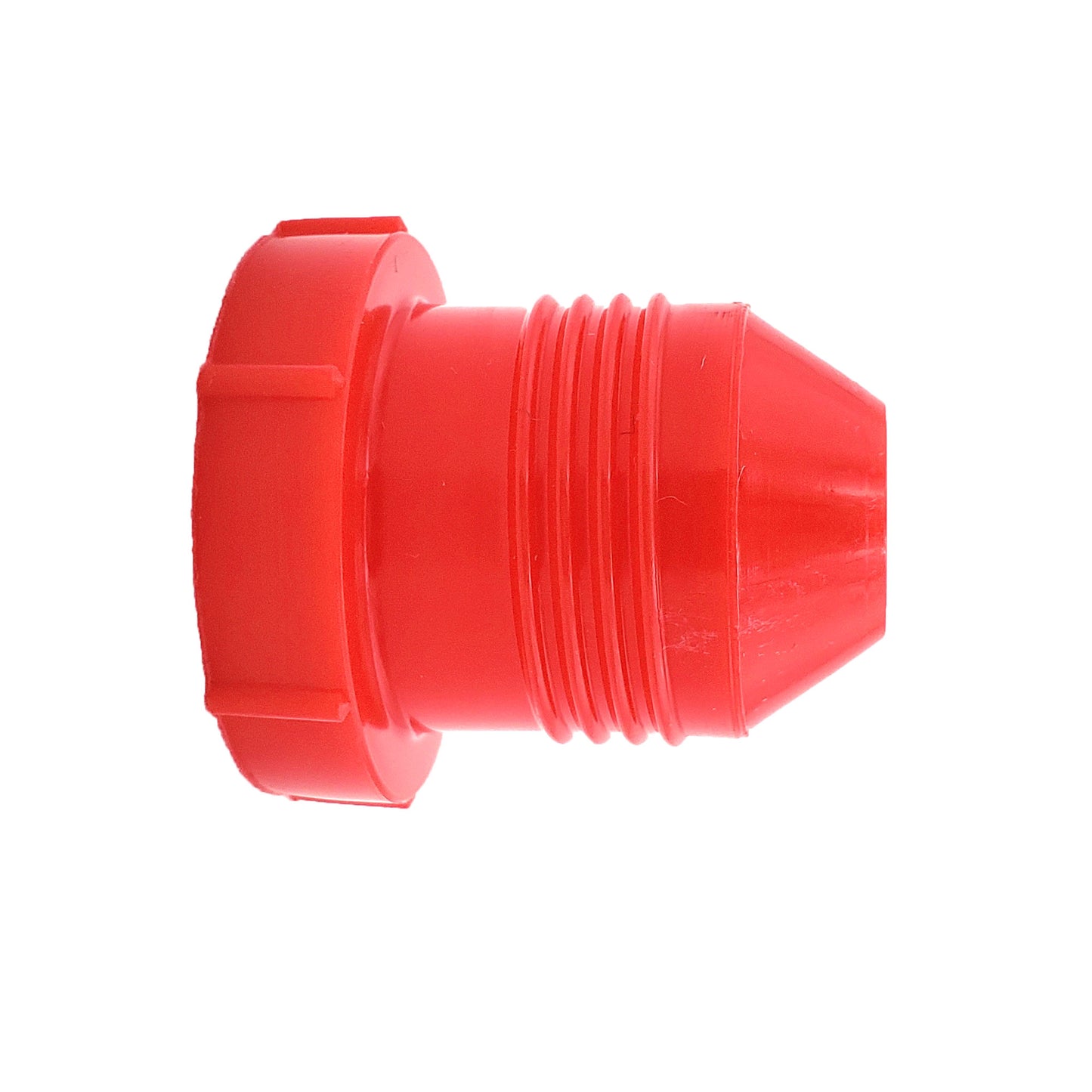

PD-100 (HDPE) 5/8 7/8 – 14 -10 0.87 1.06 0.25

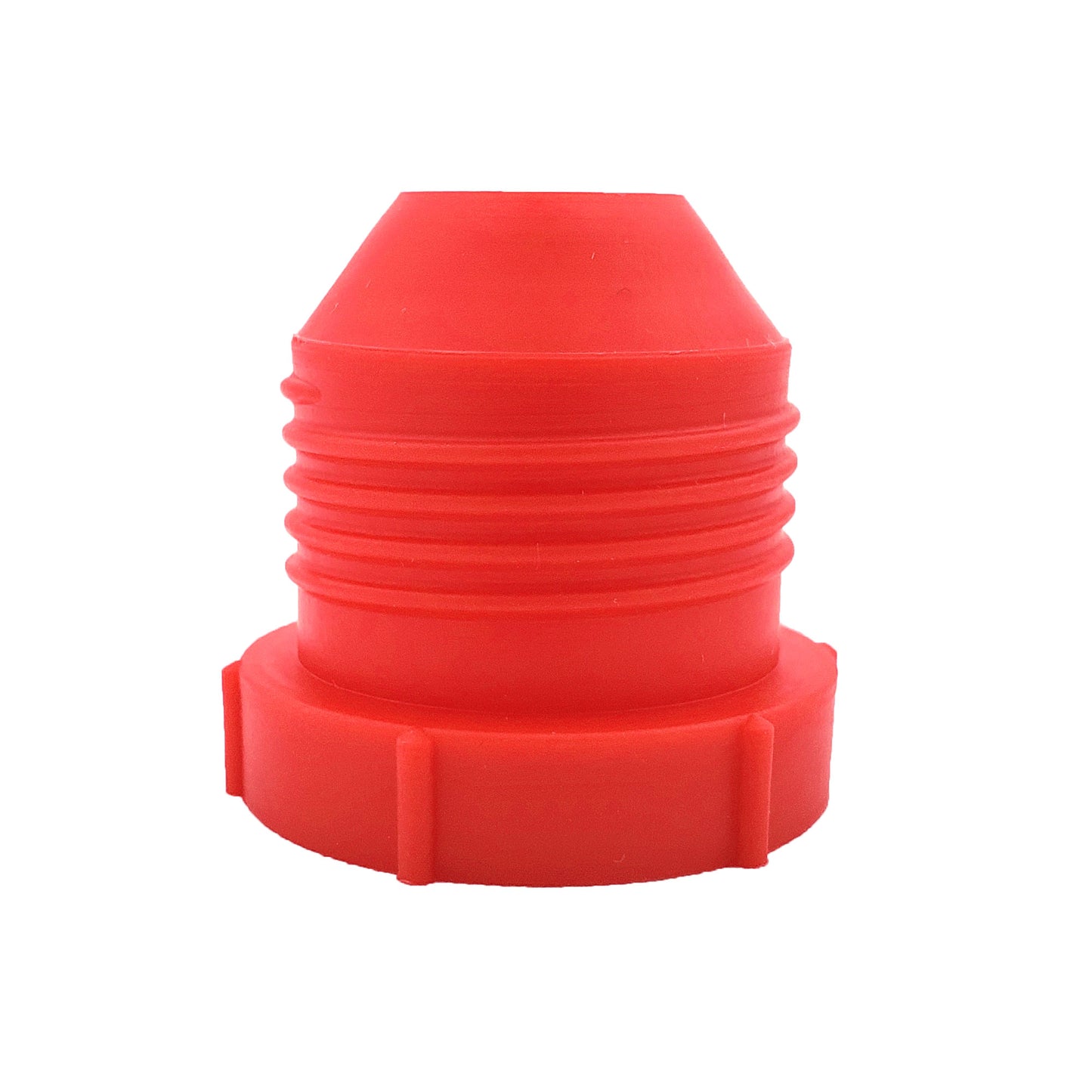

PD-110 (LDPE) – 1 – 12 - 0.84 1.12 0.25
PD-110 (HDPE) – 1 – 12 - 0.84 1.12 0.25

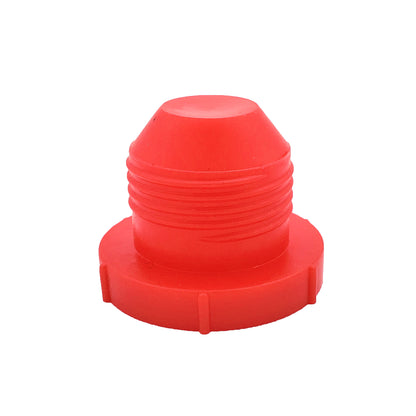

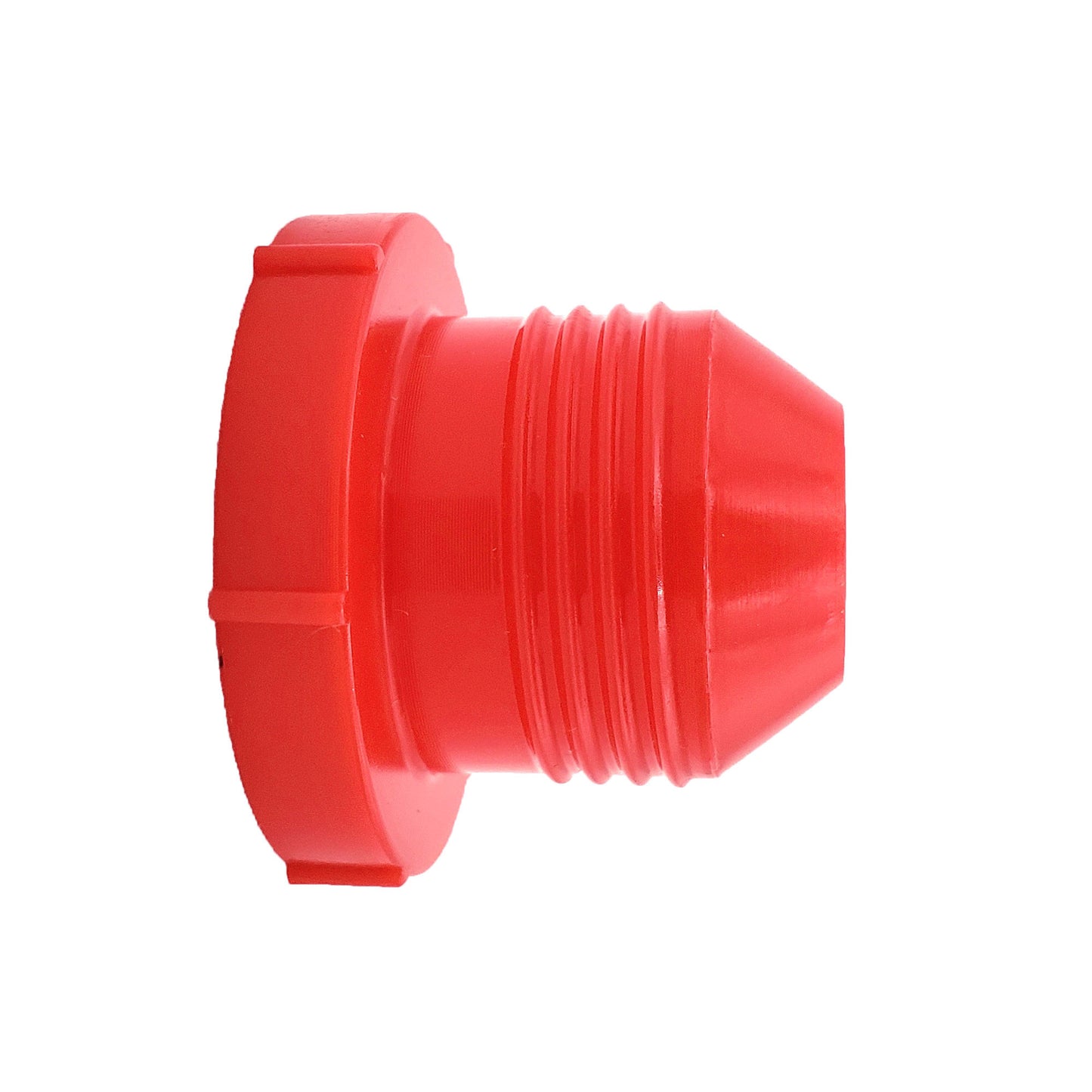

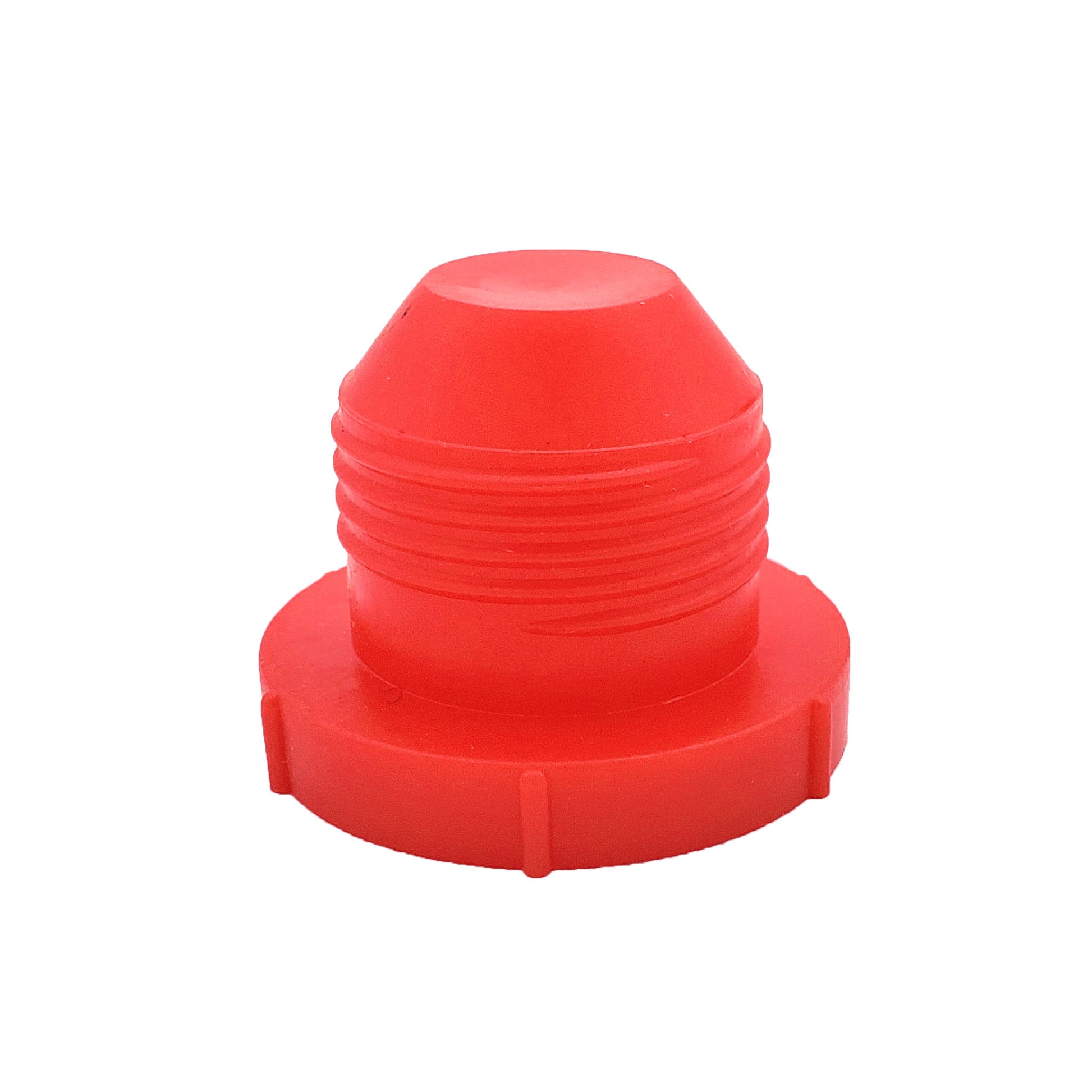

PD-HF-16 (LDPE) 3/4 1-1/16 – 12 -12 0.86 1.41 0.25

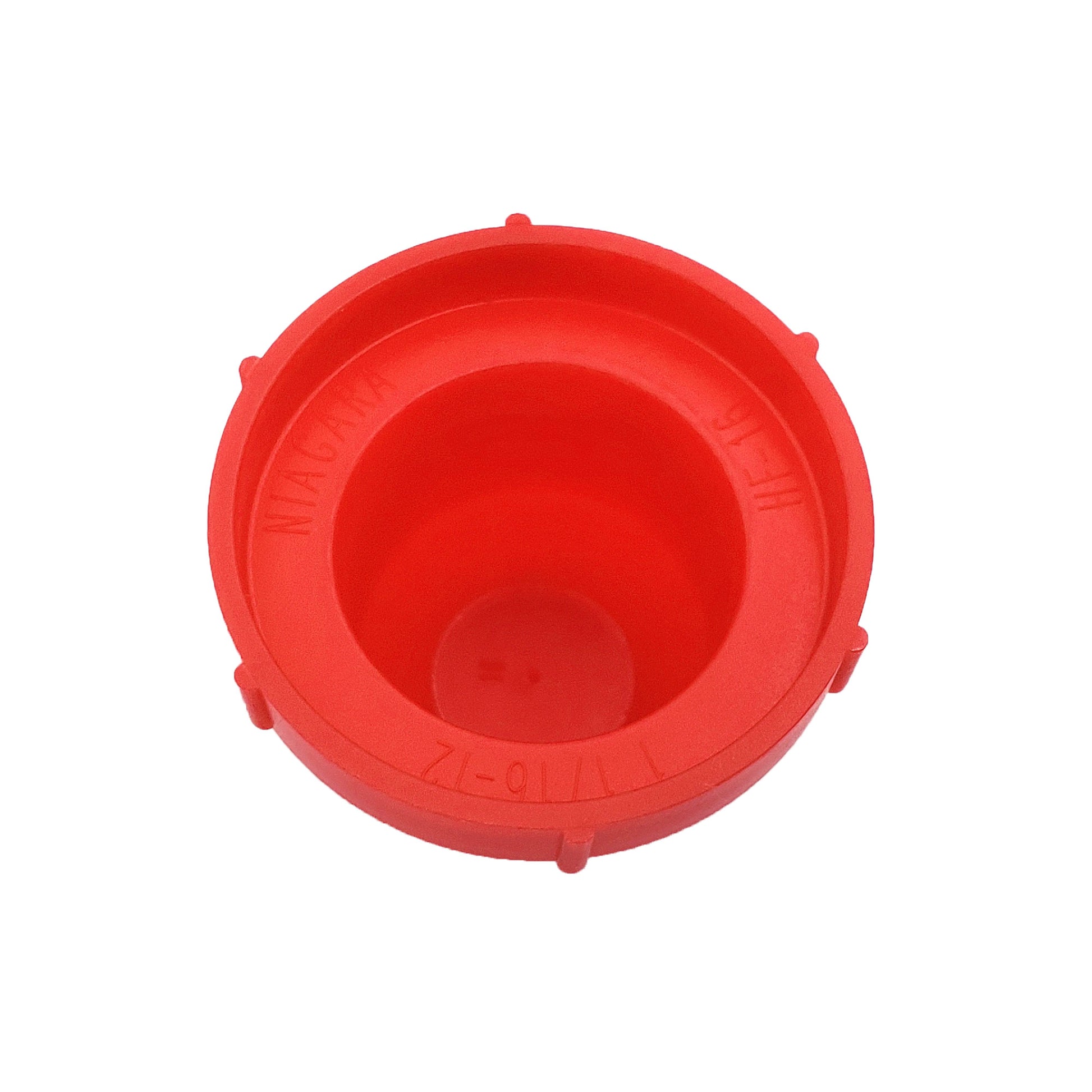

PD-HF-16 (HDPE) 3/4 1-1/16 – 12 -12 0.86 1.41 0.25

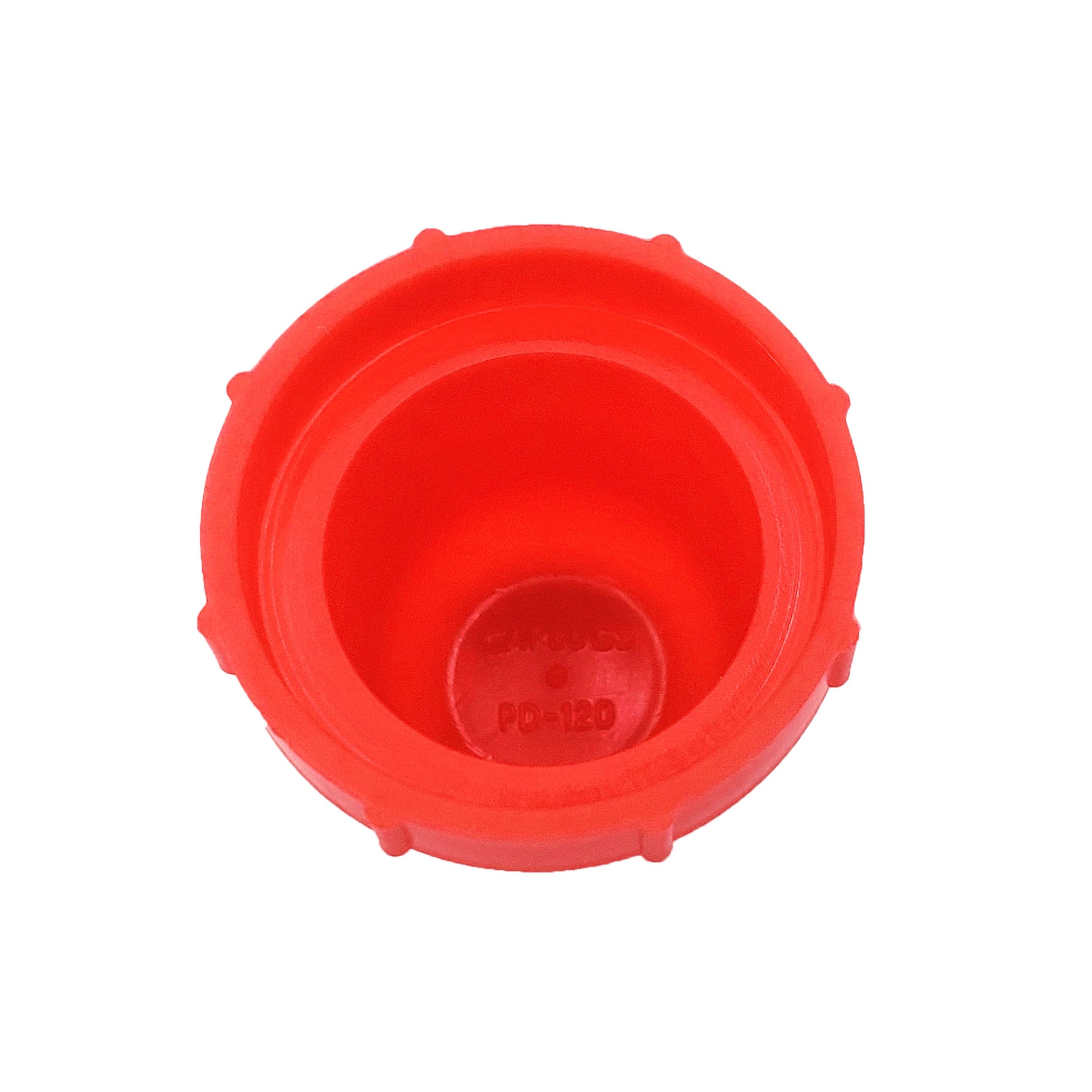

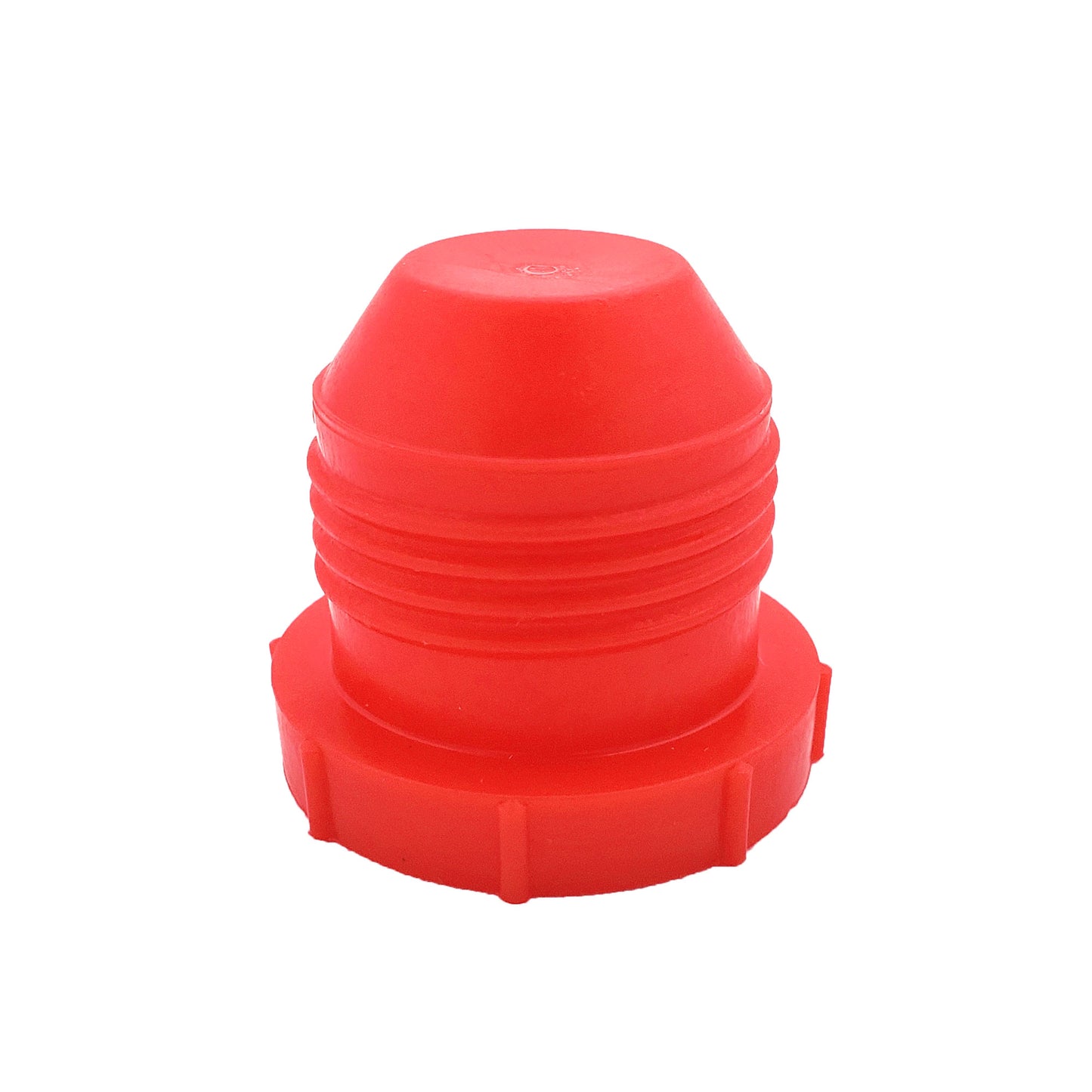

PD-120 (LDPE) – 1-1/16 – 12 -12 0.89 1.25 0.25

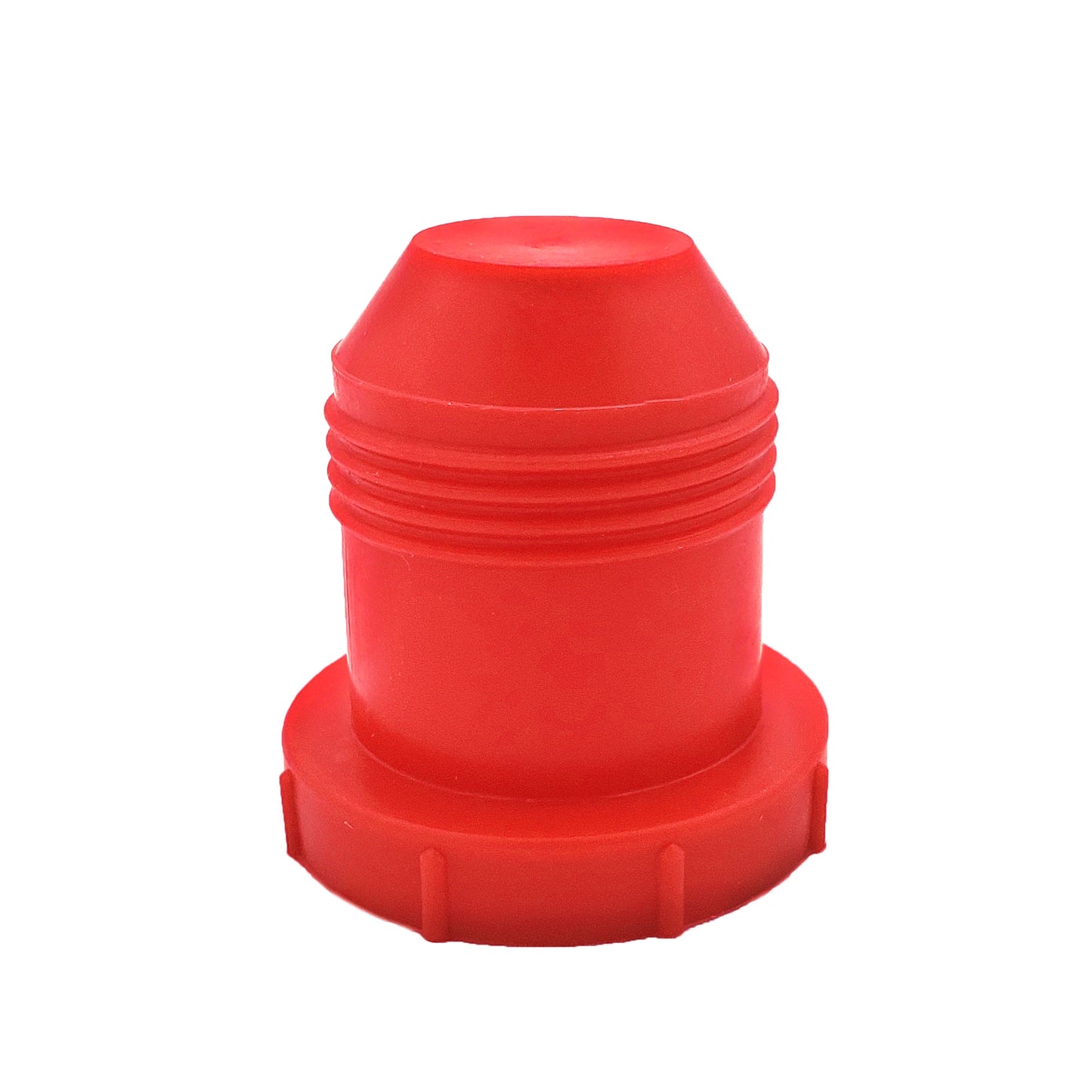

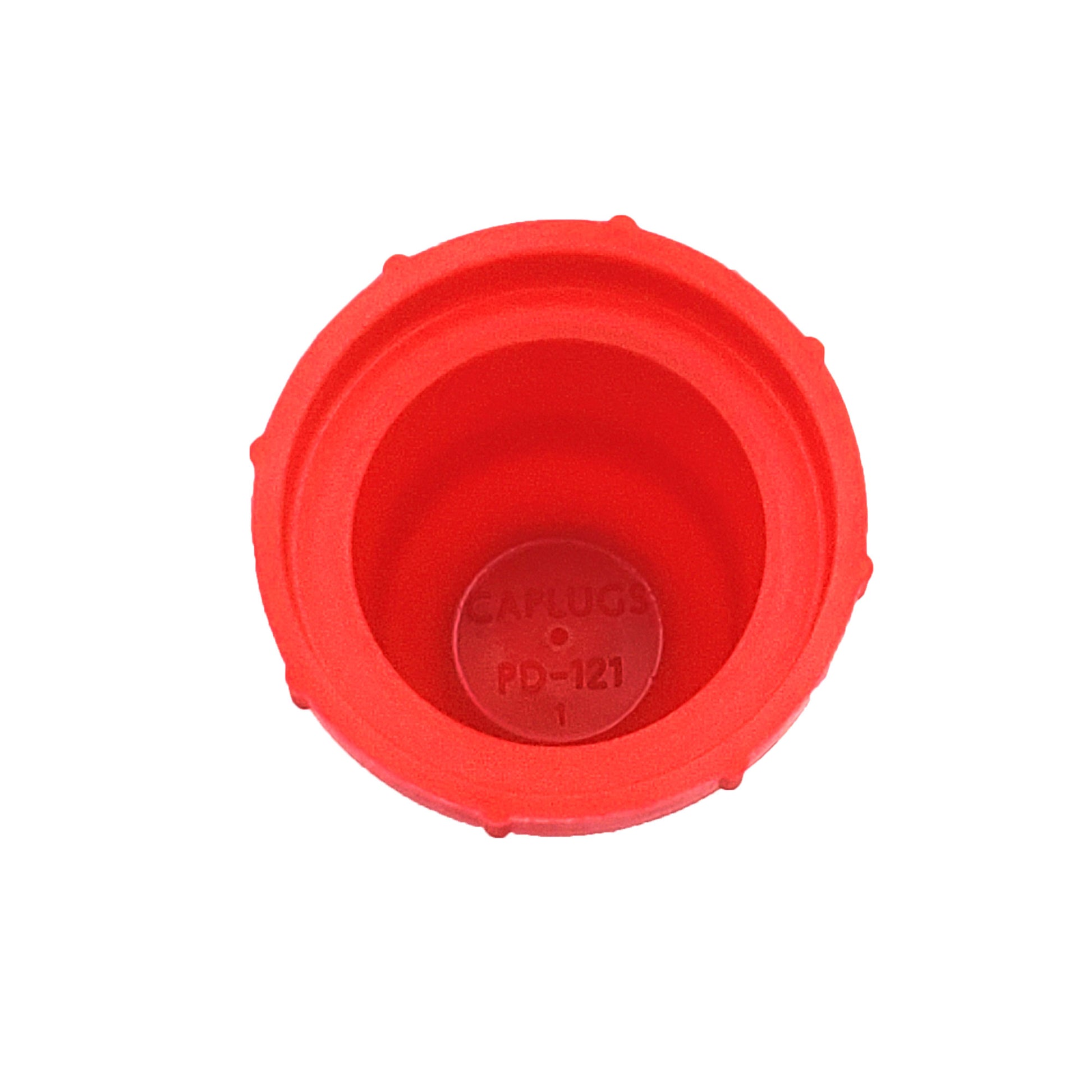

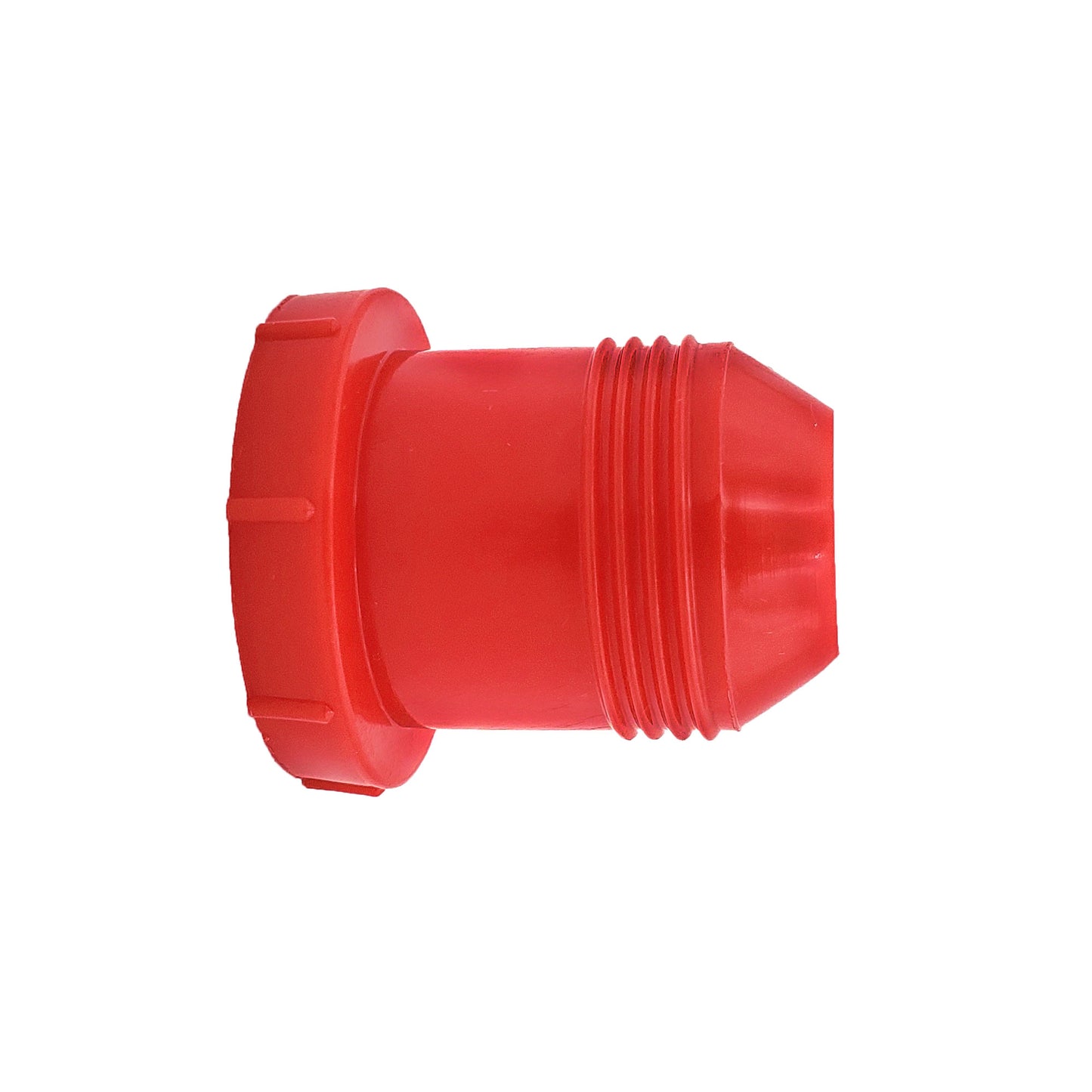

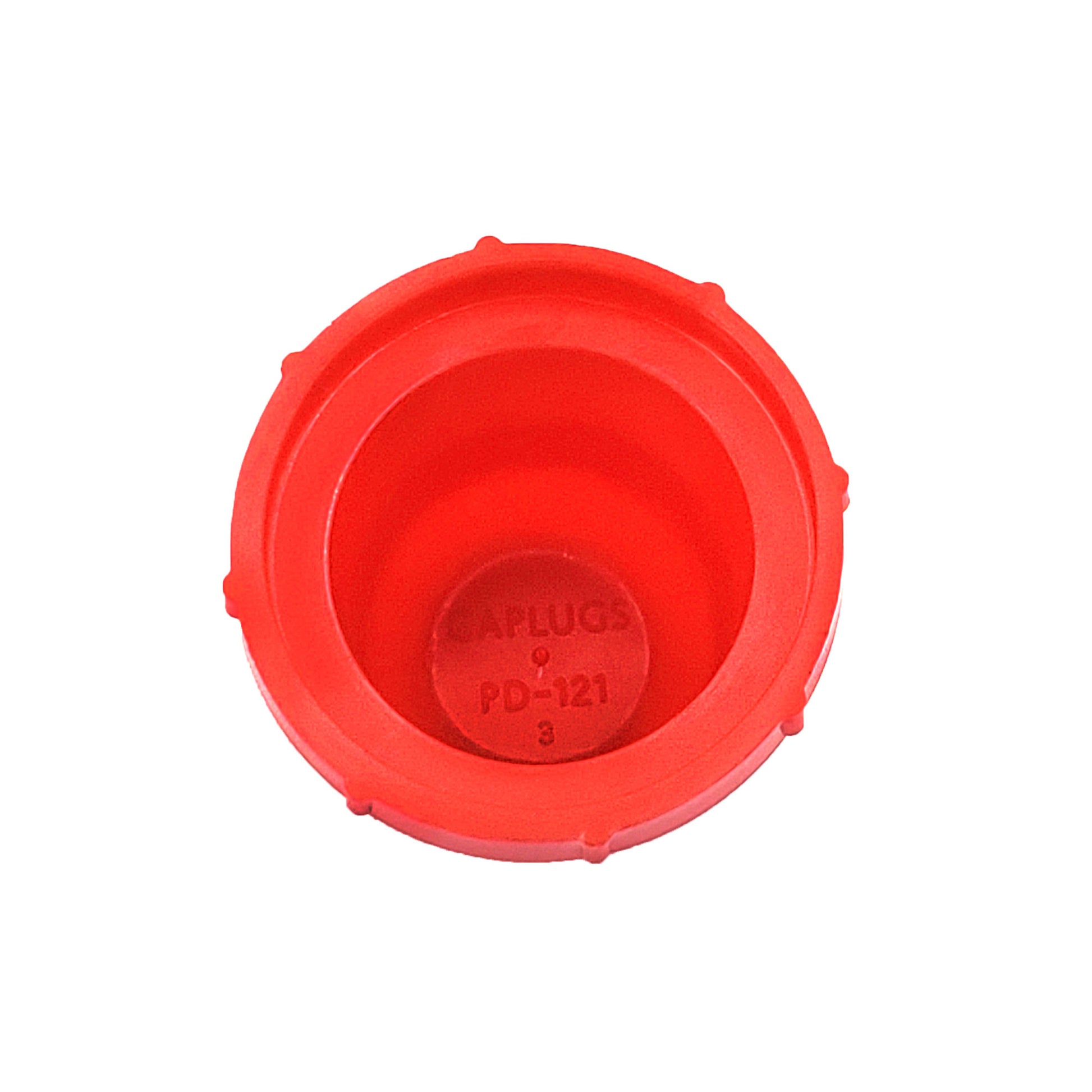

PD-121 (LDPE) 3/4 1-1/16 – 14 - 1.12 1.31 0.25
PD-121 (HDPE) 3/4 1-1/16 – 14 - 1.12 1.31 0.25

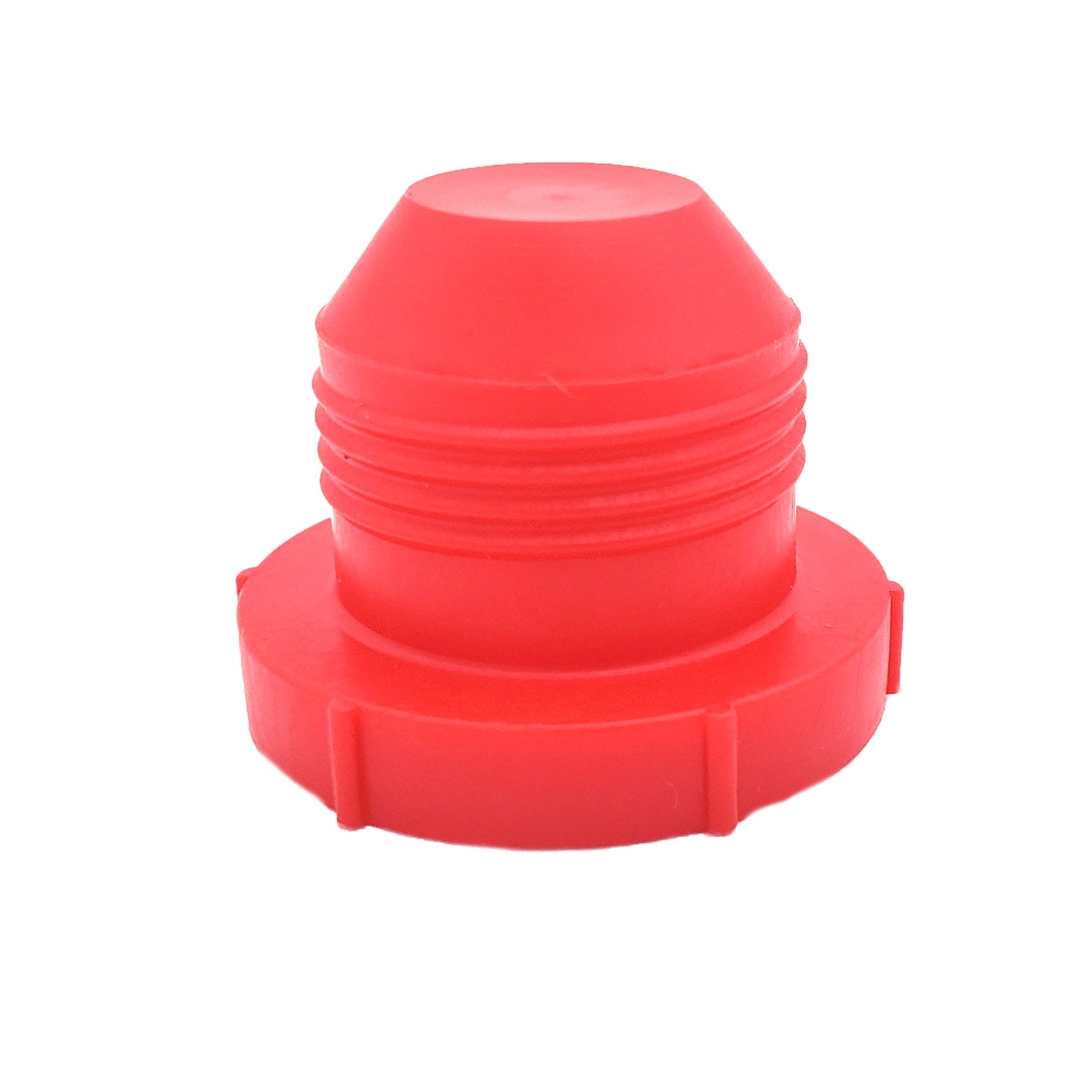

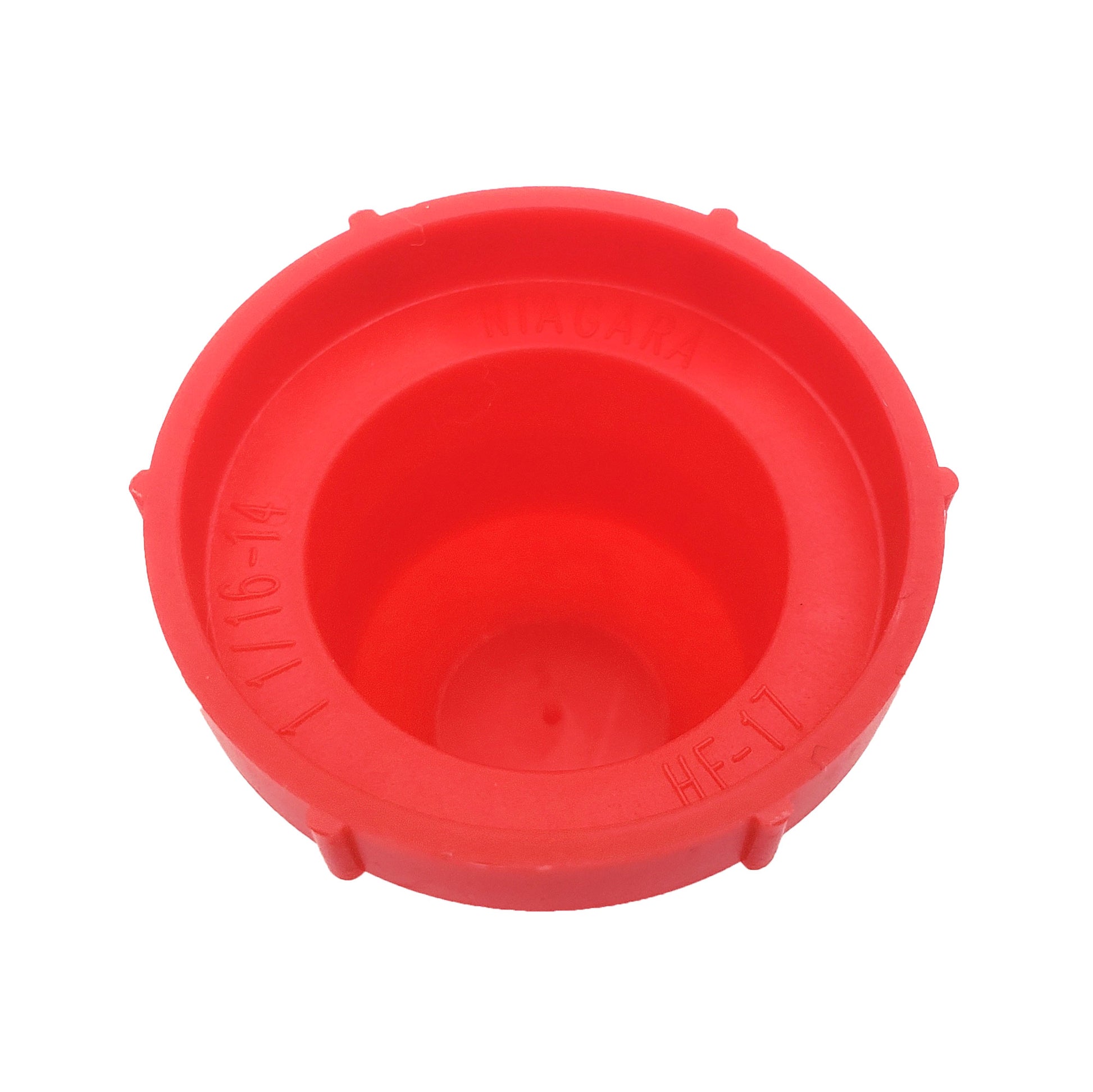

PD-HF-17 (LDPE) 3/4 1-1/16 – 14 - 0.86 1.41 0.25
PD-HF-17 (HDPE) 3/4 1-1/16 – 14 - 0.86 1.41 0.25
PD-HF-18 (LDPE) 7/8 1-3/16 – 12 -14 0.93 1.50 0.25
PD-HF-18 (HDPE) 7/8 1-3/16 – 12 -14 0.93 1.50 0.25

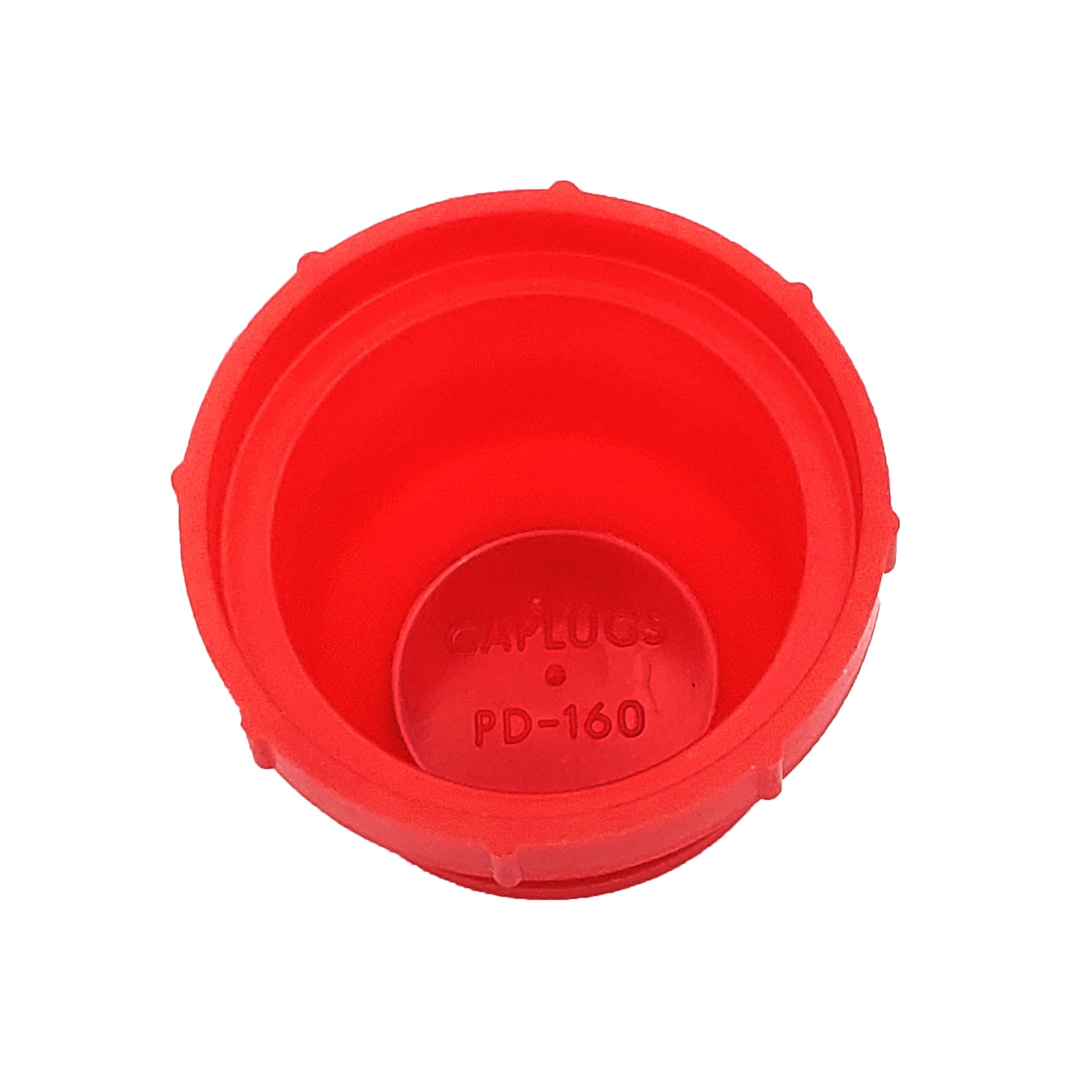

PD-160 (LDPE) 1 1-5/16 – 12 -16 0.93 1.50 0.25

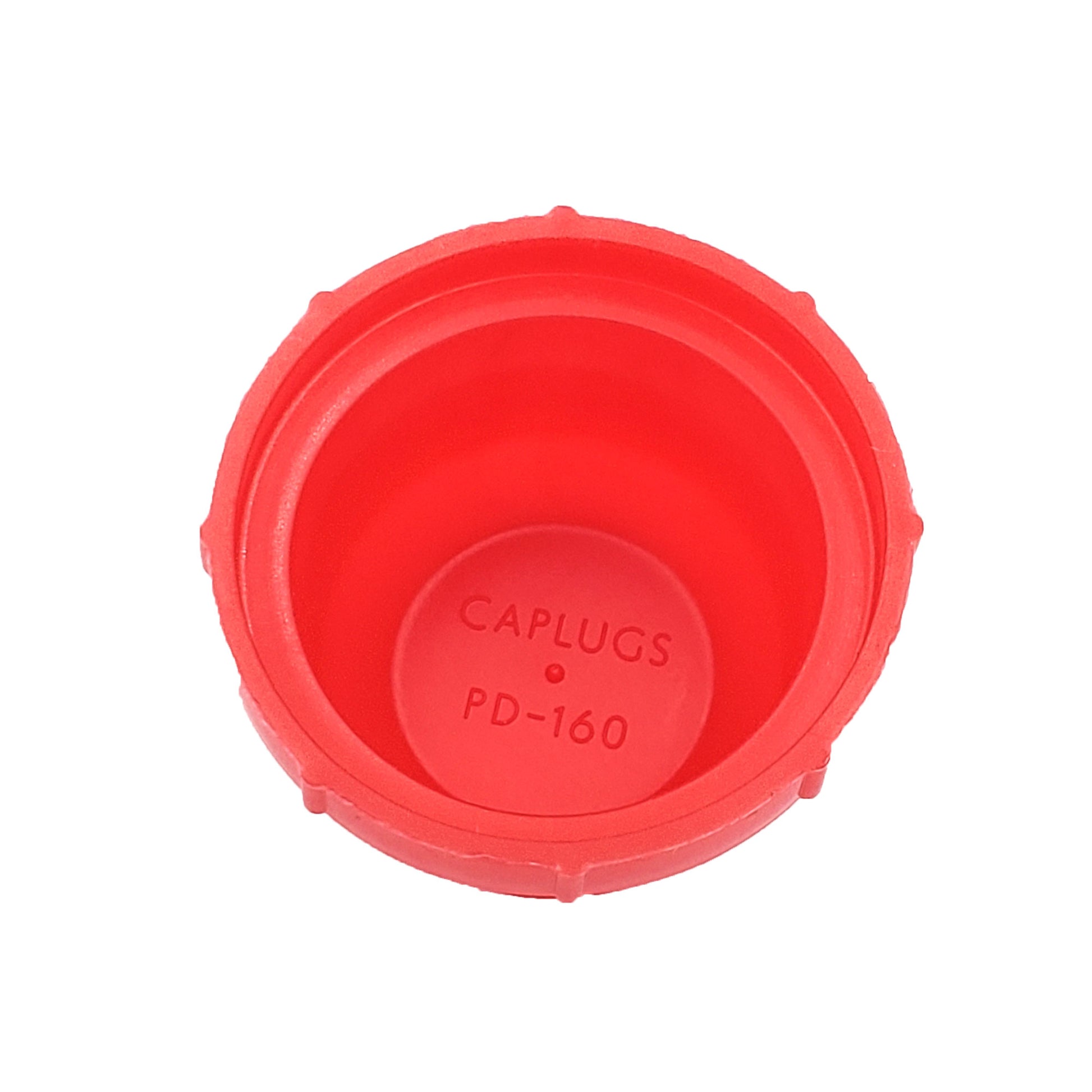

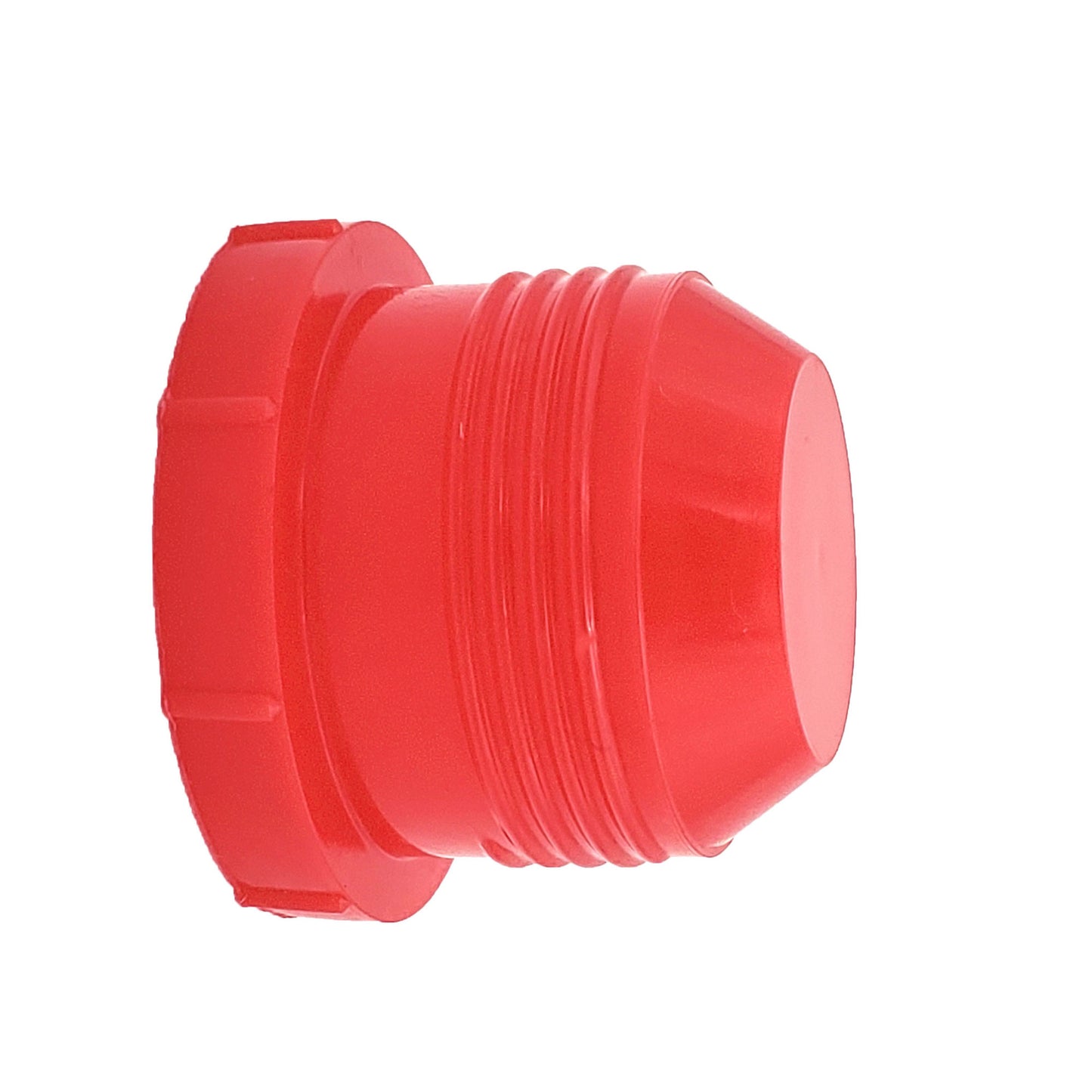

PD-160 (HDPE) 1 1-5/16 – 12 -16 0.93 1.50 0.25

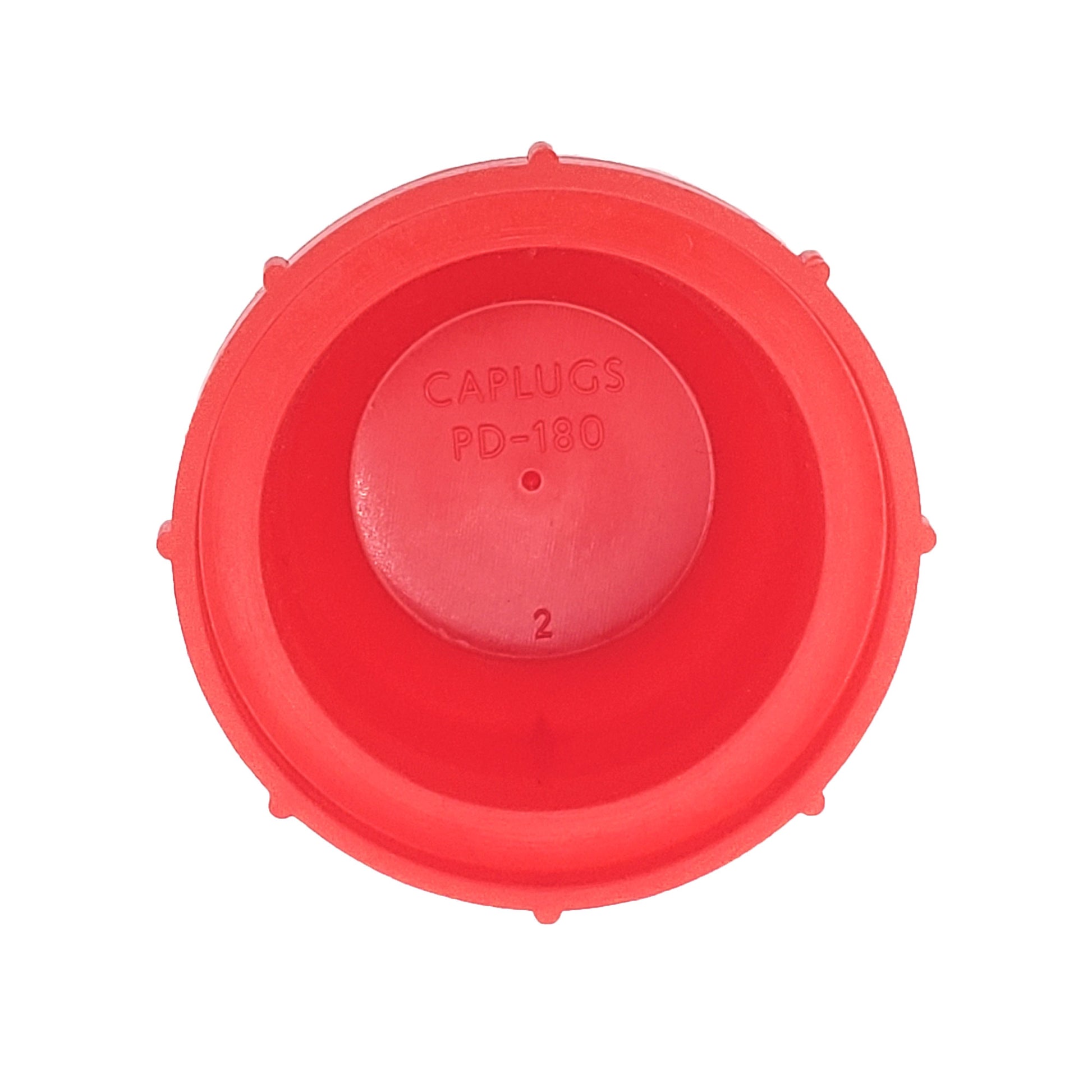

PD-180 (LDPE) – 1-1/2 – 12 - 0.93 1.75 0.25
PD-180 (HDPE) – 1-1/2 – 12 - 0.93 1.75 0.25

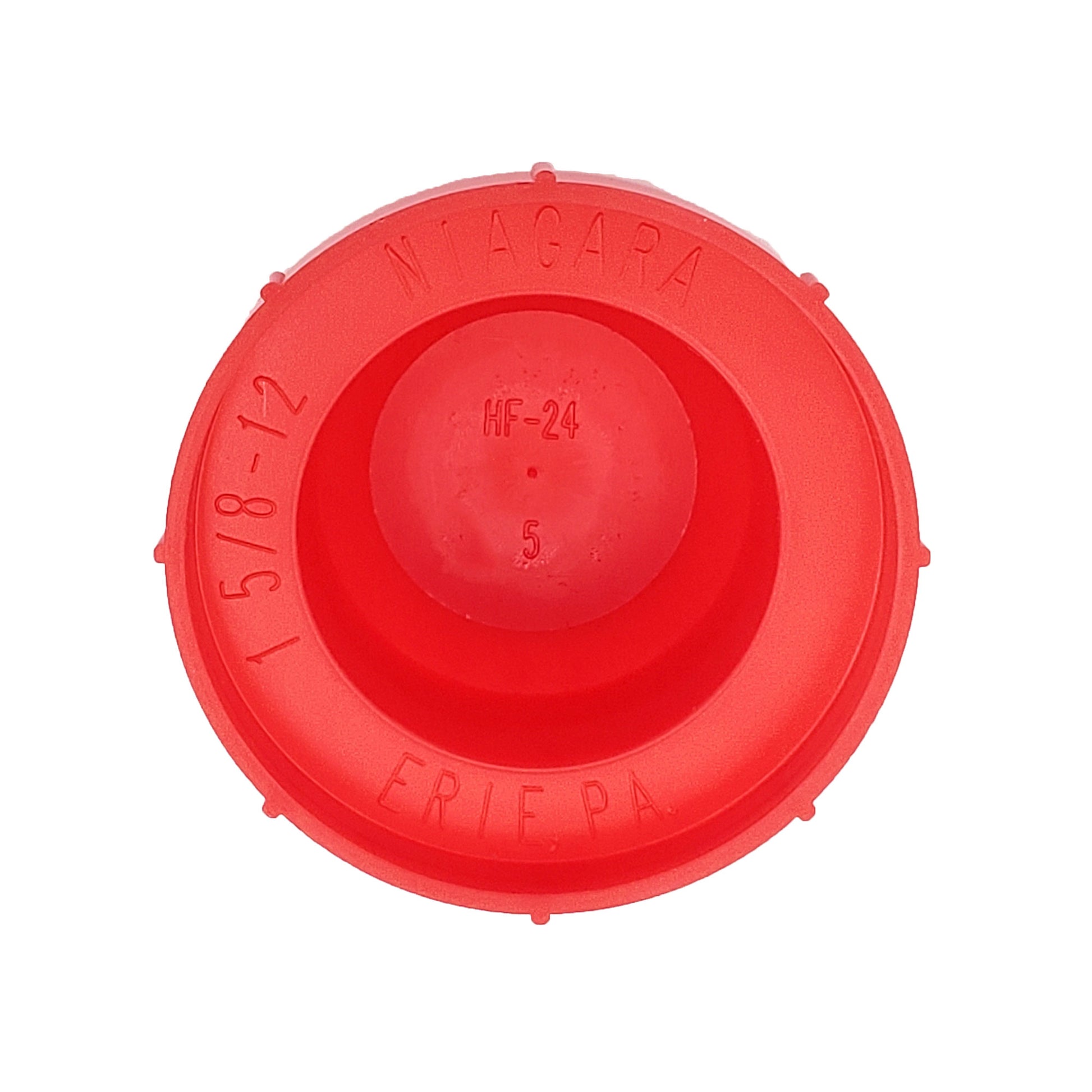

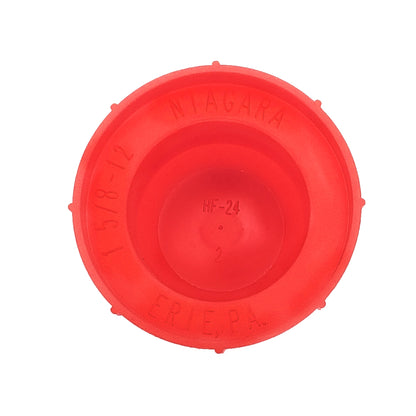

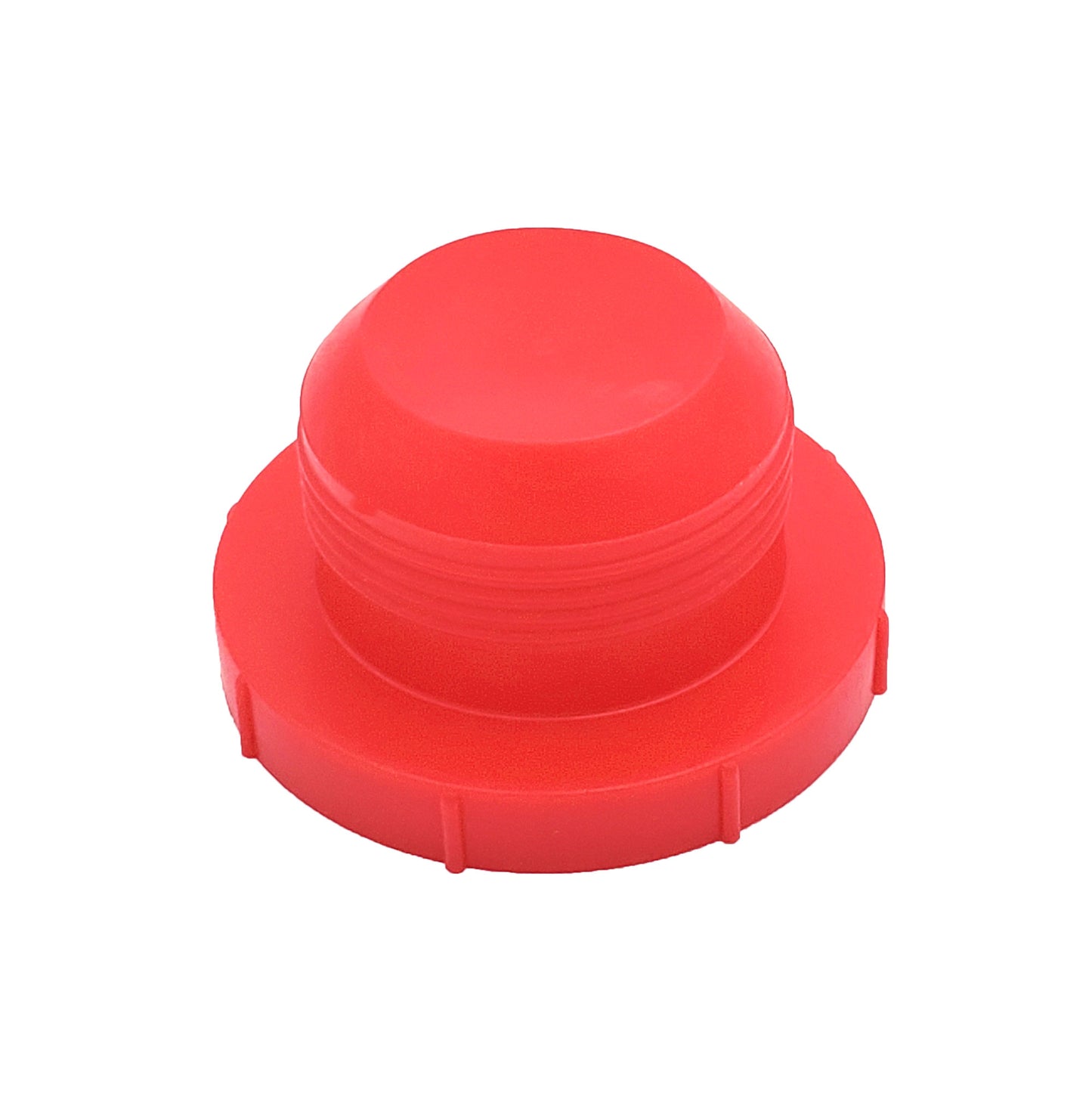

PD-HF-24 (LDPE) 1-1/4 1-5/8 – 12 -20 0.94 2.22 0.34
PD-HF-24 (HDPE) 1-1/4 1-5/8 – 12 -20 0.94 2.22 0.34

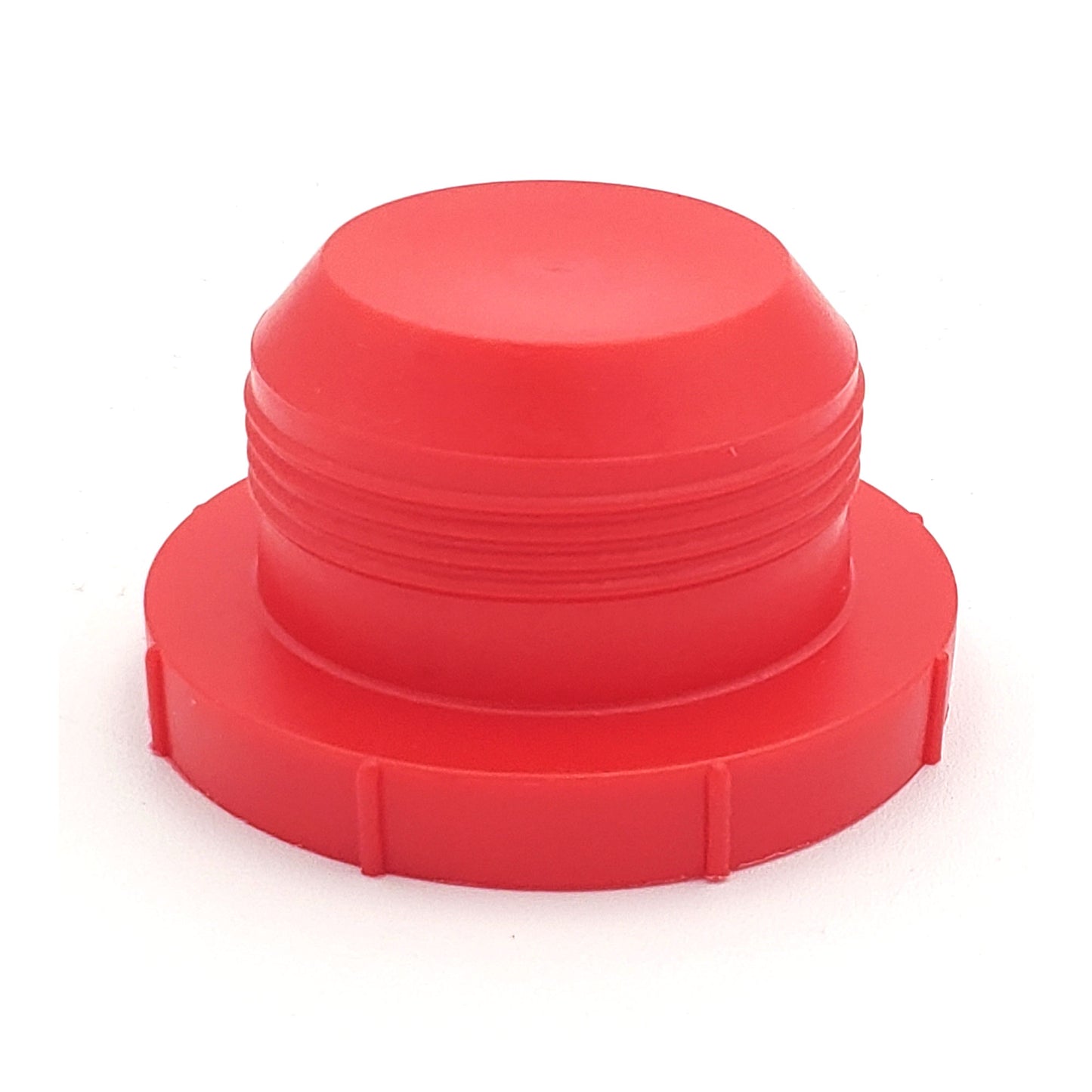

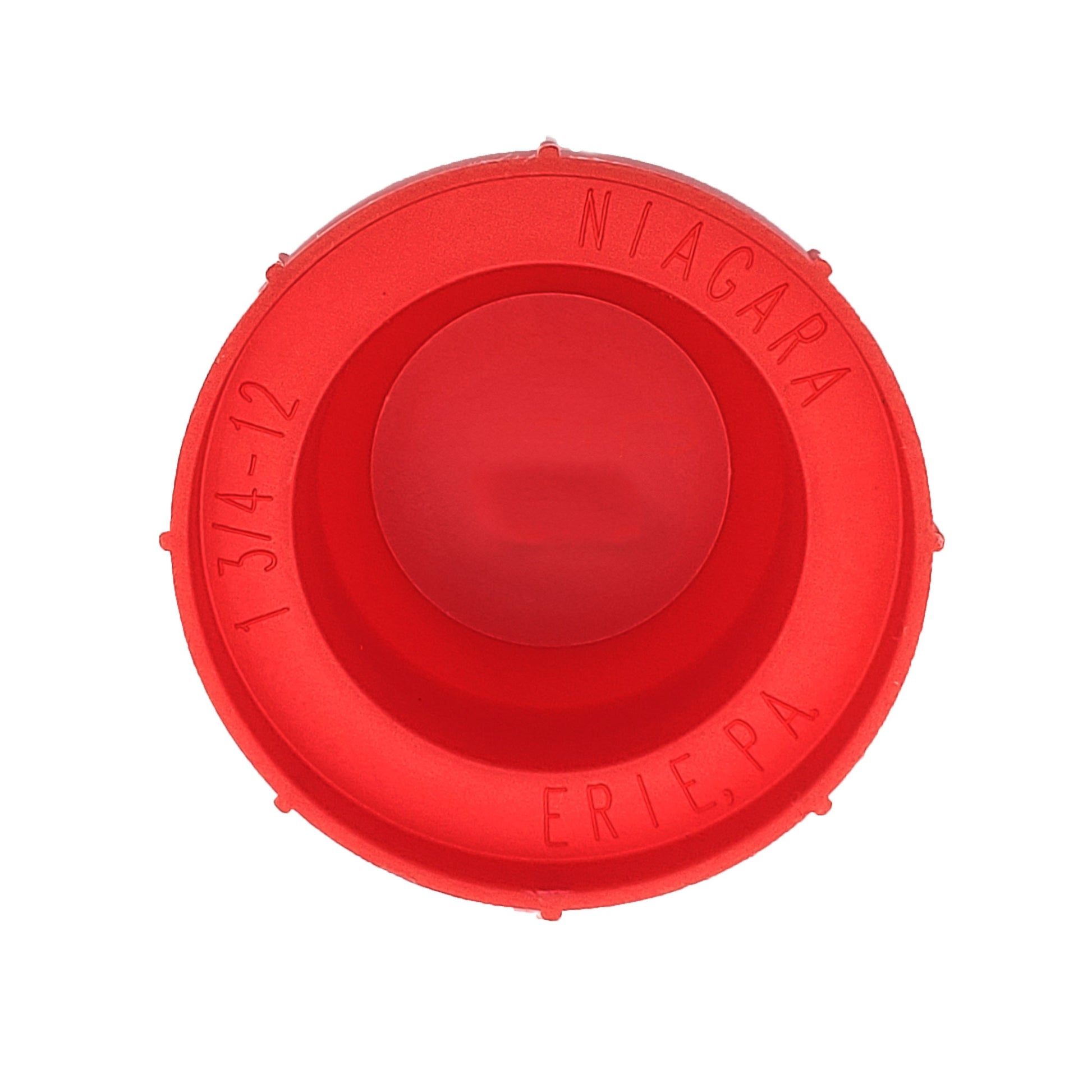

PD-HF-26 (LDPE) – 1-3/4 – 12 - 0.97 2.31 0.34
PD-HF-26 (HDPE) – 1-3/4 – 12 - 0.97 2.31 0.34

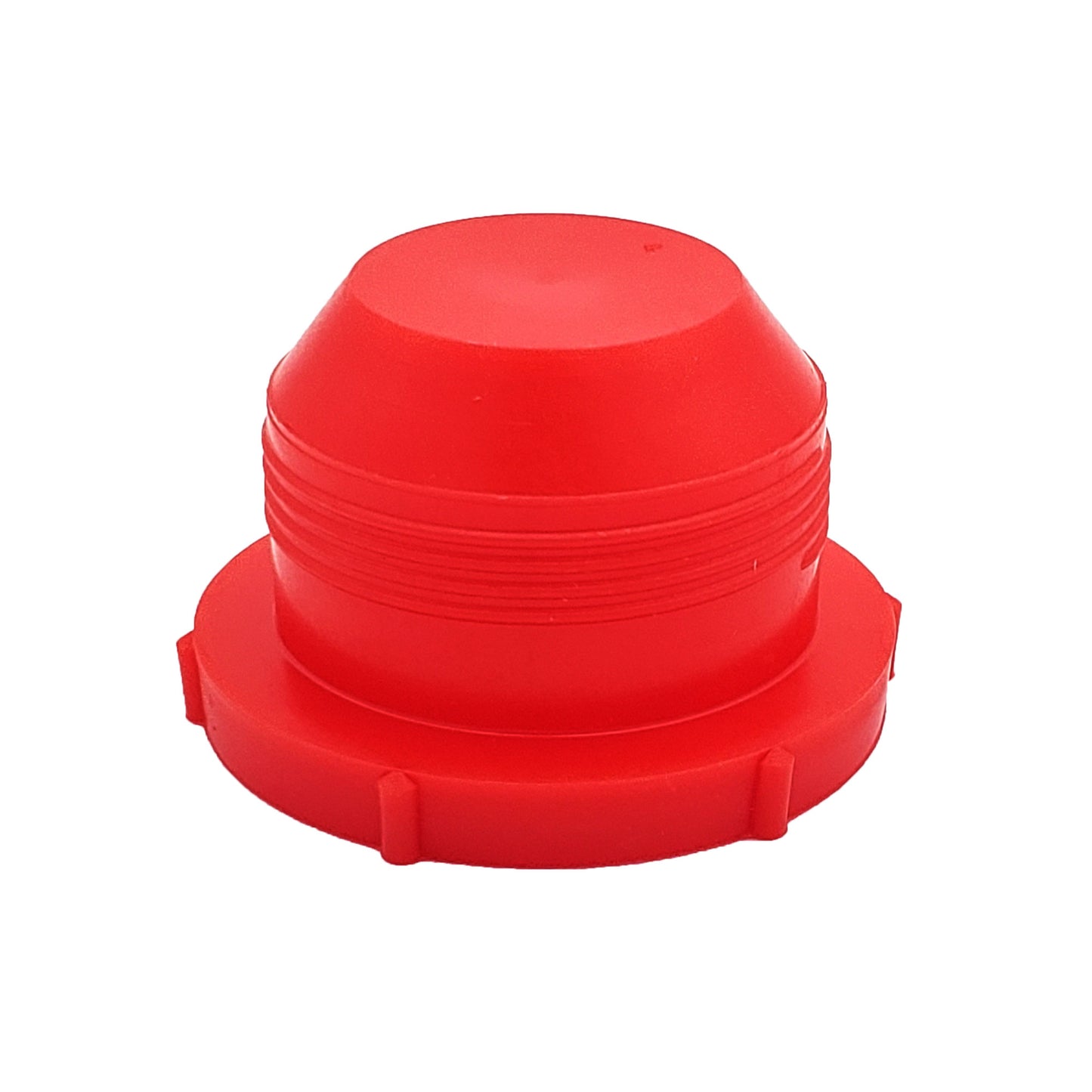

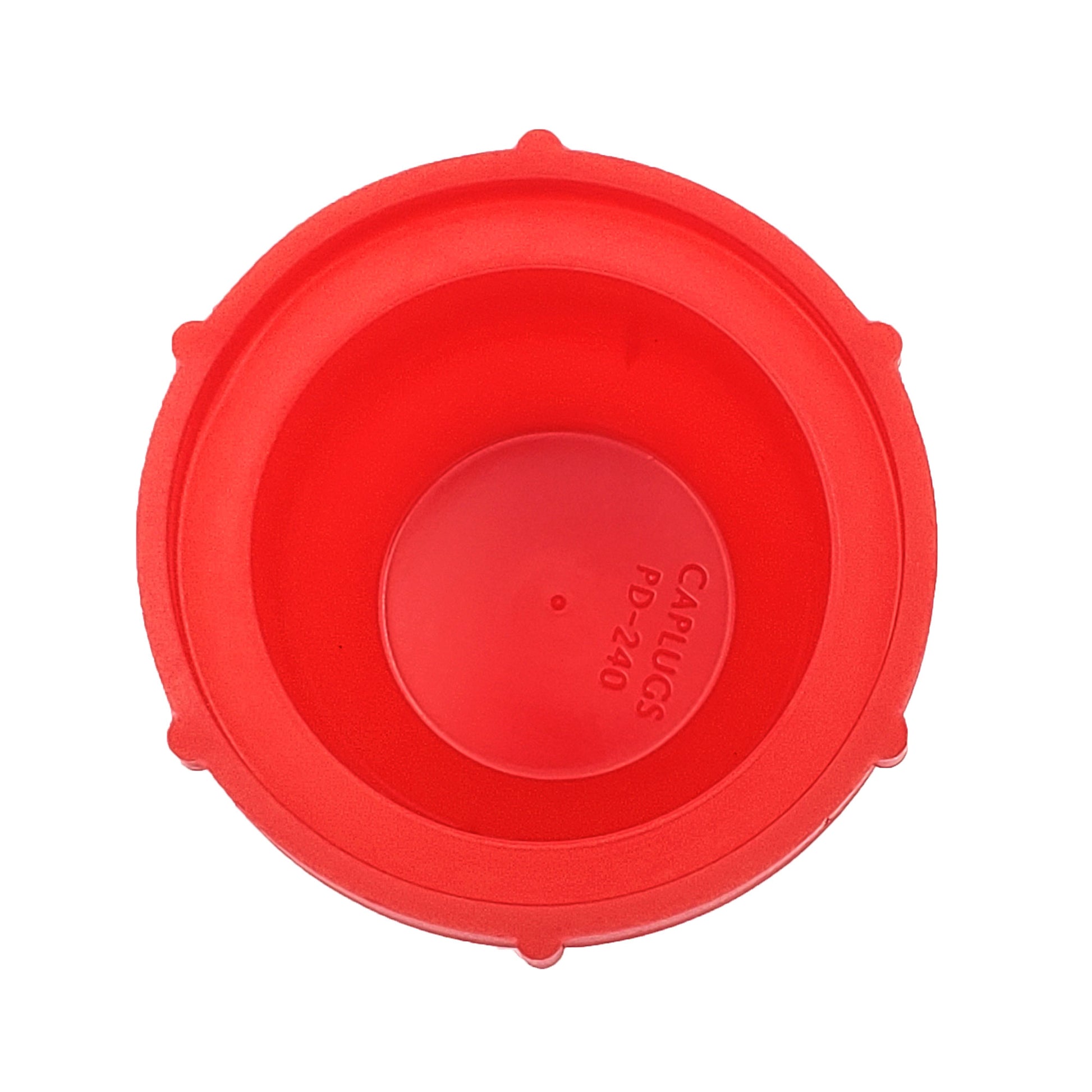

PD-240 (LDPE) 1-1/2 1-7/8 – 12 -24 1.15 2.31 0.31

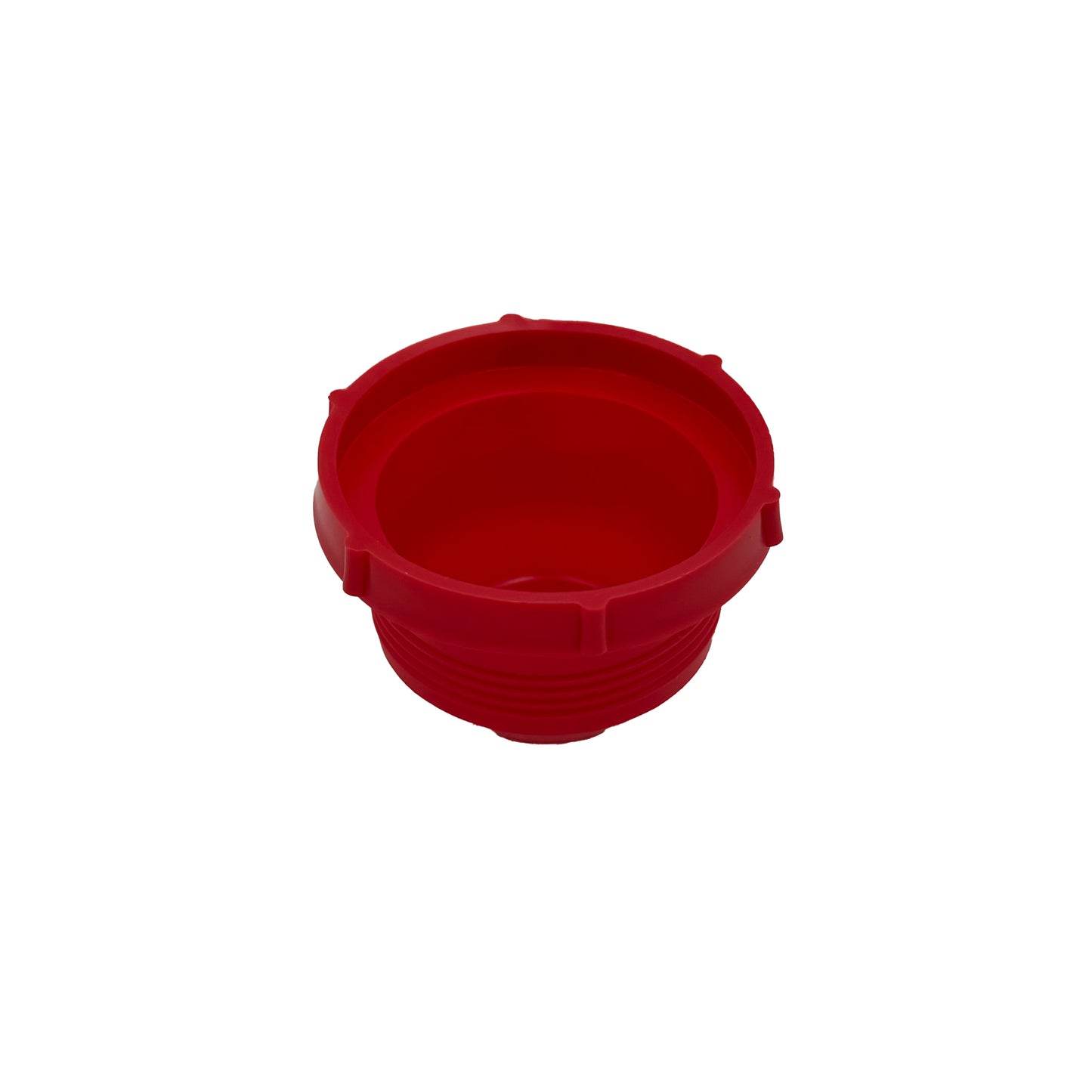

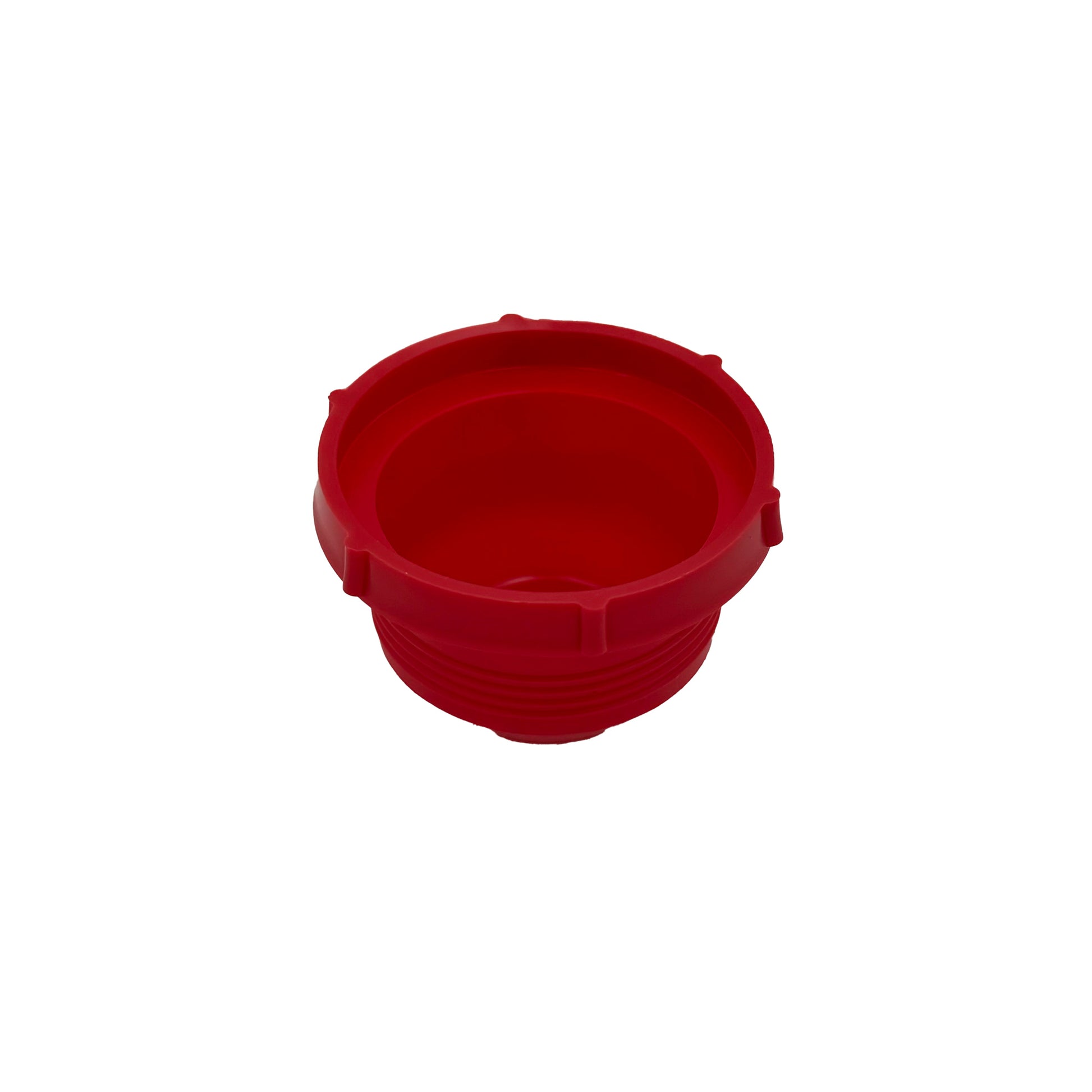

PD-240 (HDPE) 1-1/2 1-7/8 – 12 -24 1.15 2.31 0.31

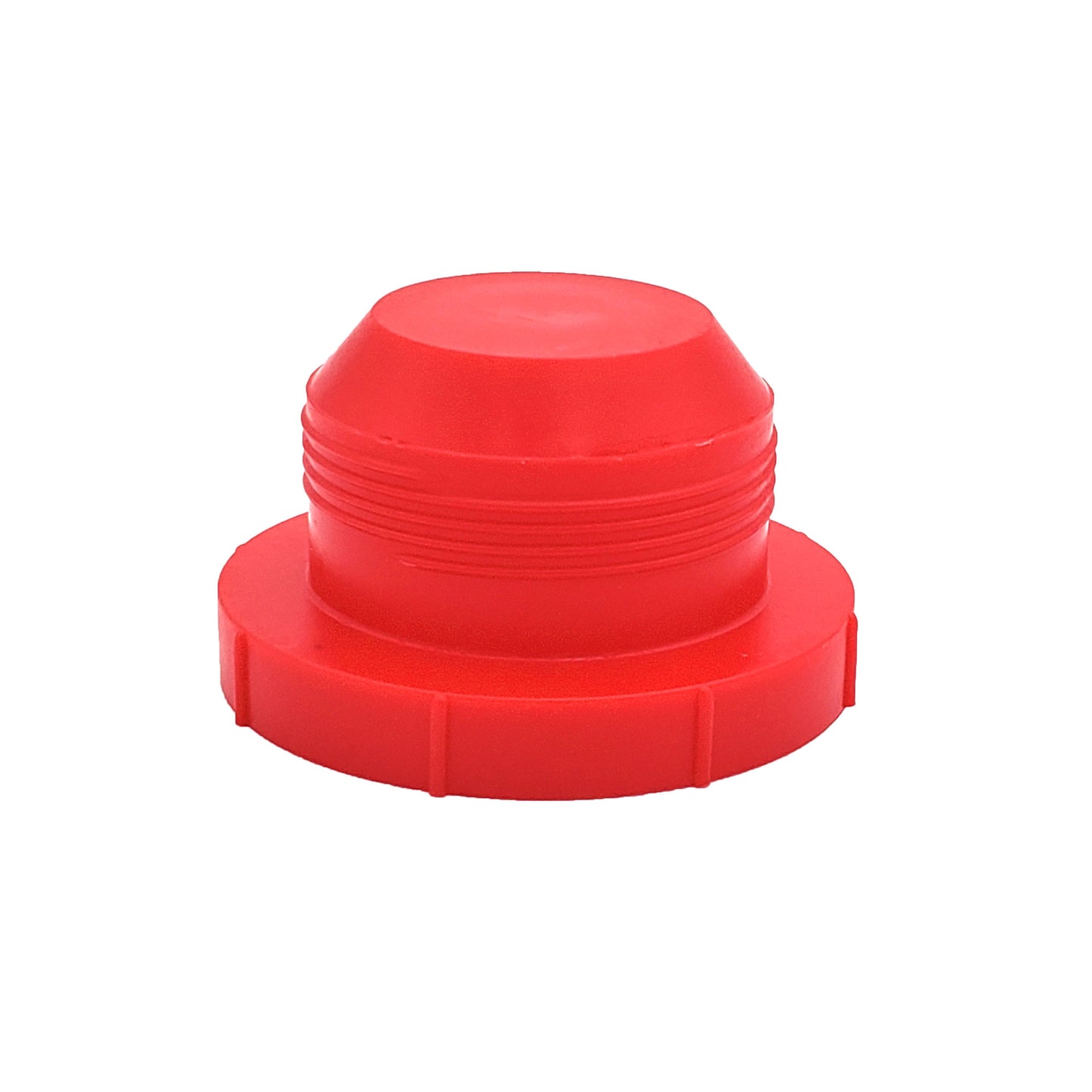

PD-HF-28 (LDPE) 1-1/2 1-7/8 – 12 -24 1.06 2.47 0.38
PD-HF-28 (HDPE) 1-1/2 1-7/8 – 12 -24 1.06 2.47 0.38

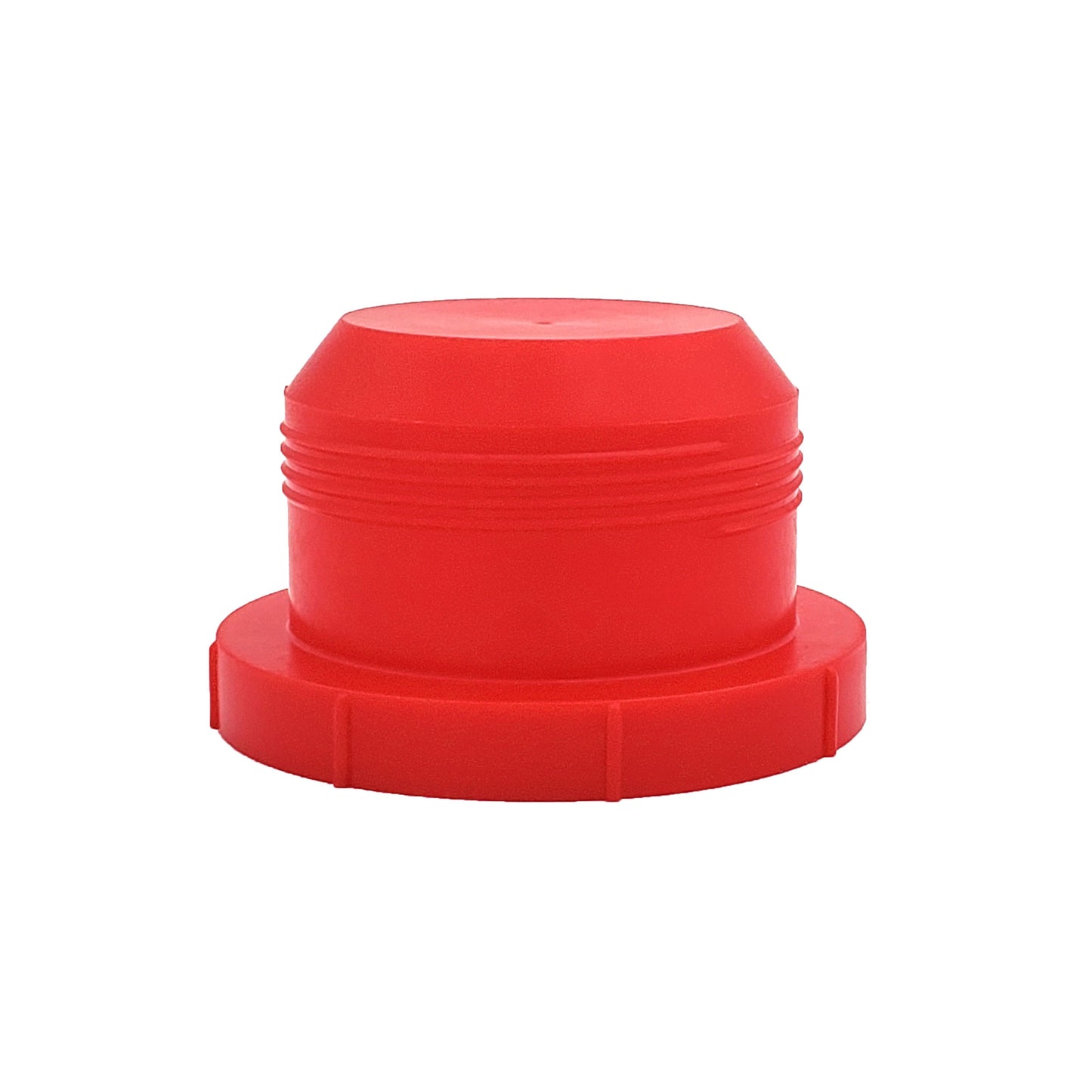

PD-HF-30 (LDPE) 1-3/4 2-1/4 – 12 - 1.31 2.75 0.38
PD-HF-30 (HDPE) 1-3/4 2-1/4 – 12 - 1.31 2.75 0.38

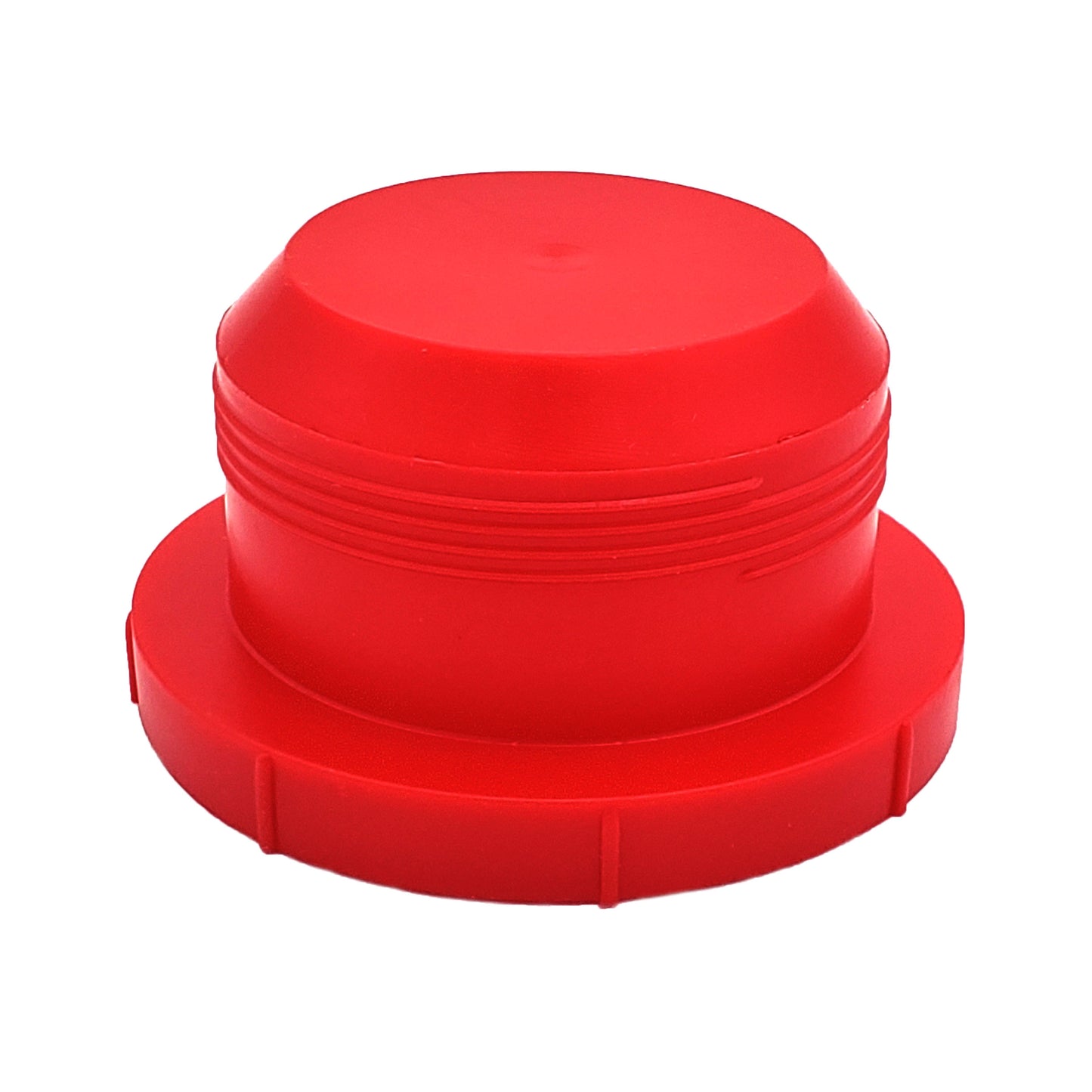

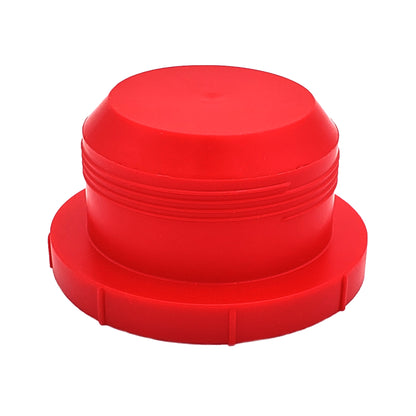

PD-HF-32 (LDPE) 2 2-1/2 – 12 -32 1.31 3.09 0.38

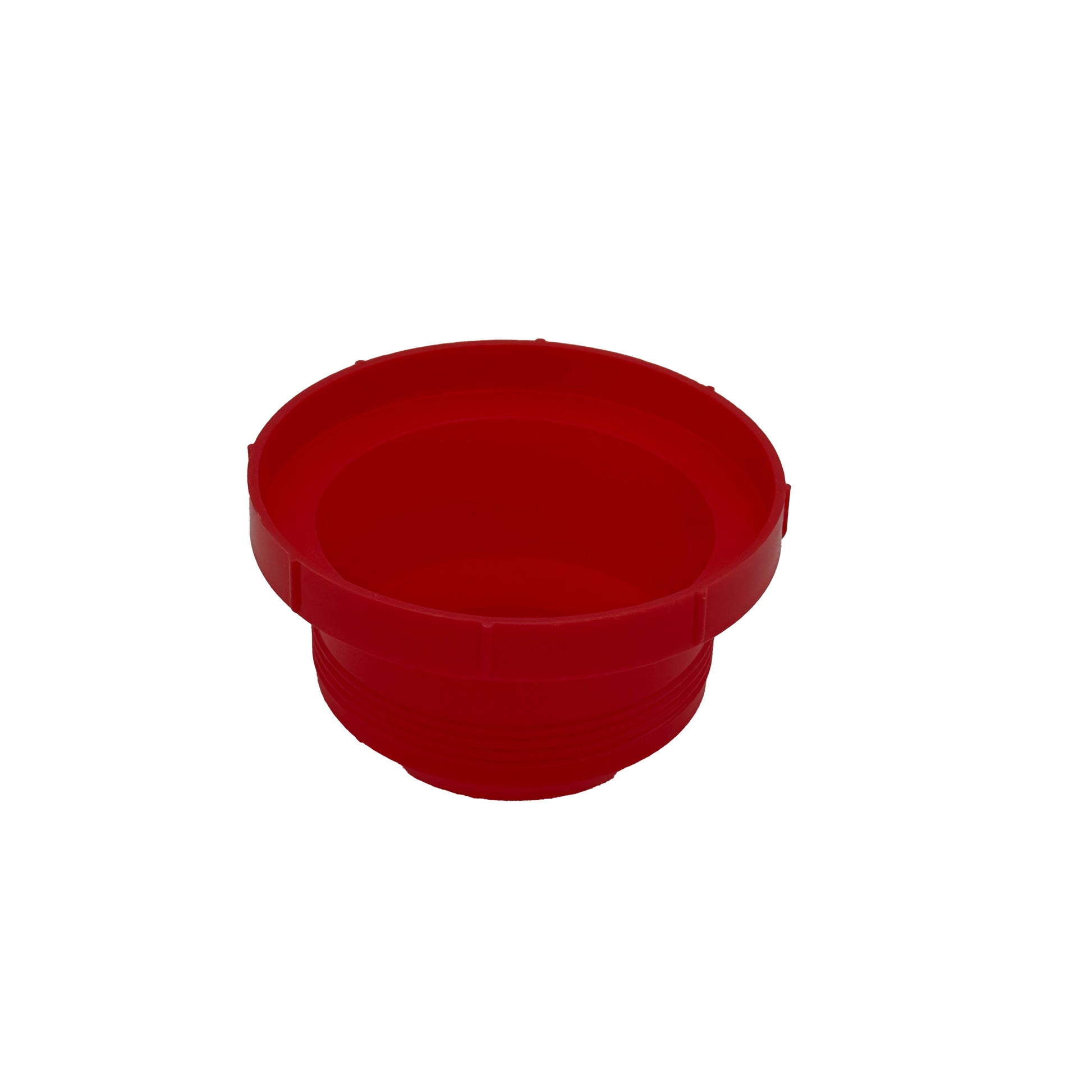

PD-HF-32 (HDPE) 2 2-1/2 – 12 -32 1.31 3.09 0.38
