NewBeeDrone - X FETTec InfinityAIO G4 Flight Controller MPU6000 45A 3-6S

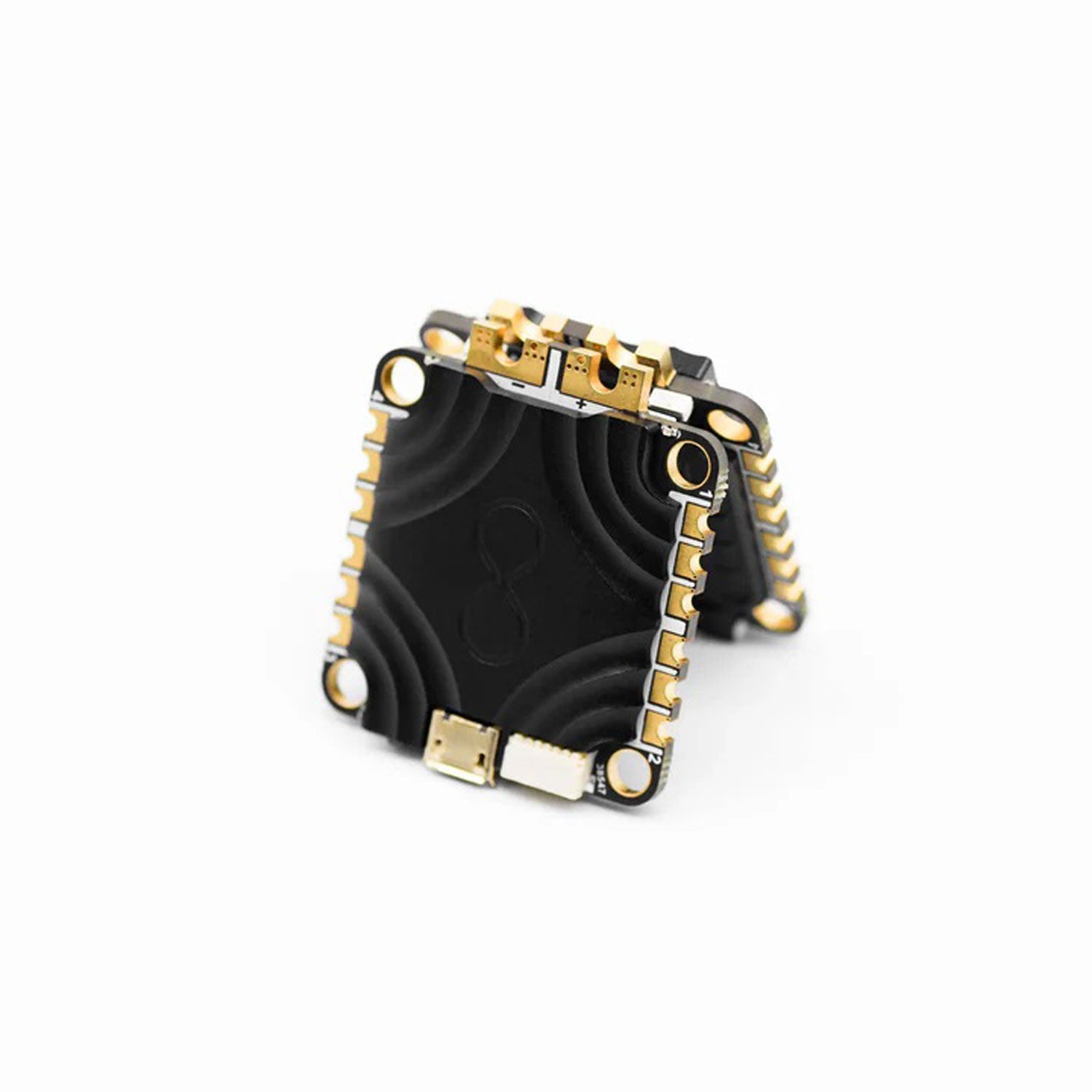

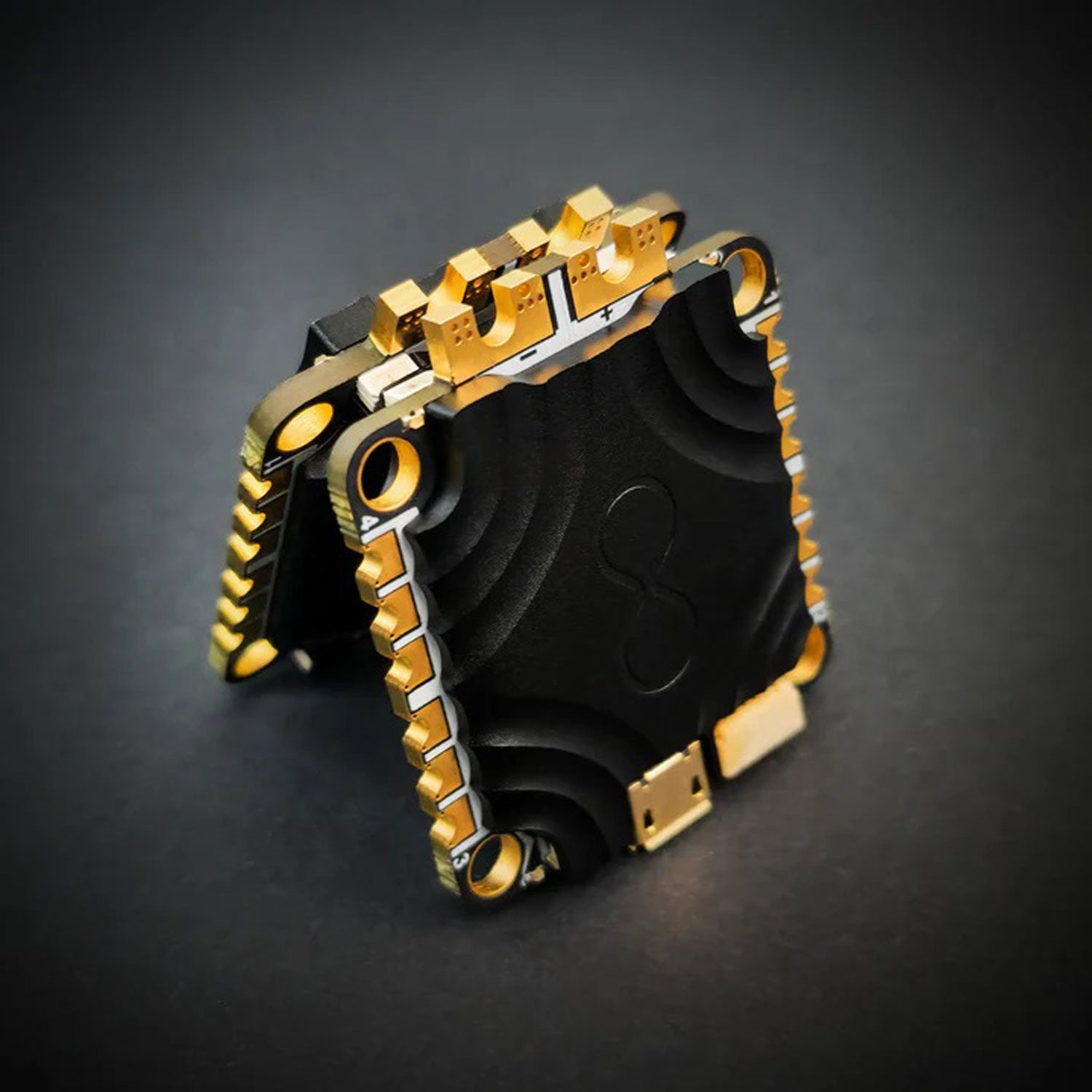

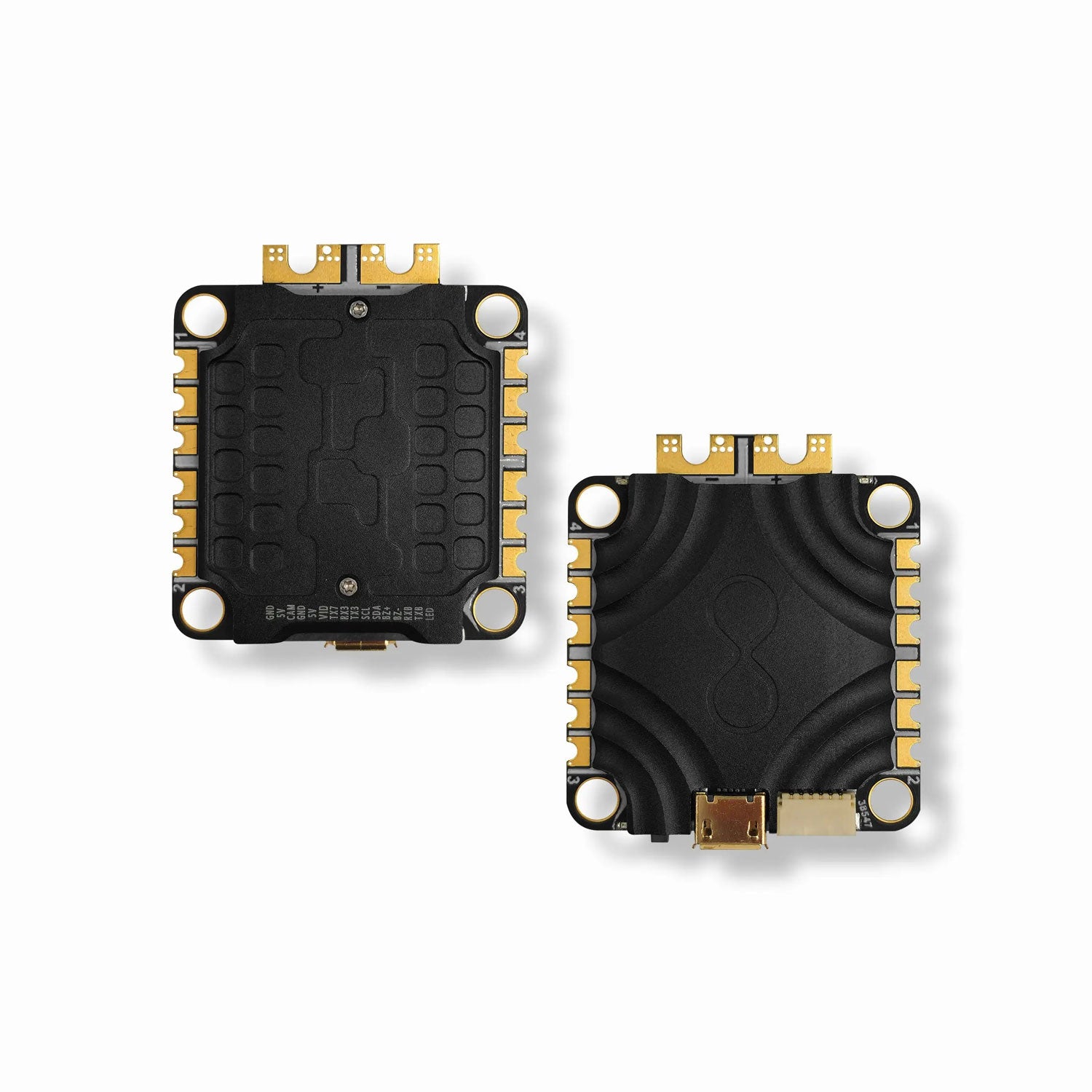

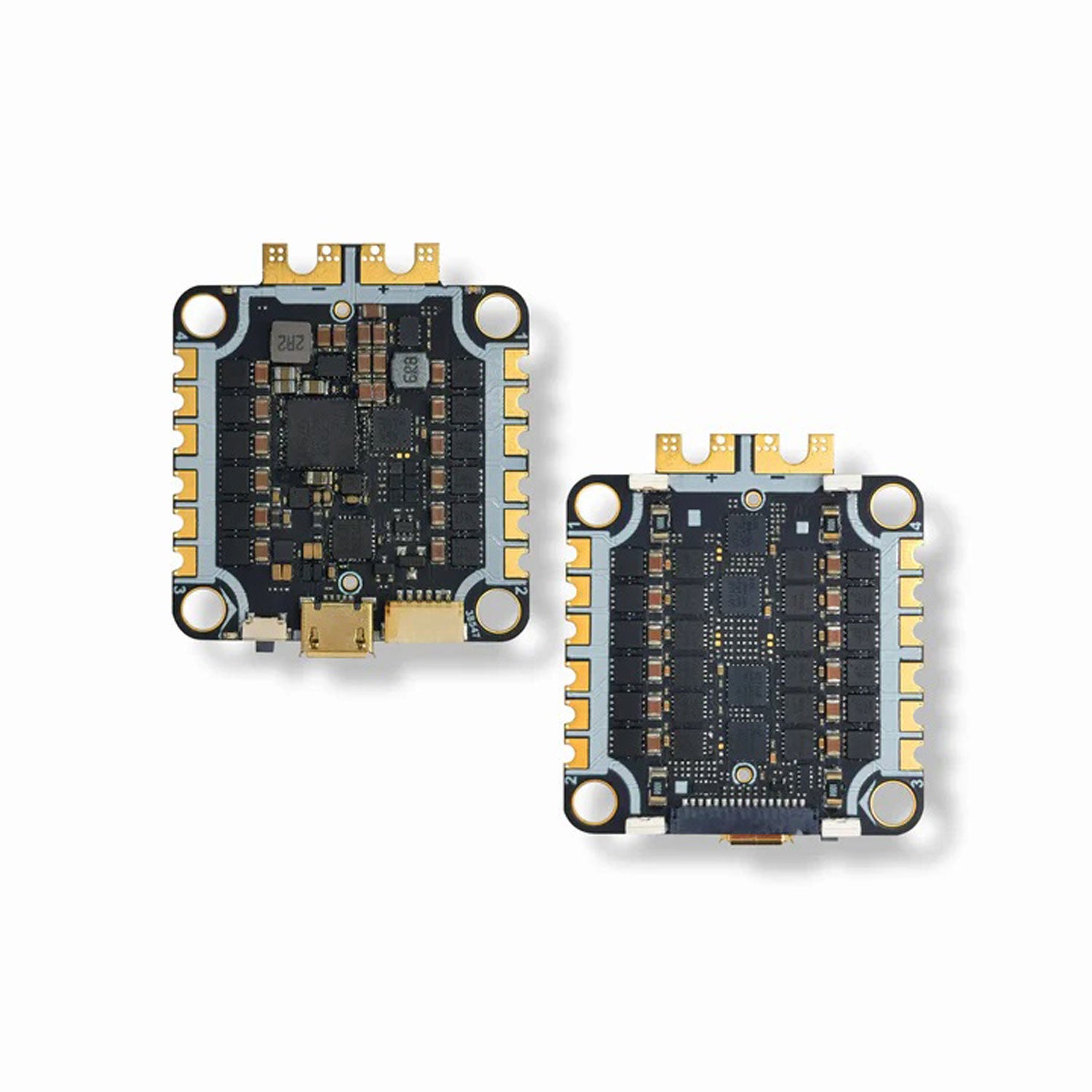

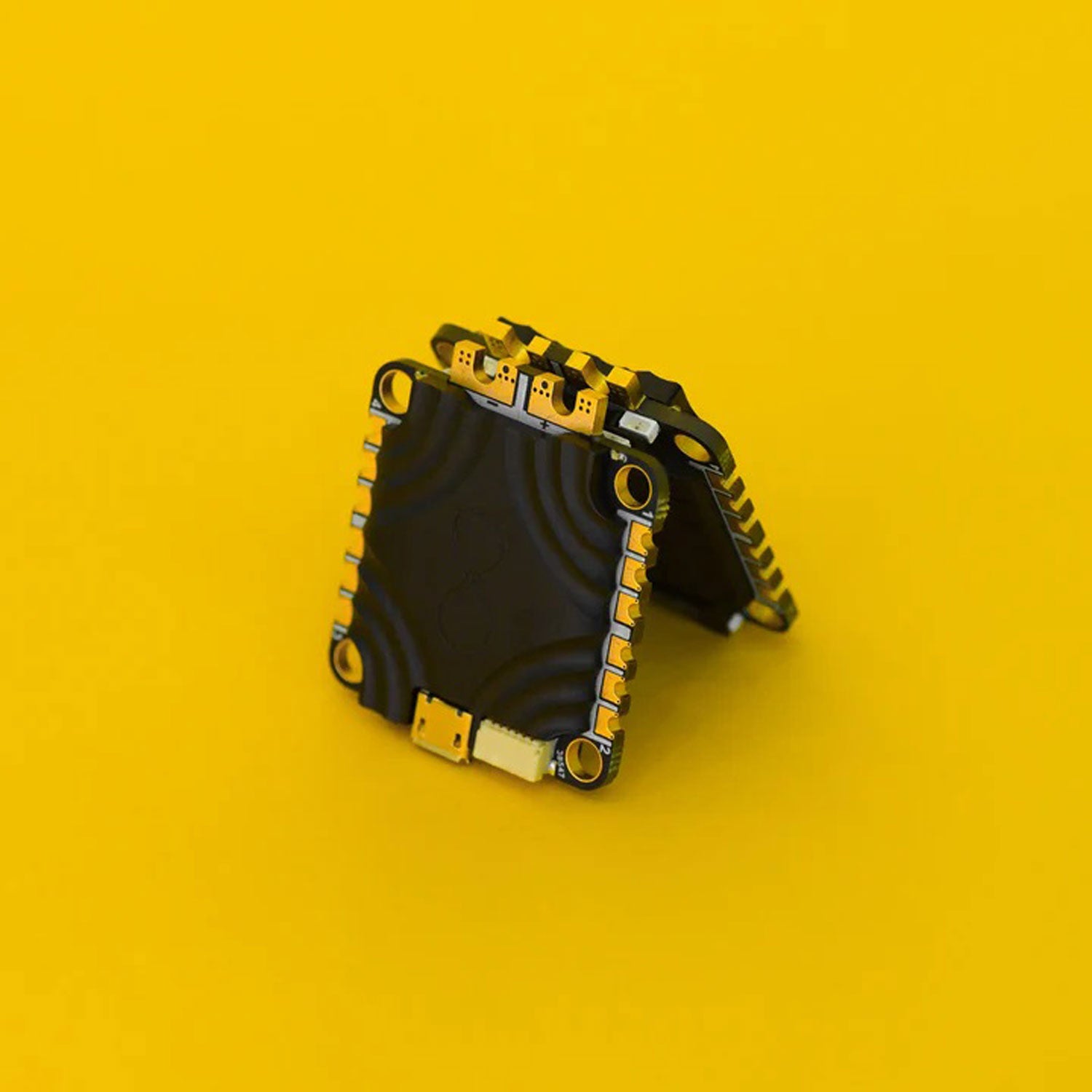

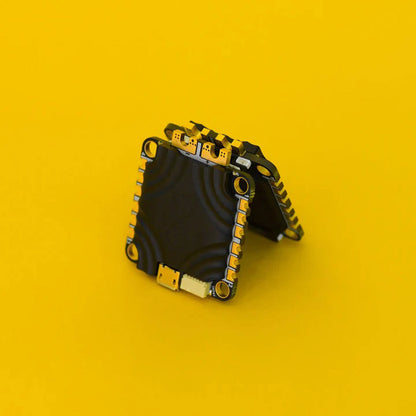

NewBeeDrone - FETTec InfinityAIO G4 Flight Controller MPU6000 45A 3-6S

Take your drone's performance to the next level with the NewBeeDrone FETTec InfinityAIO G4 Flight Controller, engineered for high-end FPV applications like racing, freestyle, and cinematic flying. This flight controller offers an unbeatable combination of reliability, durability, and heat dissipation. Featuring FETTec's first-ever dust and moisture-proof design, it's built to handle the most demanding conditions. With CNC aluminum heatsinks protecting its internal components, the InfinityAIO G4 ensures optimal flight performance and longevity, even in the harshest environments.

Designed for use with 3-6S power systems, this controller supports 45A continuous current and 55A burst current, making it ideal for advanced FPV setups. The MPU6000 gyro ensures stable and responsive flight dynamics, while the integrated FETTec ESCs deliver precise motor control with Dshot 300-2400 support. If you’re serious about your FPV flying, the NewBeeDrone FETTec InfinityAIO G4 offers all the features you need to unlock your drone's full potential.

Key Features:

• Durable and Reliable: Dust and moisture-proof design with CNC aluminum heatsinks for superior heat dissipation and protection.
• High-Powered ESCs: 45A continuous current and 55A burst current with Dshot 300-2400 for high-precision motor control.
• Stable Flight Dynamics: Equipped with an MPU6000 gyro for smooth and responsive flight behavior.
• Wide Power Support: Compatible with 3-6S battery inputs, ensuring flexibility in your power setup.
• Versatile Connectivity: Features 6 UART ports for receiver, OSD, telemetry, and additional devices.
• DJI Integration: Includes a 6-pin DJI FPV Air Unit connector and 12V 2A power output for optimal DJI FPV system compatibility.
• Lightweight and Compact: Weighing just 19.4 grams and featuring a 30.5x30.5mm mounting hole pattern for easy integration into your drone frame.
• FETTec OSD Support: Perfect for analog builds with onboard OSD support, buzzer readiness, and additional LED outputs.

Specifications:

• MCU: STM32G474 running FETTec Alpha Firmware 0.7-62
• Gyro: MPU6000 for stable flight dynamics
• ESCs: 4x STM32G071 @ 64MHz running FETTec ESC Firmware 1.0-241
• Power: 45A continuous / 55A burst per ESC, Dshot 300-2400, 3-6S battery input
• Voltage Outputs: 12V 2A for DJI FPV Air Unit, 5V 3A for LED/GPS modules
• Dimensions: 41x37x7.6mm with 30.5x30.5mm mounting holes
• Weight: 19.4g with grommets, 18.8g without grommets

Package Contents:

• 1x Infinity FETtec AIO Flight Controller + ESC
• 1x DJI O3 Cable (100mm, Silicon wire)
• 2x 16Pin Cable (150mm, Teflon wire)
• 13x Nylon Lock Nut
• 5x Steel Screw (M3x14)
• 4x Grommets Short & Long
• 1x 470uF 35V Electrolytic Capacitor
• 1x XT60 Cable

Recommended Build Tips: To maximize performance and avoid ESC burnout, avoid using motors larger than 2306.5 size or motors with a KV rating higher than 2150KV on a 6S setup.

Unlock your drone’s full potential with the NewBeeDrone FETTec InfinityAIO G4 Flight Controller. Whether you’re racing, freestyling, or capturing cinematic shots, this controller delivers the performance and reliability you need to push your drone to the limits.
