Mili Std - Steel Pin, Cotter | MS24665-304

Mili Std - Steel Pin, Cotter | MS24665-304

Military Standard

(Backordered) Normally Available within 3-7 Days.

SKU:MS24665-304

Regular price $0.21 USD
Regular price $0.27 USD Sale price $0.21 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Mili Std - Steel Pin, Cotter | MS24665-304

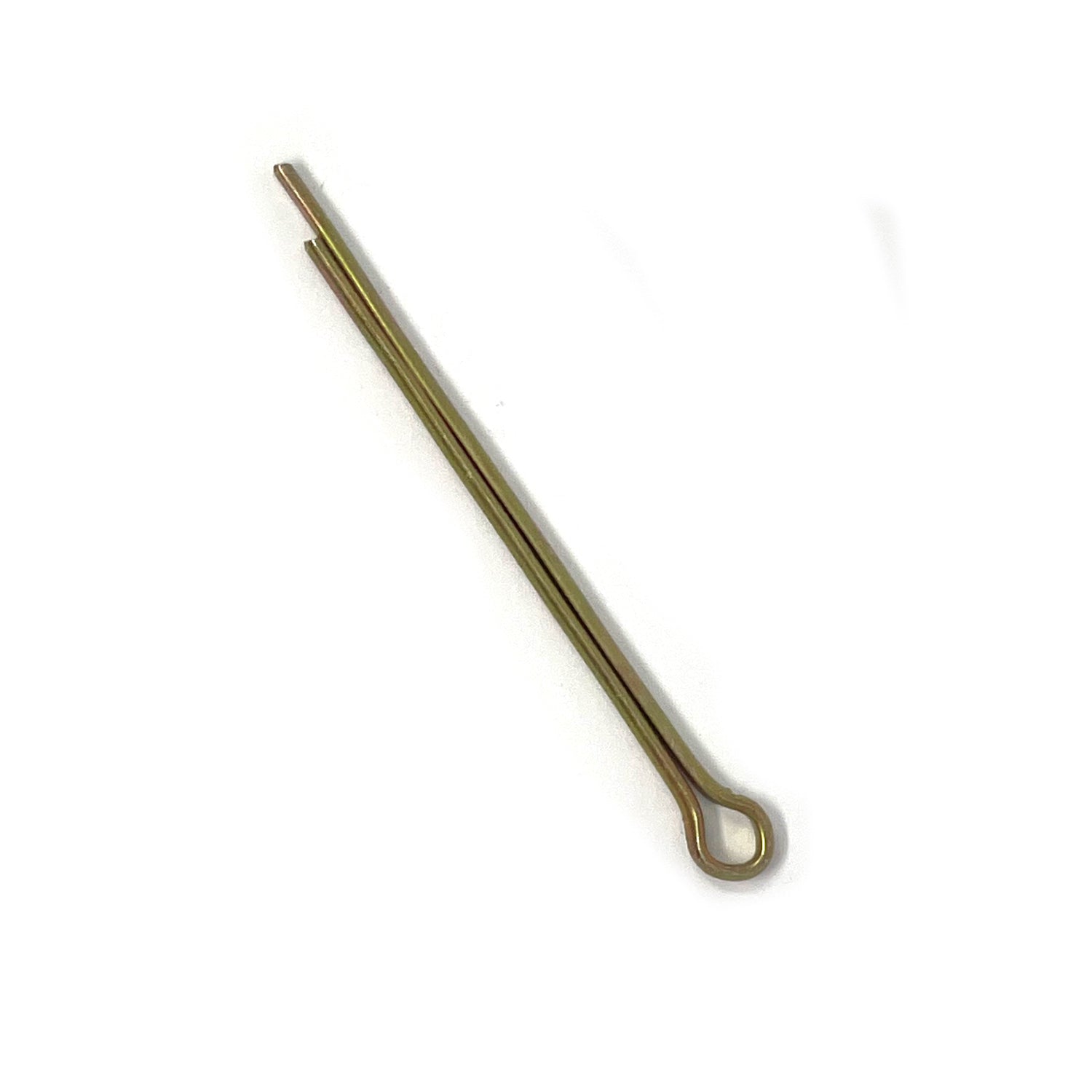

The MS24665-304 is as the name describes—a split cotter pin made of corrosion resistant steel. More information can be found below.

  • Diameter: 0.086 Inches Minimum And 0.090 Inches Maximum
  • Underloop Length: 1.125 Inches Minimum And 1.375 Inches Maximum
  • Point Type: Extended Prong Square Cut
  • Hardness Rating: 60.0 Rockwell Superficial 15-N Minimum Overall And 70.0 Rockwell Superficial 15-N Maximum Overall
  • Material: Steel Comp 302 Overall Or Steel Comp 304 Overall
  • Material Document And Classification: Astm A493 Assn Std All Material Responses Overall
  • Surface Treatment: Passivate Overall
  • Surface Treatment Document And Classification: Astm A380 Assn Std Single Treatment Response Overall
  • Style Designator: Standard
