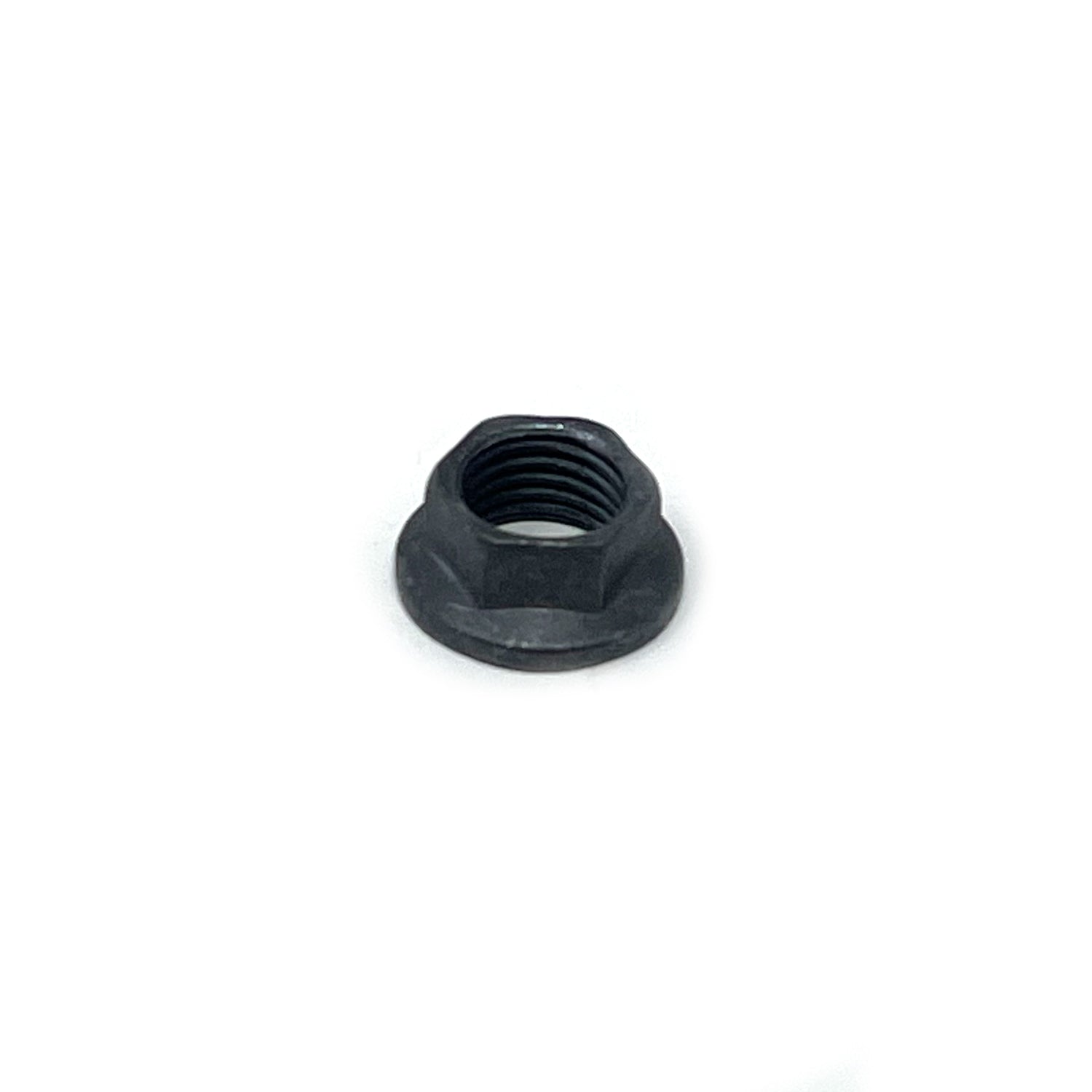

Mili Std - Steel Dry Film Coated Nut, Self-Locking, Extended Washer, Hexagon | MS21042L6

Mili Std - Steel Dry Film Coated Nut, Self-Locking, Extended Washer, Hexagon | MS21042L6

• Thread Class:  3B
•  Thread Direction:  Right-Hand
•  Locking Feature:  Prevailing Torque All Metal Design
•  Washer Outside Diameter:  0.620 Inches Maximum
•  Lubrication:  Dry Film Lubricant
•  Overall Height:  0.267 Inches Minimum And 0.282 Inches Maximum
•  Nut Style:  Hexagon
•  Washer Thickness:  0.030 Inches Minimum
•  Width Across Flats:  0.430 Inches Minimum And 0.440 Inches Maximum
•  Temp Rating:  450.0 Deg Fahrenheit Nominal
•  Thread Series:  Unjf
•  Thread Quantity Per Inch:  24
•  Nominal Thread Size:  0.375 Inches
•  Material:  Steel Overall
•  Surface Treatment:  Cadmium Overall And Chromate Overall
•  Surface Treatment Document And Classification:  Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
•  Specification/Standard Data:  26512-GN10U Manufacturers Standard
