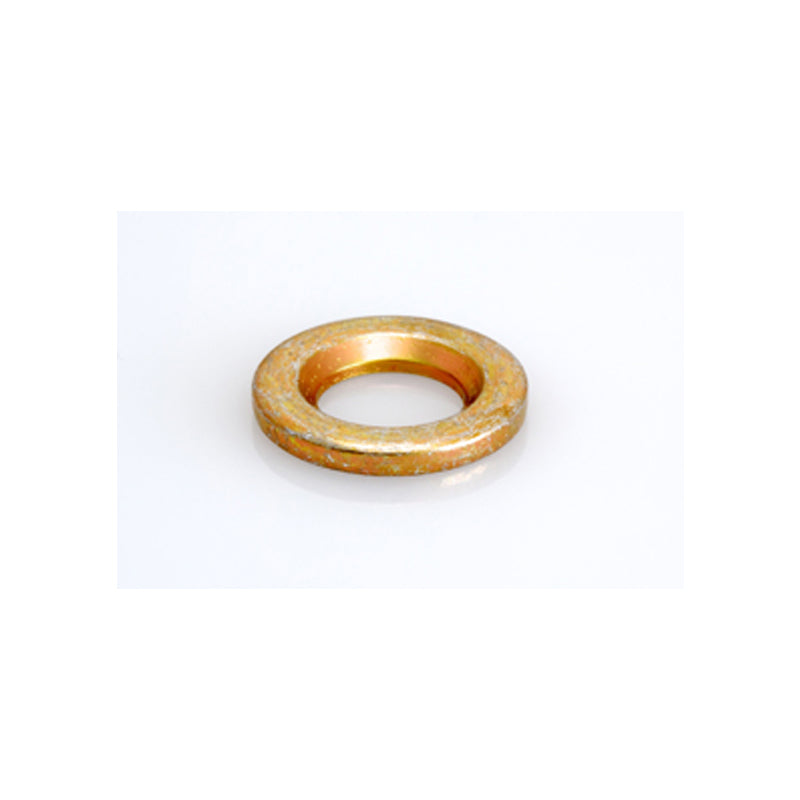

Mili Std - Steel Countersunk Washer, Flat | MS20002C6

Mili Std - Steel Countersunk Washer, Flat | MS20002C6

• Hole Diameter: 0.378 Inches Minimum And 0.388 Inches Maximum
• Outside Diameter: 0.687 Inches Nominal
• Recess Diameter: 0.483 Inches Minimum And 0.495 Inches Maximum
• Material Thickness: 0.078 Inches Nominal
• Minimum Tensile Strength: 125000 Pounds Per Square Inch
• Recess Angle: 90.0 Degrees Nominal
• Material: Steel Comp 1330 Overall Or Steel Comp 4130 Overall
• Material Document And Classification: 66 Fed Std Single Material Response Overall
• Surface Treatment: Cadmium Overall
• Surface Treatment Document And Classification: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
• Style Designator: Recessed
