Mili Std - Nylon Grommet, Nonmetallic 12.62 Long | MS21266-3N

Mili Std - Nylon Grommet, Nonmetallic 12.62 Long | MS21266-3N

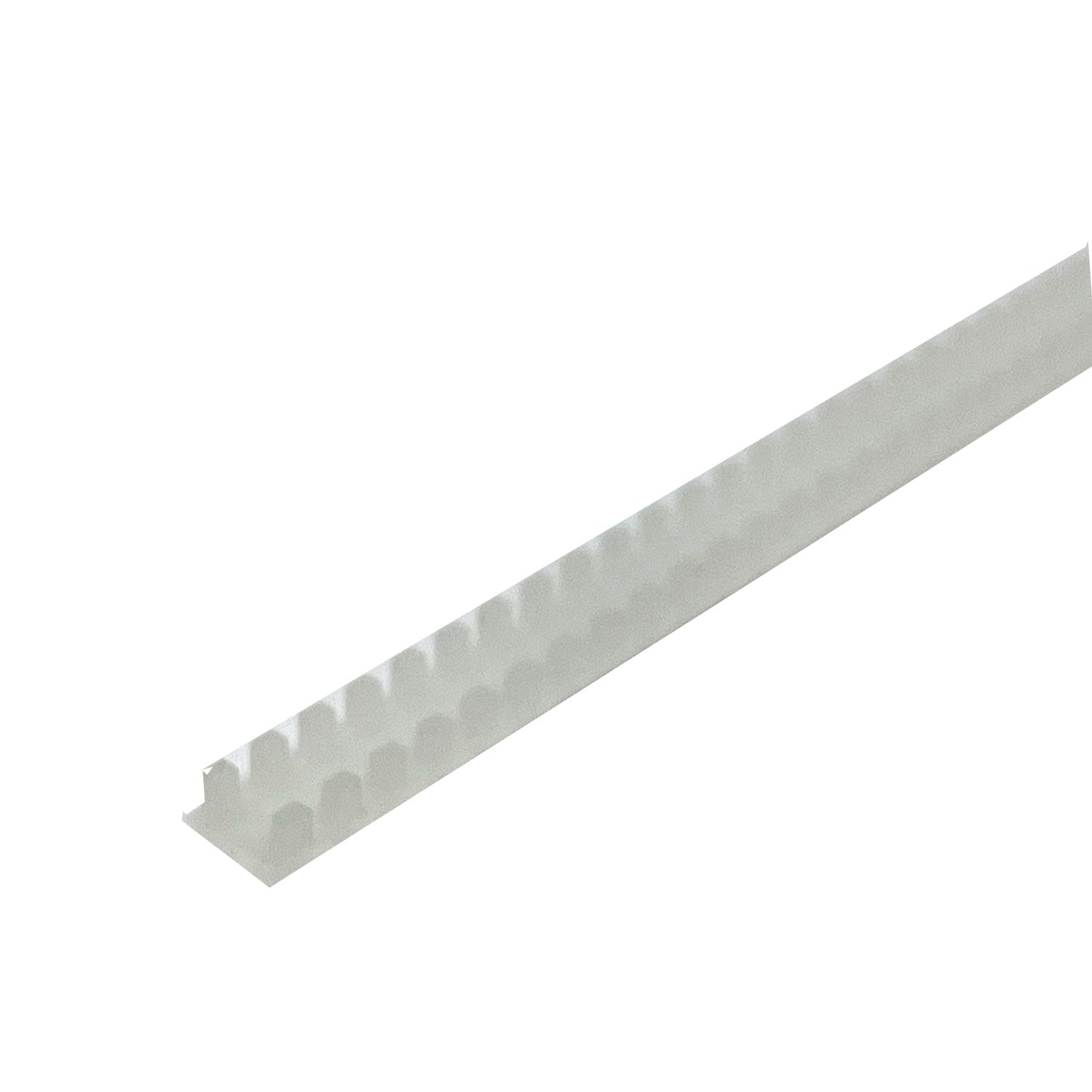

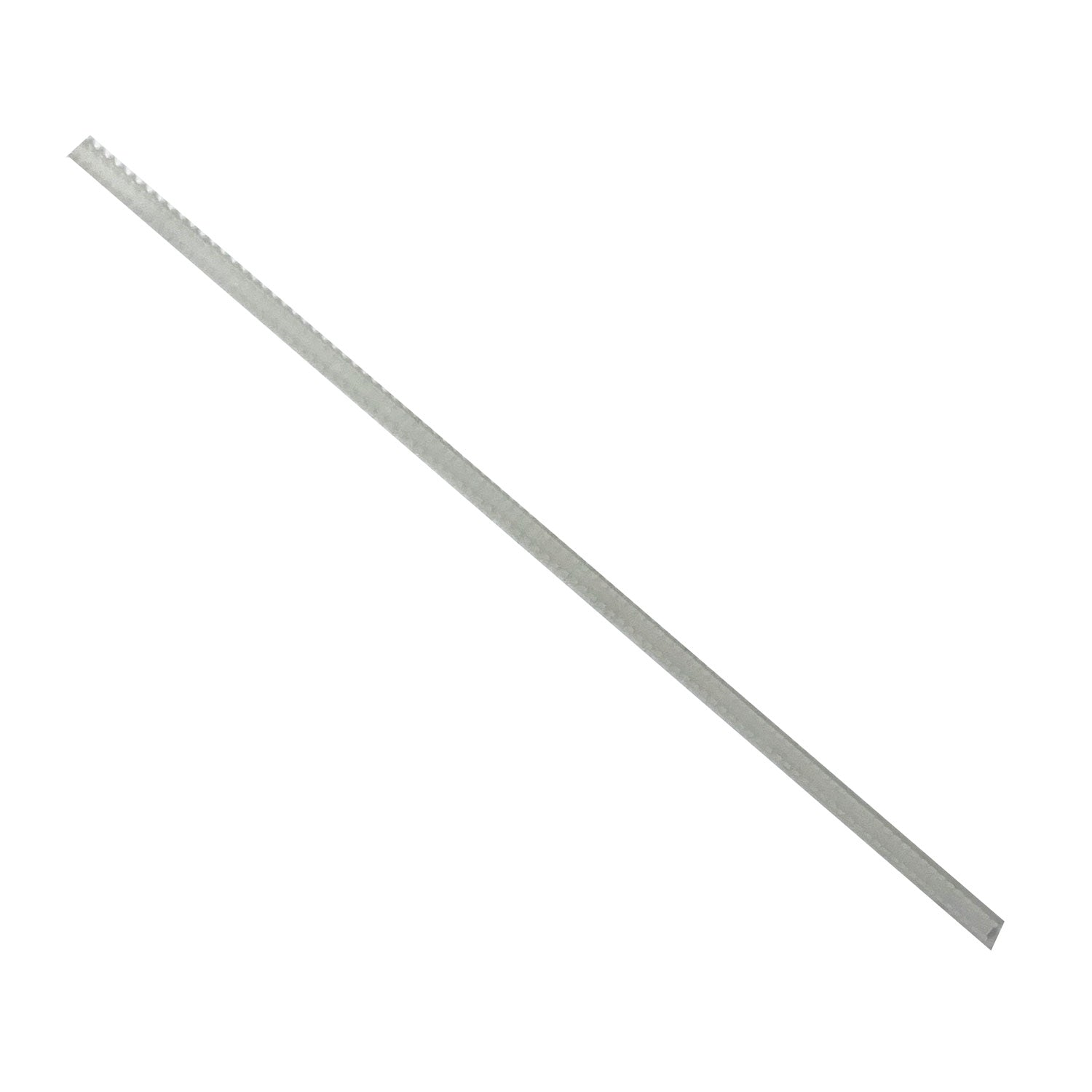

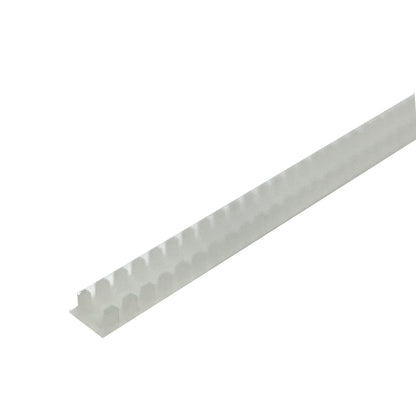

The MS21266-3N is a plastic (nylon) grommet edging that assists in the protection as well as insulation of wires and cables from chafing due to sharp edges. Its slotted style is designed to be applied on irregularly shaped and round panel holes. Note: this item, along with others in the series, is superseded by the NASM21266 series. This item has the following specs:

Unless otherwise noted, values are in inches

• Material: Nylon 6.6
• Color: Natural
• Height : .16
• Length: 12.75
• Width: .22
• CE Compliant: No
• Outside Depth: .155
• Outside Width: .220
• Panel Thickness Range: .085 to .128
• Temperature Range(°F/°C): -40 to 149/-40 to 65
• RoHS Compliant: Yes
