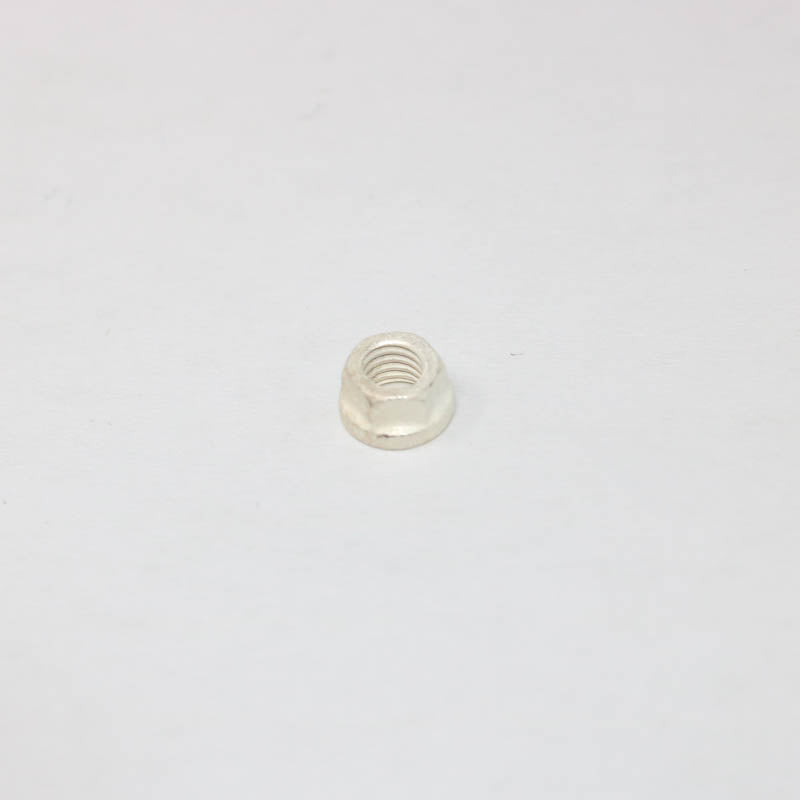

Mili Std - Hexagon Self-Locking Nut, Extended Washer | MS21043-3

Mili Std - Hexagon Self-Locking Nut, Extended Washer | MS21043-3

•  Thread Direction:  Right-Hand
•  Locking Feature:  Prevailing Torque All Metal Design
•  Washer Outside Diameter:  0.330 Inches Maximum
•  Overall Height:  0.154 Inches Minimum And 0.188 Inches Maximum
•  Nut Style:  Hexagon
•  Washer Thickness:  0.015 Inches Minimum
•  Width Across Flats:  0.243 Inches Minimum And 0.252 Inches Maximum
•  Temp Rating:  800.0 Deg Fahrenheit Maximum
•  Thread Series:  Unf
•  Thread Quantity Per Inch:  32
•  Nominal Thread Size:  0.190 Inches
•  Material:  Iron Alloy 660 Overall
•  Material Document And Classification:  Ams5525 Assn Std Single Material Response Overall Or 5735 Assn Std Single Material Response Overall
•  Precious Material And Location:  O/A Silver
•  Precious Material:  Silver
•  Surface Treatment:  Silver Overall
•  Surface Treatment Document And Classification:  QQ-S-365 Fed Spec Single Treatment Response Overall Or AMS 2410 Assn Std Single Treatment Response Overall
