Hartwell H-5000 Aircraft Trigger Latch – H-5000-2 Series

Hartwell H-5000 Aircraft Trigger Latch – H5000-2 Series

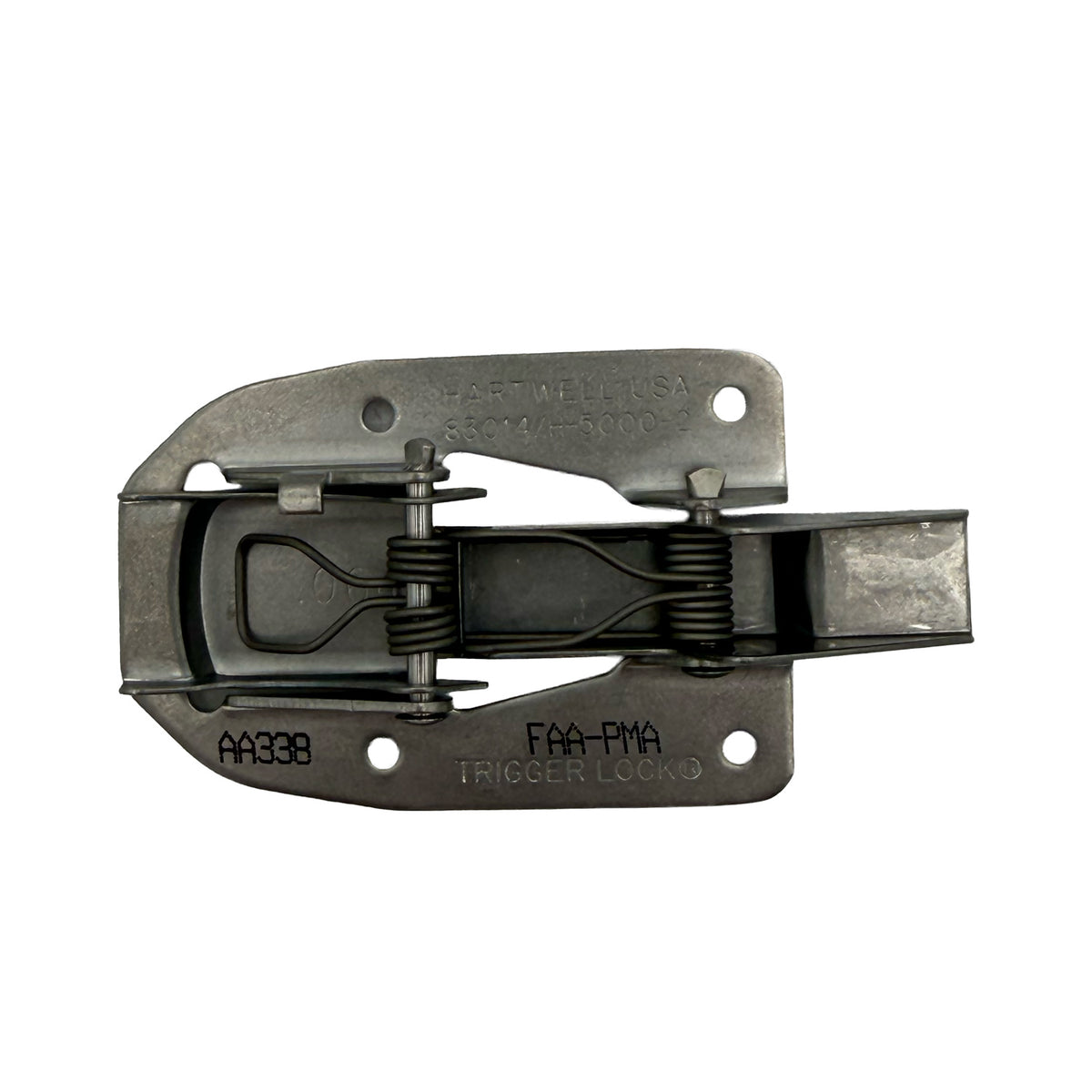

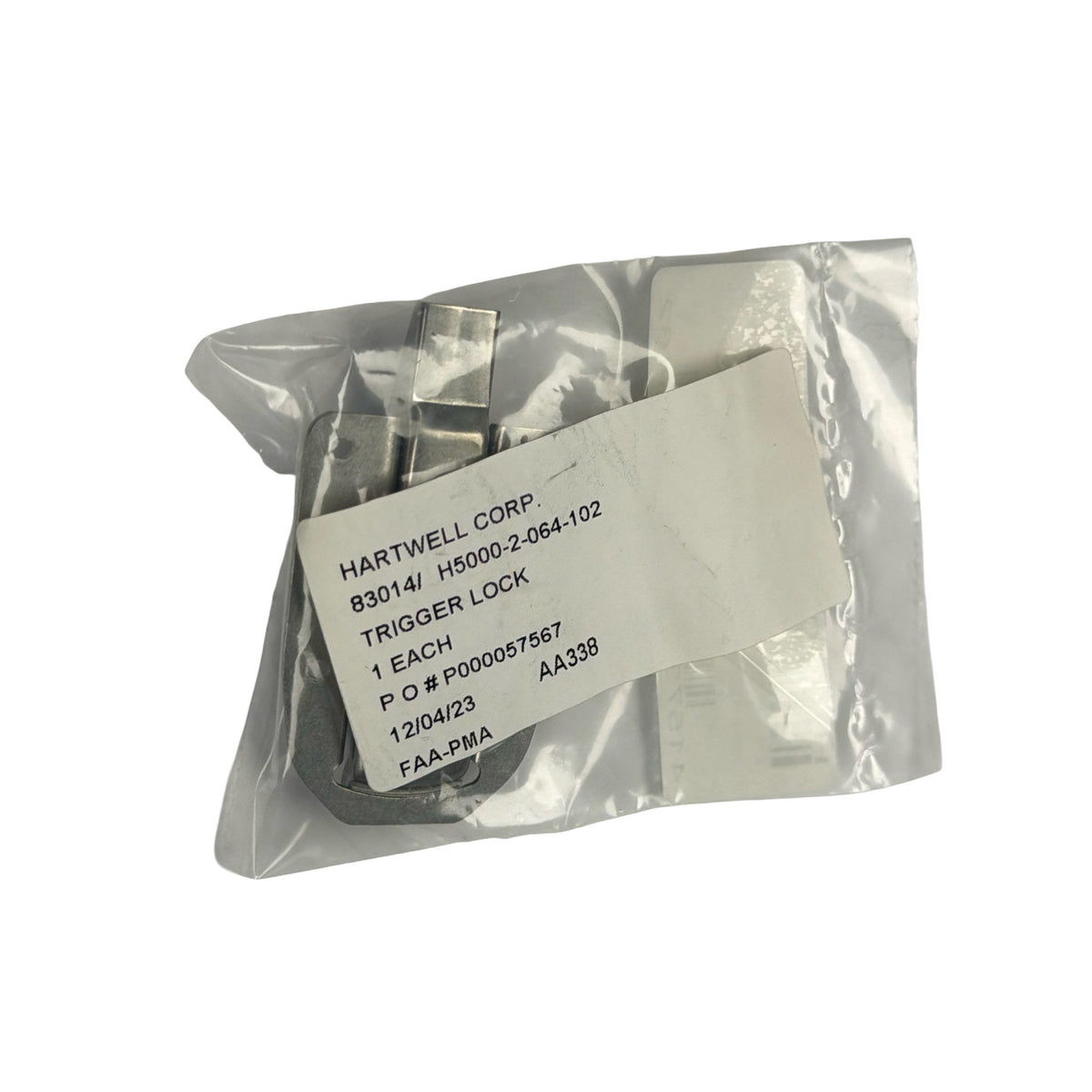

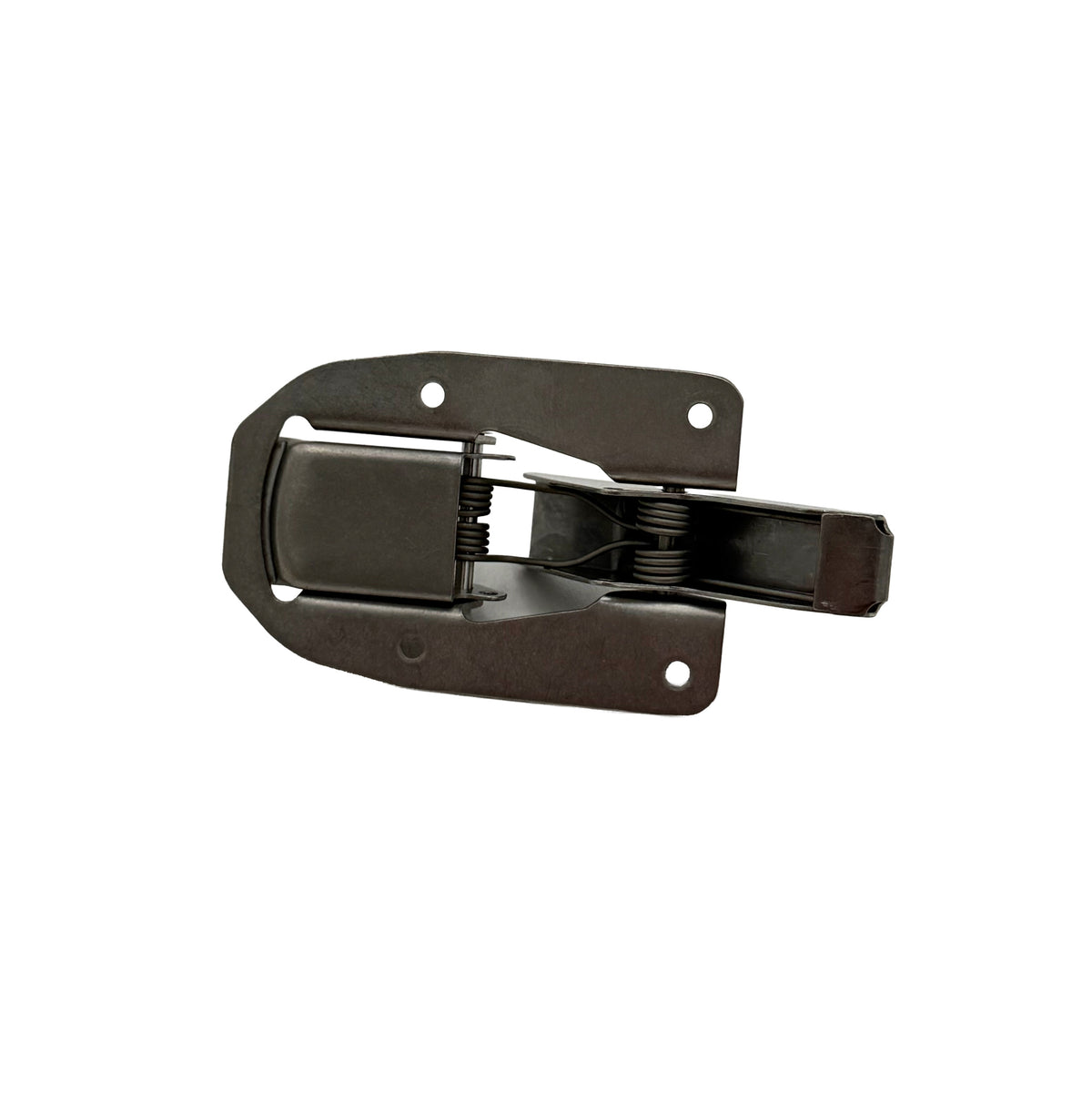

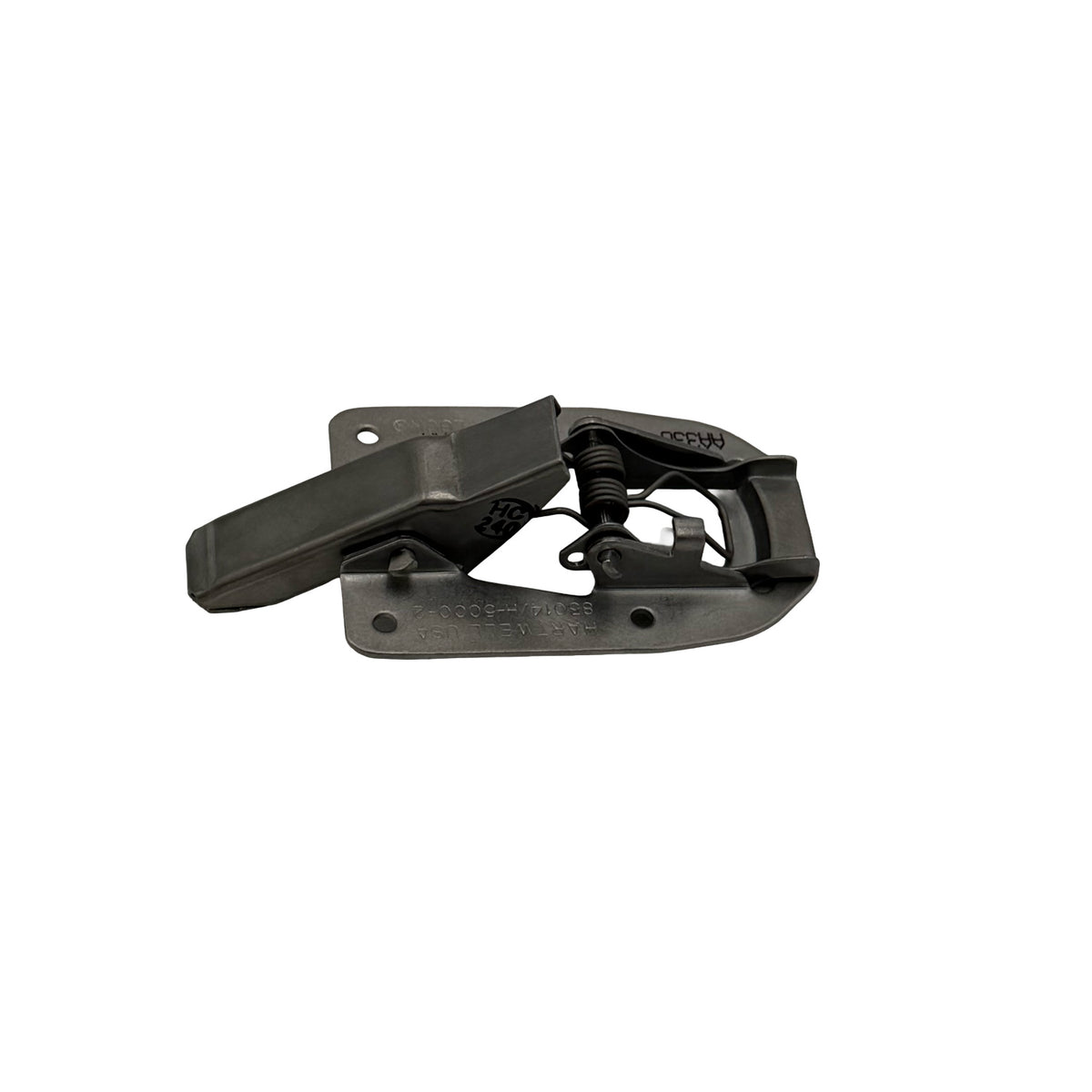

The Hartwell H-5000 aircraft trigger latch is a flush-mounted aircraft latch used in a variety of aviation applications. Pilots HQ offers H-5000-2 latches by their complete configuration part number, helping customers identify and order the correct latch rather than relying solely on the commonly marked H-5000-2 designation.

Important Part Number Information

Do not order an H-5000-2 latch based only on the H-5000-2 marking.

Hartwell H-5000 latches are available in multiple dimensional configurations. While a latch may be marked H-5000-2, that designation alone does not necessarily identify all of the dimensional characteristics required to select the correct replacement.

• H-5000 identifies the Hartwell latch family.
• H-5000-2 identifies the basic assembly/configuration family.
• Additional part-number suffixes identify the dimensional configuration of the latch.
• Two latches marked H-5000-2 can appear virtually identical while having different dimensions.
• Different H-5000-2 configurations should not be assumed to be interchangeable.
• Always verify the complete configuration and required dimensions before ordering a replacement latch.

How to Identify Your Hartwell H-5000 Latch

The diagram below shows how the complete Hartwell H-5000 part number is constructed and how the configuration suffixes relate to the latch dimensions. Use this information together with the applicable aircraft documentation and measurements from your existing installation to determine the required configuration.

Important: The H-5000-2 marking by itself should not be used to select a replacement. Match the complete H-5000-2 configuration shown in the product selection menu to the requirements of your installation.

Why the Complete H-5000 Part Number Matters

There has been longstanding confusion in the aviation aftermarket surrounding the Hartwell H-5000-2. Different H-5000 configurations have often been cataloged simply as “H-5000-2” or “H5000-2,” which can make visually similar latches appear to be the same part.

In reality, additional suffixes are used to define dimensional characteristics of the latch. This means finding an H-5000-2 latch that looks like the one being replaced—or finding one carrying the same basic H-5000-2 marking—is not enough to establish interchangeability.

Pilots HQ lists available H-5000 latches by their complete configuration number so you can identify exactly which version you are ordering.

Key Features & Benefits

• Hartwell H-5000 Series – Established aircraft flush/trigger latch design from Hartwell Corporation.
• Configuration-specific selection – Available variants are identified by the complete H-5000 part number.
• Flush-mounted design – Compact trigger-style latch designed for aviation applications.
• Clear dimensional identification – Hartwell's part-number system differentiates configurations by critical latch dimensions.
• Better replacement identification – Helps eliminate confusion between visually similar H-5000-2 configurations.
• Multiple configurations – Select the required complete part number from the available options above.

Selecting the Correct H-5000-2 Latch

If you are replacing an existing Hartwell H5000-2 aircraft latch, first check all available part-number information and the applicable aircraft parts or maintenance documentation. If only H-5000-2 is visible on the existing latch, use the Hartwell dimensional guide above to help identify the required configuration.

Do not assume fitment based on appearance, aircraft model, or the H-5000-2 marking alone. H-5000-family applications can use different dimensional configurations, and the correct configuration must be established for the specific installation.

If you are uncertain which Hartwell H-5000 trigger latch you need, contact Pilots HQ before ordering. Our team can help review the available identification information and dimensions to determine which configuration should be investigated for your application.

Product Information

Aircraft Applications

The Hartwell H-5000 latch family is used in multiple aircraft and aviation applications. However, the use of an H-5000-family latch on an aircraft does not mean that every H-5000-2 configuration is suitable for that aircraft or installation.

Always verify the complete latch configuration against the applicable aircraft parts, maintenance, or other approved technical documentation before installation.
