GENERAL CHARACTERISTICS

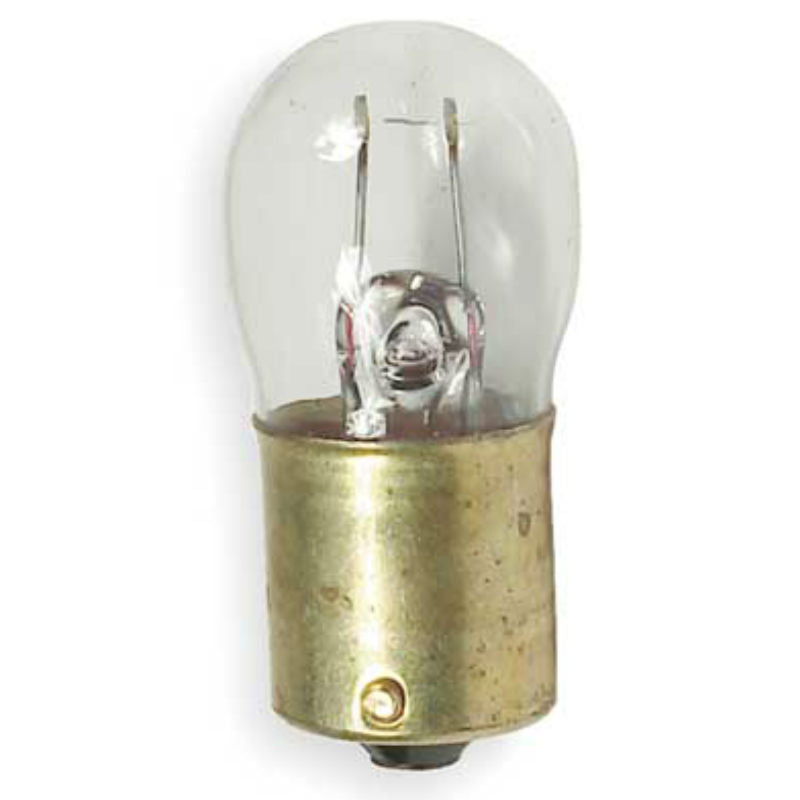

Lamp type Miniature - B Shape
Bulb B6
Base Single Contact Bayonet (BA15s)
Primary Application Aircraft; Low Voltage
Filament C-6
Rated Life (MIN) 3 hrs
Rated Life (Vert) 100 hrs
Rated Life 100 hrs
Rated Life (Hor) 3 hrs
Atmosphere Gas-filled
PHOTOMETRIC CHARACTERISTICS
Initial Lumens (Vert) 43
Initial Lumens 43
Initial Lumens (Hor) 14
Nominal Initial Lumens per Watt 14
Center Beam Candlepower (CBCP) 43
Mean Spherical Candlepower (MSCP) 3
ELECTRICAL CHARACTERISTICS
Wattage 3
Voltage (MIN) 100.0
Voltage 6
DIMENSIONS
Maximum Overall Length (MOL) 1.7500 in (44.4 mm)
Bulb Diameter (DIA) 0.7500 in (19.0 mm)
Light Center Length (LCL) 1.1200 in (28.4 mm)
PRODUCT INFORMATION
Product Code 34265
Description 1317
ANSI Code 1317
Standard Package Case
Standard Package GTIN 20043168342654
Standard Package Quantity 50
Sales Unit Unit
No Of Items Per Sales Unit 1
No Of Items Per Standard Package 50
UPC 043168342650
