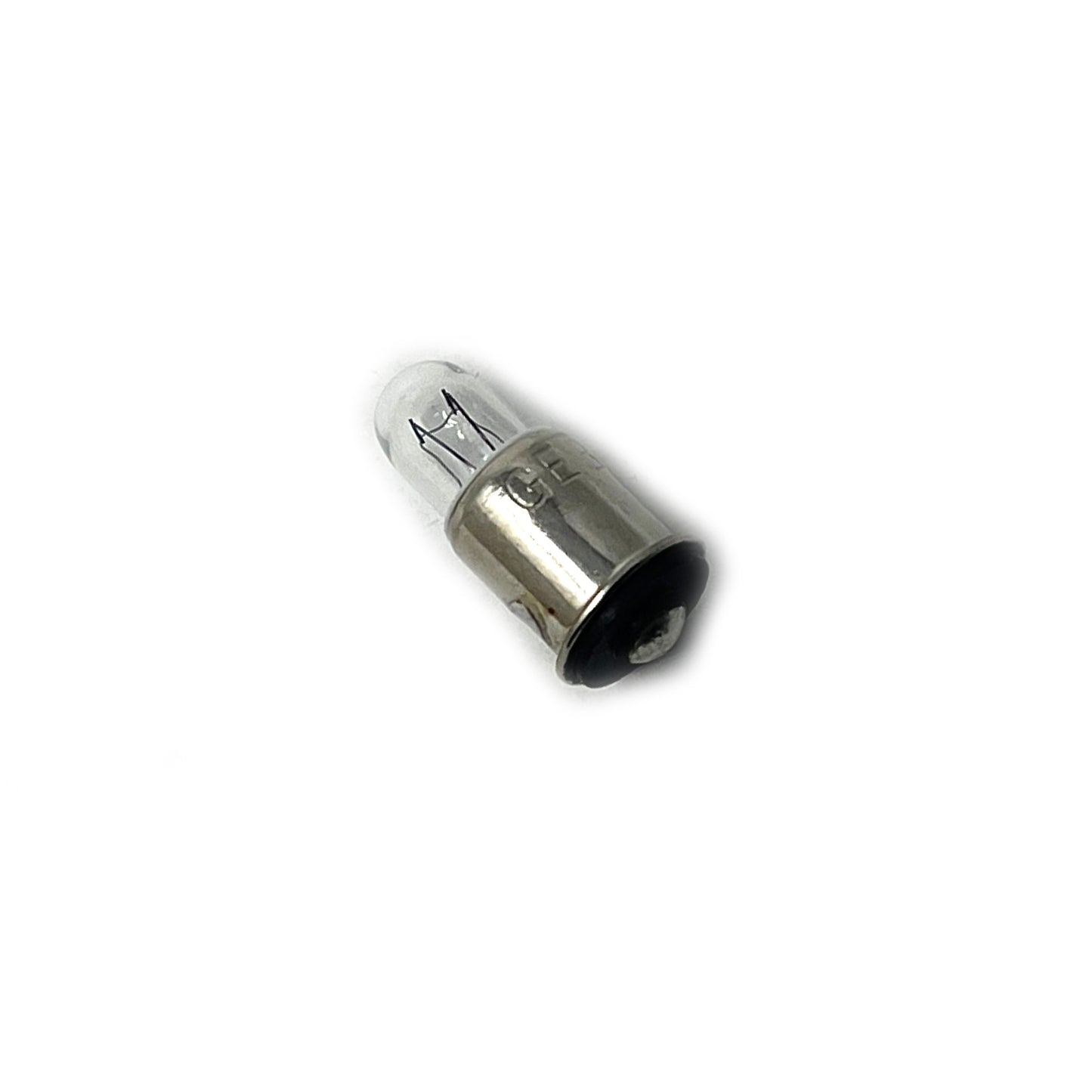

GE Incandescent Lamp: 28v,5w1 | 327| 28519

GE Incandescent Lamp: 28v,5w | 327| 28519

GE T1.75 (T1 3/4) - Aircraft; Low Voltage

GENERAL CHARACTERISTICS
Lamp type    Miniature - T & TL Shape
Bulb    T1.75 (T1 3/4)
Base     Single Contact Midget Flanged
Primary Application     Aircraft; Low Voltage
Filament    C-2F
Rated Life (MIN)    1 hrs
Rated Life (Vert)    4000 hrs
Rated Life    4000 hrs
Rated Life (Hor)    1 hrs
Atmosphere    Vacuum

PHOTOMETRIC CHARACTERISTICS
Initial Lumens (Vert)    4
Initial Lumens    4
Initial Lumens (Hor)    4
Nominal Initial Lumens per Watt    4
Center Beam Candlepower (CBCP)    4
Mean Spherical Candlepower (MSCP)    0

ELECTRICAL CHARACTERISTICS
Wattage    1
Voltage (MIN)    4000.0
Voltage    28

DIMENSIONS
Maximum Overall Length (MOL)     0.63 cm
Bulb Diameter (DIA)     0.219 cm
Light Center Length (LCL)     0.38 cm

PRODUCT INFORMATION
Product Code    28519
Description    327
ANSI Code    327
Standard Package    Case
Standard Package GTIN    20043168285197
Standard Package Quantity    50
Sales Unit    Unit
No Of Items Per Sales Unit    1
No Of Items Per Standard Package    50
UPC    043168285193
