GENERAL CHARACTERISTICS

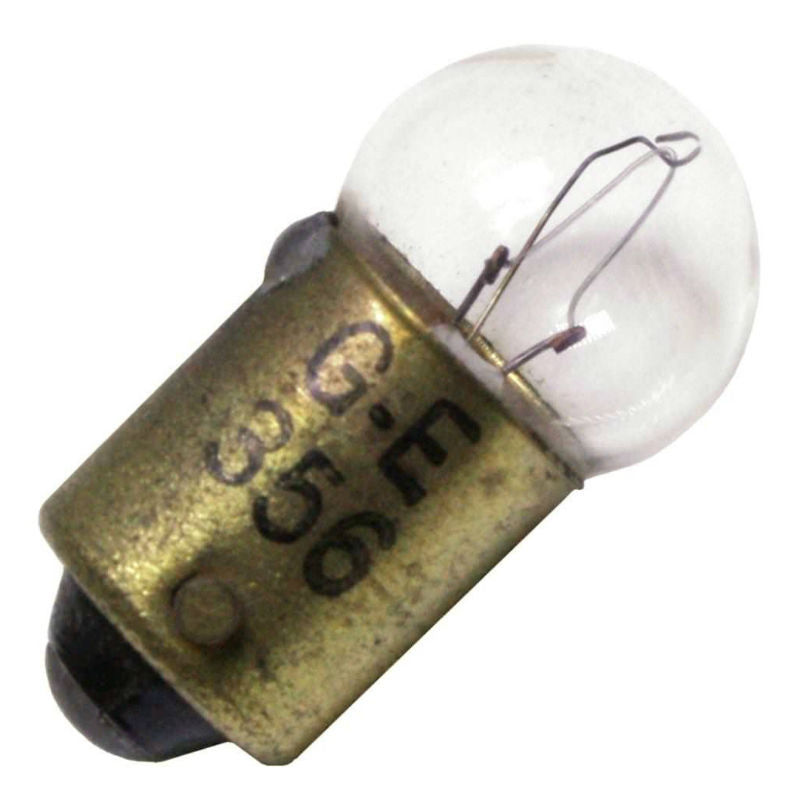

Lamp type Miniature - G Shape
Bulb G3.5 (G3 1/2)
Base Miniature Bayonet (Ba9s)
Primary Application Aircraft; Low Voltage
Filament C-2F
Rated Life (MIN) 5 hrs
Rated Life (Vert) 500 hrs
Rated Life 500 hrs
Rated Life (Hor) 5 hrs
Bulb Material Lead glass
Atmosphere Vacuum
PHOTOMETRIC CHARACTERISTICS
Initial Lumens (Vert) 44
Initial Lumens 44
Initial Lumens (Hor) 9
Nominal Initial Lumens per Watt 9
Center Beam Candlepower (CBCP) 44
Mean Spherical Candlepower (MSCP) 4
ELECTRICAL CHARACTERISTICS
Wattage 5
Voltage (MIN) 500.0
Voltage 28
DIMENSIONS
Maximum Overall Length (MOL) 0.9400 in (23.8 mm)
Bulb Diameter (DIA) 0.4380 in (11.1 mm)
Light Center Length (LCL) 0.5000 in (12.7 mm)
PRODUCT INFORMATION
Product Code 26255
Description 356
ANSI Code 356
Standard Package Case
Standard Package GTIN 00043168262552
Standard Package Quantity 50
Sales Unit Unit
No Of Items Per Sales Unit 1
No Of Items Per Standard Package 50
UPC 043168963428
