GENERAL CHARACTERISTICS

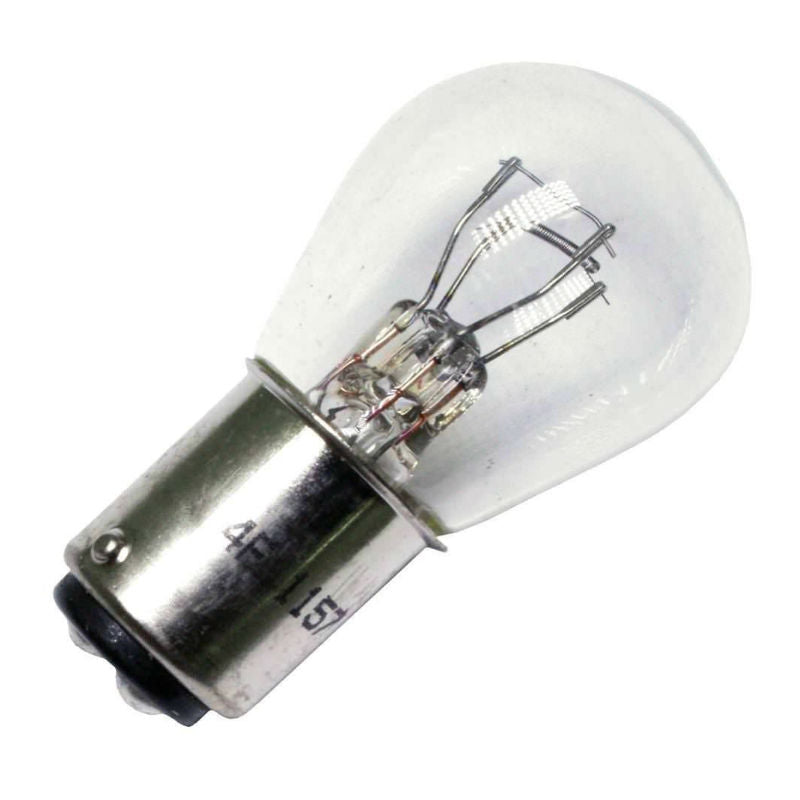

Lamp type Miniature - S Shape
Bulb S8
Base Double Contact Bayonet (BA15d)
Primary Application Aircraft; Low Voltage
Filament C-2V
Rated Life (MIN) 14 hrs
Rated Life (Vert) 300 hrs
Rated Life 300 hrs
Rated Life (Hor) 14 hrs
Bulb Material Lead glass
Atmosphere Gas-filled
PHOTOMETRIC CHARACTERISTICS
Initial Lumens (Vert) 188
Initial Lumens 188
Initial Lumens (Hor) 13
Nominal Initial Lumens per Watt 13
Center Beam Candlepower (CBCP) 188
Mean Spherical Candlepower (MSCP) 15
ELECTRICAL CHARACTERISTICS
Wattage 14
Voltage (MIN) 300.0
Voltage 28
DIMENSIONS
Maximum Overall Length (MOL) 2.0000 in (50.8 mm)
Bulb Diameter (DIA) 1.0000 in (25.4 mm)
Light Center Length (LCL) 1.1200 in (28.4 mm)
PRODUCT INFORMATION
Product Code 26152
Description 306
ANSI Code 306
Standard Package Case
Standard Package GTIN 20043168261528
Standard Package Quantity 50
Sales Unit Unit
No Of Items Per Sales Unit 1
No Of Items Per Standard Package 50
UPC 043168261524
