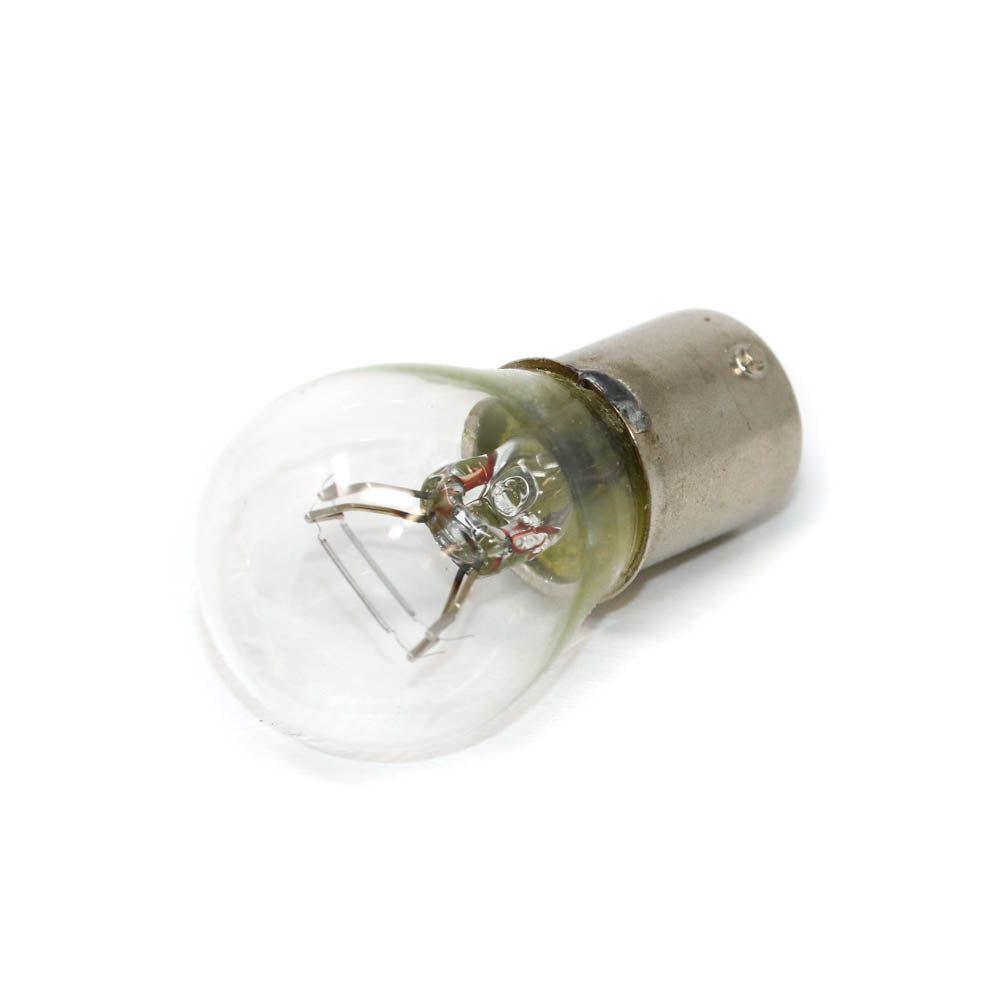

GE Incandescent Lamp: 28v,29w, | 1683 | 27557

GE Incandescent Lamp: 28v,29w, - 10pk | 1683 | 27557

GE S8 - Aircraft; Low Voltage

GENERAL CHARACTERISTICS
Lamp type    Miniature - S Shape
Bulb    S8
Base     Single Contact Bayonet (BA15s)
Primary Application     Aircraft; Low Voltage
Filament    2C-6
Rated Life (MIN)    29 hrs
Rated Life (Vert)    500 hrs
Rated Life    500 hrs
Rated Life (Hor)    29 hrs
Atmosphere    Gas-filled

PHOTOMETRIC CHARACTERISTICS
Initial Lumens (Vert)    402
Initial Lumens    402
Initial Lumens (Hor)    14
Nominal Initial Lumens per Watt    14
Center Beam Candlepower (CBCP)    402
Mean Spherical Candlepower (MSCP)    32

ELECTRICAL CHARACTERISTICS
Wattage    29
Voltage (MIN)    500.0
Voltage    28

DIMENSIONS
Maximum Overall Length (MOL)     2.0000 in (50.8 mm)
Bulb Diameter (DIA)     1.0000 in (25.4 mm)
Light Center Length (LCL)     1.2500 in (31.7 mm)

PRODUCT INFORMATION
Product Code    27557
Description    1683
ANSI Code    1683
Standard Package    Case
Standard Package GTIN    20043168275570
Standard Package Quantity    50
Sales Unit    Unit
No Of Items Per Sales Unit    1
No Of Items Per Standard Package    50
UPC    043168275576
