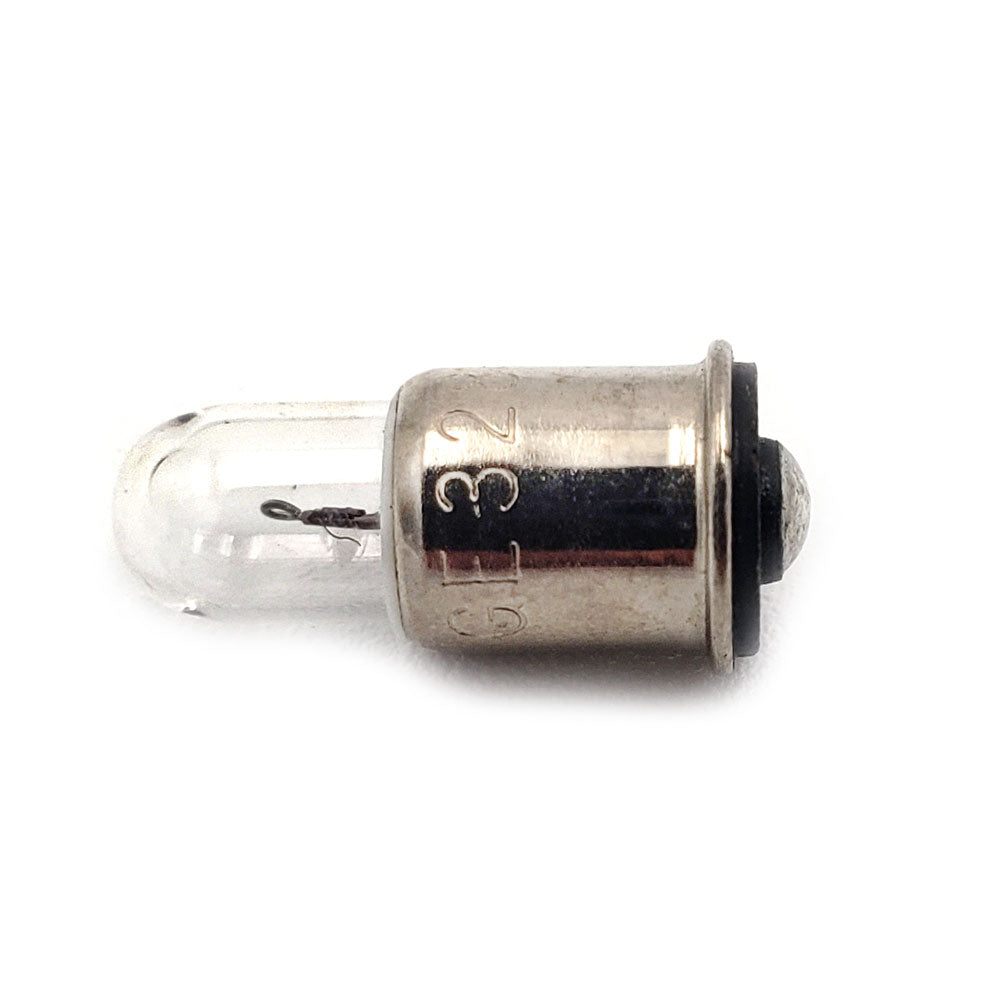

GE Incandescent Lamp: 6v,1w | 328 |28546

GE Incandescent Lamp: 6v,1w | 328

GE T1.75 (T1 3/4) - Aircraft; Low Voltage

GENERAL CHARACTERISTICS
Lamp type    Miniature - T & TL Shape
Bulb    T1.75 (T1 3/4)
Base     Single Contact Midget Flanged
Primary Application     Aircraft; Low Voltage
Filament    C-2R
Rated Life (MIN)    1 hrs
Rated Life (Vert)    1000 hrs
Rated Life    1000 hrs
Rated Life (Hor)    1 hrs
Atmosphere    Vacuum

PHOTOMETRIC CHARACTERISTICS
Initial Lumens (Vert)    4
Initial Lumens    4
Initial Lumens (Hor)    4
Nominal Initial Lumens per Watt    4
Center Beam Candlepower (CBCP)    4
Mean Spherical Candlepower (MSCP)    0

ELECTRICAL CHARACTERISTICS
Wattage    1
Voltage (MIN)    1000.0
Voltage    6

DIMENSIONS
Maximum Overall Length (MOL)     0.6300 in (16.0 mm)
Bulb Diameter (DIA)     0.2190 in (5.5 mm)
Light Center Length (LCL)     0.3800 in (9.6 mm)

PRODUCT INFORMATION
Product Code    28546
Description    328
ANSI Code    328
Standard Package    Case
Standard Package GTIN    20043168285463
Standard Package Quantity    50
Sales Unit    Unit
No Of Items Per Sales Unit    1
No Of Items Per Standard Package    50
UPC    043168285469
