GENERAL CHARACTERISTICS

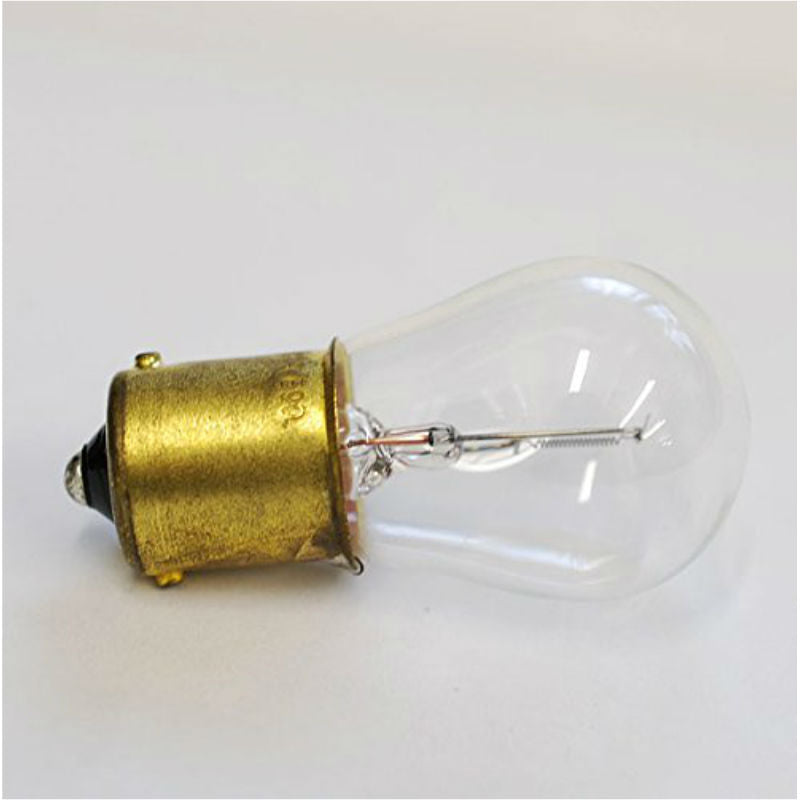

Lamp type Miniature - S Shape
Bulb S8
Base Single Contact Bayonet (BA15s)
Primary Application Aircraft; Low Voltage
Filament CC-8
Rated Life 2000 hrs
Atmosphere Gas-filled
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 226
Nominal Initial Lumens per Watt 13
Mean Spherical Candlepower (MSCP) 18
ELECTRICAL CHARACTERISTICS
Wattage 18
Voltage 28
DIMENSIONS
Maximum Overall Length (MOL) 2.0000 in (50.8 mm)
Bulb Diameter (DIA) 1.0000 in (25.4 mm)
Light Center Length (LCL) 1.1900 in (30.2 mm)
PRODUCT INFORMATION
Product Code 34763
Description 2232
ANSI Code 2232
Standard Package Case
Standard Package GTIN 20043168347635
Standard Package Quantity 50
Sales Unit Unit
No Of Items Per Sales Unit 1
No Of Items Per Standard Package 50
UPC 043168347631
