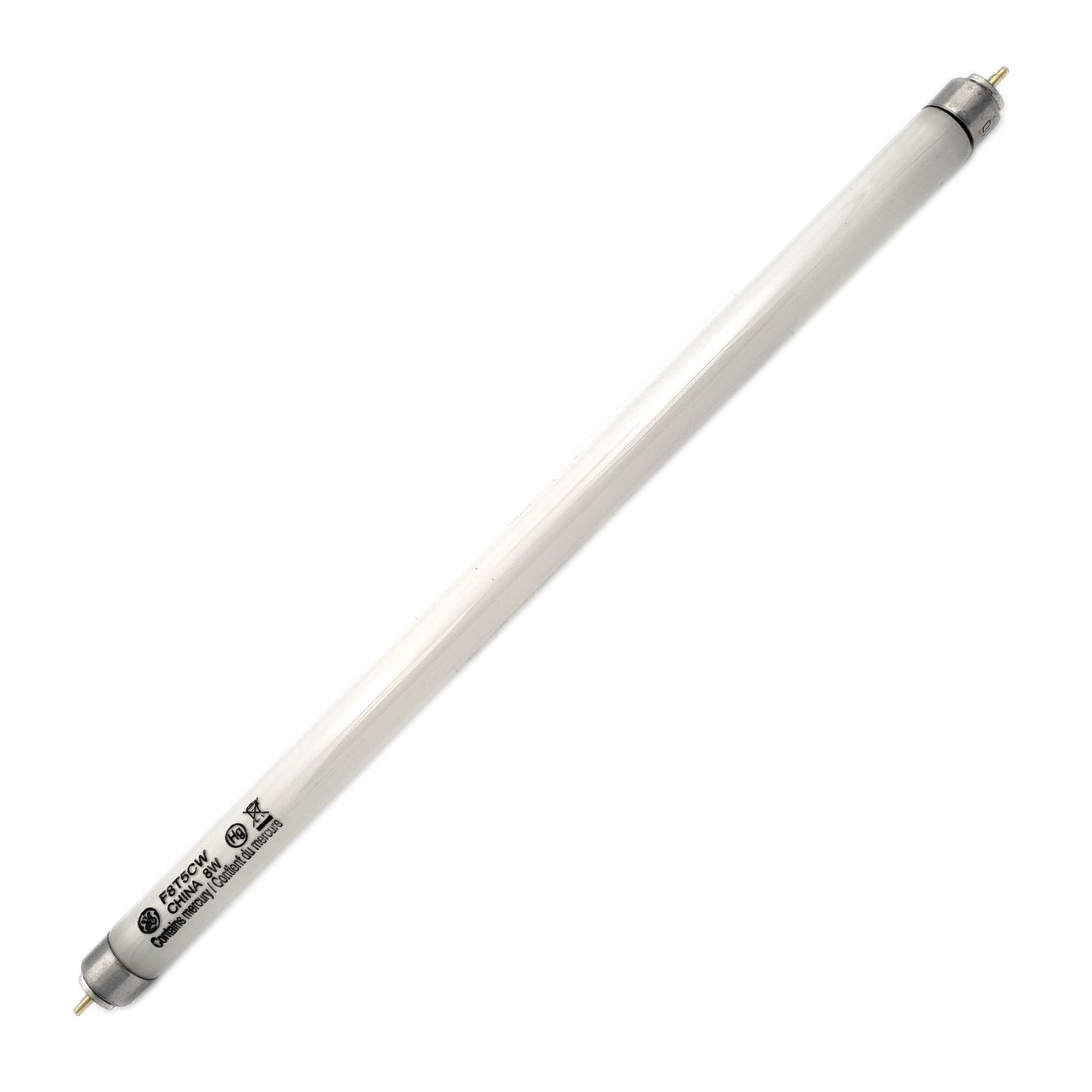

GE Fluorescent Lamp 8w | F8T5CW | 10059

GE Fluorescent Lamp 8w | F8T5CW | 10059

GE Cool White Starcoat® T5

GENERAL CHARACTERISTICS
Lamp type    Linear Fluorescent - Straight Linear
Bulb    T5
Base     Miniature Bi-Pin (G5)
Rated Life    5000 hrs
Bulb Material    Soda lime
Starting Temperature (MIN)    10 °C(50 °F)
LEED-EB MR Credit    3750 picograms Hg per mean lumen hour

PHOTOMETRIC CHARACTERISTICS
Initial Lumens    400
Mean Lumens    320
Nominal Initial Lumens per Watt    50
Color Temperature    4100 K
Color Rendering Index (CRI)    60

ELECTRICAL CHARACTERISTICS
Wattage    8
Voltage    57
Open Circuit Voltage (rapid start) (MAX)    190.0 V
Open Circuit Voltage (after preheating) Max @ Temperature    210.0 @ 10.0 V
Open Circuit Voltage (rapid start) Min @ Temperature    140.0 @ 10.0 V
Cathode Resistance Ratio - Rh/Rc (MIN)    4.25
Cathode Resistance Ratio - Rh/Rc (MAX)    6.5
Open Circuit Voltage (after preheating) Min @ Temperature    108.0 @ 10.0 V
Current Crest Factor (MAX)    1.7

DIMENSIONS
Maximum Overall Length (MOL)     11.9100 in (302.5 mm)
Nominal Length     12.0000 in (304.8 mm)
Bulb Diameter (DIA) (MIN)     0.5300 in (13.4 mm)
Bulb Diameter (DIA) (MAX)     0.6300 in (16.0 mm)
Bulb Diameter (DIA)     0.6250 in (15.8 mm)
Max Base Face to Base Face (A)     11.3500 in (288.2 mm)
Face to End of Opposing Pin (B) (MIN)     11.5300 in (292.8 mm)
Face to End of Opposing Pin (B) (MAX)     11.6300 in (295.4 mm)

PRODUCT INFORMATION
Product Code    10059
Description    F8T5/CW
ANSI Code    2003-1
Standard Package    Case
Standard Package GTIN    10043168100592
Standard Package Quantity    24
Sales Unit    Unit
No Of Items Per Sales Unit    1
No Of Items Per Standard Package    24
UPC    043168100595
