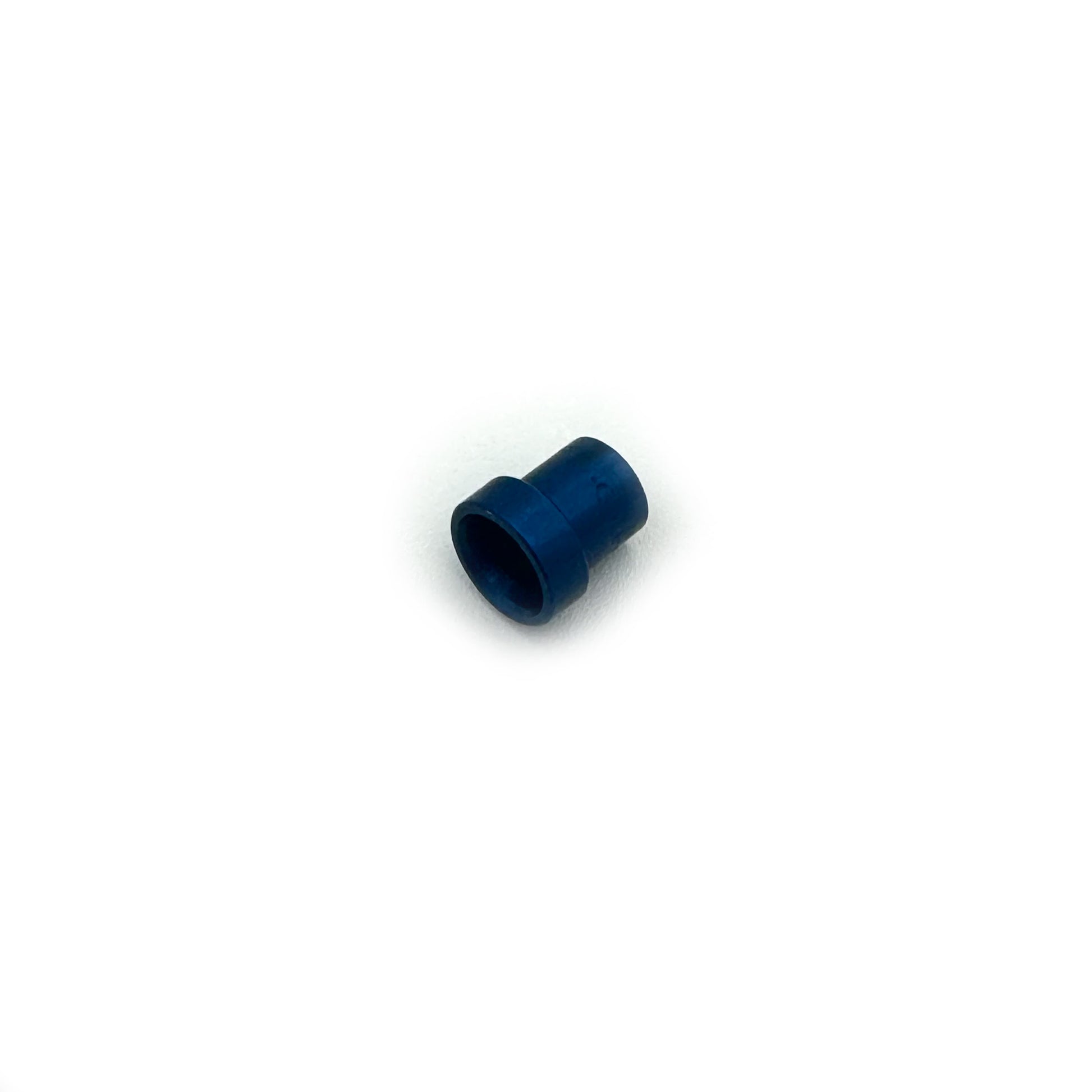

Military Standard - Flared Tube Sleeve | MS20819-4D

Military Standard - Flared Tube Sleeve | MS20819-4D

• Flange Outside Diameter: Between 0.380 inches and 0.383 inches

• Flange Width: Between 0.125 inches and 0.157 inches

• Hose/tube Outside Diameter For Which Designed: 0.250 inches

• Material: Aluminum alloy

• Overall Length: Between 0.390 inches and 0.422 inches

• Seat Angle In Deg: 33.0

• Sleeve Outside Diameter: Between 0.294 inches and 0.297 inches

• Style Designator: Sleeve

• Surface Treatment: Anodize
• NSN: 4730-00-302-8641
