The XF-35 is the world's lightest weight twin-cell vest in the aviation market today, only 1.13 lbs. (513 grams). The XF-35 offers significant fuel savings to operators wishing to stay with the added security of a twin-cell vest. 5 year frequency of inspection standard. 10 year frequency of inspection available.
MODEL XF-35 SPECIFICATIONS
Inflated Buoyancy
35 lbs. (150 Newtons) minimum
Inflated Volume
970 cu. in. (16 liters) minimum
Approvals
USA FAA TSO-C13f
German LBA Approval No. 40.321/33
United Kingdom CAA Approval No. AR01445
Category of Preserver
Adult/Child Combination
Weight of wearer
35 lbs. (15.91kg) and above
Inflatable Buoyancy Cells
Material
Construction
Inflation System
2 Independent Cells
Urethane Coated Nylon, Flame Retardant
RF Heat Sealed Seams
Manual CO2 Inflator and an Oral Inflation Tube in each Buoyancy Cell.
Color
Passenger Yellow or Crew Molten Orange
Environmental
Temperature
Functional Range: -40 to 140 oF (-40 to 60 oC)
Storage Range: 0 to 120 oF (-17.8 to 48.9 oC)
Humidity
Functional Range: Up to 95% Relative Humidity
Storage Range: Up to 70% Relative Humidity
Altitude
-2000 to 45,000 feet above sea level
CO2 Gas Charge
2 x 0.035 lbs. (2 x 16 grams)
Survivor Locator Light
Water-activated. TSO-C85 Approved.

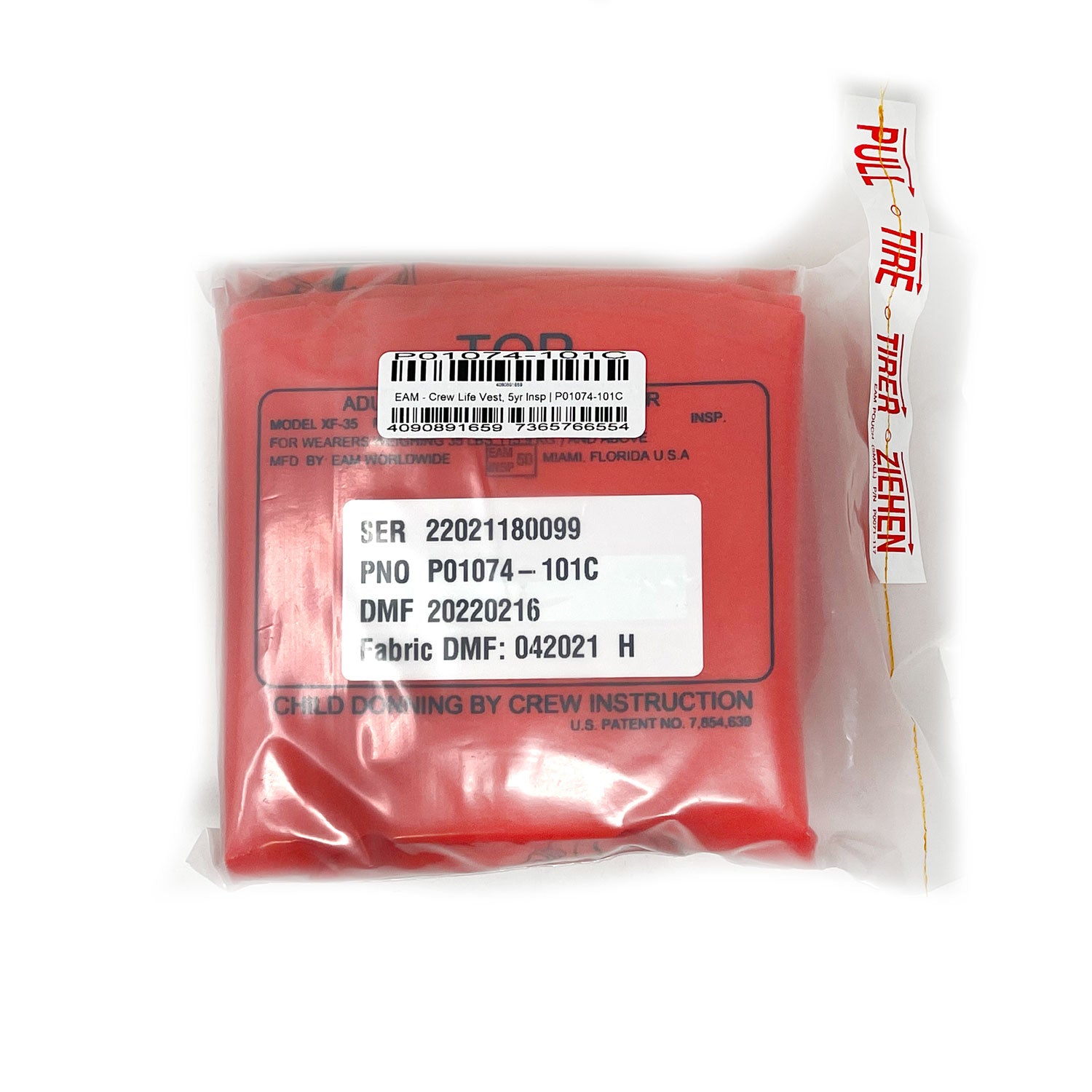

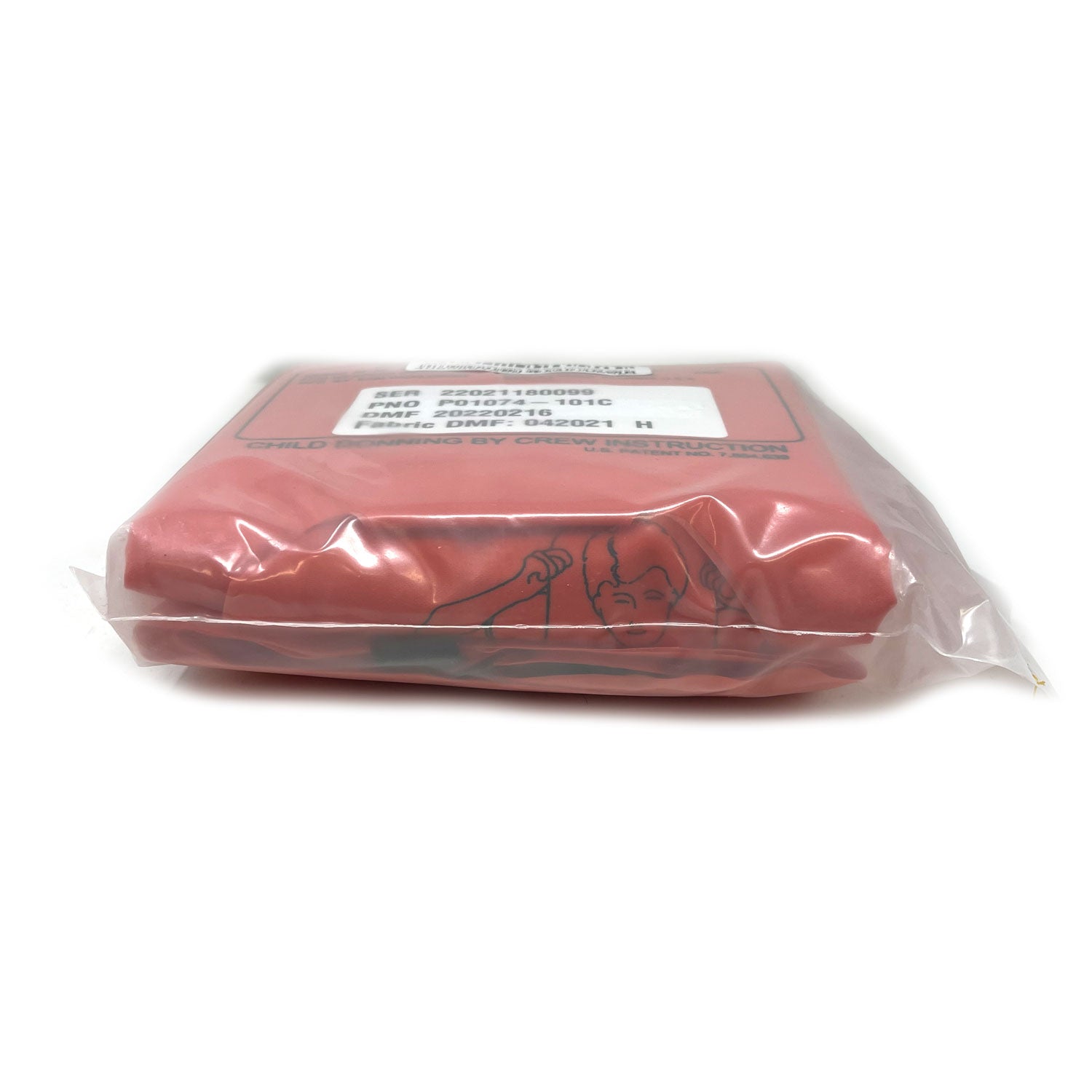

Packaging Options
· Flame Retardant 4 mil Polybag with Tear Open Strip.
· Flame Retardant 12 mil Heavy Duty Vinyl Bag with Tear Open Strip.
· Fabric Pouch with Velcro Closures for PSU Installation.
· Ten Year Extended Shelf Life Packaging.
· Customized Airline Packaging.
Other Options
· Whistle
· Retroreflective Tape
· Signal Kit (contains flare, dye marker and signal mirror)
Service Life
Indefinite if unit continues to pass periodic maintenance inspection.
Frequency of Inspection
Every 60 months for P01074-1XX Assys. in Standard Polybag, Vinyl Bag, or PSU Pouch packs.
Ten (10) year frequency available in special Extended Shelf Life packaging.
