One-part, translucent silicone adhesive and coating designed for protecting electronic components, circuit boards, and sensitive assemblies with excellent vibration dampening and flame resistance.
Key Features and Benefits
Flowable and Self-Leveling: Fills and encapsulates thin sections and complex geometries.
High Vibration Dampening: Provides low-stress protection for sensitive electronics.
Room-Temperature Cure: No mixing or ovens required, optional heat acceleration for faster processing.
Flame Resistant: UL 94 V-1 certified with added fire safety properties.
Inspection Ready: UV indicator allows for easy manual or automated inspection.
Regulatory Approvals: IPC-CC-830B, MIL Spec, and UL recognized for high-reliability applications.
Detailed Product Description

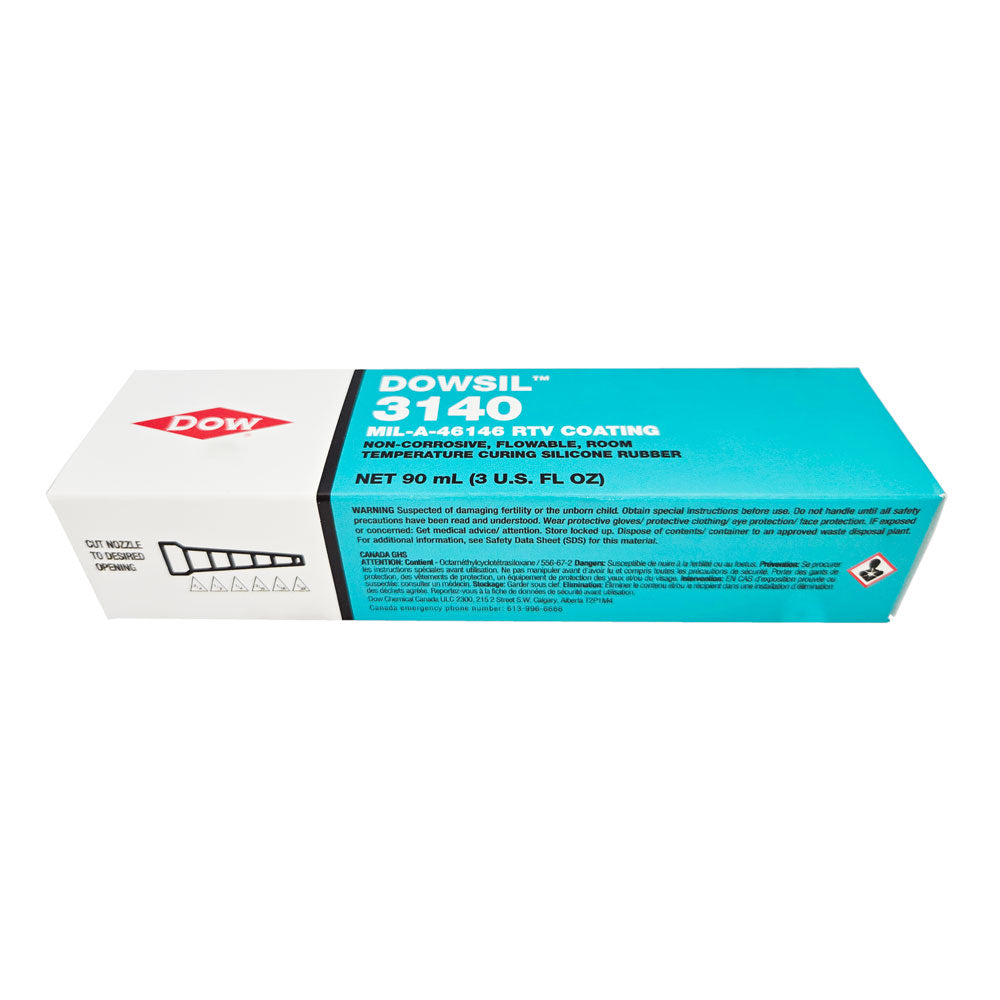

DOWSIL™ 3140 RTV Coating is a one-part, translucent silicone coating and adhesive designed to protect sensitive electronic components and circuit boards. This coating is flowable, self-leveling, and ideal for applications requiring vibration dampening and low stress.
With excellent flame resistance, high elongation, and UL certifications, DOWSIL™ 3140 RTV Coating is an optimal choice for thin-section encapsulation, pin sealing, and coverage of solder joints. It cures at room temperature, forming a durable, flexible seal that withstands mechanical shock and thermal cycling. The UV indicator enhances inspection efficiency during production and maintenance.

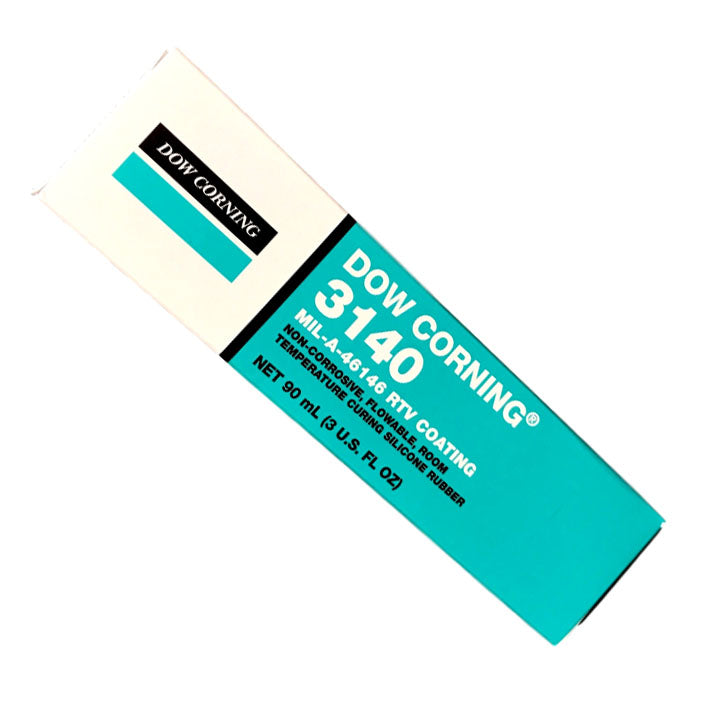

This product was formerly branded as Dow Corning. Learn more about the rebranding in our blog post.
Applications
Protection of rigid and flexible circuit boards.
Corrosion-sensitive component protection.
Encapsulation of thin sections.
Pin sealing for electrical connections.
Vibration and mechanical shock dampening.
Technical Specifications
Product Type: RTV Silicone Coating
Cure Type: Moisture Cure / Room Temperature Cure
Color: Translucent
Viscosity: >20000 mPa.s
Tack-Free Time: 116 minutes
Durometer: 32 Shore A
Non-Volatile Content: 96%
Temperature Resistance: Stable from -65°C (-85°F) to +180°C (+356°F)
Available Sizes and Part Numbers
Size
Packaging
Part Number

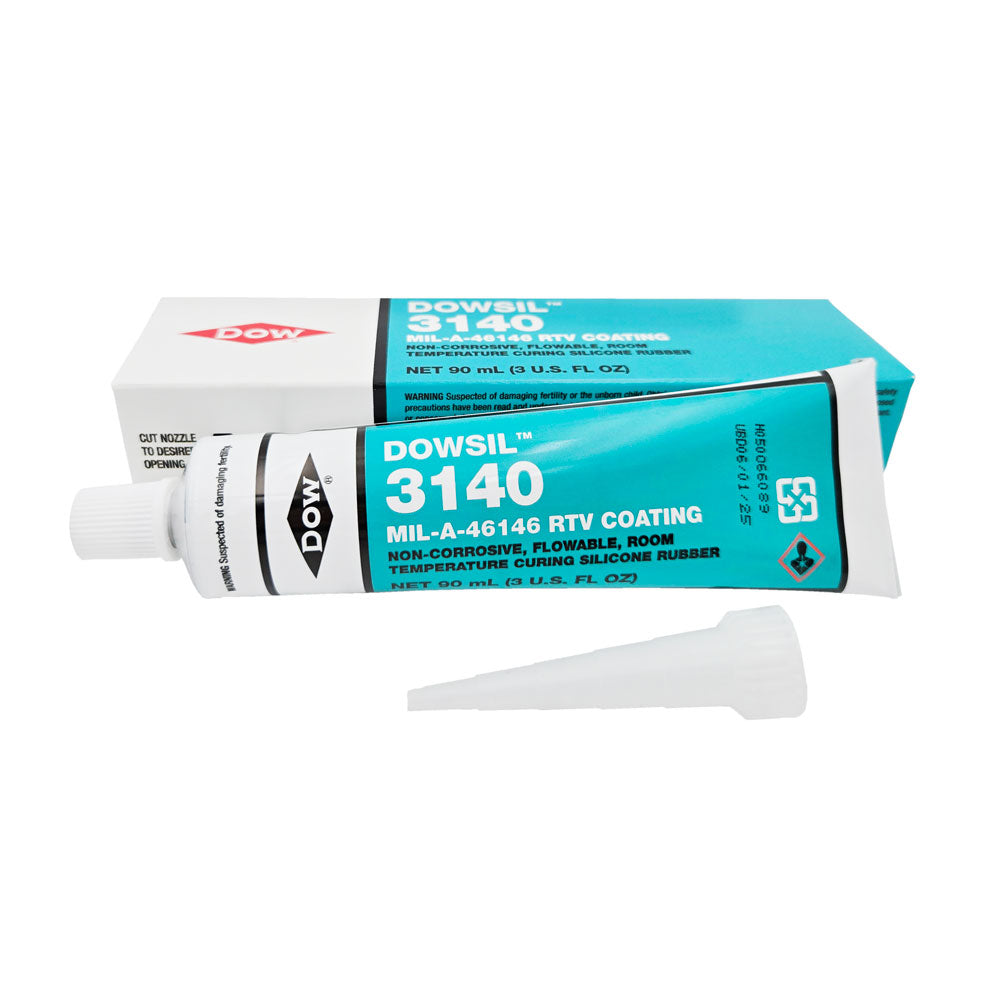

90mL / 3oz
Tube
1665341
493g / 1lb
Can
2298139
17.6kg / 40lb
Pail
1665367
Why Choose DOWSIL™ 3140 RTV Coating?
Meets stringent industry standards, including IPC-CC-830B, UL, and MIL Spec.
Provides exceptional protection for electronic and industrial assemblies.
Designed for vibration dampening and long-term durability.
