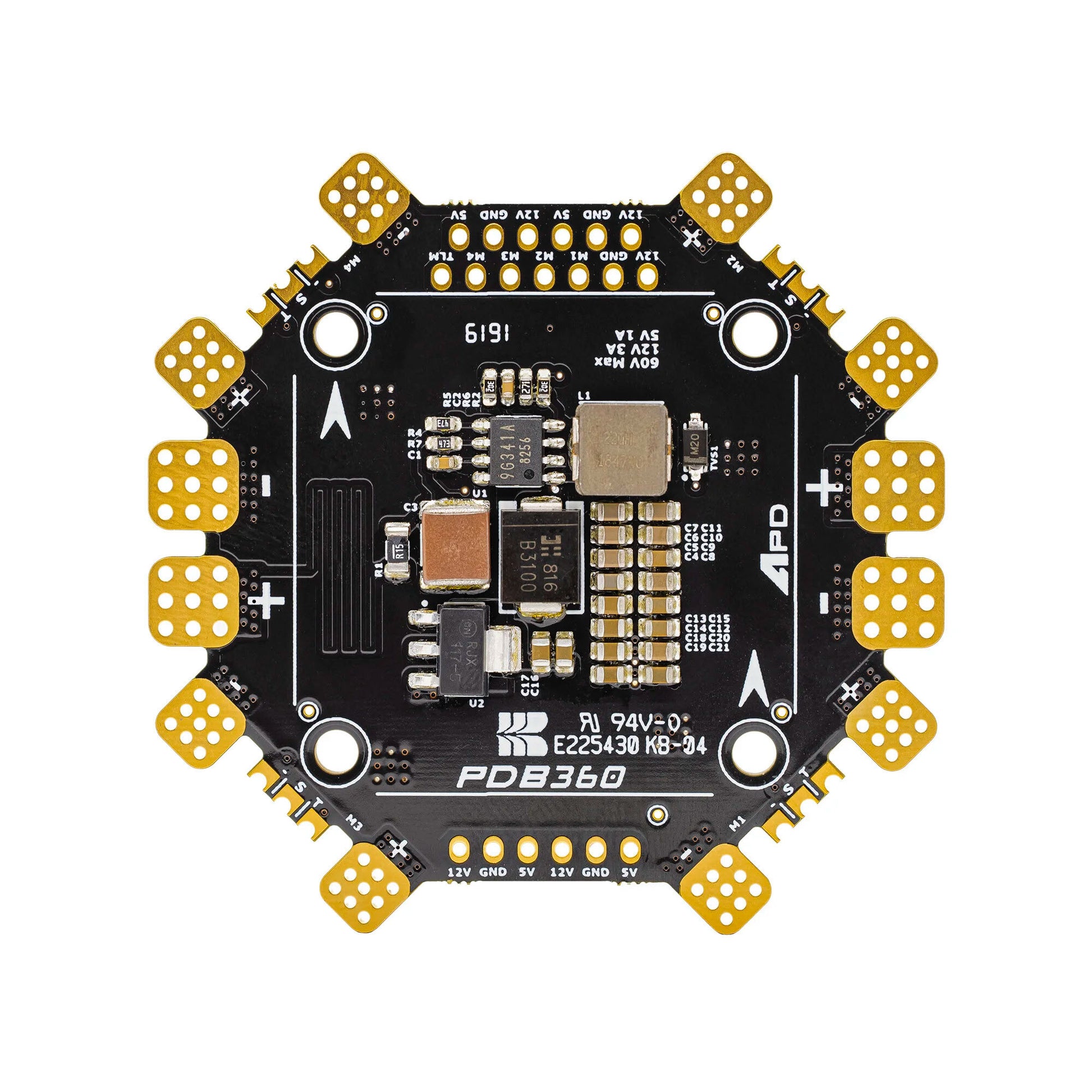

APD PDB360 – 8S 34V 360A High-Power UAV Power Distribution Board

APD PDB360 – 8S 34V 360A High-Power UAV Power Distribution Board

Designed for high-power UAV and drone builds, the APD PDB360 handles up to 360A with 8S LiPo input and built-in 5V/12V regulators—perfect for professional applications.

• Distributes up to 360A continuous current across four ESC legs
• Supports 4S–8S (up to 34V) LiPo input for high-voltage systems
• Integrated 12V @3A and 5V @1A BECs for clean power delivery
• EMI-reducing design with sandwiched signal traces and ground planes
• 8-layer 3oz copper PCB for low resistance and heat management
• Standard 30.5×30.5mm FC mounting pattern with thermal relief pads

The APD PDB360 is engineered to meet the demands of large multirotors, industrial UAVs, and high-performance FPV platforms. With 8 layers of heavy copper and a 360A continuous rating, it delivers clean, stable power to ESCs and onboard electronics. Built-in 12V and 5V regulators simplify wiring and power distribution to flight controllers, telemetry modules, and accessories. Its EMI-shielded architecture protects sensitive signals, while the ISOLA 185HR substrate ensures thermal stability up to 180°C. Compact, rugged, and reliable, the PDB360 is the perfect choice for serious drone builds requiring high current and minimal noise.

Technical Specifications

• Max Input Voltage: 8S LiPo (34V)
• Continuous Current: 360A total (~90A per ESC leg)
• Regulated Outputs: 12V @3A, 5V @1A
• PCB Layers: 8 layers, 3oz copper
• Flight Controller Mounting: 30.5×30.5mm
• Dimensions: 58 × 58 × 5 mm
• Weight: ~21g (without wiring)
• Material: ISOLA 185HR glass-reinforced substrate, rated 180°C
