Alcoa Camloc - Steel Stud Assembly, Turnlock Fastener | 2600-4

Alcoa Camloc - Steel Stud Assembly, Turnlock Fastener | 2600-4

Hardware - Misc

Low stock: 4 left

2600-4

$10.09 USD
$12.61 USD $10.09 USD
Sale Sold out
Shipping calculated at checkout.

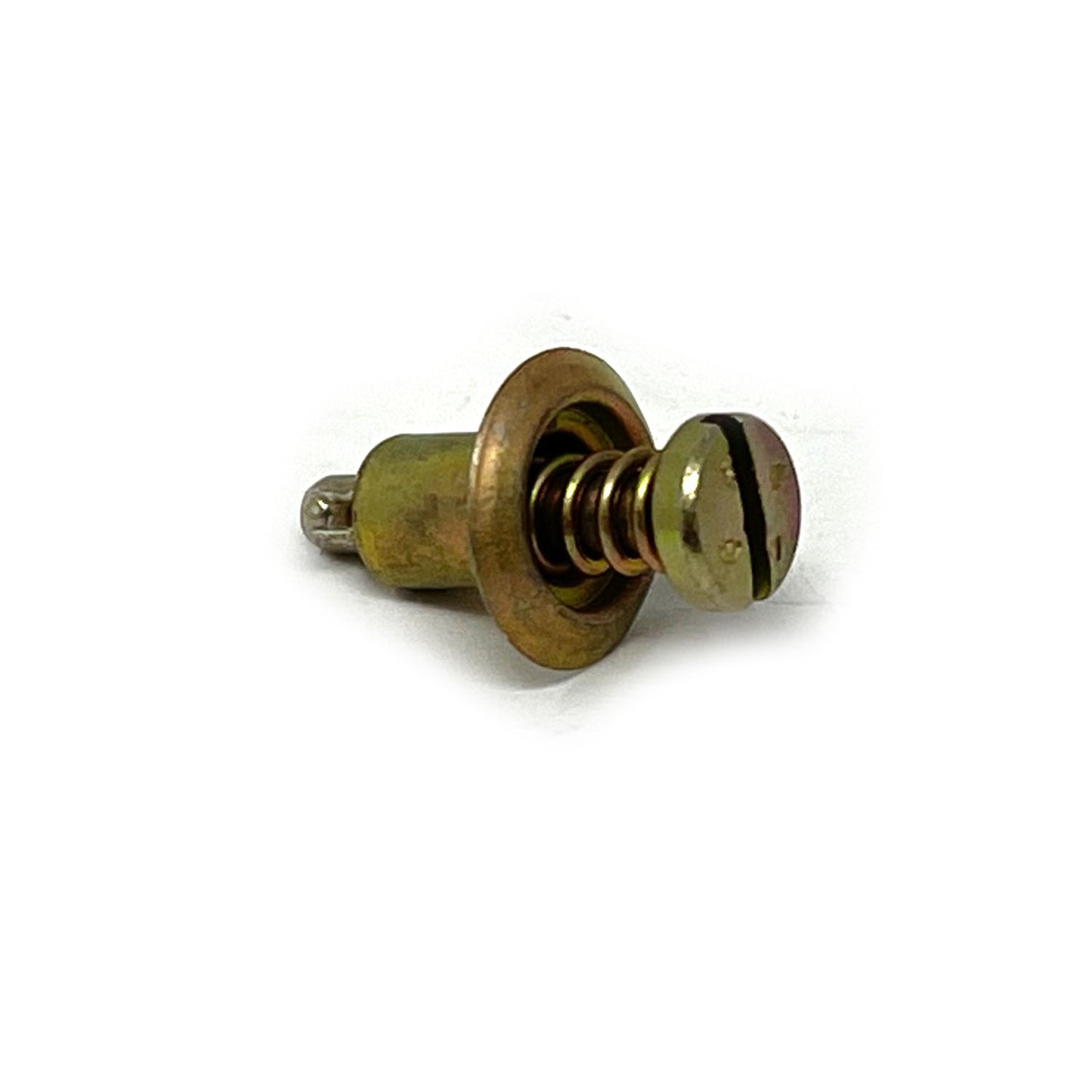

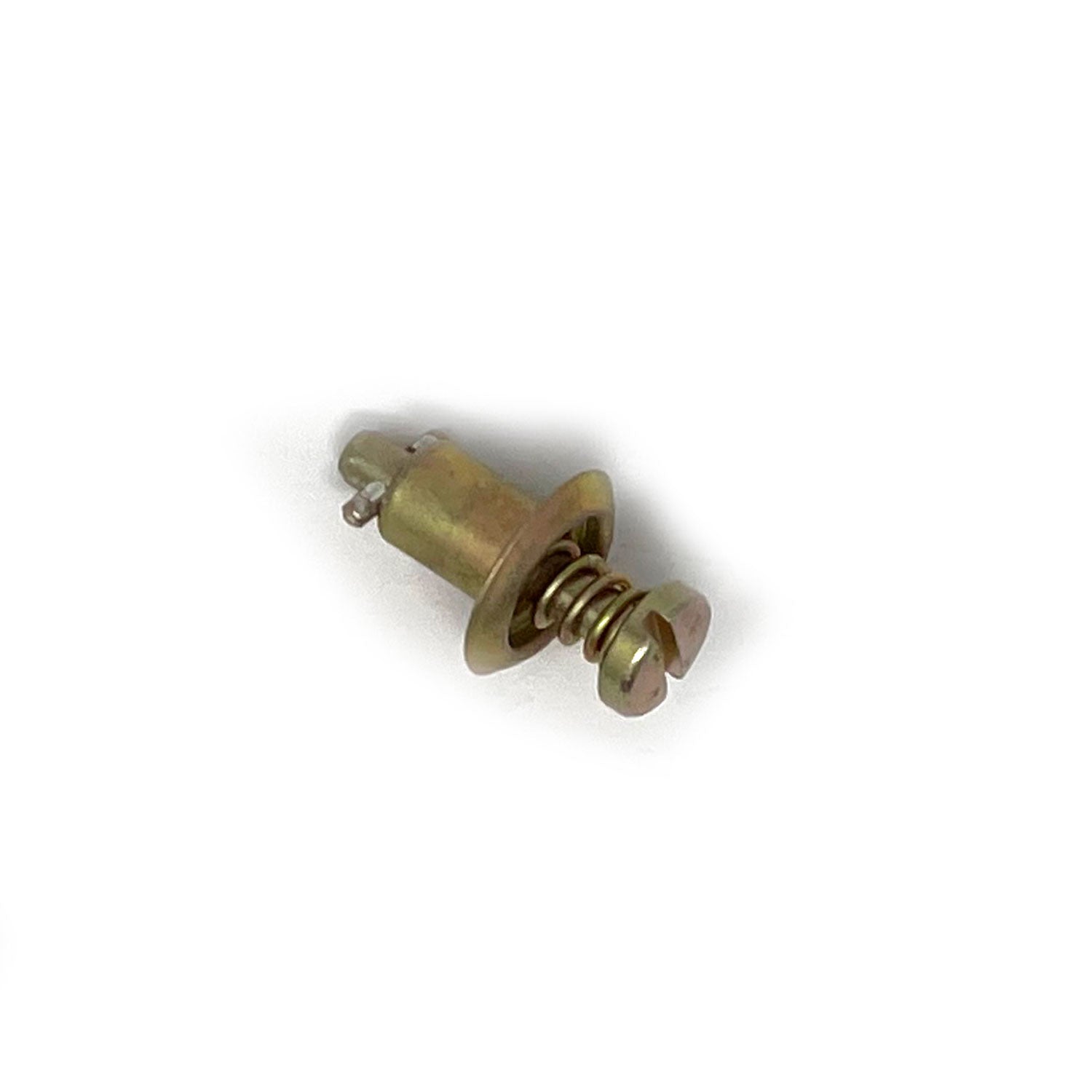

Alcoa Camloc - Steel Stud Assembly, Turnlock Fastener | 2600-4

  • Diameter: 0.298 Inches Minimum And 0.308 Inches Maximum
  • Securing Device Type: Ring
  • Turnlock Stud Head Style: Flat Fillister
  • Stud Assembly Style: Stud Assembly
  • Distance From Engaging Member To Largest Bearing Surface Of Head: 0.609 Inches Nominal
  • Eyelet Outside Diameter: 0.244 Inches Minimum And 0.250 Inches Maximum
  • Eyelet Length: 0.322 Inches Nominal
  • Material Accommodated Thickness: 0.120 Inches Minimum And 0.149 Inches Maximum
  • Drive Type: Slotted
  • Stud Head Height: 0.088 Inches Minimum And 0.098 Inches Maximum
  • Material: Steel Ejector Springsteel Comp 1009 Eyeletsteel Pinsteel Comp 4037 Stud
  • Material Document And Classification: Astm A547 Assn Std Single Material Response Ejector Springastm A109 Assn Std Single Material Response Eyeletastm A228 Assn Std Single Material Response Pinastm A547 Assn Std Single Material Response Stud
  • Surface Treatment: Cadmium Overall And Chromate Overall
  • Surface Treatment Document And Classification: QQ-P-416,Ty 2,Cl 2 Fed Spec Single Treatment Response Overall
