David Clark H10-36 Headset Parts Guide & Illustrated Catalog

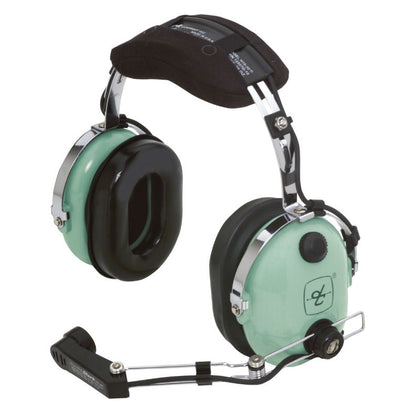

The David Clark H10-36 is a helicopter headset designed for durability and performance in demanding environments. Its defining feature is the M-7/DC microphone, which provides clear communication even in high-noise settings typical of helicopter operations. This microphone's noise-cancelling capabilities ensure that your voice is heard clearly, reducing the risk of miscommunication during critical flight operations.

With its U-174/U plug, the H10-36 is compatible with most helicopter audio systems, making it a versatile choice for pilots flying different aircraft. The headset's passive noise reduction further enhances its suitability for helicopter cockpits, where engine and rotor noise can be significant. This feature helps reduce fatigue and improve concentration during long flights.

This guide covers everything you need to know about the H10-36, from its specifications and noise attenuation to maintenance tips and part replacements. Whether you're looking to upgrade your headset or simply keep it in peak condition, this comprehensive breakdown will provide the insights and resources you need.

• Durable construction designed to withstand the rigors of helicopter operations.
• M-7/DC microphone offers excellent noise-cancelling capabilities for clear communication.
• Passive noise reduction is ideal for reducing rotor and engine noise in helicopter cockpits.
• U-174/U plug compatibility ensures it fits most helicopter audio systems without adapters.
• Shared components with other H10 models make finding replacement parts straightforward.
• Comfortable fit for extended wear, reducing pilot fatigue on long flights.
• Reliable performance in high-noise environments, enhancing safety and communication.
• Easy maintenance with readily available parts and accessories from Pilots HQ.

• Model Number: H10-36
• Part Number: 12508G-20
• Microphone: M-7/DC Electret Noise-Cancelling
• Design: Over-ear
• Certification: FAA TSO-C139

The H10-36 achieves its noise reduction through passive means, utilizing a circumaural design that envelops the ear to create an effective acoustic seal. This design is complemented by the headset's foam ear seals, which conform to the head, blocking out ambient noise. The rigid dome construction maintains the integrity of the acoustic chamber, ensuring consistent noise attenuation.

Over time, the effectiveness of noise attenuation can degrade due to wear on the ear seals. Compressed or cracked seals can compromise the acoustic seal, leading to increased noise levels. Replacing the ear seals with new ones, such as the Undercut Gel Earseal (pair) — 40863G-02, is a cost-effective way to restore the headset's noise reduction capabilities.

The David Clark H10-36 and H10-30 are both part of the H10 series, but they cater to different aviation needs. The H10-36 is specifically designed for helicopter use, featuring a U-174/U plug that is standard in most helicopter audio systems. In contrast, the H10-30 is geared towards general aviation with dual GA plugs, making it more suitable for fixed-wing aircraft.

Both models share many components, such as the headband spring and ear seals, allowing for easy part interchangeability. This compatibility simplifies maintenance and part replacement, as pilots can source parts from a common inventory. However, the H10-36's focus on helicopter environments means it includes features like the M-7/DC microphone, which is optimized for high-noise settings.

Parts Compatibility

• Headband Spring — Compatible
• Ear Seals — Compatible
• Microphone — H10-36 uses M-7/DC, H10-30 uses M-1/DC

For helicopter pilots, the H10-36 is the preferred choice due to its specialized features and plug compatibility. If you frequently switch between helicopter and fixed-wing aircraft, having both models might be beneficial.

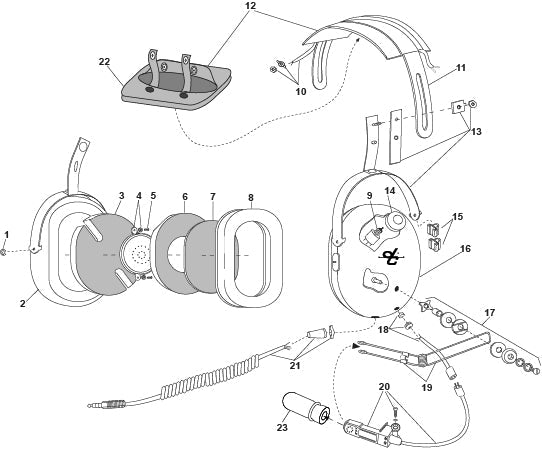

David Clark H10-36 Parts List

1. Retaining Ring (10/pk) — 00009M-03
2. Right Dome — 11696P-12
3. Dome Filter (1 each) — 26475P-02
4. Earphone Assembly — 10376G-20
5. Screw (10/pk) — 13180P-06
6. Dome Filter (1 each) — 25629P-03
7. Filter (1 each) — 14096P-09
8. Undercut Gel Earseal (pair) — 40863G-02
9. Volume Control — 09349P-34
10. Overhead Cord Assembly — 22607G-01
11. Headband Spring — 15093P-01
12. Headpad Assembly — 18900G-45
13. Stirrup & Clamp Kit — 22378G-08
14. Volume Control Knob — 15109P-01
15. Clip, Cord (4/pk) — 15125p-02
16. Left Dome (Non-Boom Stop) — 11696P-28
17. Boom Guide Kit (Detented) — 12840G-01
18. Microphone Cord Assy Kit — 10405G-05
19. Microphone Boom Assy — 12765G-04
20. M-7/DC Microphone — 18376G-02
21. Communication Cord Assy Kit — 18028G-26
22. Headpad Restraint, Foam — 40266G-01
23. Mic Protector w/ O-Ring — 40062G-02

Looking to make your David Clark H10-36 even more comfortable? These two upgrades are customer favorites:

• Regularly inspect the ear seals for wear and replace them with part number 40863G-02 to maintain noise reduction.
• Check the headband spring for tension and replace if necessary using part number 15093P-01.
• Clean the microphone windscreen regularly to ensure clear communication.
• Inspect the overhead cord assembly for any signs of wear or damage.
• Store the headset in a protective case to prevent damage when not in use.

Keeping your H10-36 well-maintained ensures it remains reliable and comfortable for every flight.

Small accessories make a big difference in headset longevity and comfort.
