EC Series - Caps For Threaded Connectors

EC Series caps are designed to fit threaded connectors. This series is designed for easy application and removal in areas not readily accessible.

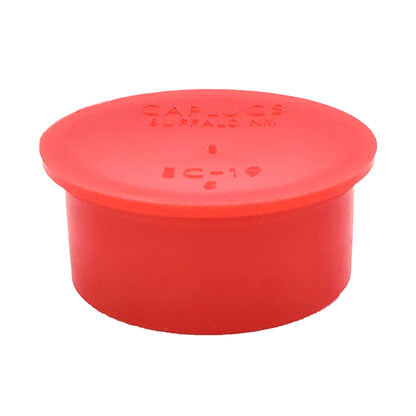

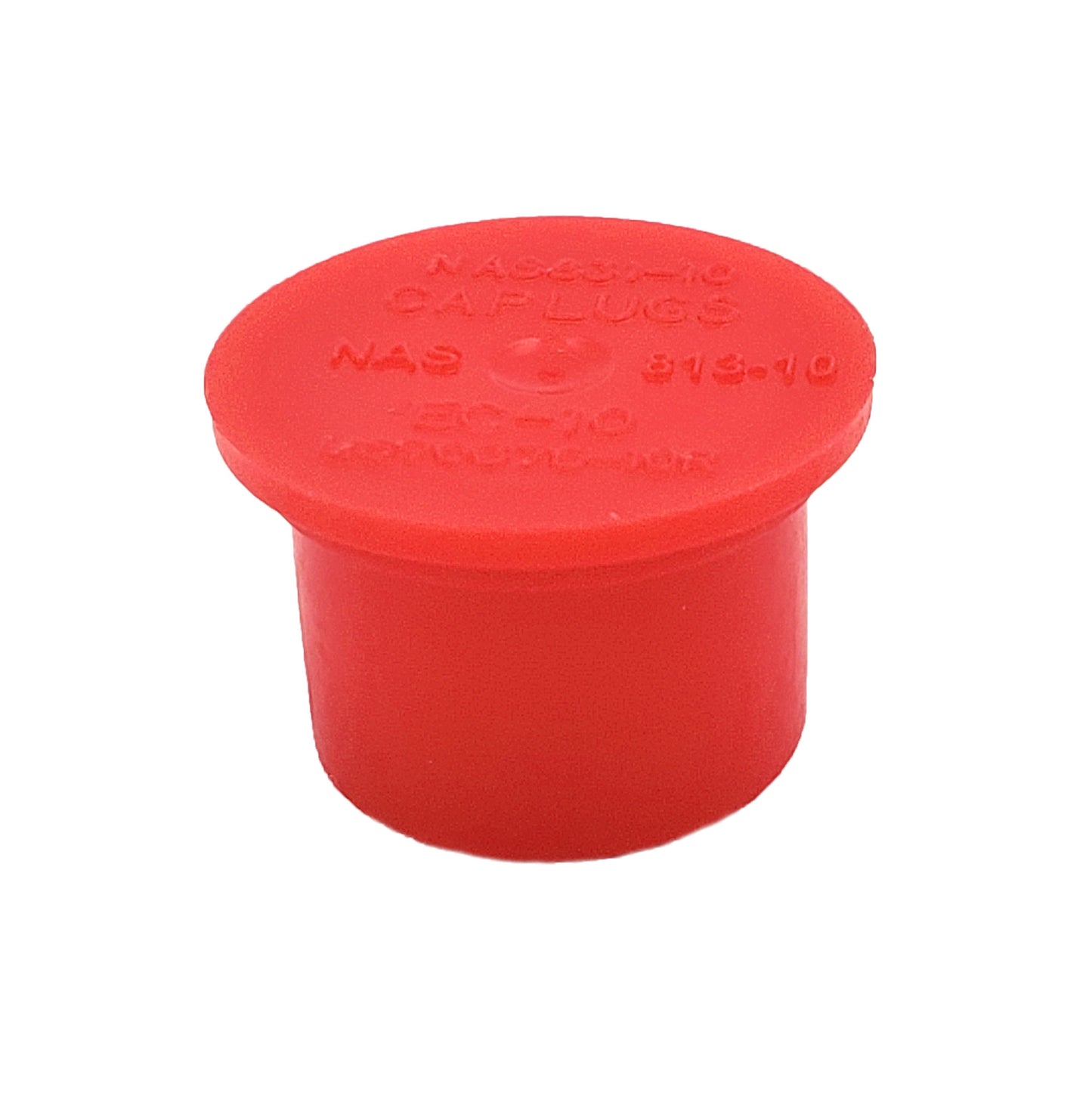

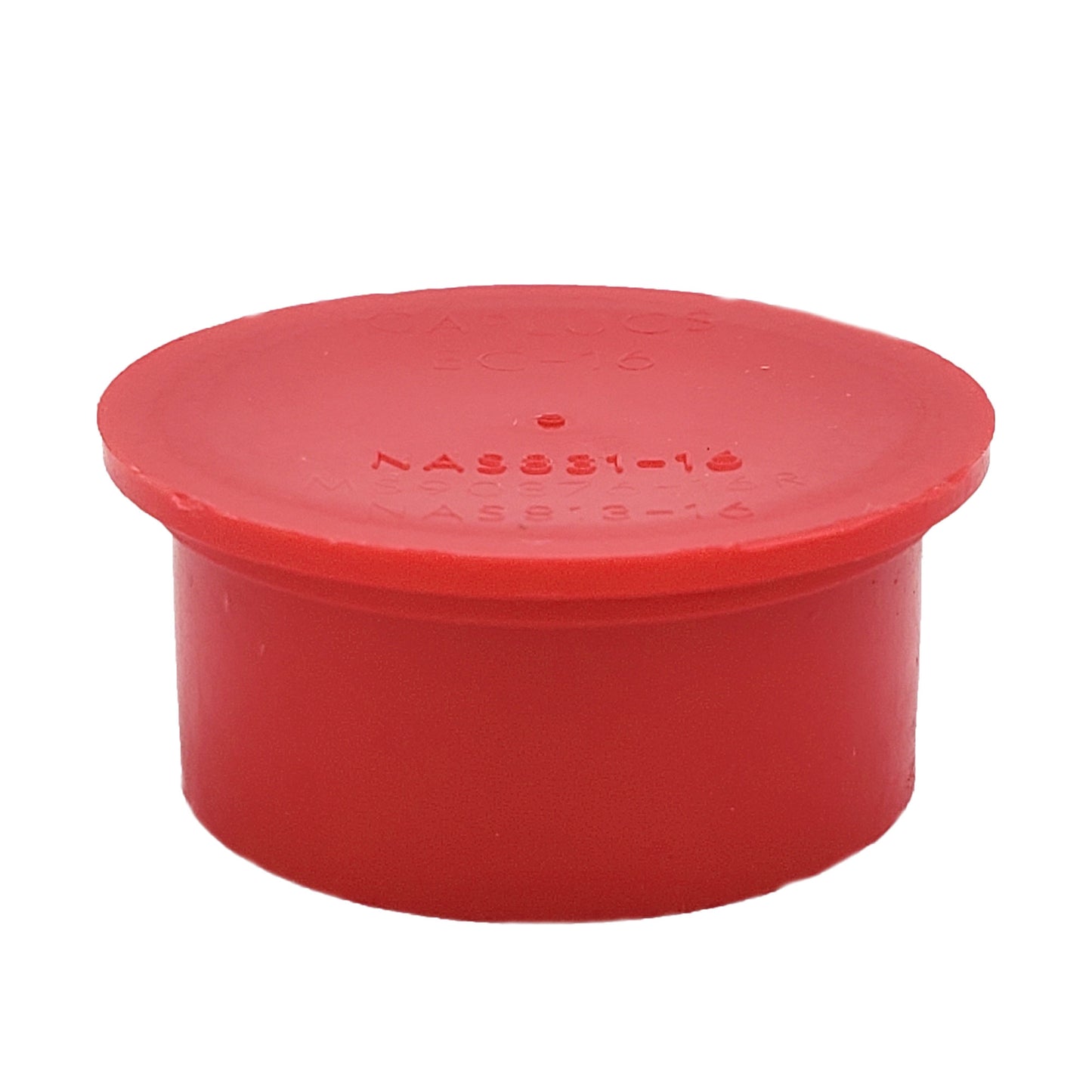

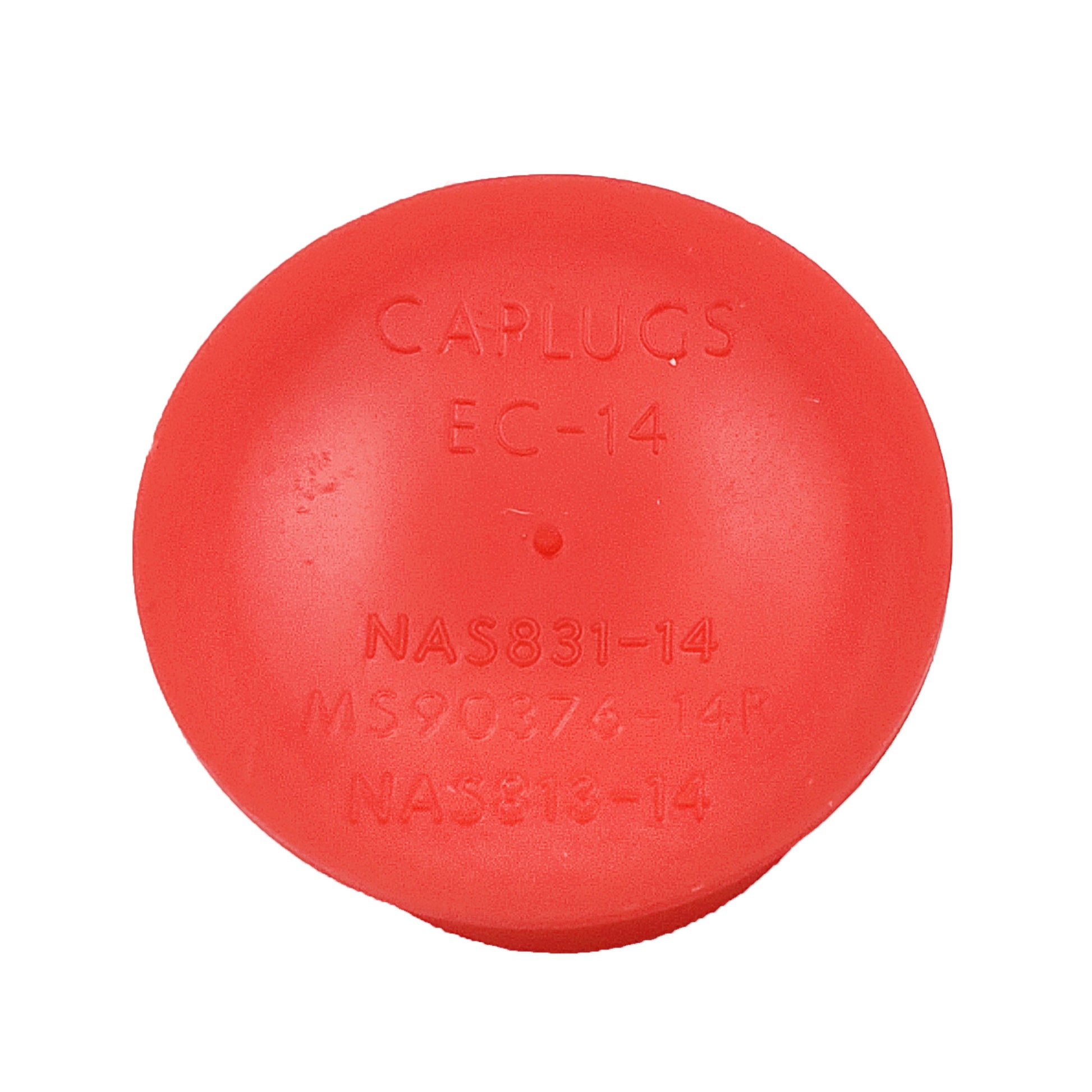

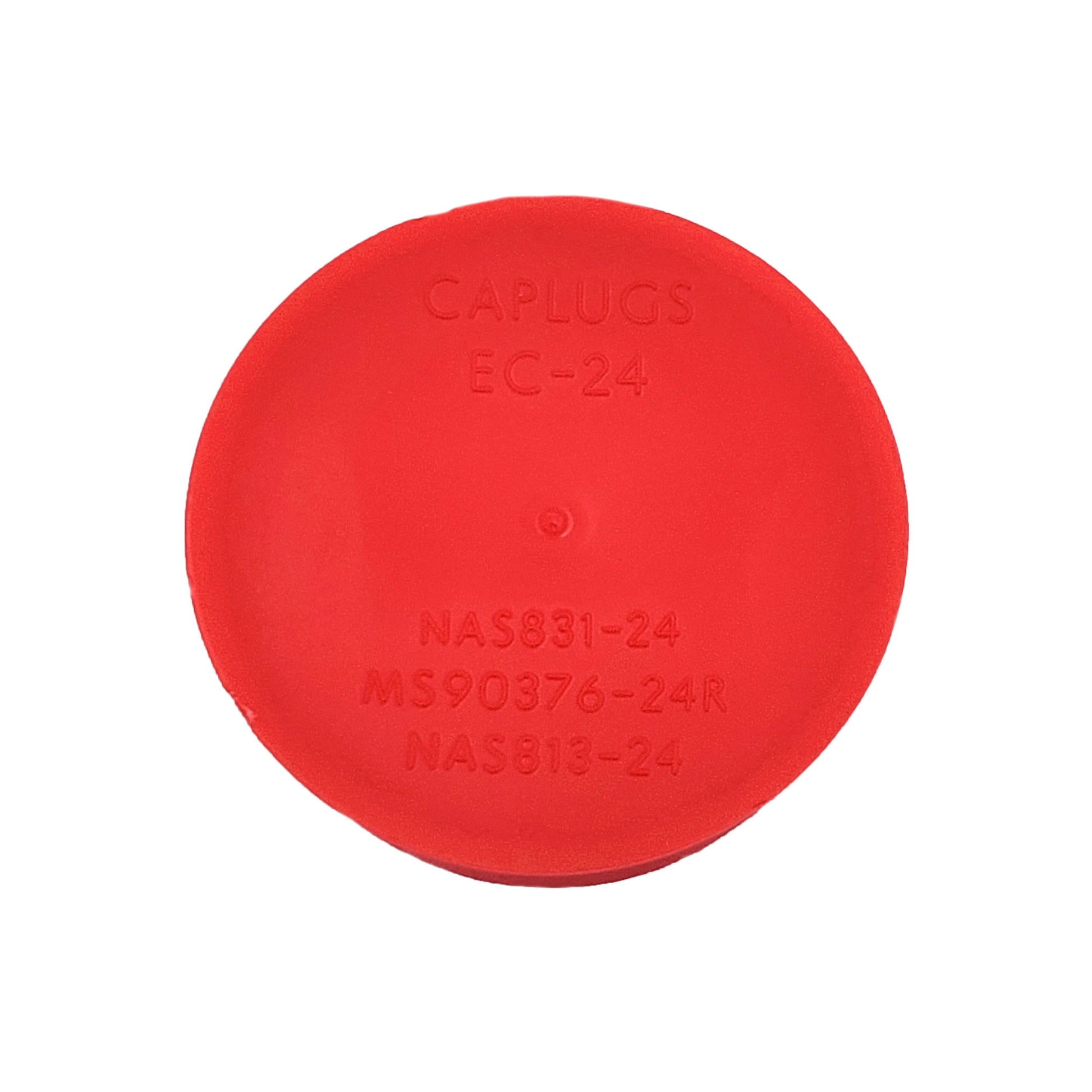

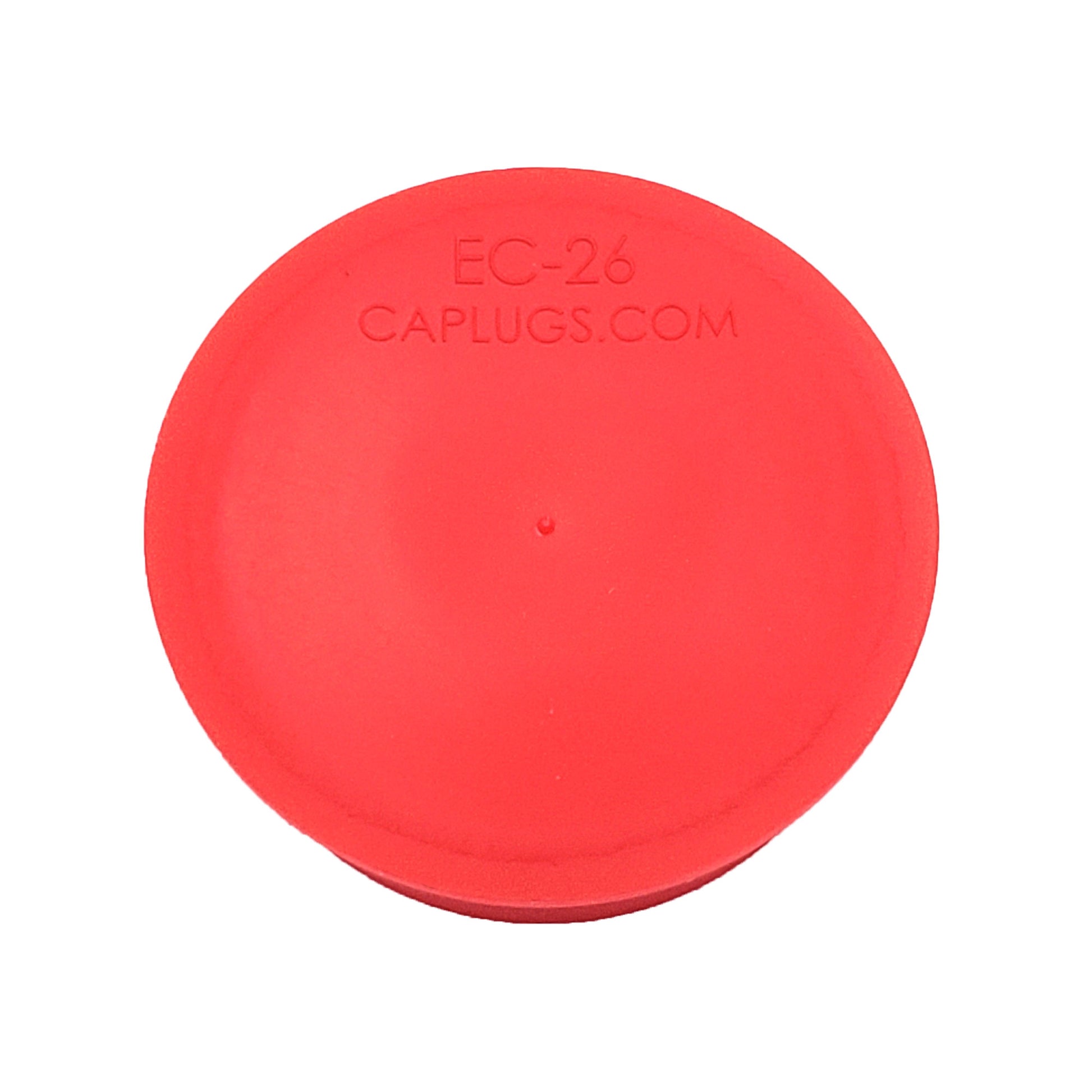

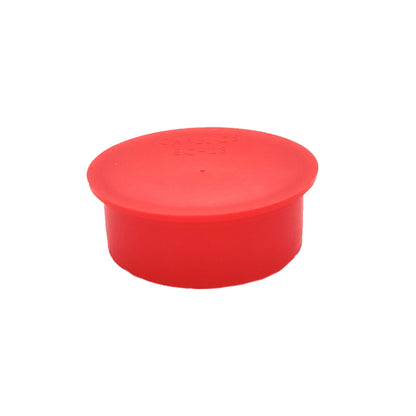

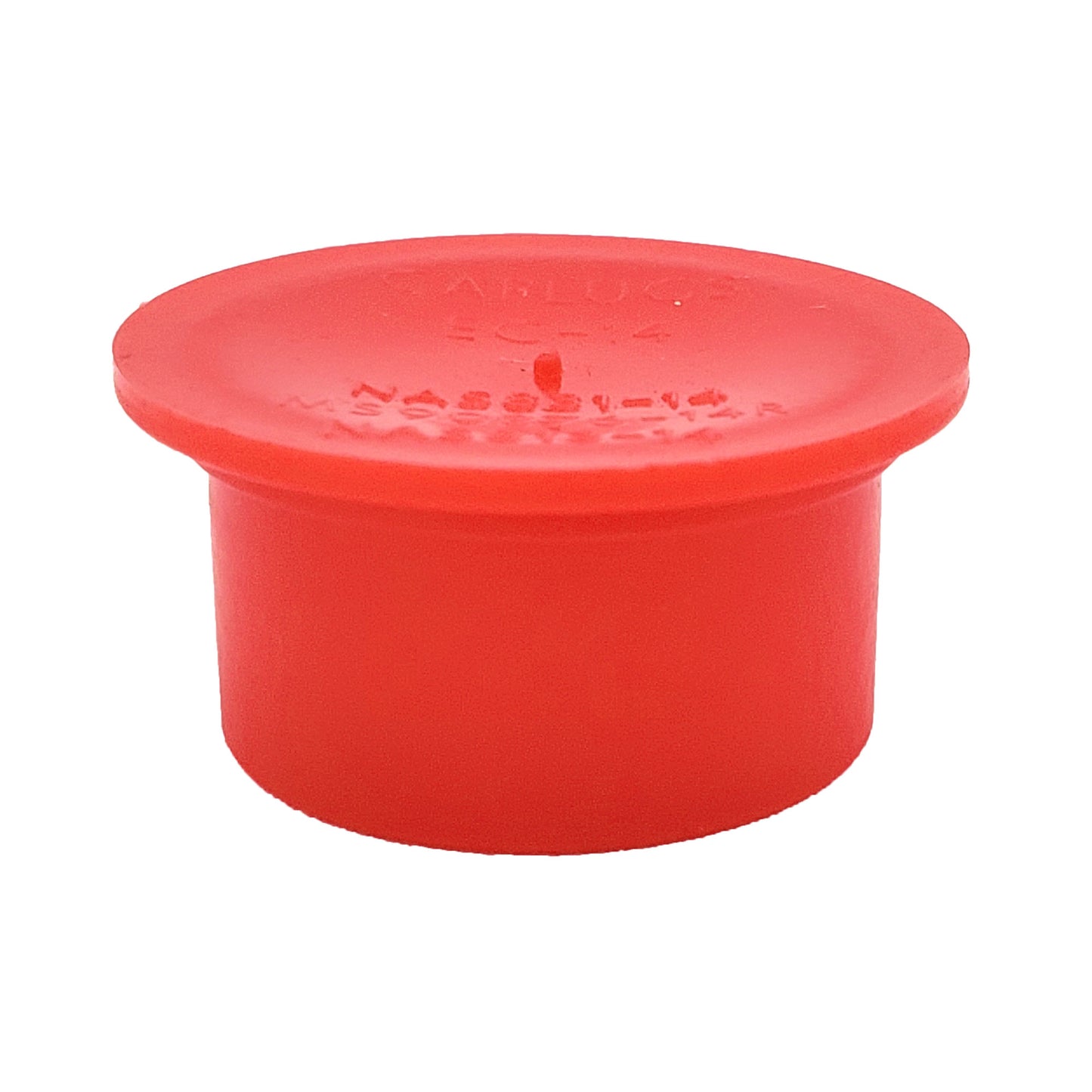

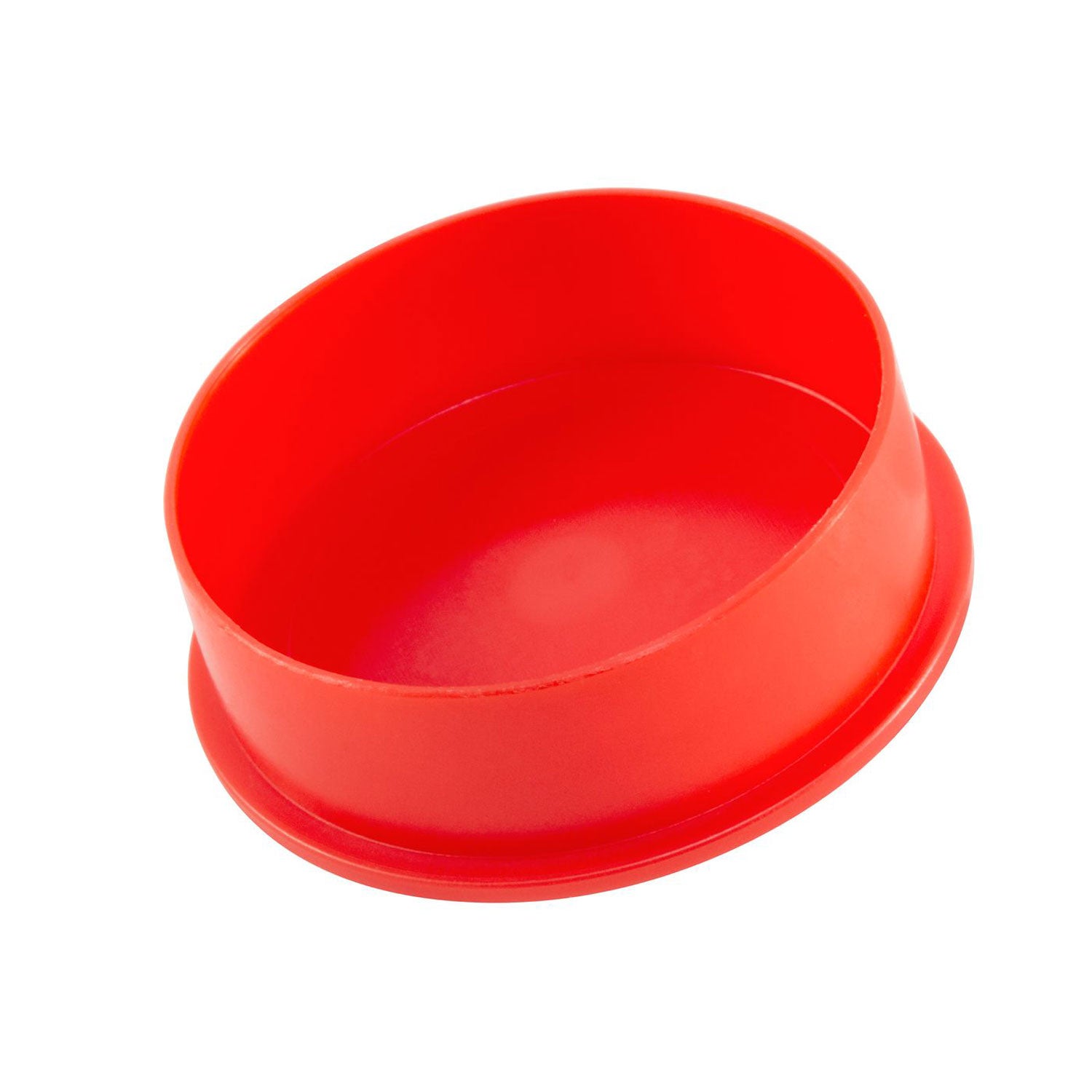

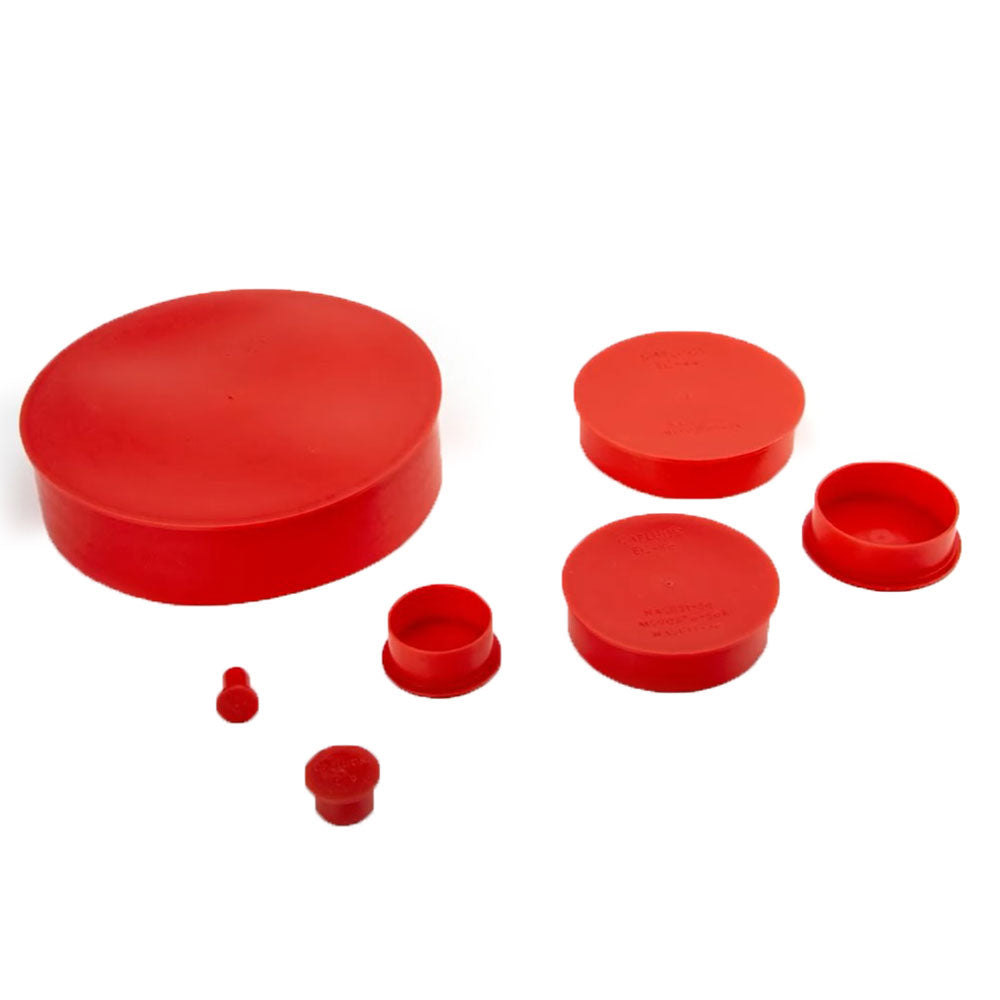

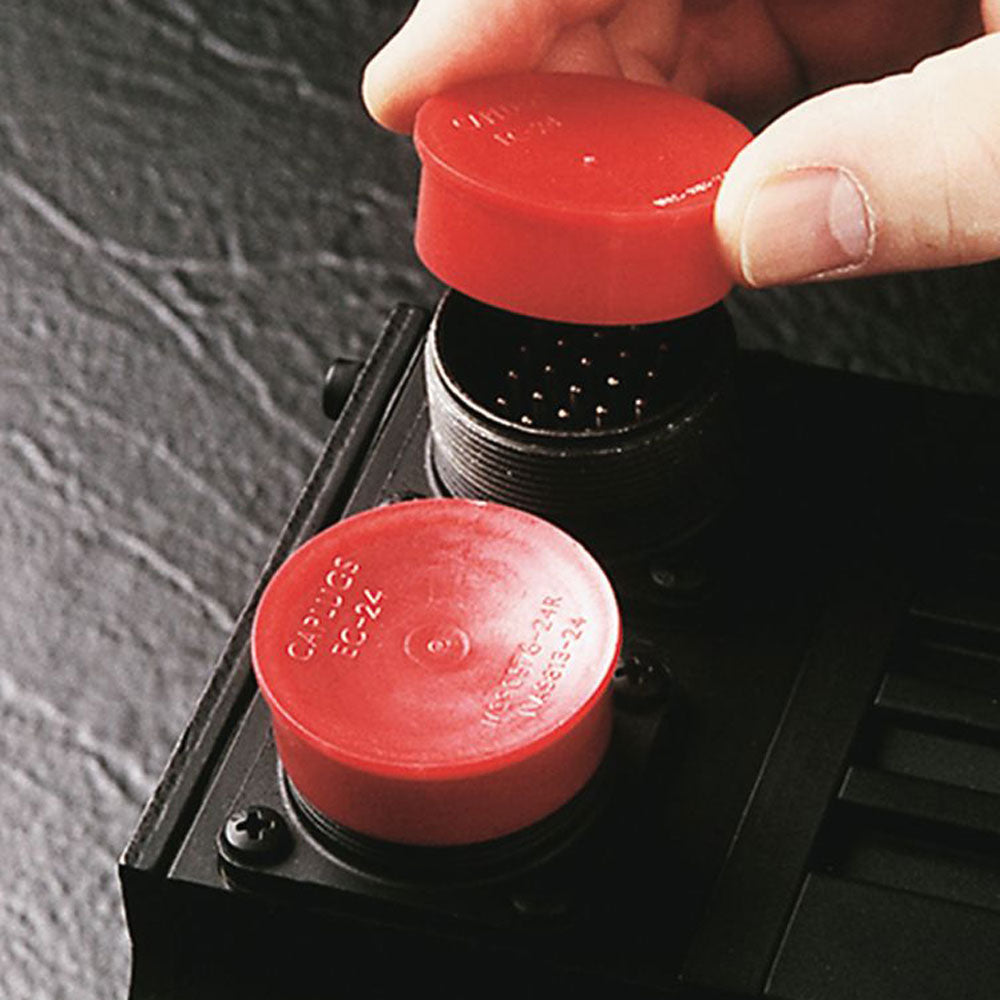

Can be installed over threads or cylindrical surfaces

• Material: Low-density polyethylene
• Service Temperature: -94 - 175° F (-70 - 79° C)
• Standard Color: Red
• Applicable Specs: NAS 83

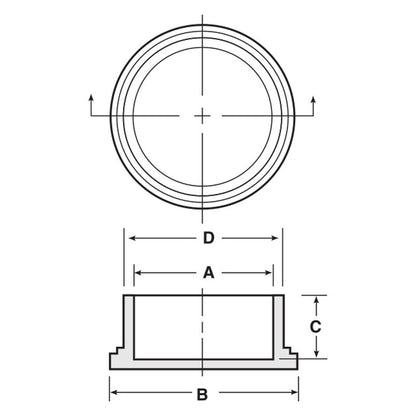

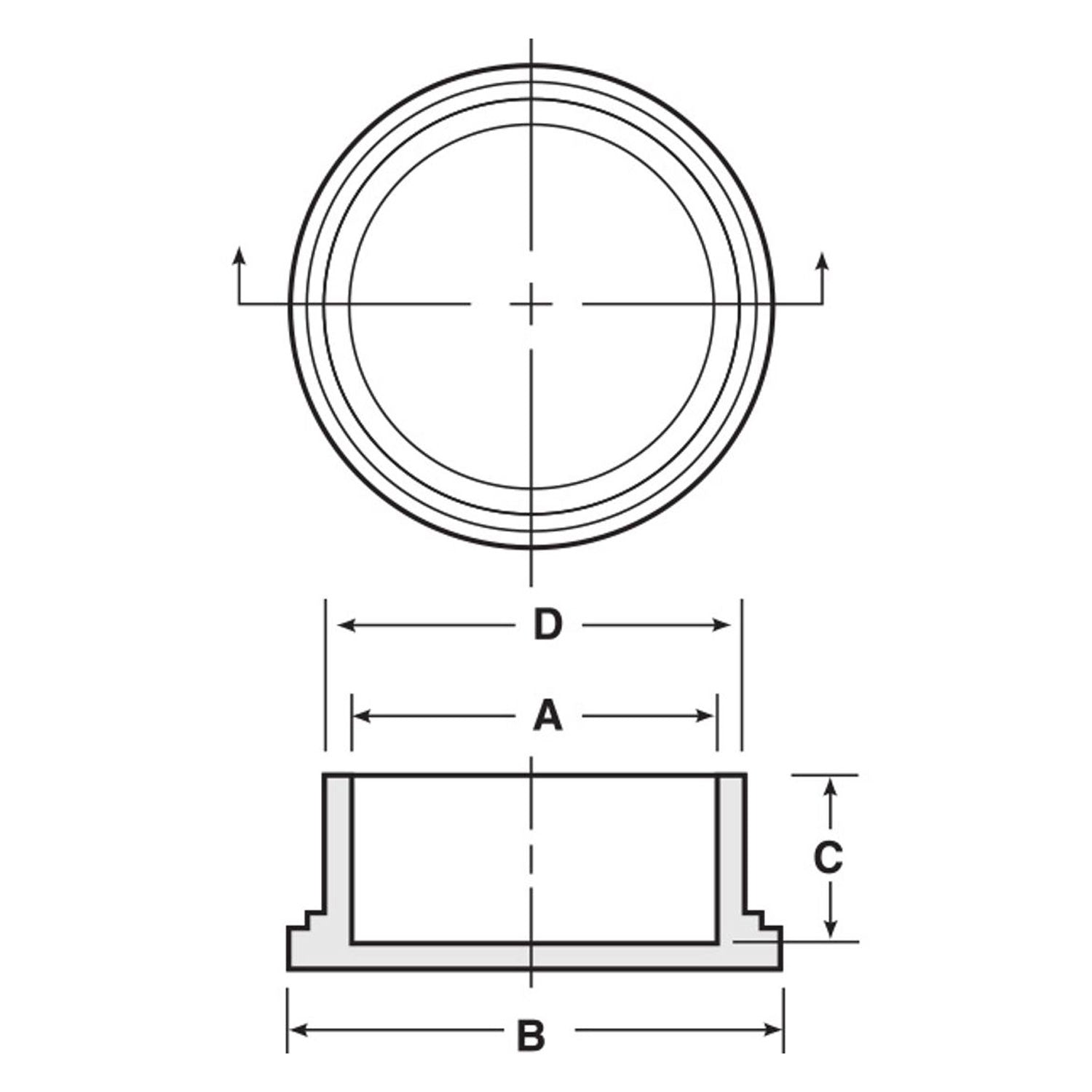

Item #	To Cap Nominal Thread Size	Dim A (In)	Dim B (In)	Dim C (In)	Dim D (In)
EC-4	1/4	0.246	0.48	0.50	0.31

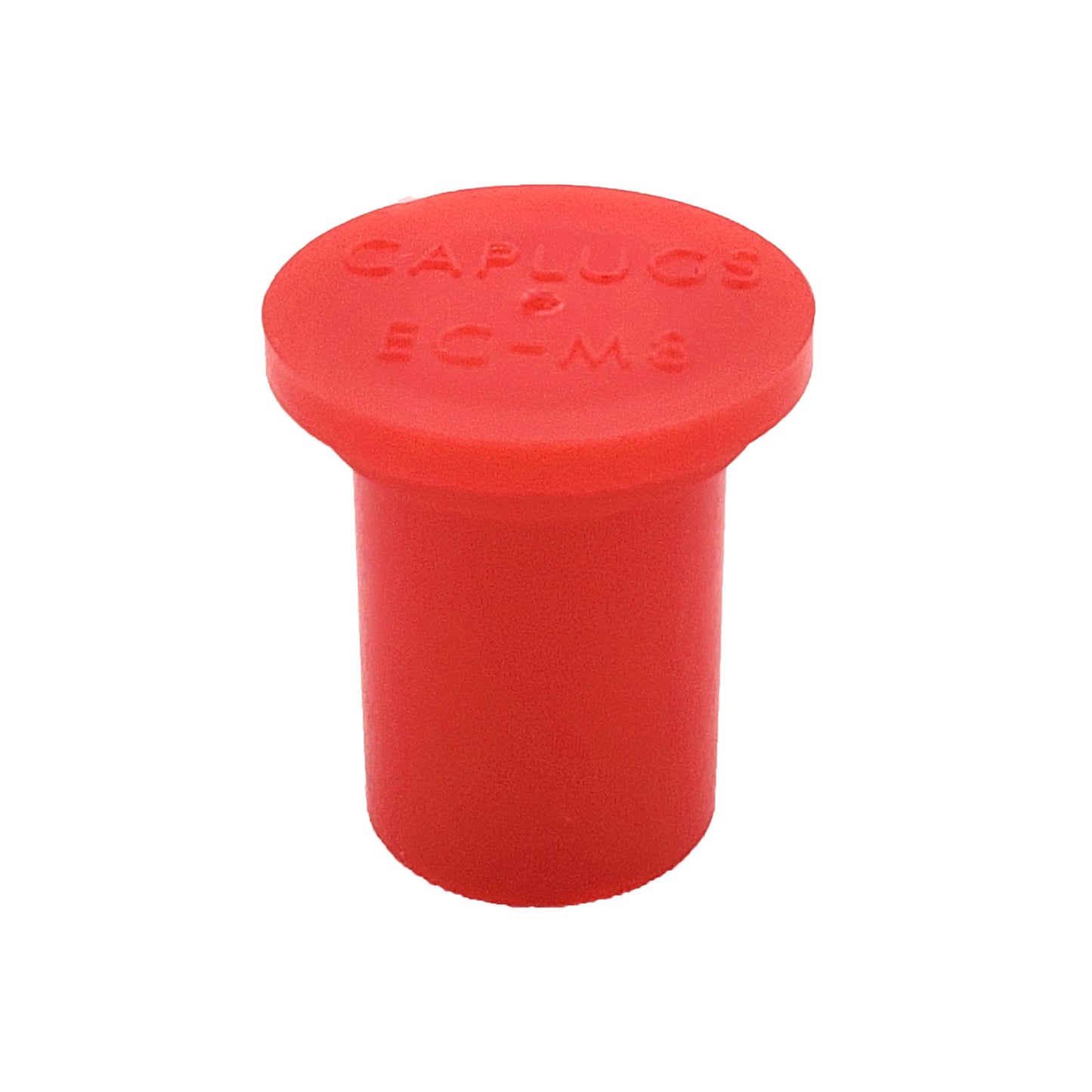

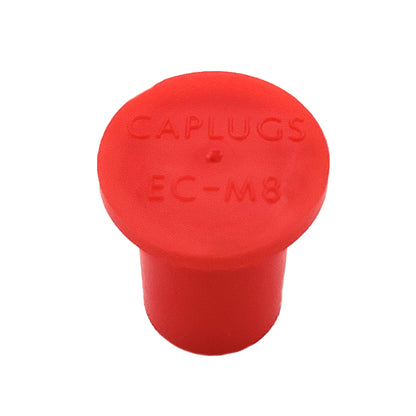

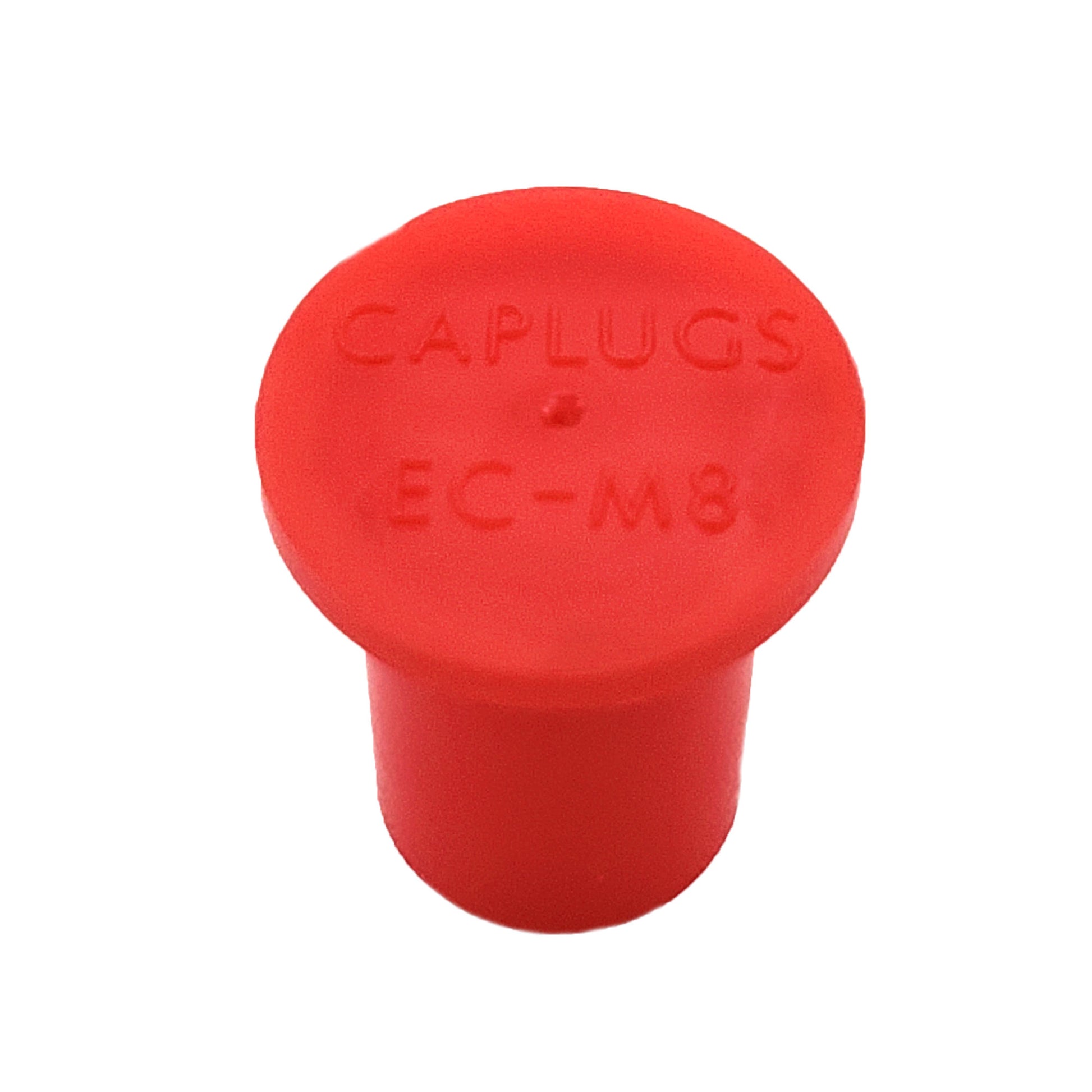

EC-M8	M8	0.309	0.55	0.56	0.37
EC-5	5/16	0.308	0.55	0.56	0.37
EC-6	3/8	0.369	0.62	0.50	0.43

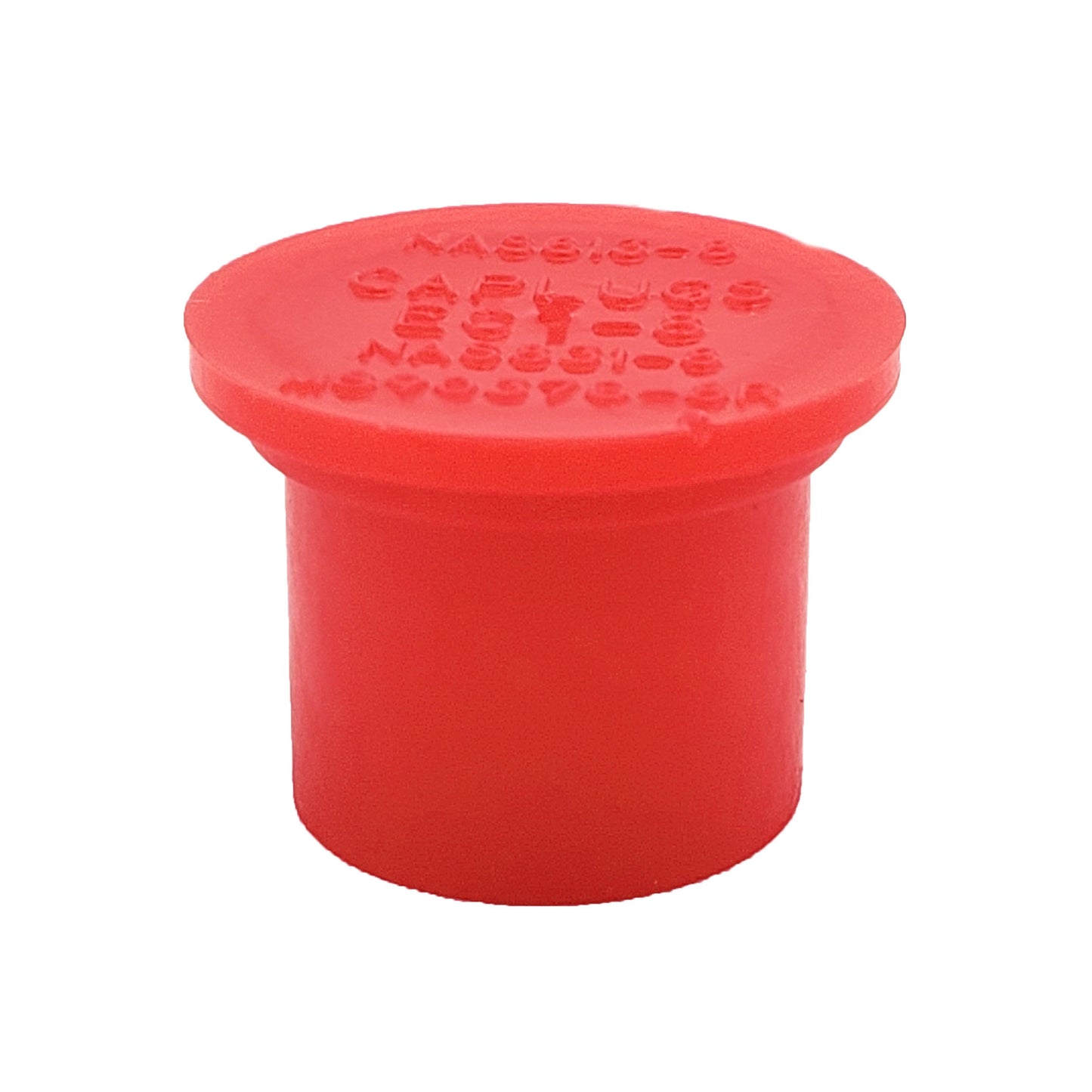

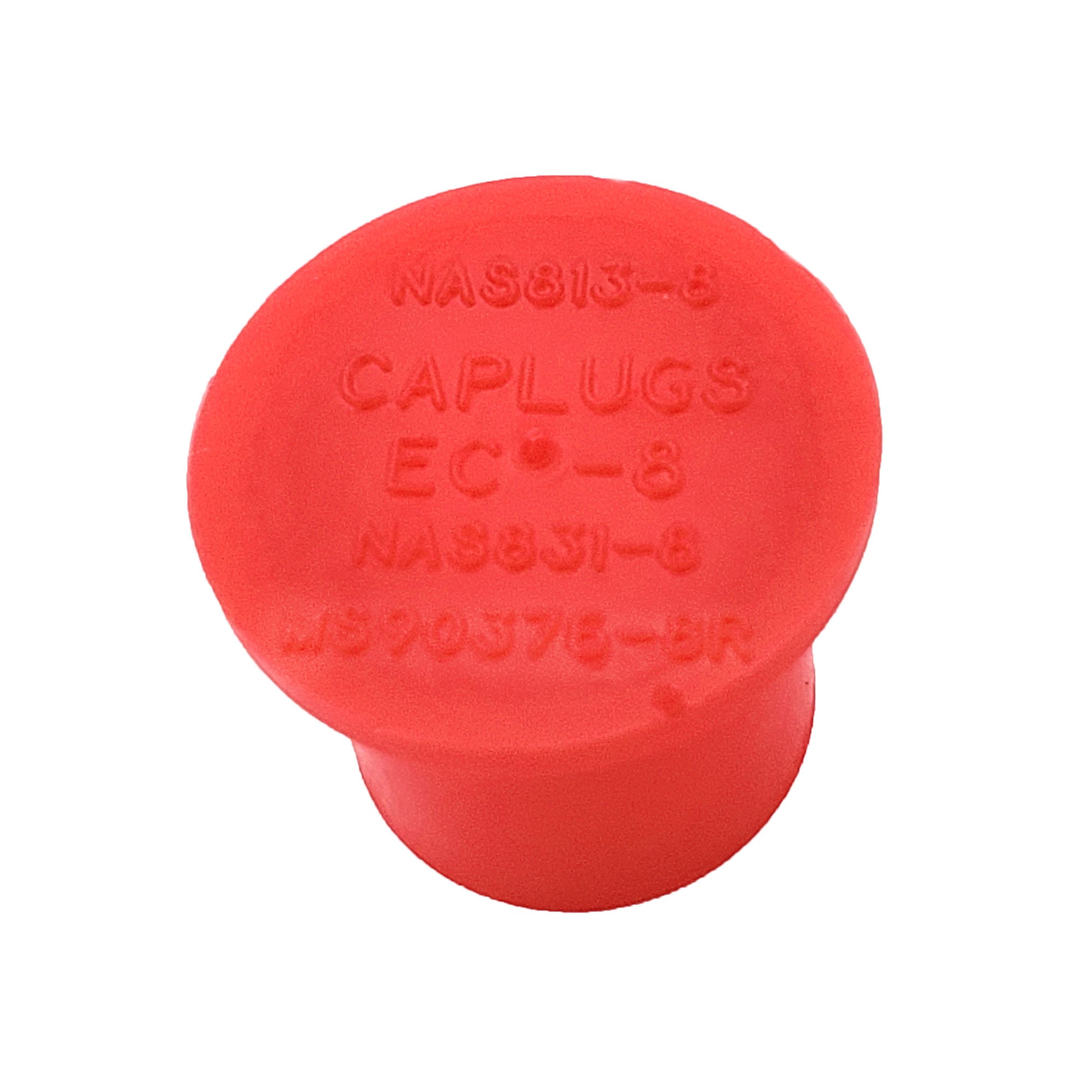

EC-8	1/2	0.480	0.74	0.50	0.54

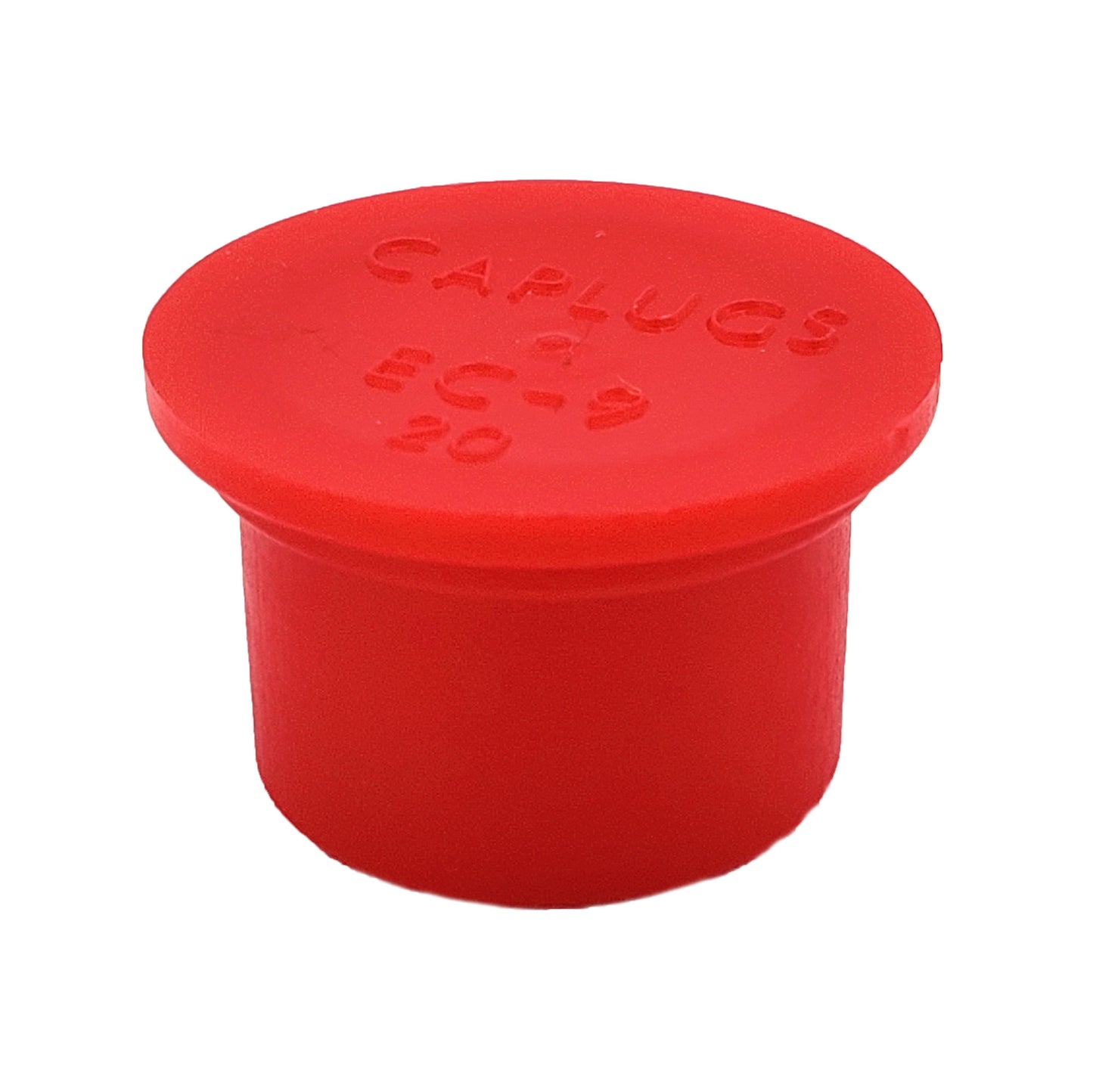

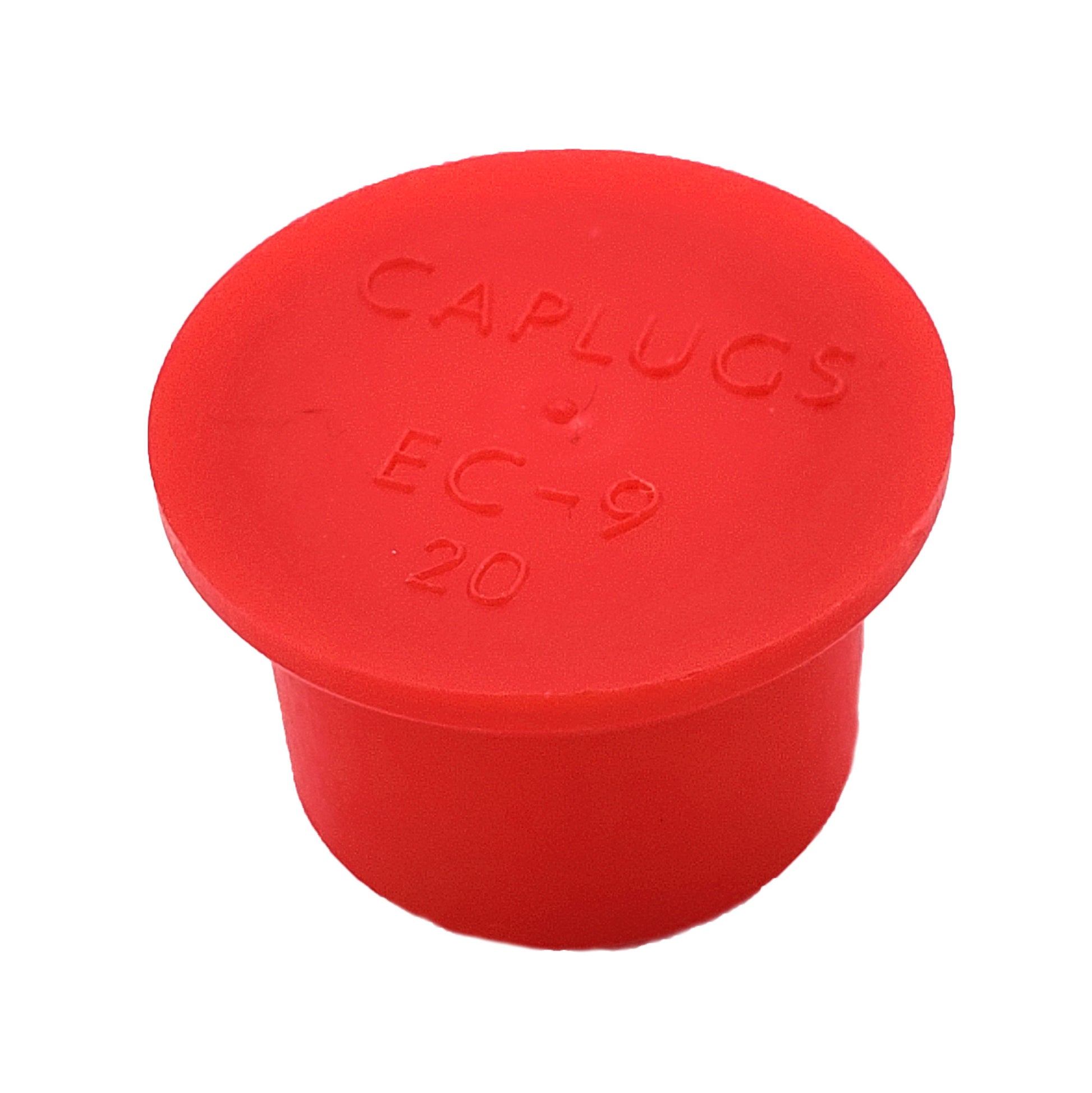

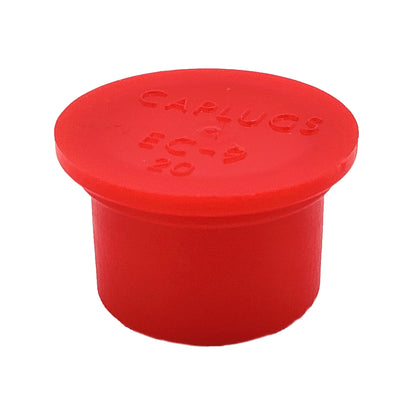

EC-9	9/16	0.551	0.78	0.44	0.61

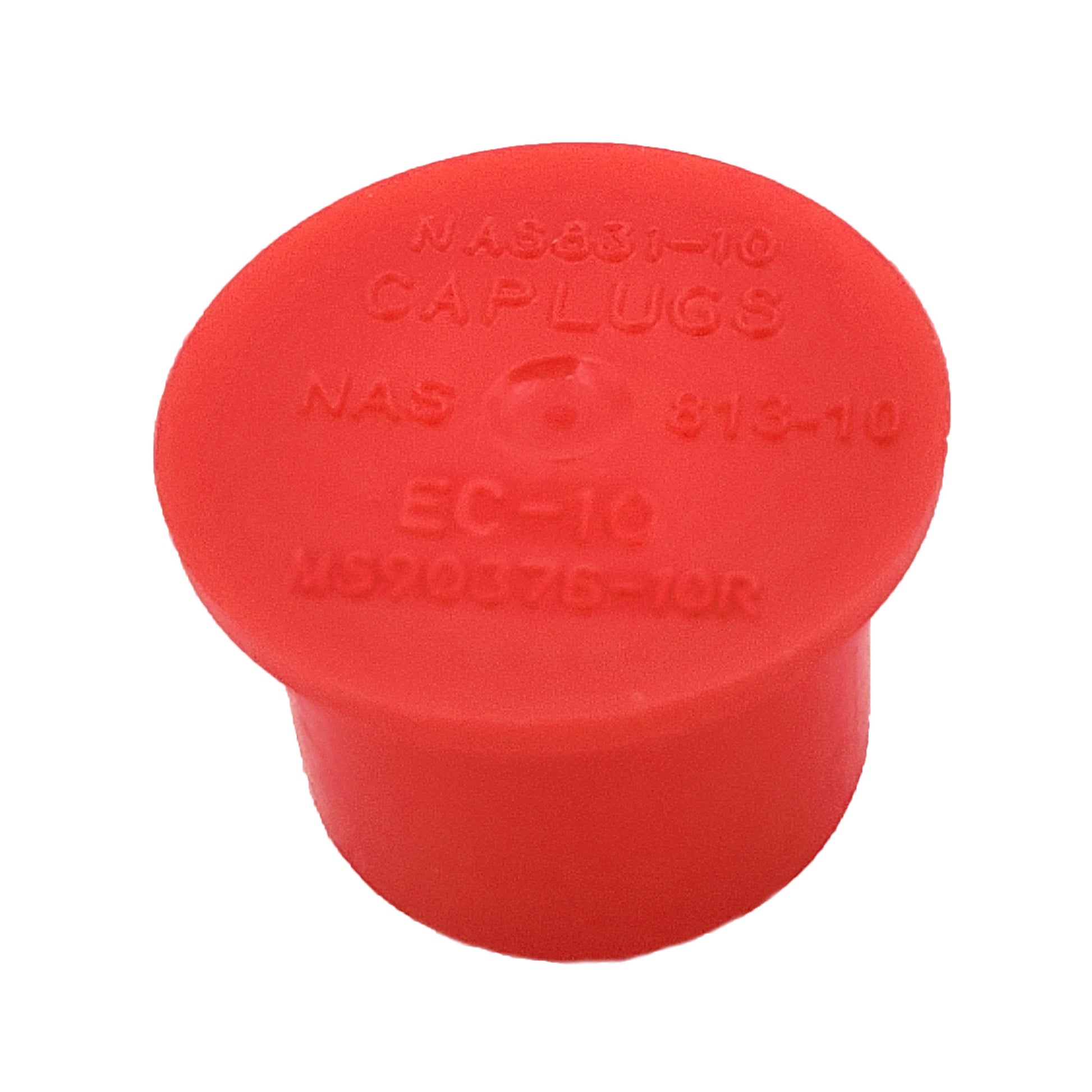

EC-10	5/8	0.605	0.84	0.50	0.66

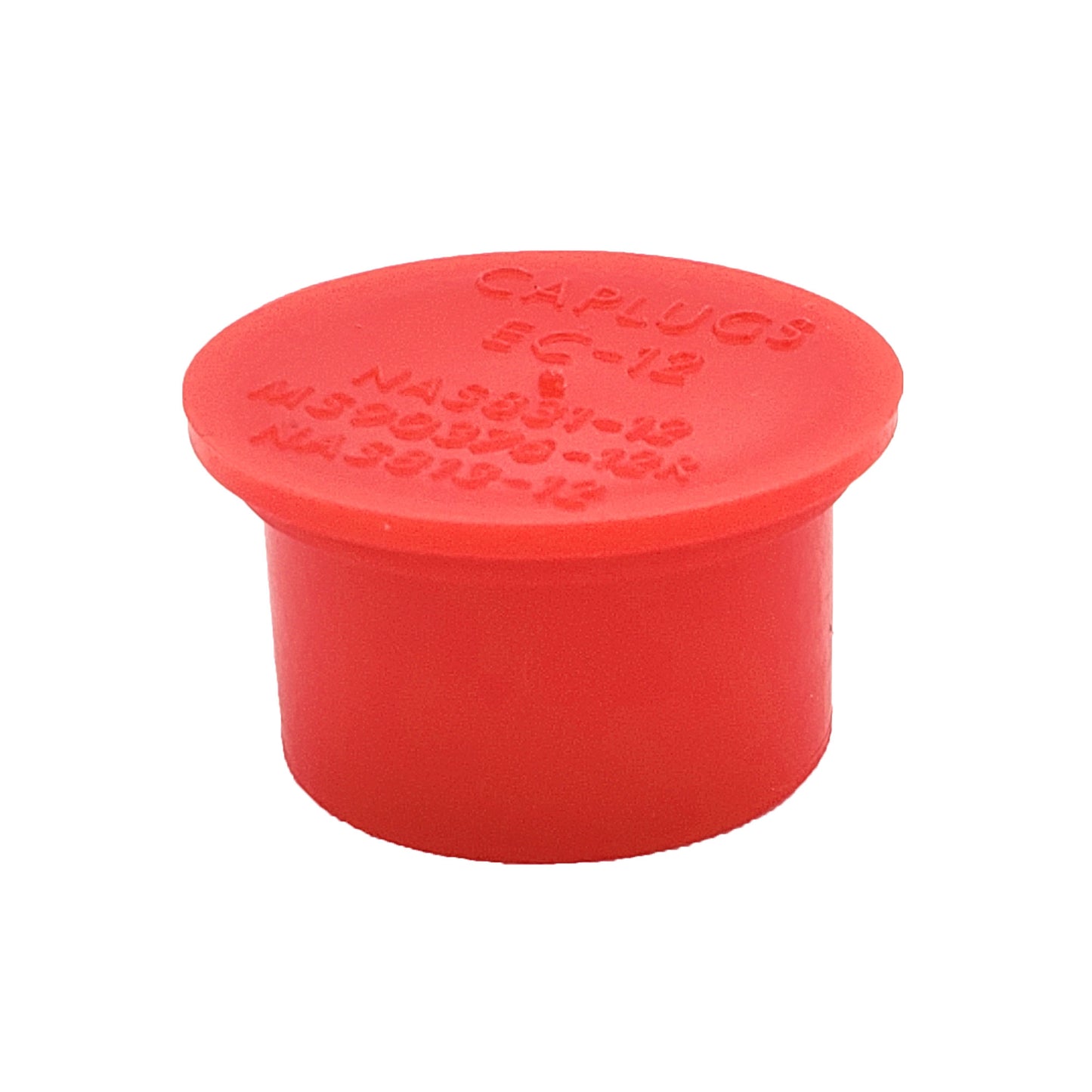

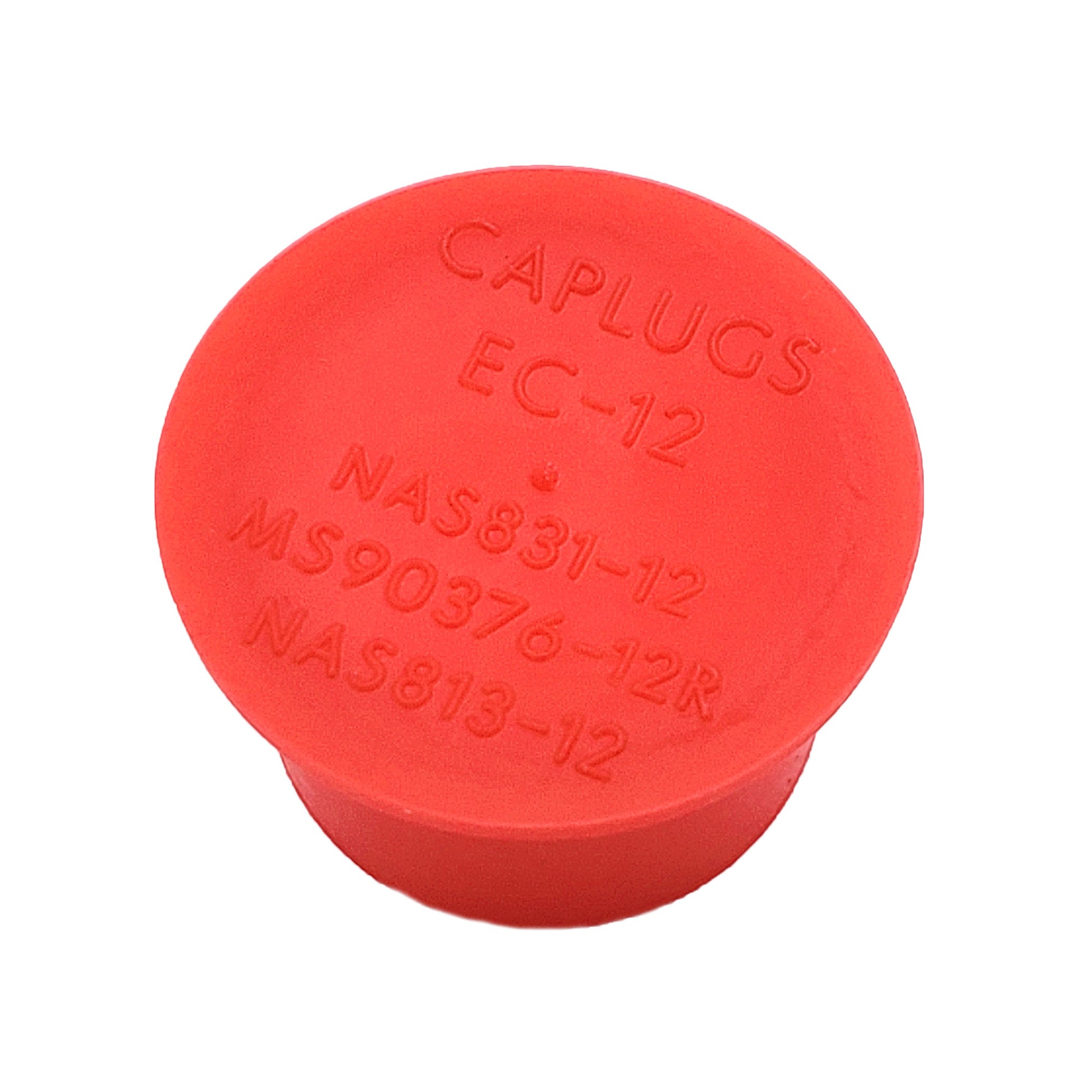

EC-12	3/4	0.720	0.97	0.50	0.77
EC-14	7/8	0.850	1.13	0.50	0.90

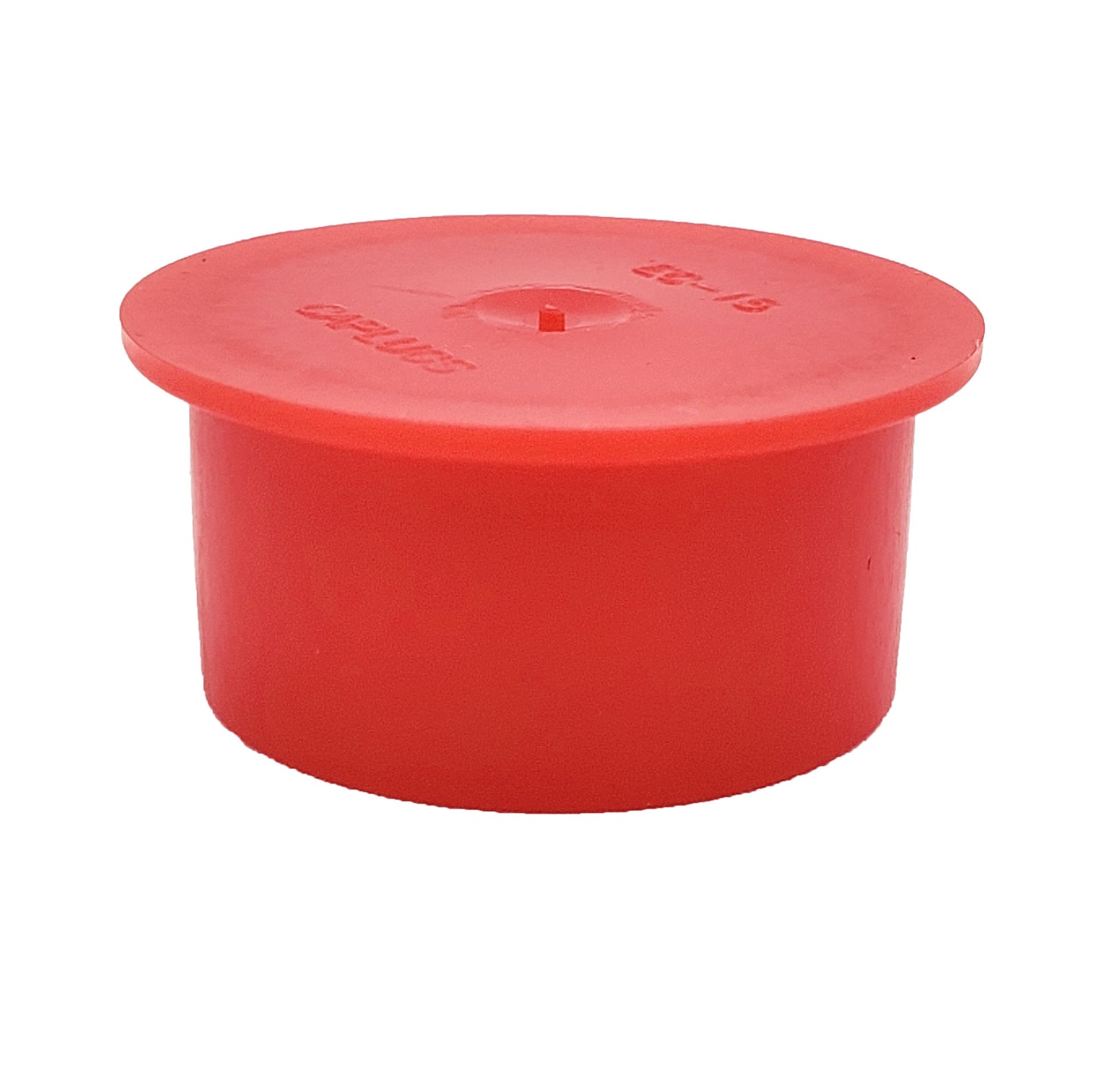

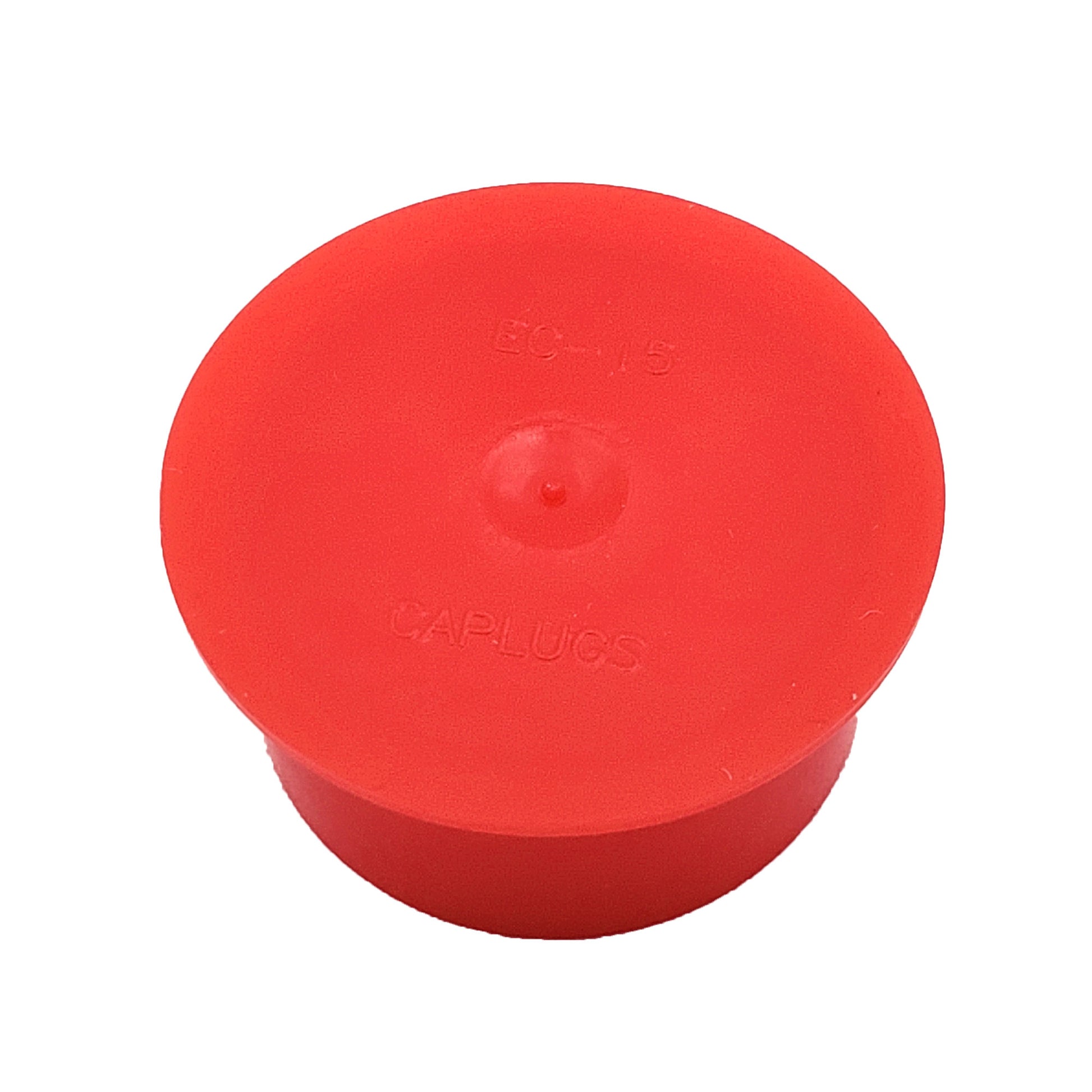

EC-15	-	0.930	1.20	0.50	1.01

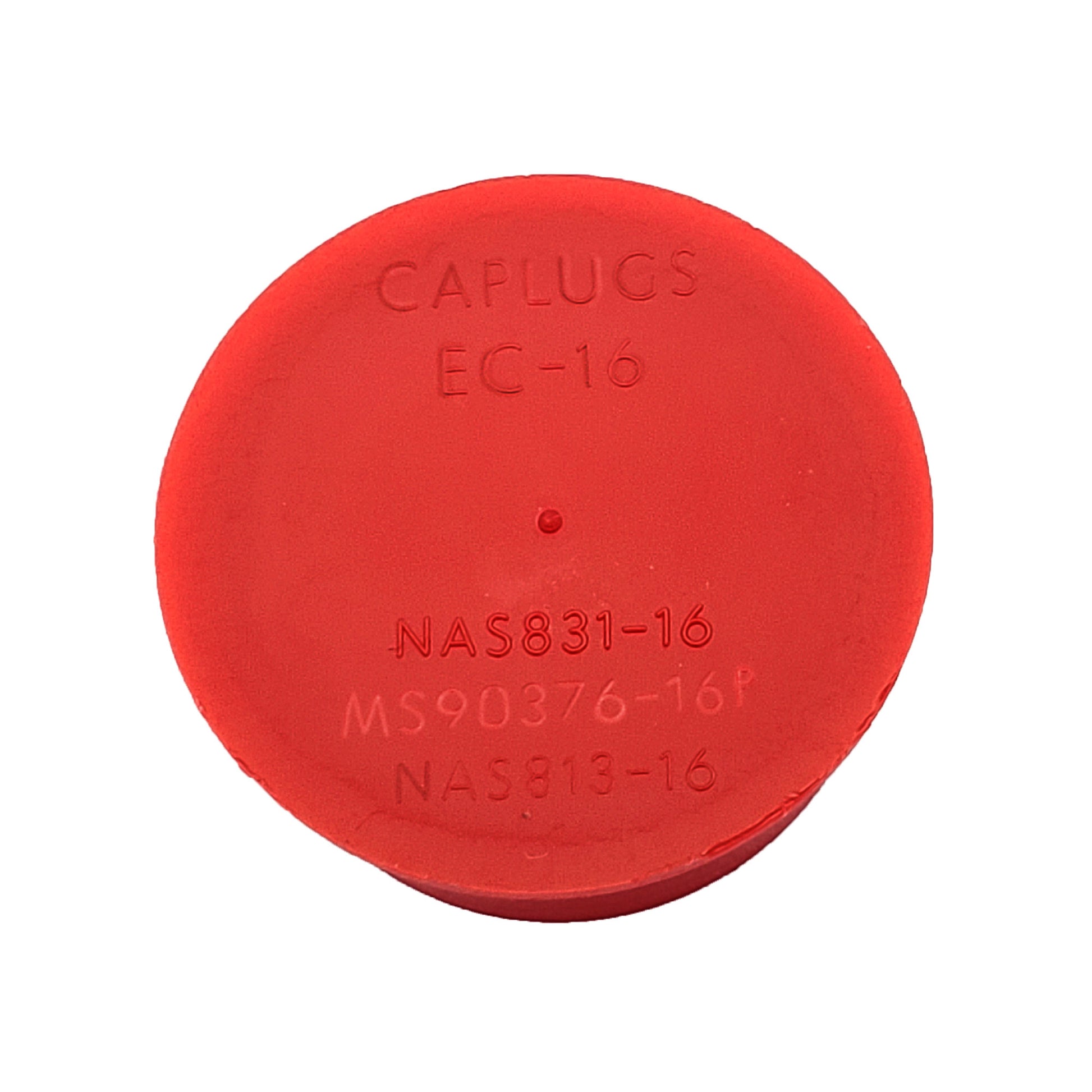

EC-16	1	0.973	1.22	0.50	1.03

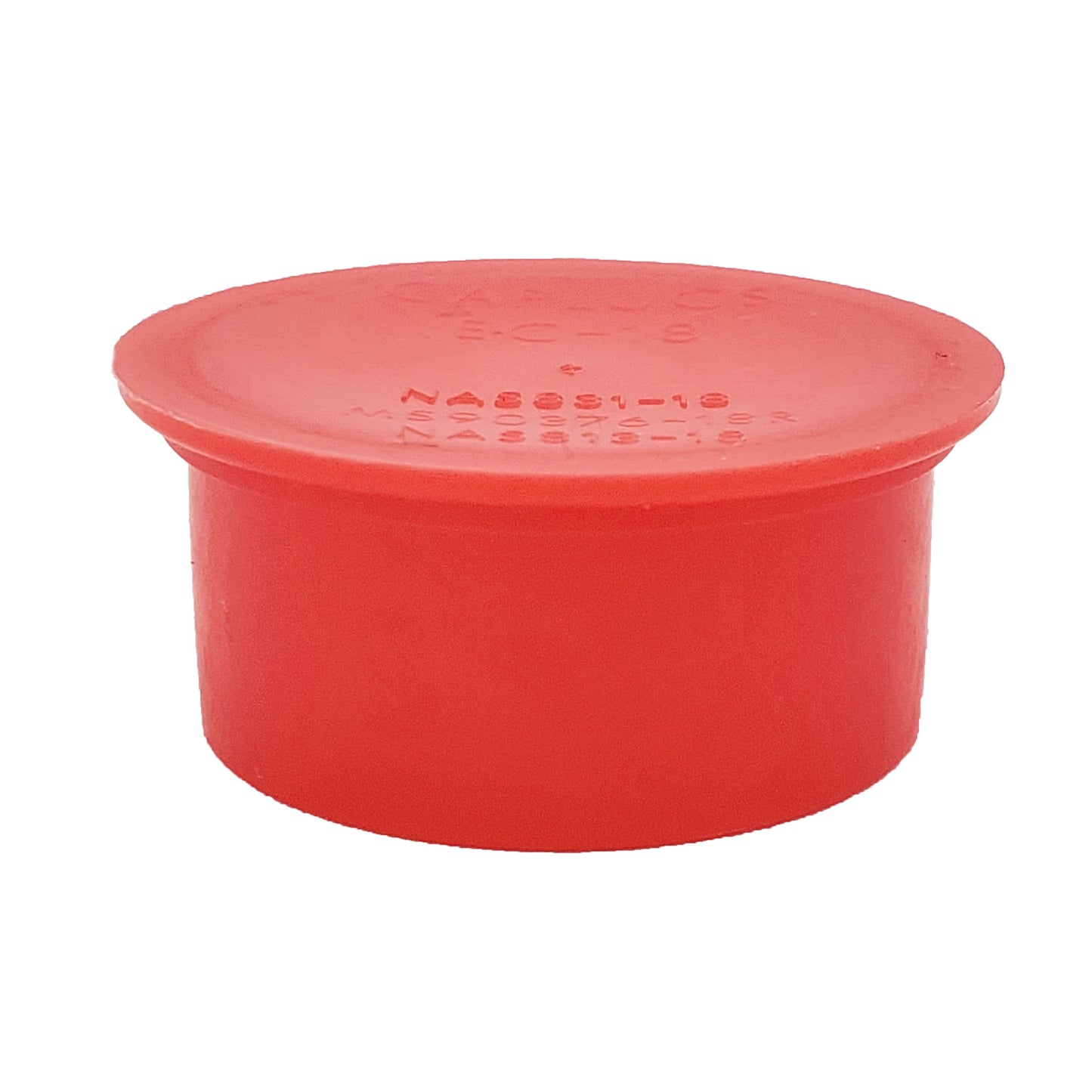

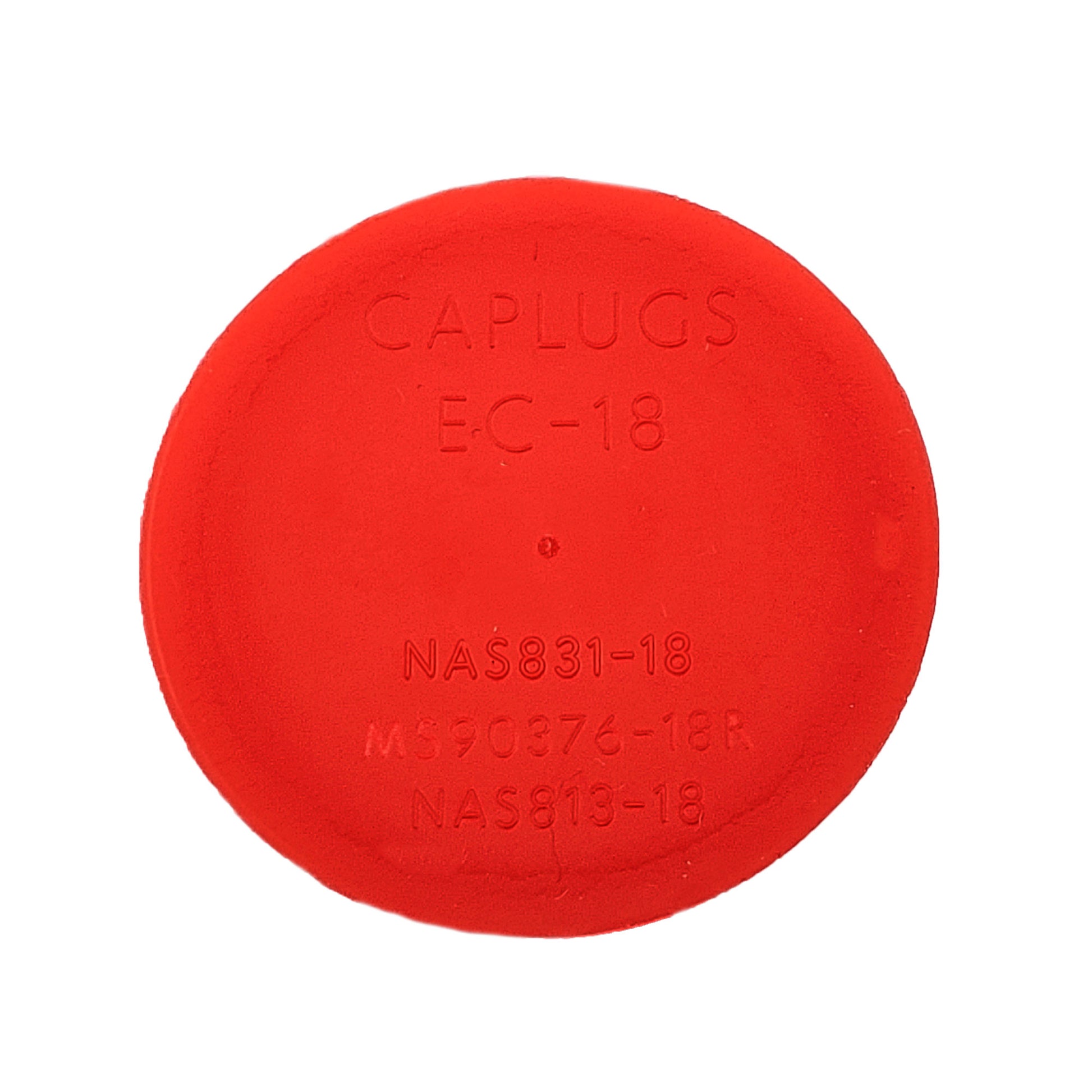

EC-18	1 1/8	1.093	1.33	0.56	1.15

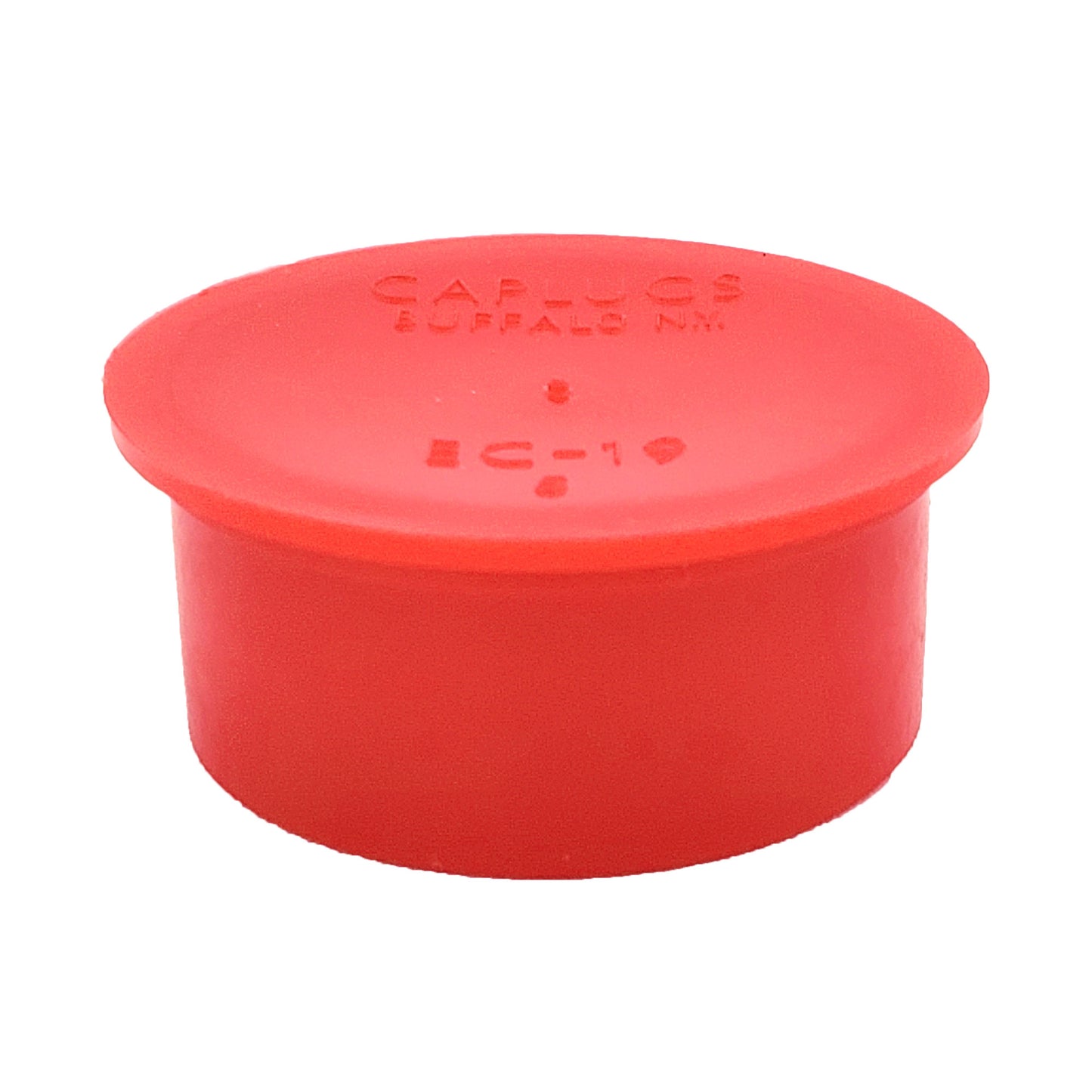

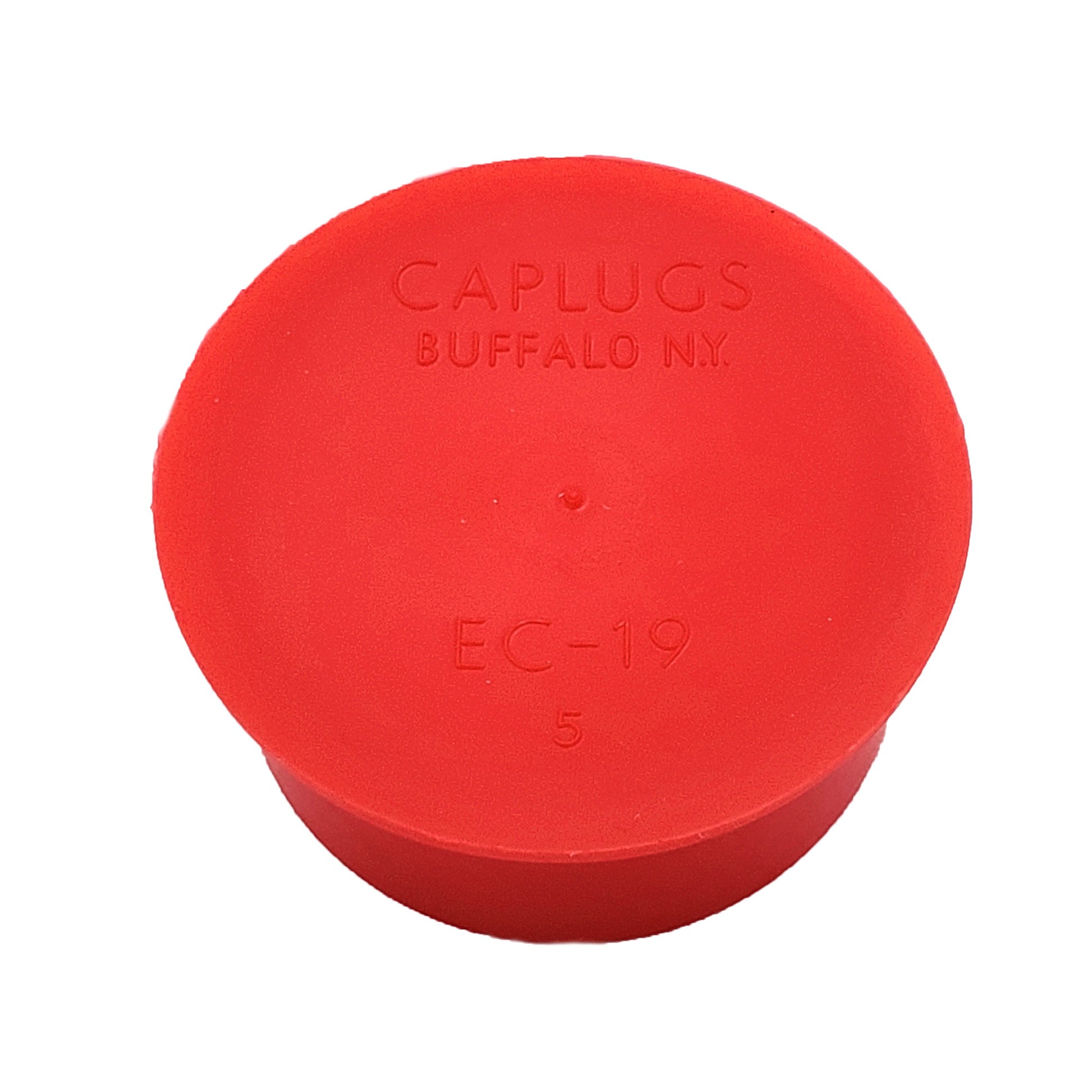

EC-19	1 3/16	1.188	1.40	0.56	1.23

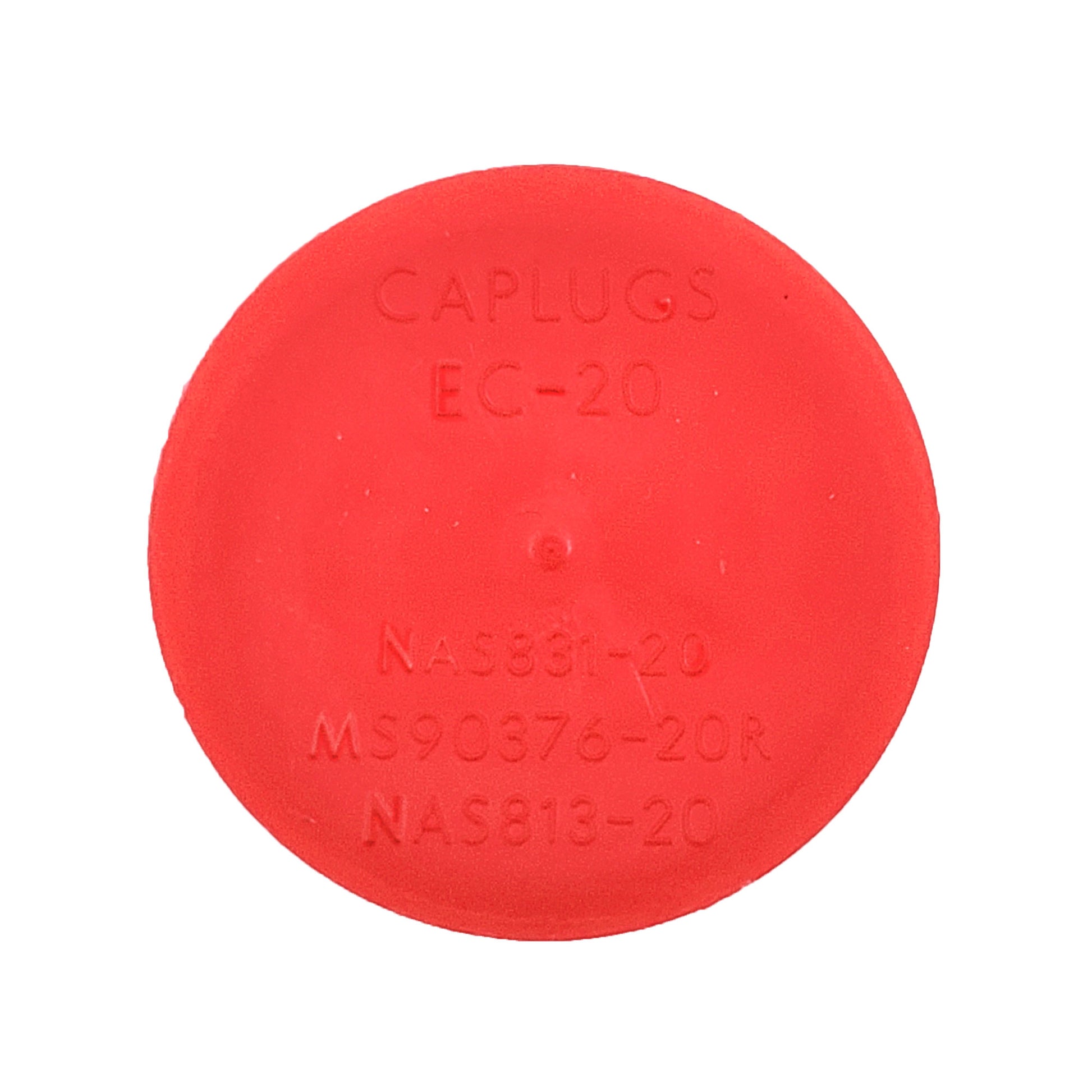

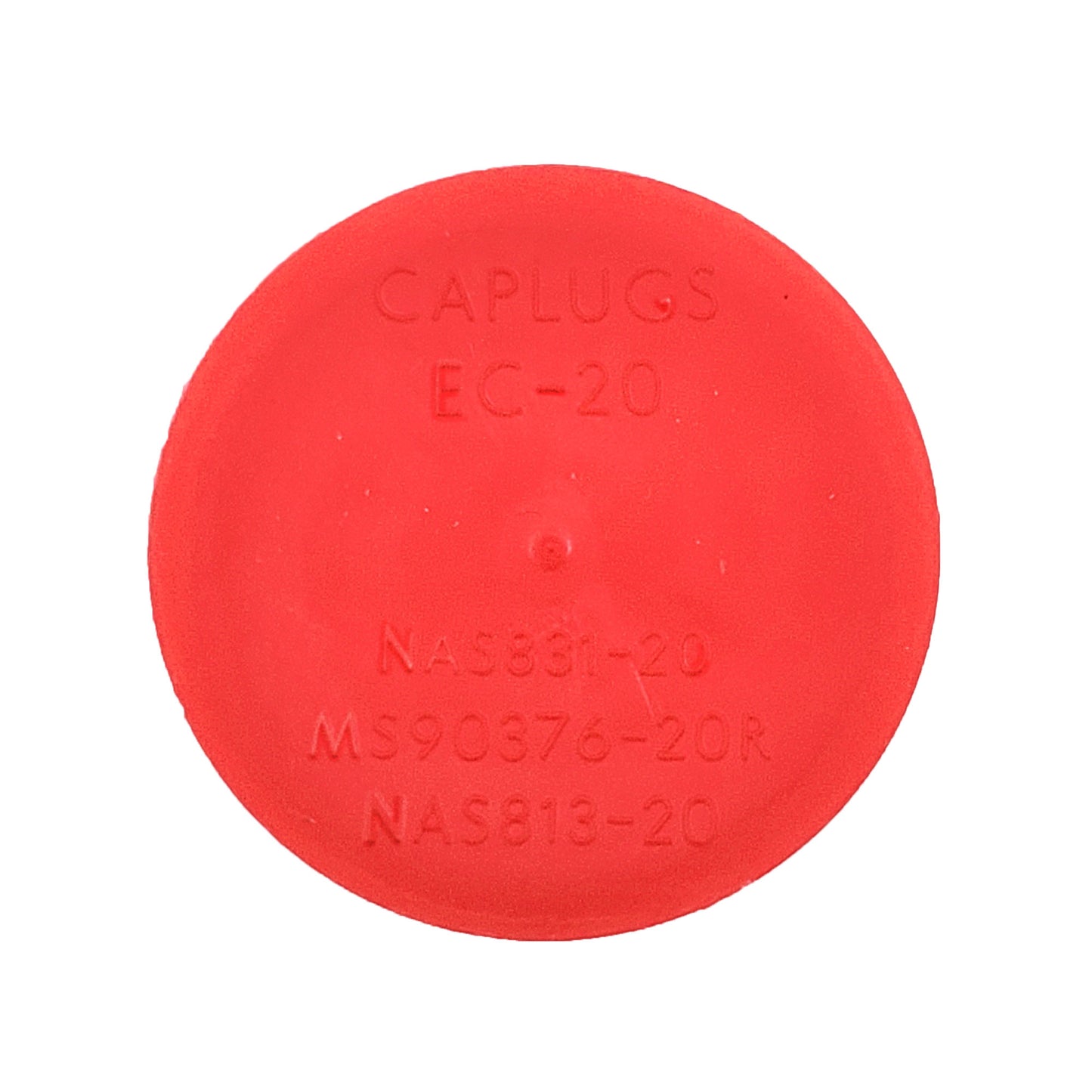

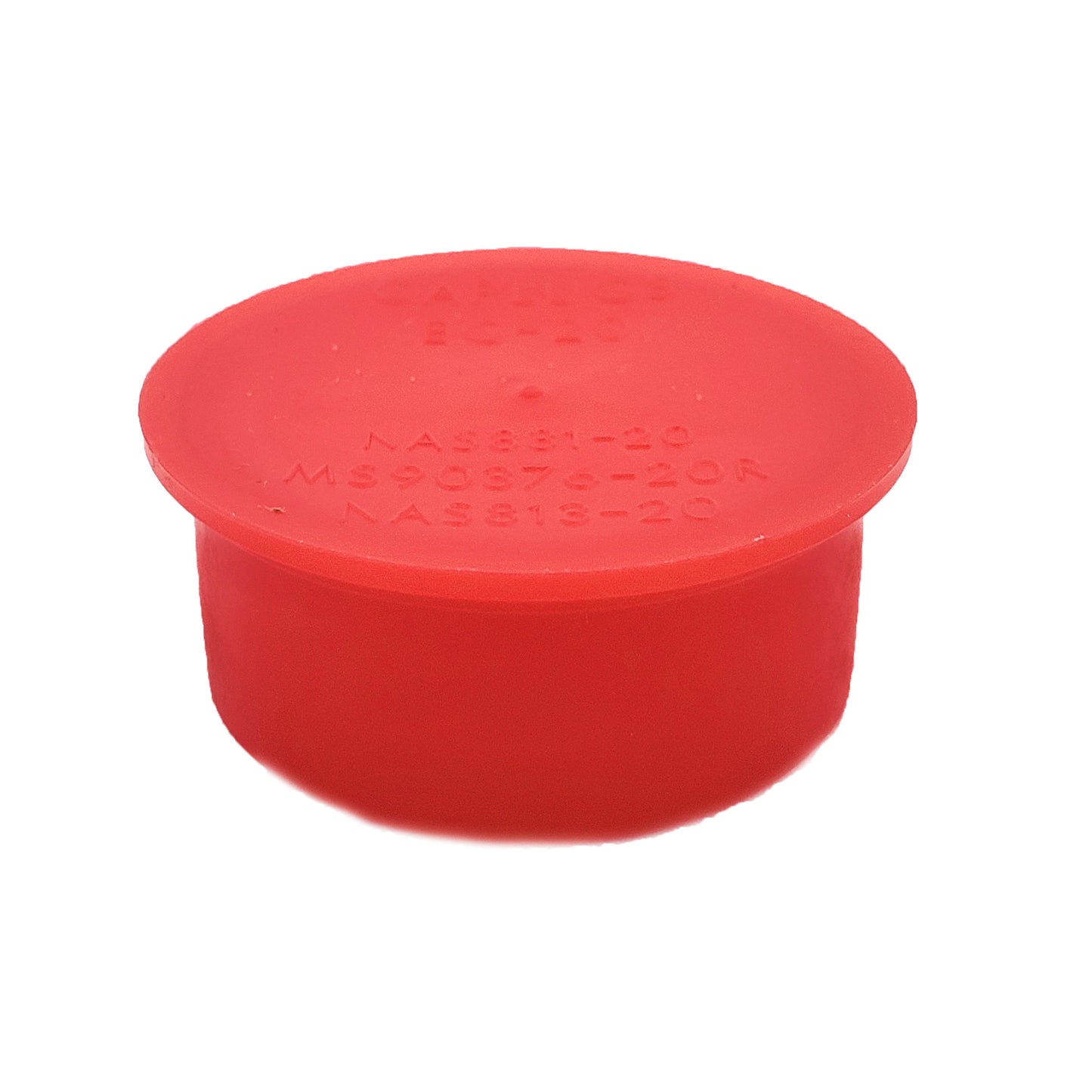

EC-20	1 1/4	1.231	1.47	0.56	1.30

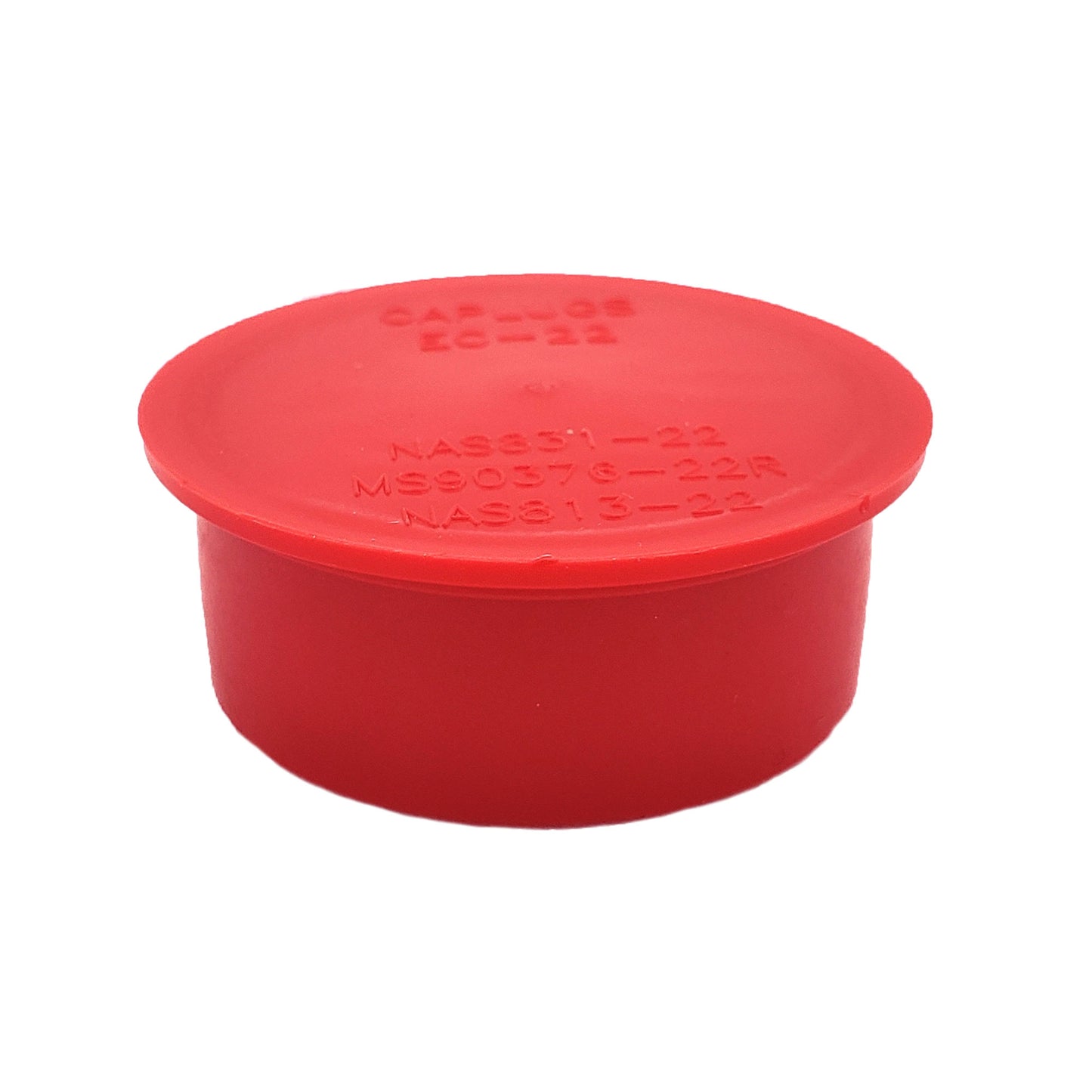

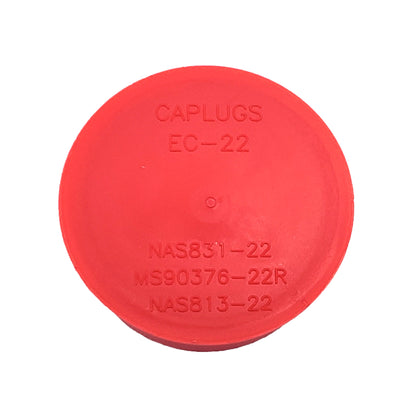

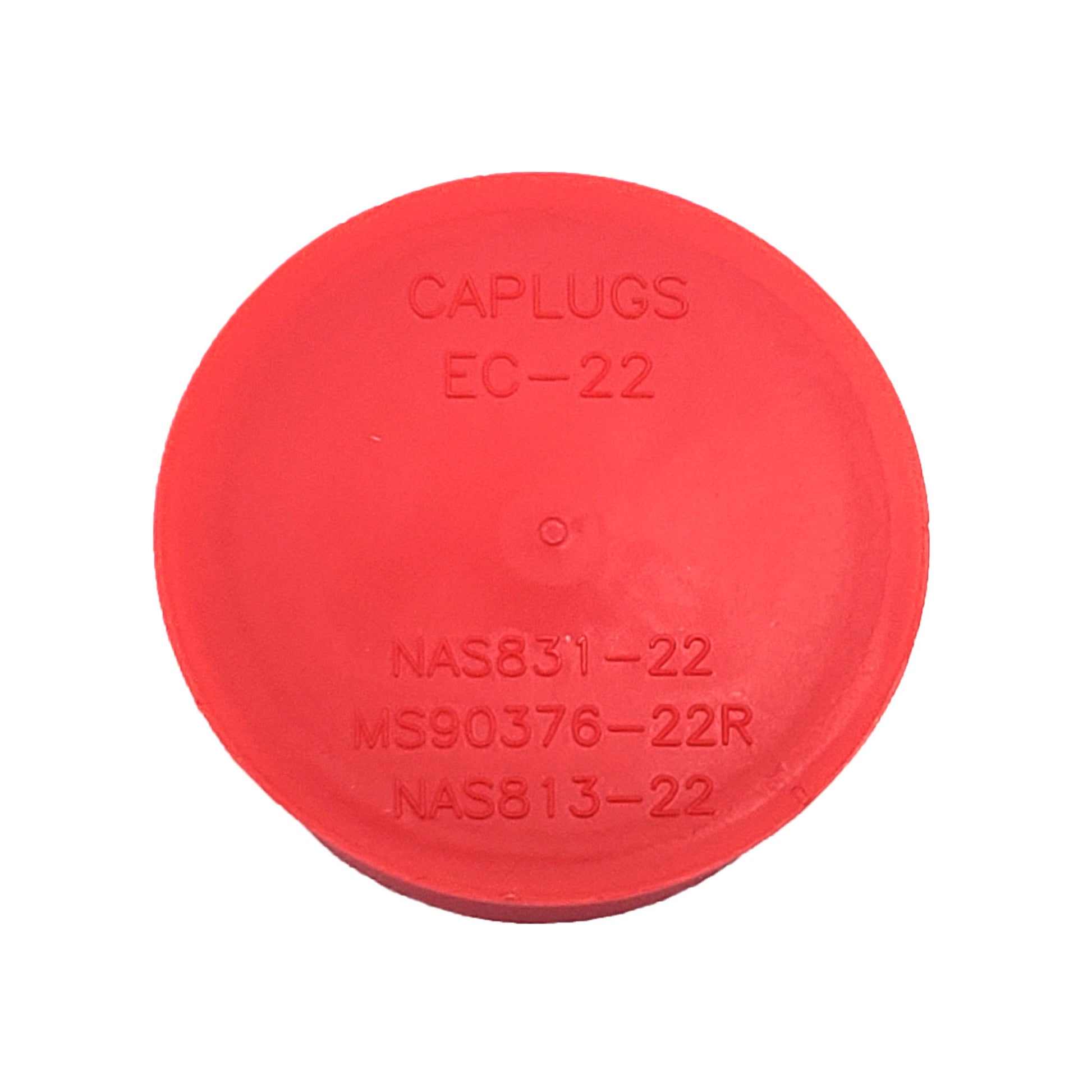

EC-22	1 3/8	1.340	1.59	0.56	1.41

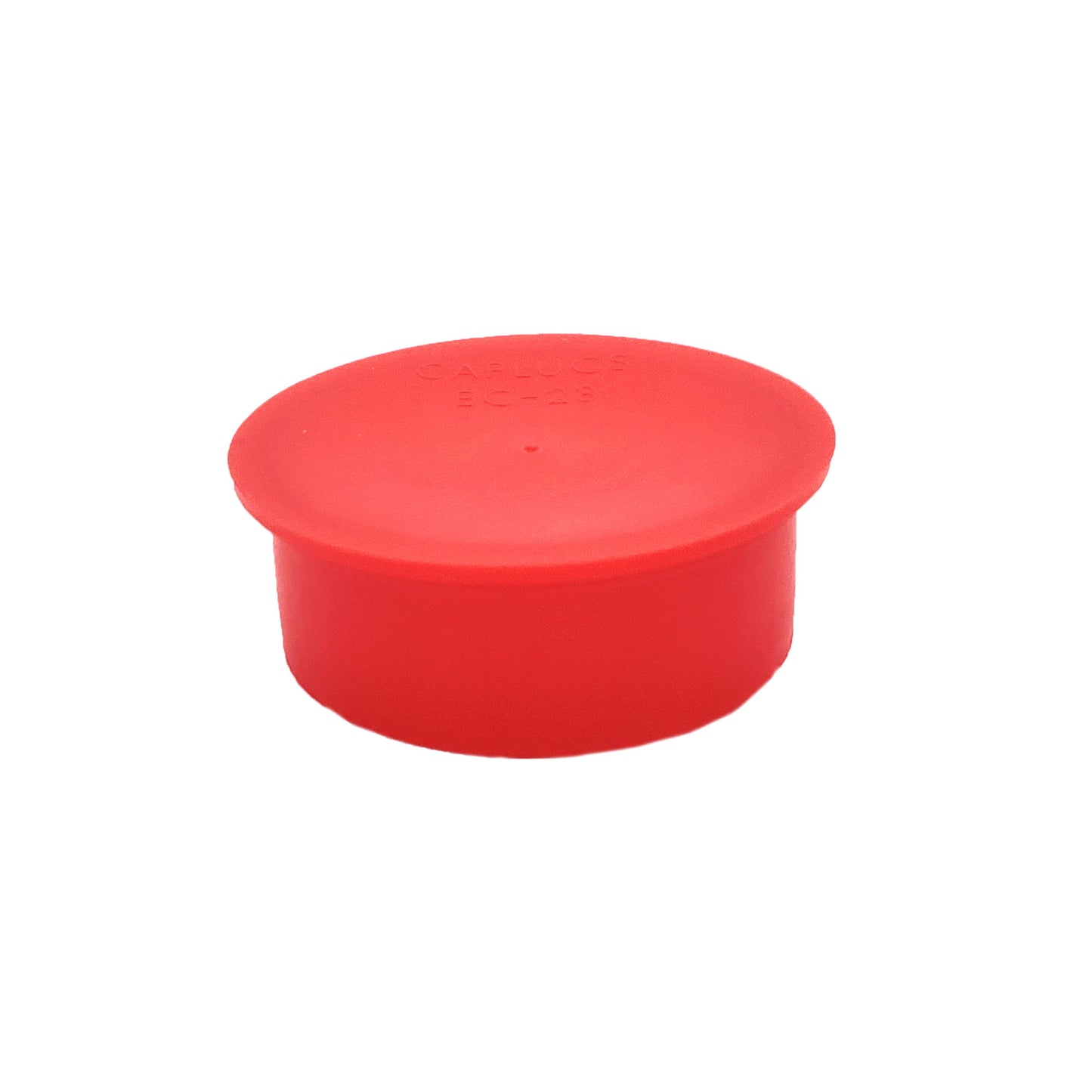

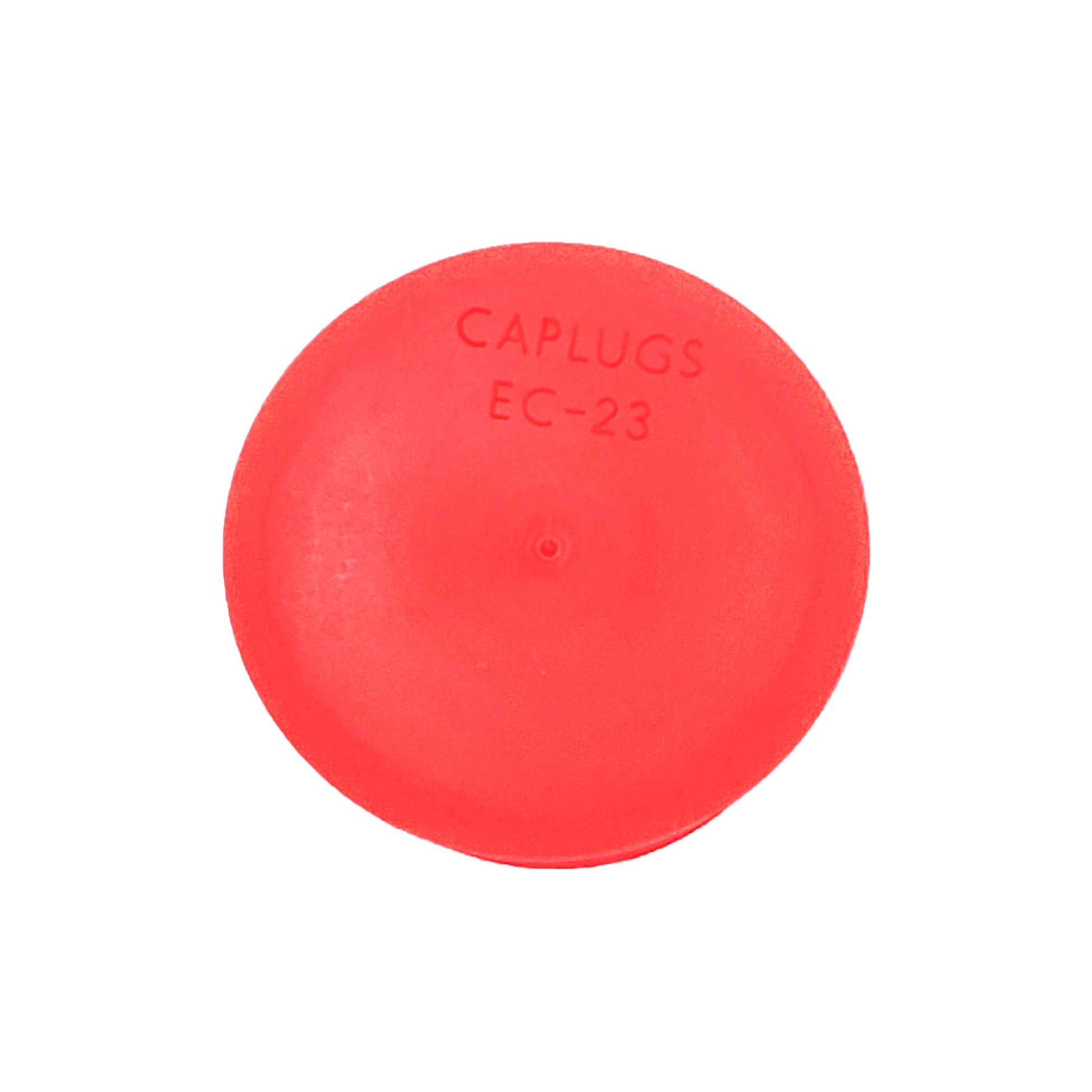

EC-23	1 7/16	1.428	1.65	0.56	1.46

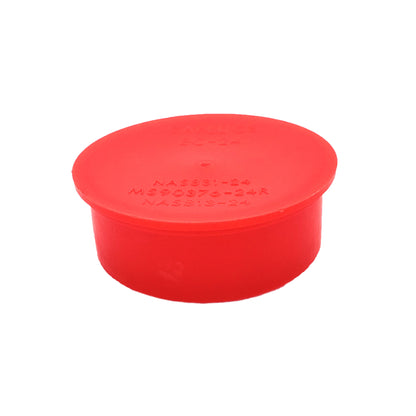

EC-24	1 1/2	1.463	1.70	0.56	1.53

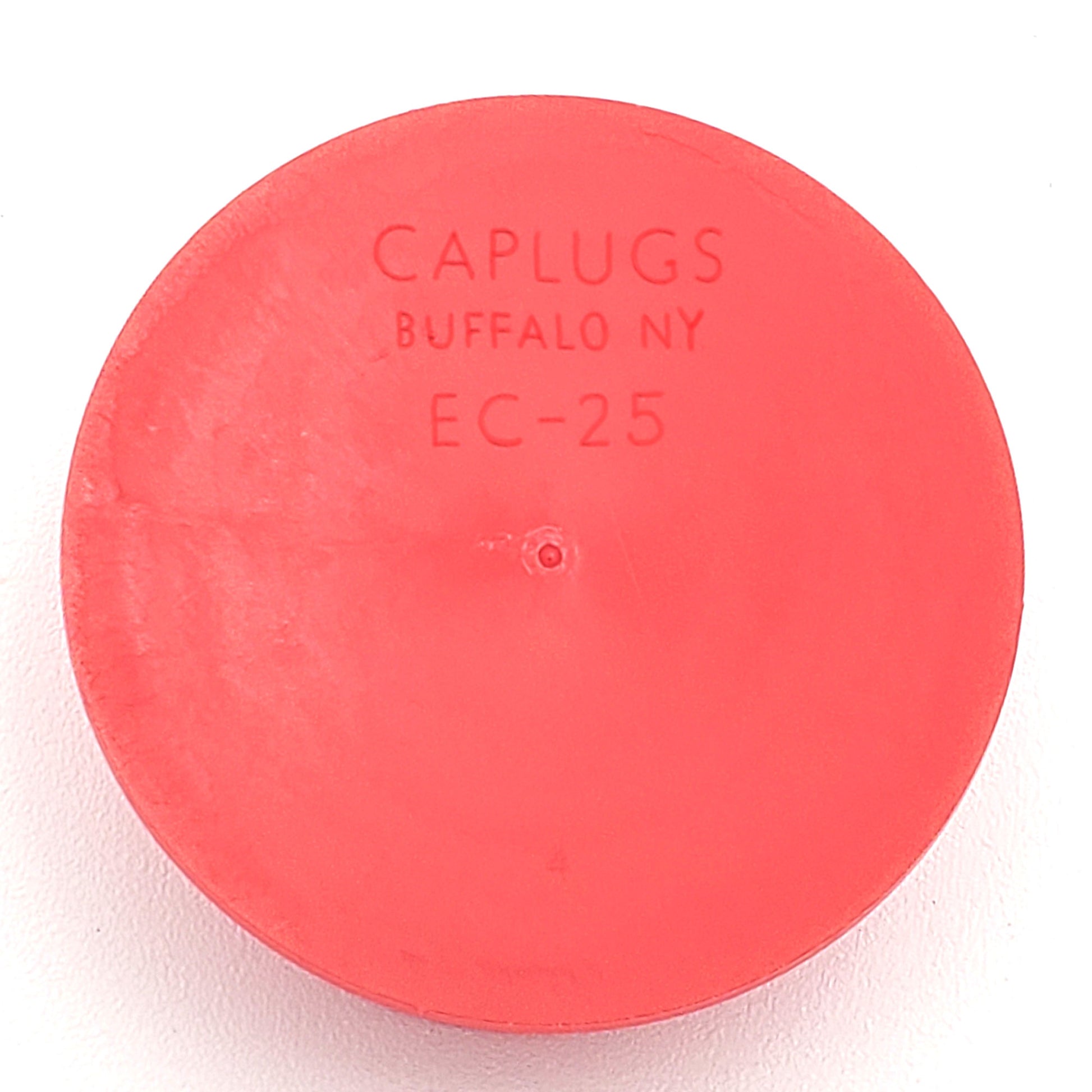

EC-25	1 9/16	1.528	1.73	0.48	1.59

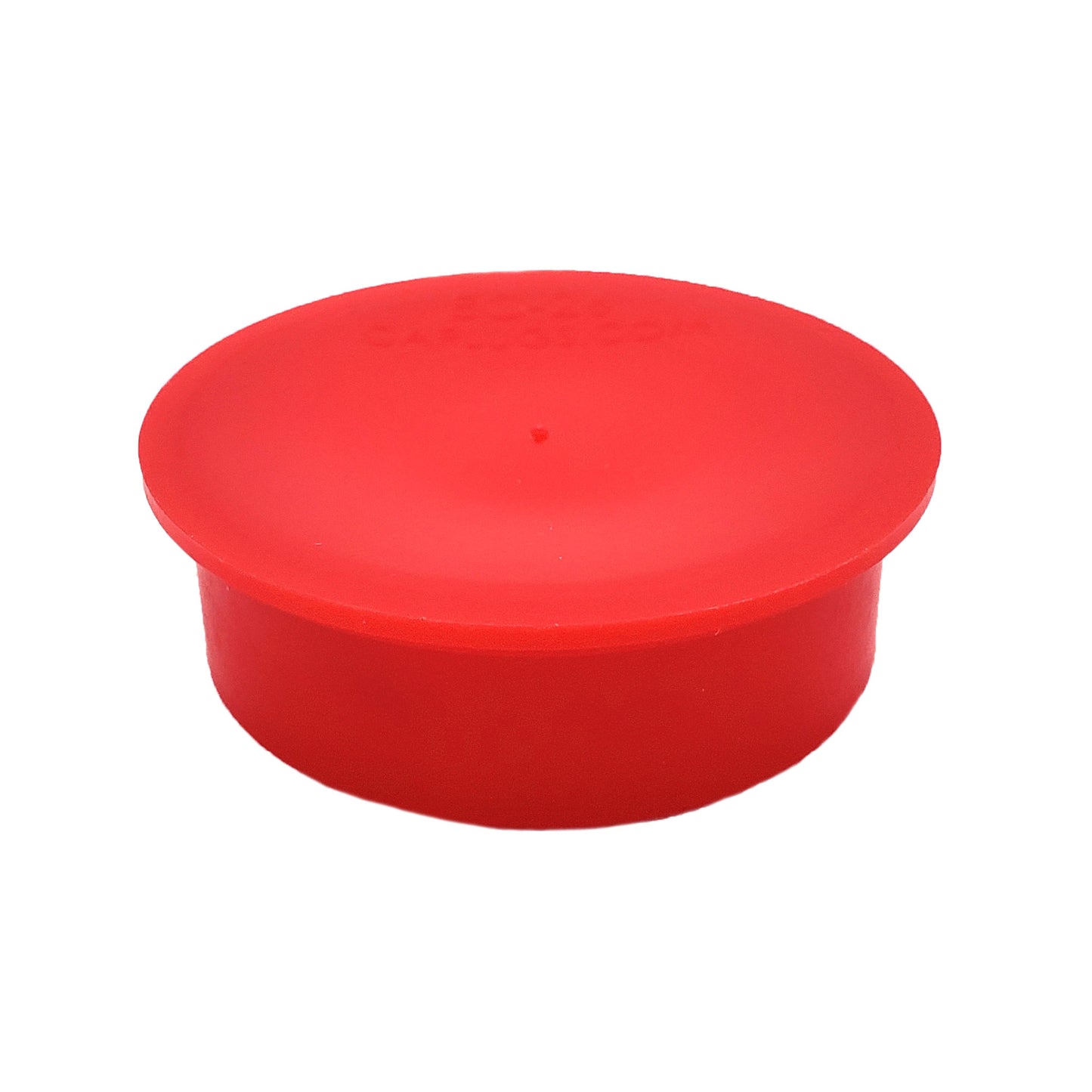

EC-26	1 5/8	1.613	1.91	0.55	1.71

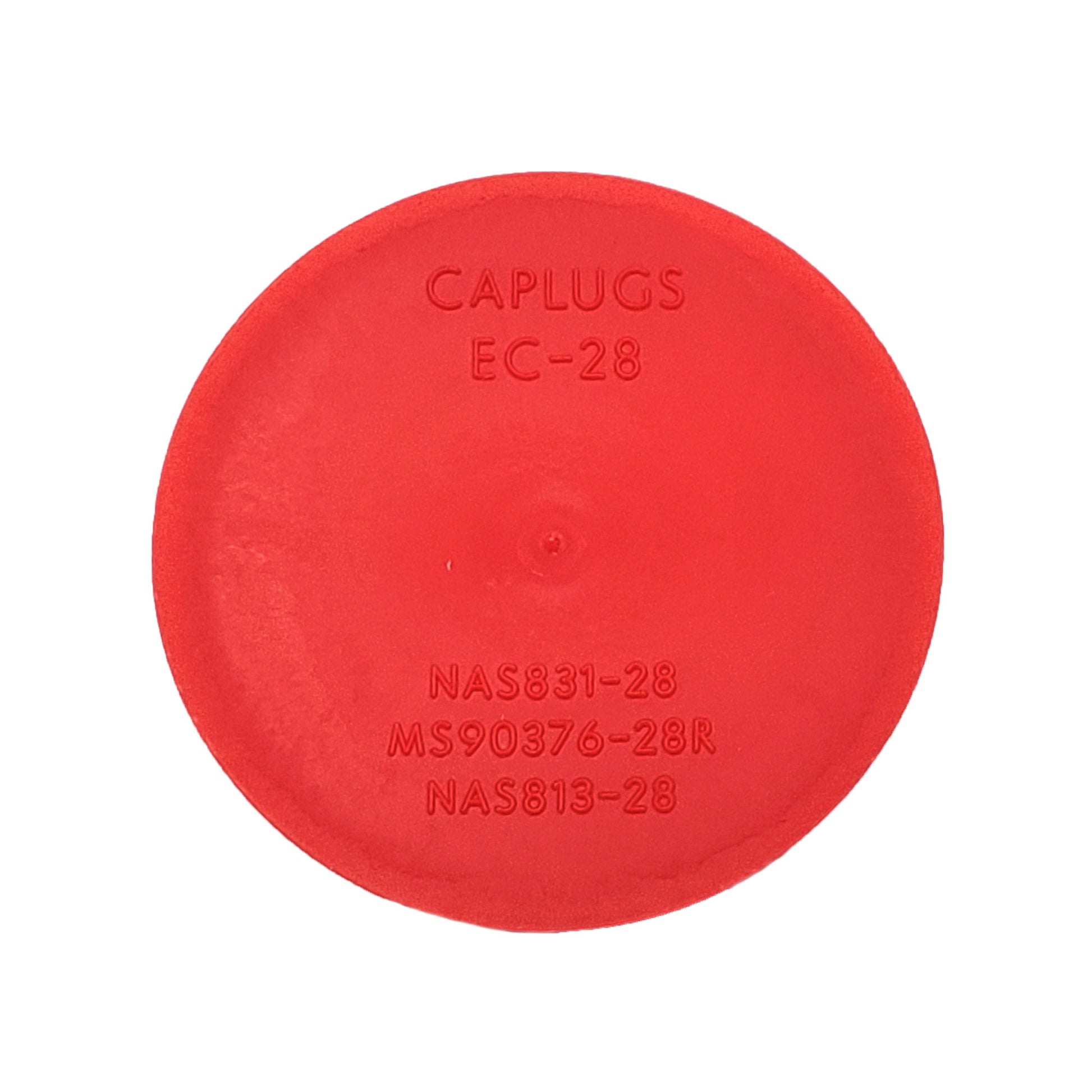

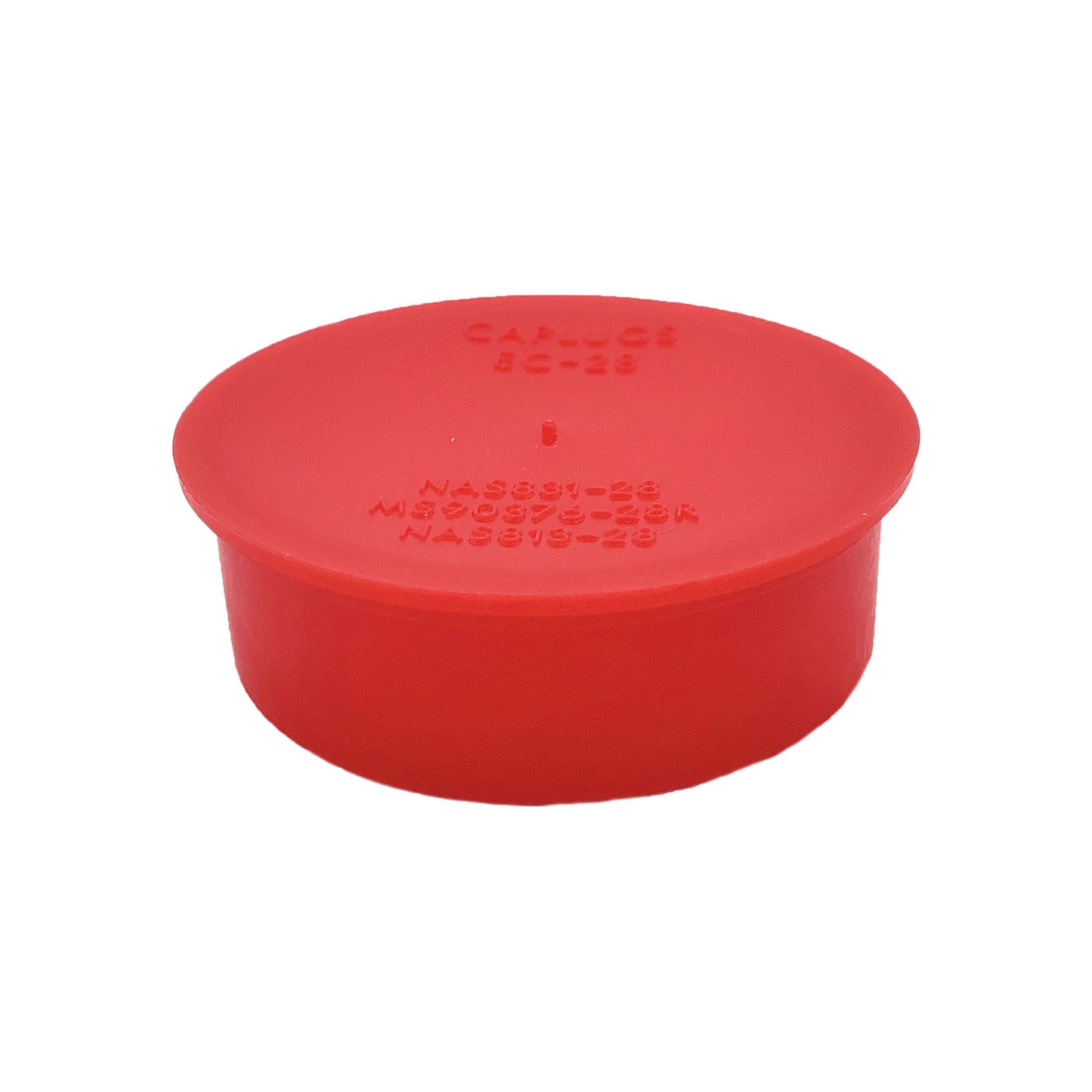

EC-28	1 3/4	1.715	1.95	0.56	1.79

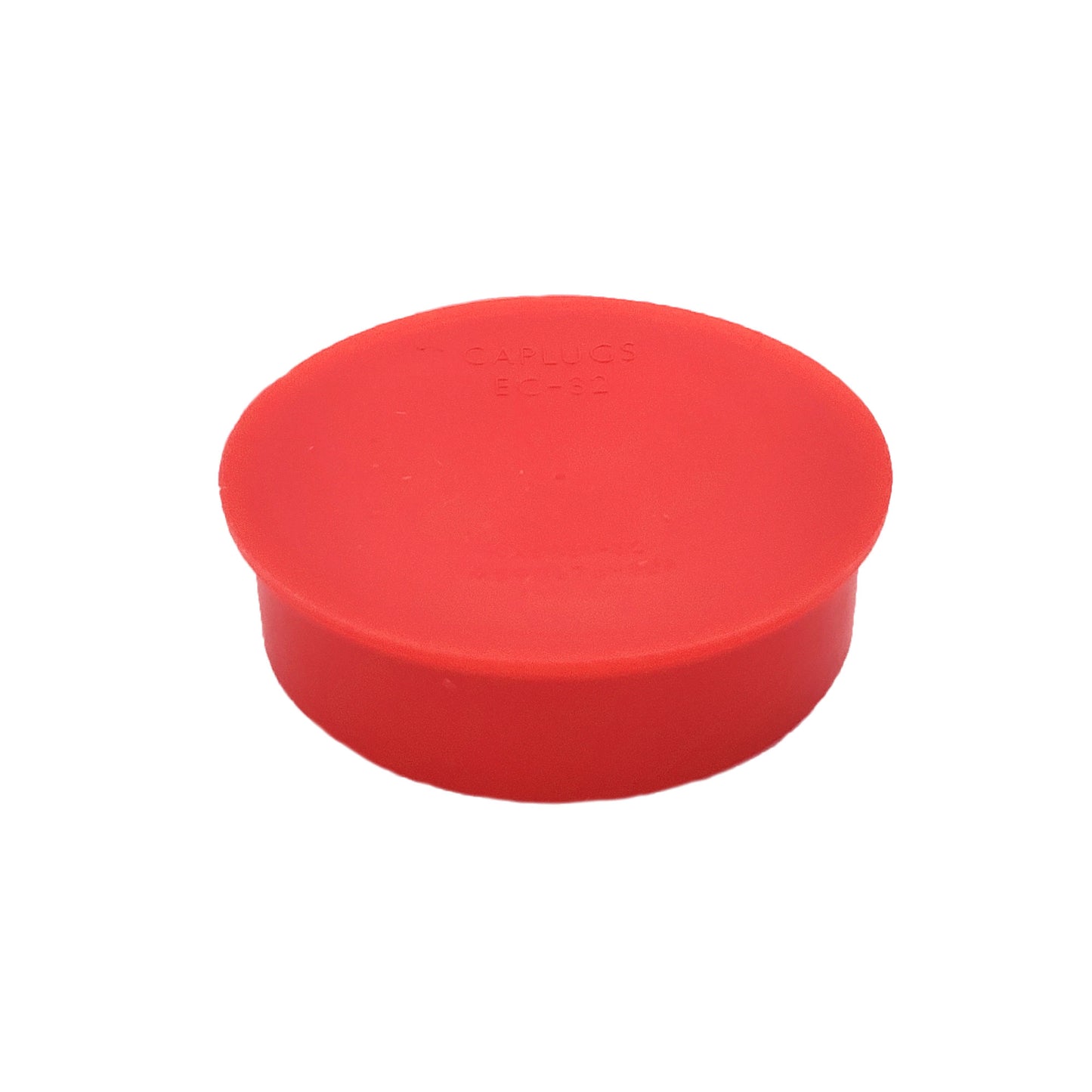

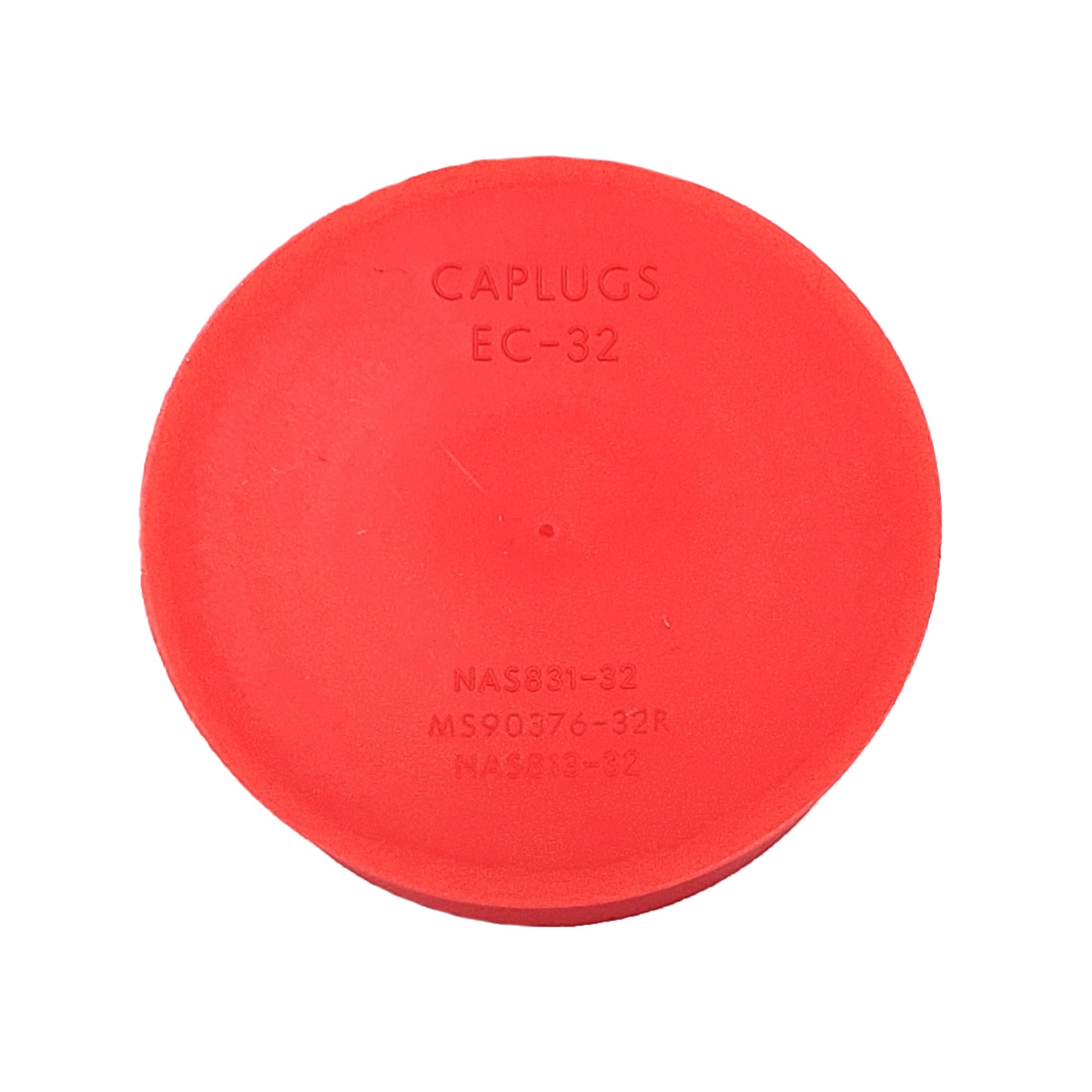

EC-32	2	1.965	2.22	0.56	2.04
EC-36	2 1/4	2.215	2.43	0.60	2.29

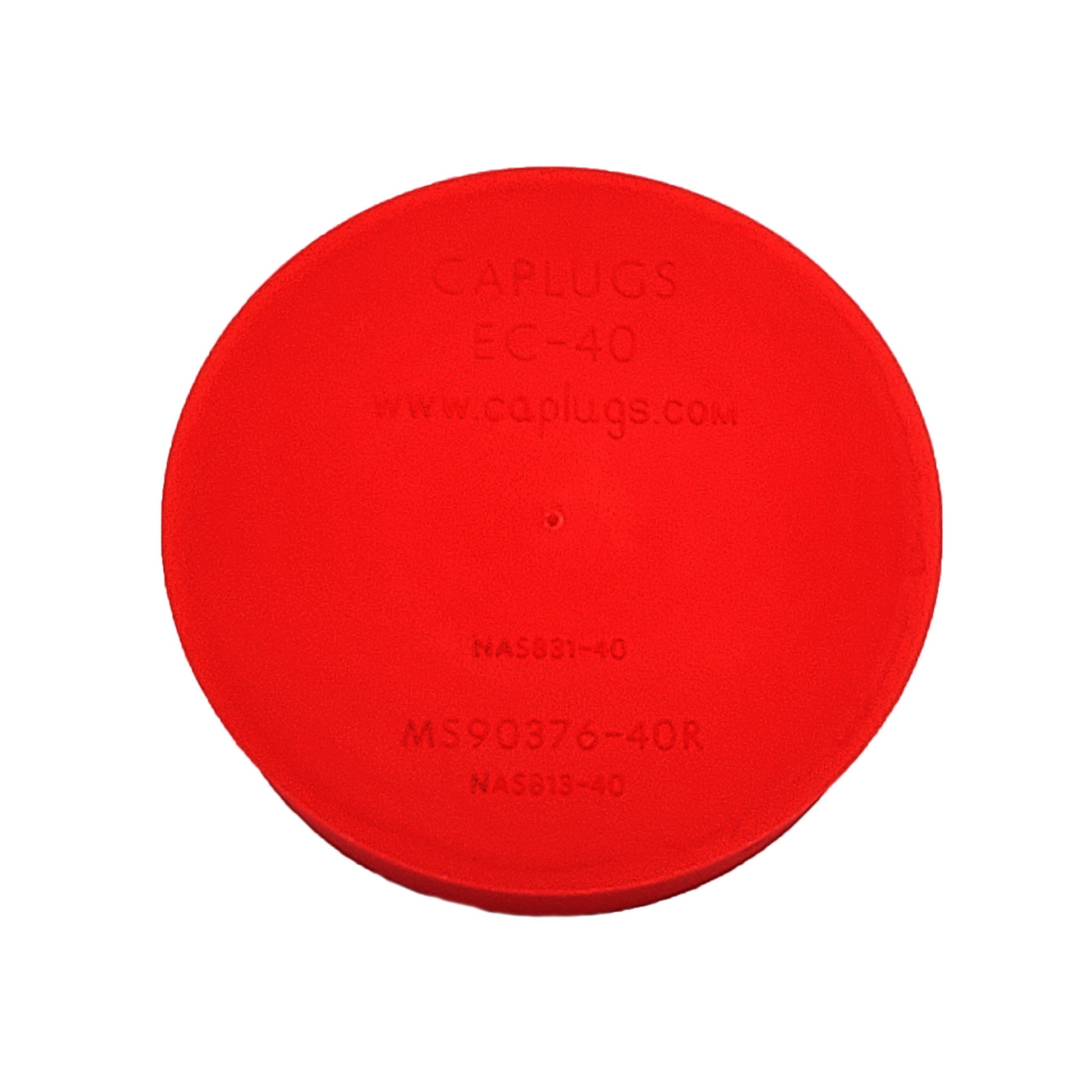

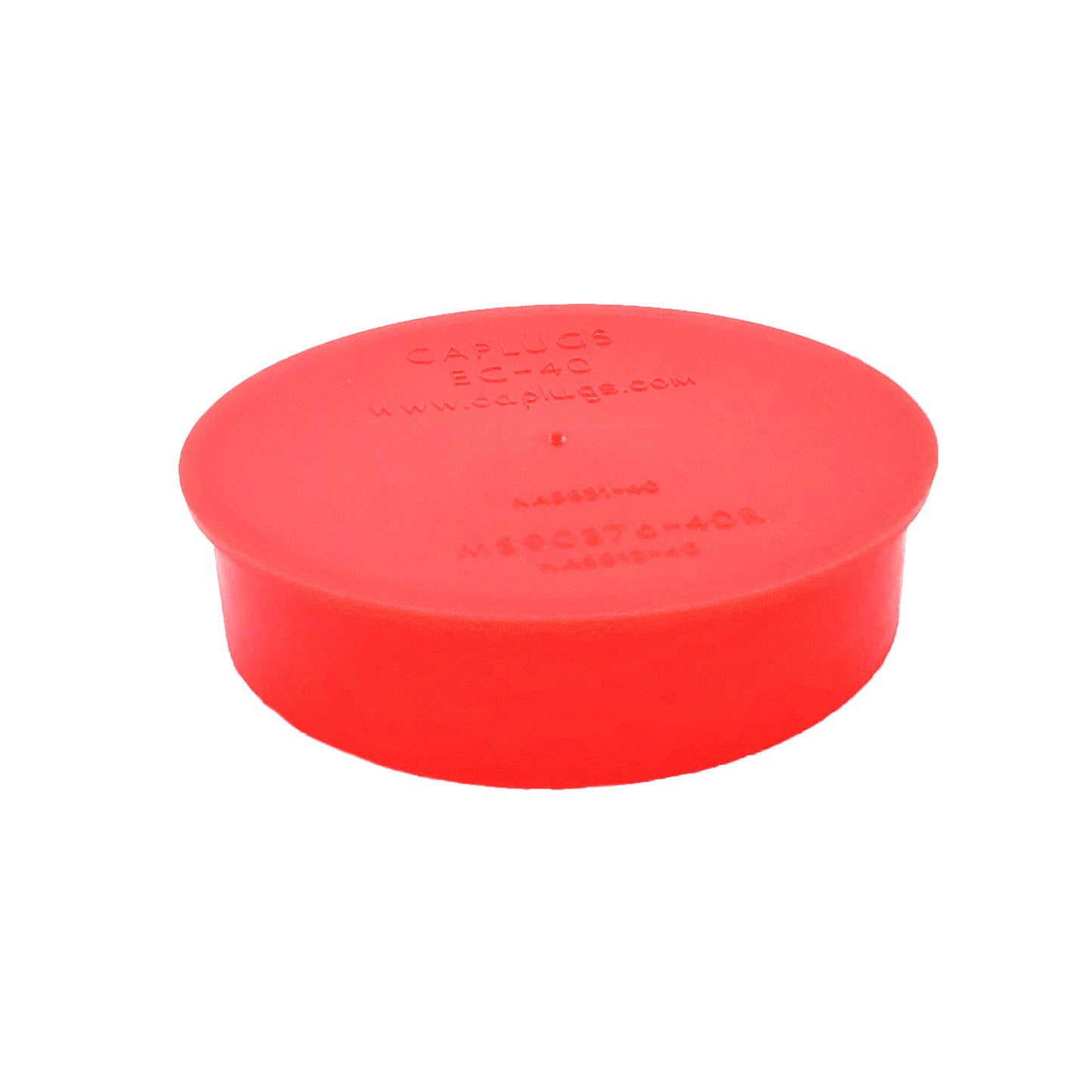

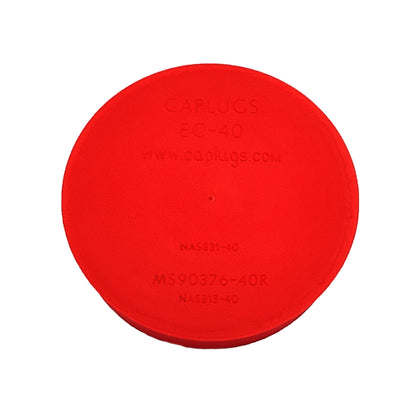

EC-40	2 1/2	2.456	2.68	0.62	2.52
EC-44	2 3/4	2.720	2.96	0.60	2.81

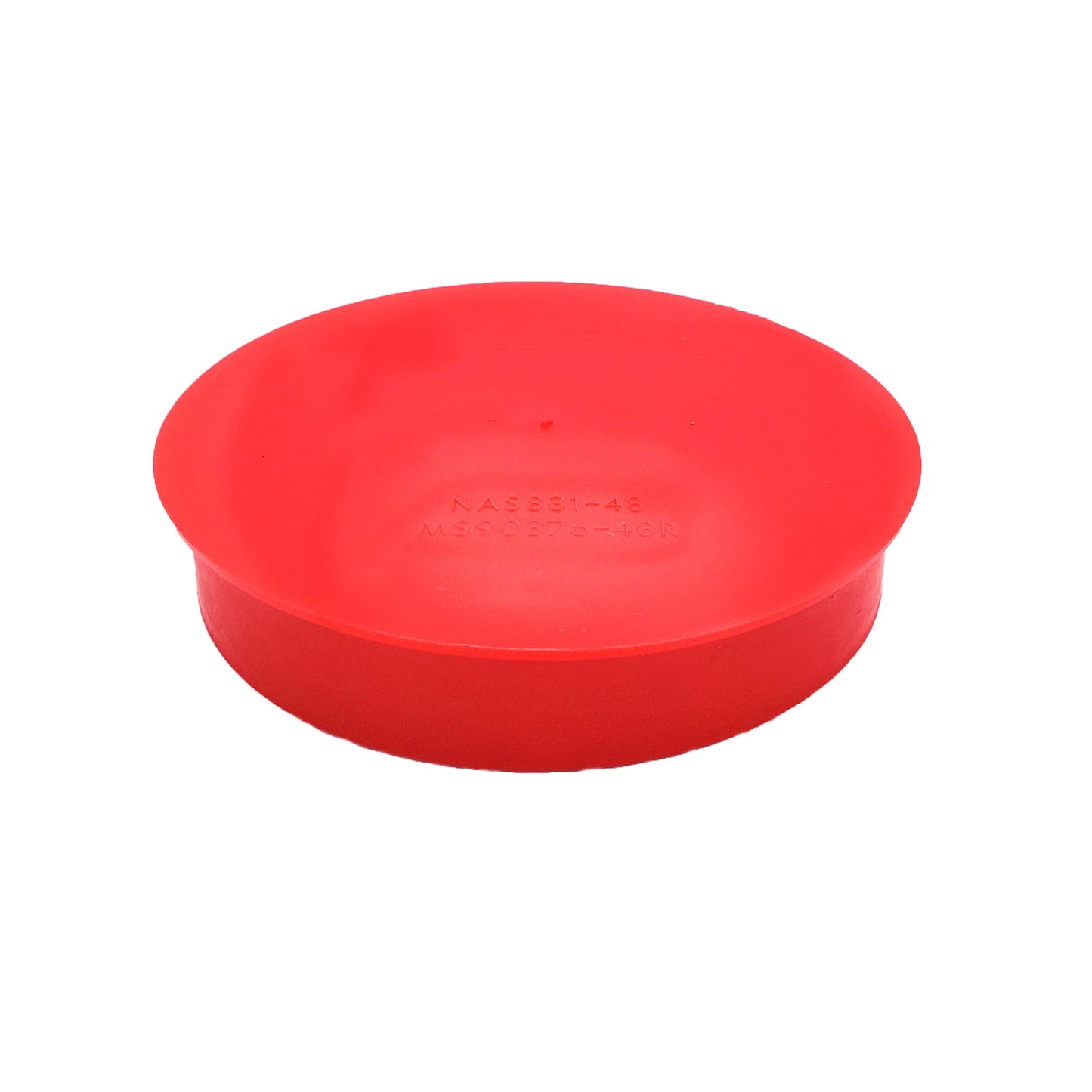

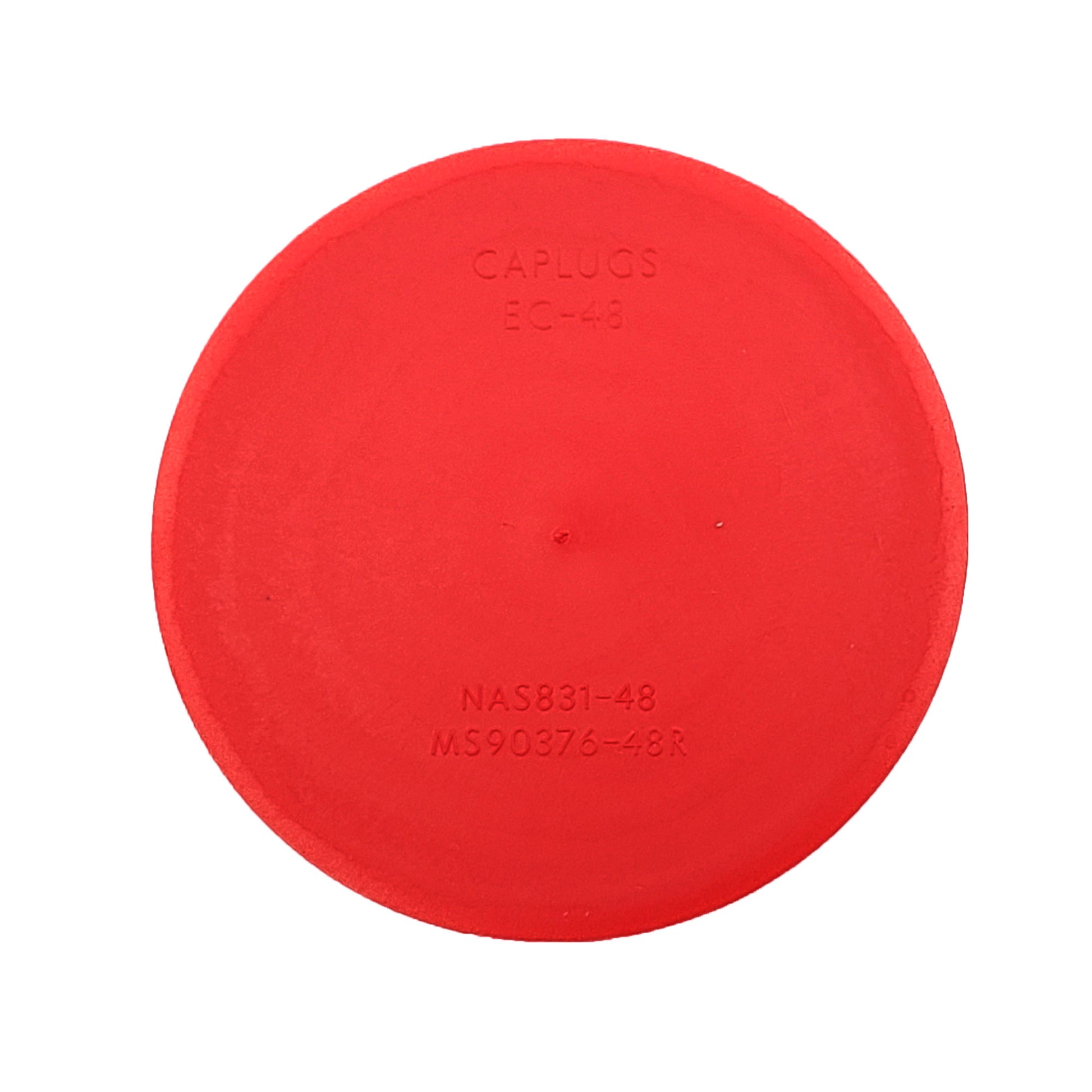

EC-48	3	2.960	3.23	0.60	3.05
EC-64	4	3.940	4.16	1.00	4.00
EC-80	5	4.944	5.12	1.25	5.00
