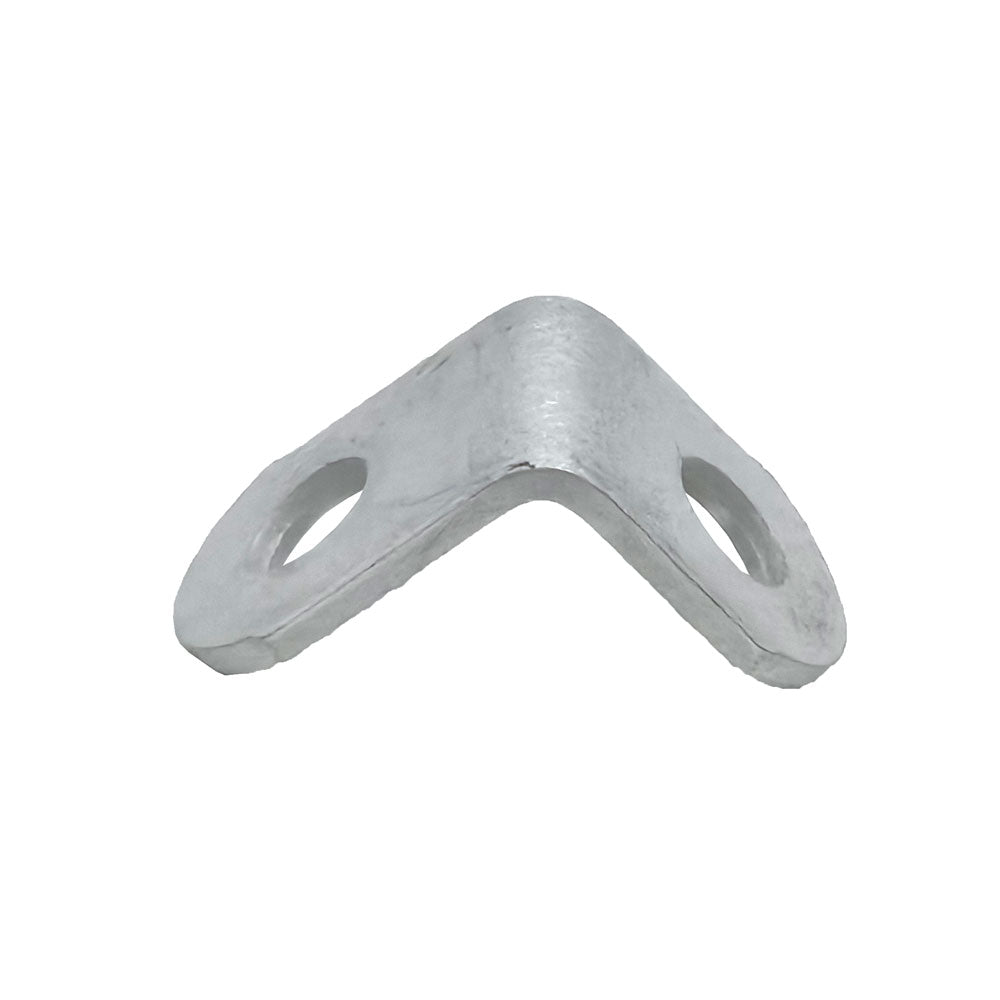

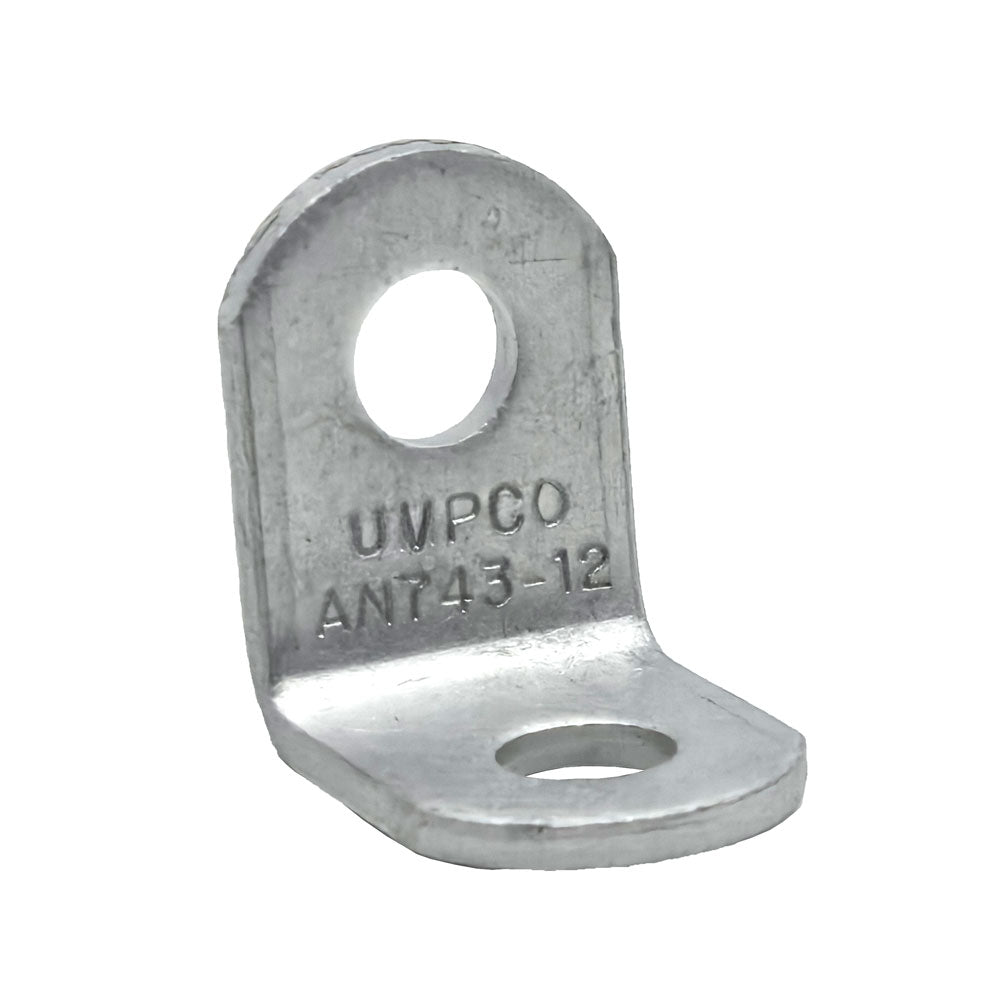

Aeronautical Std - Aluminum Bracket, AngleBracket Angle | AN743-12

Aeronautical Std - Aluminum Bracket, AngleBracket Angle | AN743-12

•  First Leg Length:  0.625 Inches Nominal
•  Second Leg Length:  0.690 Inches Nominal
•  Second Leg Width:  0.500 Inches Nominal
•  First Leg Hole Diameter:  0.204 Inches Nominal
•  Second Leg Hole Diameter:  0.204 Inches Nominal
•  Second Leg Distance From Edge To Hole Center Along Width:  0.250 Inches Nominal
•  Second Leg Distance From Edge To Hole Center Along Length:  0.250 Inches Nominal
•  First Leg Thickness:  0.063 Inches Nominal
•  Second Leg Thickness:  0.063 Inches Nominal
•  First Leg Width:  0.500 Inches Nominal
•  First Leg Distance From Edge To Hole Center Along Width:  0.250 Inches Nominal
•  First Leg Distance From Edge To Hole Center Along Length:  0.250 Inches Nominal
•  First Leg End Radius:  0.250 Inches Nominal
•  Second Leg End Radius:  0.250 Inches Nominal
•  First Leg Style:  End Radius
•  First Leg Hole Arrangement Style:  One Hole
•  Second Leg Style:  End Radius
•  Second Leg Hole Arrangement Style:  One Hole
•  Second Leg Relationship To First Leg:  Identical
•  First Leg Angle:  90.0 Degrees Nominal
•  Material:  Aluminum Alloy 2024
•  Material Document And C
