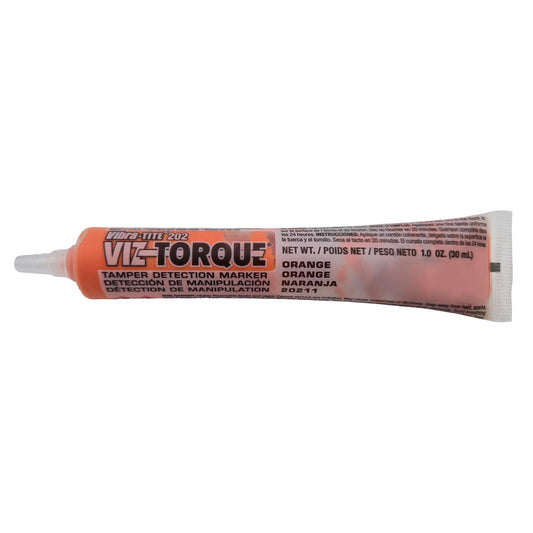

Vibra-Tite Viz-Torque® 202

Viz-Torque 202 Tamper Detection Marker is an inspection paste used to visually detect torque movement due to vibratory loosening or tampering of fittings, assemblies, nuts, bolts and studs. This quick-drying tamper proof torque marker identifies whether a part has been moved from its original position. Once dried in place, Viz-Torque 202 Tamper Detection Marker creates a seal for torque movement detection, which allows the dry and brittle material stripe to break, providing proof of fastener tampering or loosening. Viz-Torque 202 has good adhesion to most metals when applied to a clean, dry surface and is available in a selection of highly visible colors.

Size	1 oz, 16 oz
Viscosity Range (cP)	11000, 18000
Temp Range Low (°F)	-20
Temp Range High (°F)	300
Tack Free TIme	1
Specific Gravity	1.00
Physical Form	Paste
Open Time	B
Key Substrates	Metal
Function	Tamper Detection Marker
Flammability	Yes
Cure Type	Solvent Evaporation
Competes with Loctite®	Dykem® Cross Check® Dykem is a registered trademark and Cross Check is a trademark of Illinois Tool Works Inc. Delaware., F-900 Torque Seal®. Torque Seal is a registered trademark of Illinois Tool
Base Material	Isopropanol
Shelf Life (months)	12
DOT Limited Quantites	Cargo aircraft 60 L, Rail 5 L
Country of Origin	USA
Certification Indicator	D
Origin Criterion	B
Qualification Method	TS
HTS Code	3208200000
UNSPSC	31211513
